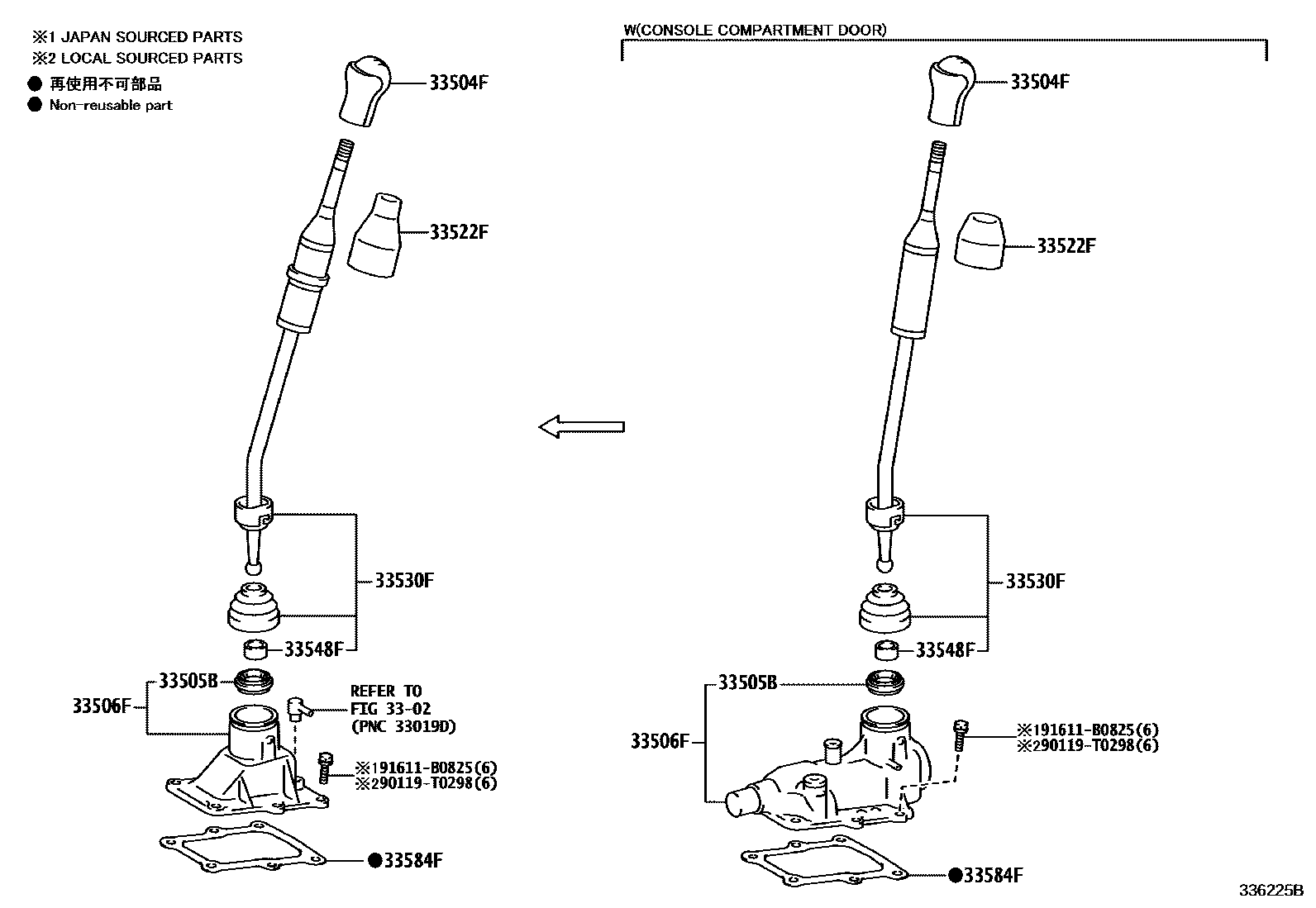

SHIFT LEVER & RETAINER
3302CLUTCH HOUSING & TRANSMISSION CASE (MTM)
33504FKNOB SUB-ASSY, SHIFT LEVER
ASIA COLD COUNTRY SPEC,BLACK,TRIM2#; BLACK,TRIM2#,3#
main33504-0K090-C0iGUN125..TX..S;GUN126..TD..6F..S..LA;GUN125..TD..6F..(ARL,IDN,PH,VN);GUN126..RHD..6F..S..(ARL,GEN,PKN);GUN125,13#..(TD,TS)..6F..S..(ARL,GEN,LA);GUN122,135..(TD,TX)..6F..L..(ARL,GEN,TH,VN)202006-202201
BLACK,TRIM2#
BLACK,TRIM2#,3#; DOOR TRIM-FABRIC & PAINT(SILVER),BLACK,TRIM2#; STEERING WHEEL-LEATHER,BLACK,TRIM2#
main33504-0K121-C0iGUN126..LHD..6FC..S..GEN;GGN125,GUN120..RHD..(H,S);GUN135..6FC..(H,S)..(GEN,PH,TH);GUN125,126,136,TGN126..(KD,MD,MMD,SD,SS,SX,TD,TX)..6FC..H..(ARL,GEN,IDN,KEN,LA,MA,MMR,PH,SA,TH,TWN,VN)202006-202301
BLACK,TRIM2#
BLACK,TRIM2#,3#
BLACK,TRIM2#; FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC),BLACK,TRIM2#
BLACK,TRIM2#
main33504-0K230-C0iGUN125,135..RHD..(KD,SD,SS)..L; GUN125..SX;GUN135..6F..S..SA;GUN125,126,136..(GD,KS,SD,SS)..6F..S202009-202111
BLACK,TRIM2#; FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC),BLACK,TRIM2#
BLACK,TRIM2#
main33504-0K270-C0iTGN121..TD..GEN;TGN121..(PS,TS)..5F..(ARL,GEN,PKN,TH);GUN112,122,123,TGN110,126,136..(PS,TD,TS)..5F..L..(GEN,IDN,LA,PH,PKN,TH)202006-202201
BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#,3#
BLACK,TRIM2#
MLM ADVENTURE PACKAGE
RUGGED X PACKAGE,BLACK,TRIM2#
33505BSEAT SUB-ASSY, SHIFT LEVER
main33505-0K010iGUN125,126,13#..(AD,AS)..6F; GUN136..LHD..6F..H;GUN135..(TD,TS)..6F..LA; GUN136..S..BZAG;GUN125,126,135..(AD,AS)..6F; TGN136..AD,AS;TGN126..AD..(H,S)202006-202110
ACTIVE SAFETY PACKAGE-WITHOUT,TYPE B:REFER 33-01; TYPE A:REFER 33-01; TYPE B:REFER 33-01; TYPE C:REFER 33-01
TYPE A:REFER 33-01; TYPE C:REFER 33-01
33506FRETAINER SUB-ASSY, CONTROL SHIFT LEVER (FOR FLOOR SHIFT)
TYPE A:REFER 33-01
TYPE B:REFER 33-01
TYPE A:REFER 33-01
ACTIVE SAFETY PACKAGE-WITHOUT,TYPE B:REFER 33-01; TYPE B:REFER 33-01
TYPE C:REFER 33-01
TYPE B:REFER 33-01
TYPE A:REFER 33-01
TYPE A:REFER 33-01
ASIA COLD COUNTRY SPEC
FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)
main33570-0K080iGUN122,TGN121..5F..H;TGN121..5F..ARL..CBU;GUN122,TGN136..S..(GEN,LA,SA)202006-202110
TYPE A:REFER 33-01
main33570-0K090iGUN122,TGN121..5F..H;TGN121..5F..ARL..CBU;GUN122,TGN136..S..(GEN,LA,SA)202006-202107
TYPE B:REFER 33-01
main33570-0K100iGUN122,TGN121..5F..H;TGN121..5F..ARL..CBU;GUN122,TGN136..S..(GEN,LA,SA)202006-202110
TYPE C:REFER 33-01
TYPE A:REFER 33-01
TYPE B:REFER 33-01
33522FSEAT, SHIFT LEVER PLATE (FOR FLOOR SHIFT)
BLACK,TRIM2#,3#
BLACK,TRIM2#,3#
33530FLEVER ASSY, SHIFT (FOR FLOOR SHIFT)
FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)
33548FBUSH, NO.1, SHIFT LEVER (FOR FLOOR SHIFT)
33584FGASKET, CONTROL SHIFT LEVER RETAINER (FOR FLOOR SHIFT)
TYPE B:REFER 33-01,TYPE A:REFER 33-01
main33584-0K020iGUN122,13#..(KS,SD,SS,SX,TD,TS,TX)..6F; GUN122,13#..6F..(GEN,KEN,PH,SA,TH,VN)202006-202111
TYPE A:REFER 33-01; TYPE B:REFER 33-01
ASIA COLD COUNTRY SPEC,TYPE B:REFER 33-01; TYPE B:REFER 33-01
TYPE B:REFER 33-01
FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)
TYPE A:REFER 33-01,TYPE C:REFER 33-01
90119T0298
main90119-T0298
91611B0825
main91611-B0825
10 parts on this diagram · 8 diagrams in section
