HORN
86510HORN ASSY, HIGH PITCHED
W(INMETRO MARK)
BRAZIL SPEC,W(INMETRO MARK); W(INMETRO MARK)
main86510-0K010iTGN126..M..GCC;KUN125..TXT..GEN;GUN125..TDC..IDN;GUN126..S..(GEN,LA);GUN122..5F..(GEN,TH);TGN121..(L,S)..(GEN,TH);TGN121..(M,X)..(GCC,GEN,TH);KUN125..(ADC,ASC,TDC,TSC)..(GEN,IDN,LA);GGN125,GUN122,125,135,KUN125..(H,M)..(ARL,GCC,LA,PH);GUN126,136..(H,L,M,X)..(ARL,GCC,GEN,KEN,LA,PH,TAIW,TH);GUN112,123,125,135,KUN122,126,13#,TGN126,136..GEN,LA,TH201505-202102
main86510-0K070iGUN136..S..BZAGT;GUN126,KUN126..RHD..M..SA;GUN125,126,135,TGN13#..BZAGT;GGN125,135,GUN136,TGN126,128..(H,M)..(BZAGT,SA)201511-202010
86510AHORN ASSY, SECURITY
main86560-0K020supersedes 86560-0K080iGUN125,KUN125,126..LHD..M..SA;GGN125,135,GUN122,125,126,13#,TGN120,136..RHD..SA201505-201706
ANTI-THEFT SYSTEM-WITH(IMMOBILIZER); ANTI-THEFT SYSTEM-WITHOUT; ASEAN GENERAL SPEC&ANTI-THEFT SYSTEM-WITH(IMMOBILIZER); ASEAN GENERAL SPEC&ANTI-THEFT SYSTEM-WITHOUT; ASIA COLD COUNTRY SPEC&ANTI-THEFT SYSTEM-WITH(IMMOBILIZER); ASIA COLD COUNTRY SPEC&ANTI-THEFT SYSTEM-WITHOUT; AZERBAIJAN SPEC(EURO 4 REGULATION)&ANTI-THEFT SYSTEM-WITH(IMMOBILIZER); AZERBAIJAN SPEC(EURO 4 REGULATION)&ANTI-THEFT SYSTEM-WITHOUT; CAMBODIA SPEC&ANTI-THEFT SYSTEM-WITH(IMMOBILIZER); CAMBODIA SPEC&ANTI-THEFT SYSTEM-WITHOUT; OCEANIA GENERAL SPEC&ANTI-THEFT SYSTEM-WITH(IMMOBILIZER); OCEANIA GENERAL SPEC&ANTI-THEFT SYSTEM-WITHOUT
86520HORN ASSY, LOW PITCHED
W(INMETRO MARK)
BRAZIL SPEC,W(INMETRO MARK); W(INMETRO MARK)
9011908718
main90119-08718
90119T0130
main90119-T0130

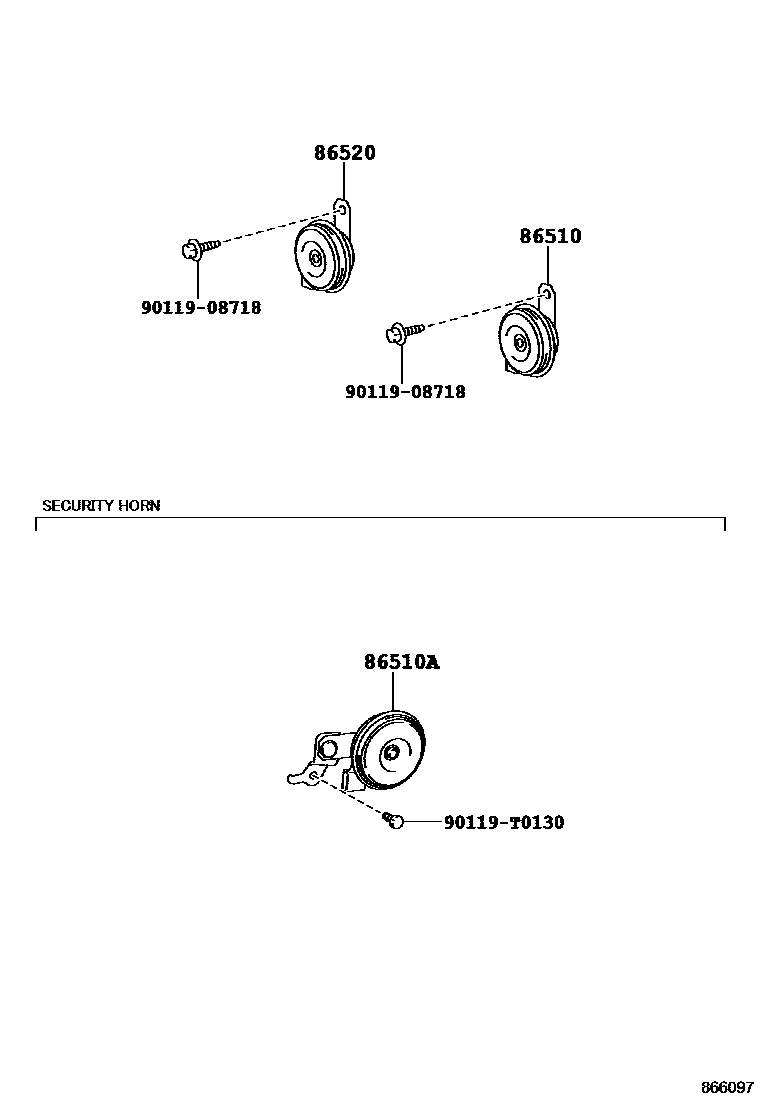

5 parts on this diagram · 1 diagram in section
