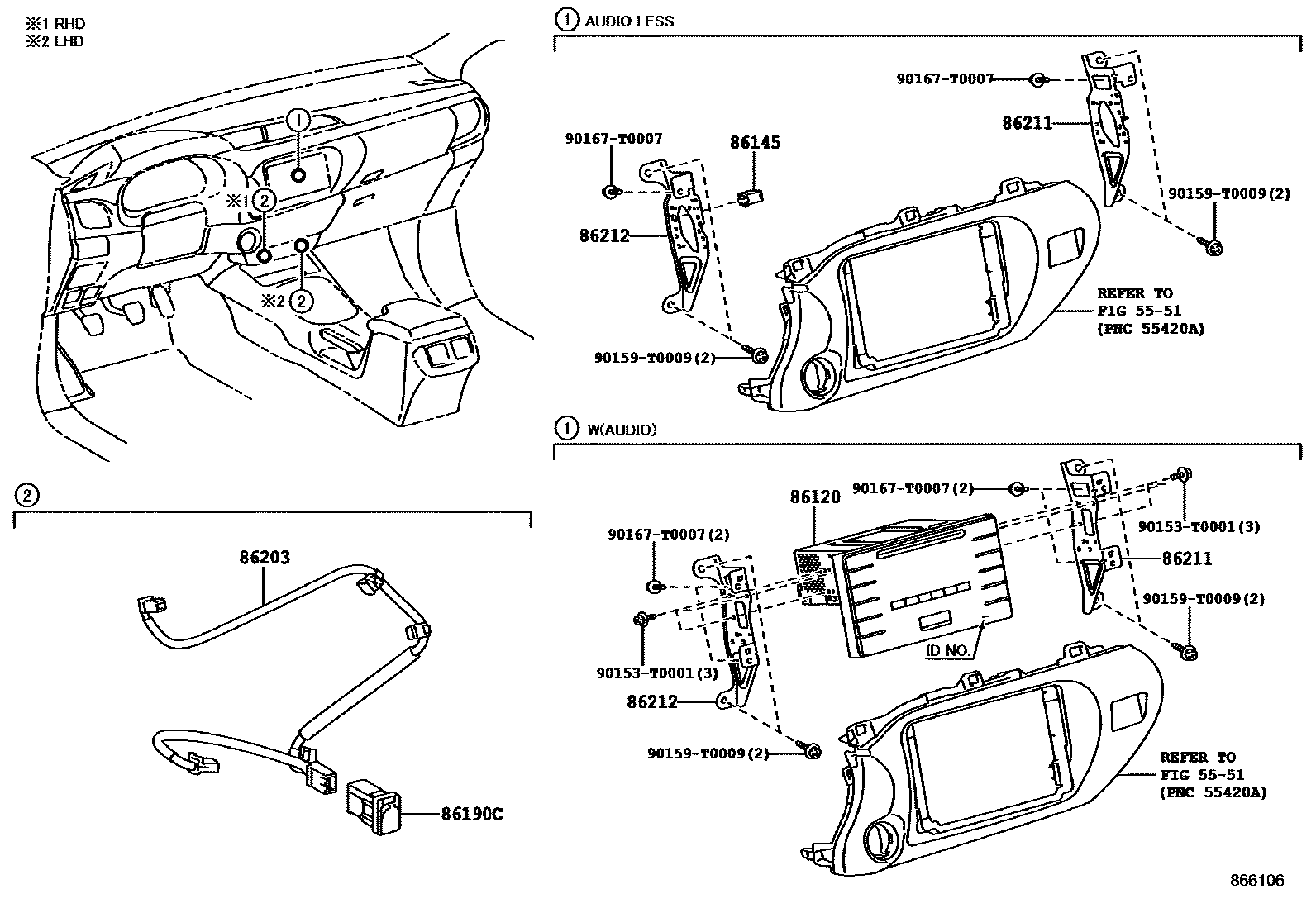

RADIO RECEIVER & AMPLIFIER & CONDENSER
5551INSTRUMENT PANEL & GLOVE COMPARTMENT
86120RECEIVER ASSY, RADIO
FUJITSU TEN,ID100429
main86120-0KA10iKUN122..RHD..TDC..L;GUN125,135,KUN125,126..RHD..L..GEN; KUN125..RHD..SA;GUN126,KUN135,TGN126..RHD..(H,L,S)..(GEN,SA); KUN125..TSC..S;KUN126..6F..S..GEN;KUN126..RHD..5FC..H..GEN;KUN122..RHD..(SSC,TSC)..(S,X)201505-201706
FUJITSU TEN,ID100430; FUJITSU TEN,ID100430,AUDIO-AM/FM & CD & *BT & 4SPEAKER; FUJITSU TEN,ID100430,STEERING SWITCH-WITH(AUDIO & TELEPHONE)&AUDIO-AM/FM & CD & *BT & 4SPEAKER
main86120-0KA11iGUN125..KDC;KUN122..RHD..TDC..L;GUN122,125,126..RHD..L..GEN; GUN126..S..SA;GUN125..S..KEN;KUN125..RHD..SSC;GUN126..RHD..6F..H..GEN;GUN125,135,KUN125..RHD..(SDC,SXT)..X;GUN136,KUN135,TGN126..RHD..(L,S)..(GEN,SA)201707-202102
FUJITSU TEN,ID100430; FUJITSU TEN,ID100430,STEERING SWITCH-WITH(AUDIO & TELEPHONE)&AUDIO-AM/FM & CD & *BT & 4SPEAKER
main86120-0KA20supersedes 86120-0KE50iGUN125..LHD..TDC..S..GEN;KUN125,126..LHD..(M,S)..SA;GUN122,125,126,LAN125,TGN126..LHD..(SDC,SSC,SXT,TSC)..(M,S)..(DEFI,HDCR,HTWC)..(GEN,SA); TGN121..SA;KUN122..TDC..L..GCC;KUN122..LHD..(SDC,TSC)..(L,X);GUN125,TGN121..LHD..(GCC,SA)..IV3;GUN125..LHD..(SDC,TDC,TSC)..(L,X)..(GCC,SA);GUN112,122,135,KUN112,125,LAN125,TGN126..LHD..(L,X)..(GCC,SA)201505-202009
FUJITSU TEN,ID100431; FUJITSU TEN,ID100431,STEERING SWITCH-WITH(AUDIO & TELEPHONE)&AUDIO-AM/FM & CD & *BT & 4SPEAKER
main86120-0KA40iGUN125,KUN125,TGN126..(L,X)..(BZAGT,LA);GUN126,135,KUN126,135,TGN136..LHD..(L,X)..(DCR,HDCR,HTWC); TGN121..GEN; TGN121..L..GEN;KUN122..LHD..X..GEN;KUN122,125..TXT..L..GEN; TGN121..X..GEN; TGN136..M..LA;GUN125,126,135,KUN125,126,13#,TGN126..(5F,5FC,6F)..(M,S)..LA; TGN136..S..LA201505-201610
FUJITSU TEN,ID100432; FUJITSU TEN,ID100432,AUDIO-AM/FM(10KHZ) & CD & *BT & 4SPEAKER; FUJITSU TEN,ID100432,COLOMBIA SPEC&STEERING SWITCH-WITH(AUDIO & TELEPHONE)&AUDIO-AM/FM(10KHZ) & CD & *BT & 4SPEAKER; FUJITSU TEN,ID100432,CS AMERICA SPEC&STEERING SWITCH-WITH(AUDIO & TELEPHONE)&AUDIO-AM/FM(10KHZ) & CD & *BT & 4SPEAKER; FUJITSU TEN,ID100432,ECUADOR SPEC&STEERING SWITCH-WITH(AUDIO & TELEPHONE)&AUDIO-AM/FM(10KHZ) & CD & *BT & 4SPEAKER; FUJITSU TEN,ID100432,MEXICO SPEC&STEERING SWITCH-WITH(AUDIO & TELEPHONE)&AUDIO-AM/FM(10KHZ) & CD & *BT & 4SPEAKER; FUJITSU TEN,ID100432,STEERING SWITCH-WITH(AUDIO & TELEPHONE)&AUDIO-AM/FM(10KHZ) &CD & *BT & 4SPEAKER
main86120-0KA41iGUN122..TDC..GEN;GUN125,KUN125,TGN126..(L,X)..(BZAGT,LA);GUN126,135,KUN126,135,TGN136..LHD..(L,X)..(DCR,HDCR,HTWC)..(BZAGT,GEN,LA); GUN125,KUN125..TXT..S..GEN; GUN126..S..LA;KUN136..TDC..LA;GUN126,TGN136..MTM..M..LA;GUN125,13#,KUN125,126,135,TGN126..(M,S)..LA; TGN121..GEN; TGN121..L..GEN;KUN122..LHD..X..GEN;KUN122,125..TXT..L..GEN; TGN121..X..GEN; TGN136..S..LA201611-201812
FUJITSU TEN,ID100432; FUJITSU TEN,ID100432,AUDIO-AM/FM(10KHZ) & CD & *BT & 4SPEAKER; FUJITSU TEN,ID100432,COLOMBIA SPEC&STEERING SWITCH-WITH(AUDIO & TELEPHONE)&AUDIO-AM/FM(10KHZ) & CD & *BT & 4SPEAKER; FUJITSU TEN,ID100432,CS AMERICA SPEC&AUDIO-AM/FM(10KHZ) & CD & *BT & 4SPEAKER; FUJITSU TEN,ID100432,CS AMERICA SPEC&STEERING SWITCH-WITH(AUDIO & TELEPHONE)&AUDIO-AM/FM(10KHZ) & CD & *BT & 4SPEAKER; FUJITSU TEN,ID100432,ECUADOR SPEC&STEERING SWITCH-WITH(AUDIO & TELEPHONE)&AUDIO-AM/FM(10KHZ) & CD & *BT & 4SPEAKER; FUJITSU TEN,ID100432,MEXICO SPEC&STEERING SWITCH-WITH(AUDIO & TELEPHONE)&AUDIO-AM/FM(10KHZ) & CD & *BT & 4SPEAKER; FUJITSU TEN,ID100432,STEERING SWITCH-WITH(AUDIO & TELEPHONE)&AUDIO-AM/FM(10KHZ) &CD & *BT & 4SPEAKER
main86120-0KA42iGUN125,126,13#,TGN126..ADC..(M,S)..LA; GUN135,TGN126..(ADC,ASC)..(L,X);GUN125,126,TGN136..(ADC,ASC,TSC)..(L,X)..(HDCR,HTWC)..(BZAGT,LA); TGN136..S..LA201901-201907
DENSO TEN,ID=100432; DENSO TEN,ID=100432,AUDIO-AM/FM(10KHZ) & CD & *BT & 4SPEAKER; DENSO TEN,ID=100432,STEERING SWITCH-WITH(AUDIO & TELEPHONE)&AUDIO-AM/FM(10KHZ) & CD & *BT & 4SPEAKER
FUJITSU TEN,ID100434; FUJITSU TEN,ID100434,STEERING SWITCH-WITH(AUDIO & TELEPHONE)&AUDIO-AM/FM(10KHZ) &CD & *BT & 4SPEAKER
main86120-0KD22iGUN125,126,13#,TGN126..ADC..(M,S)..LA; GUN125,126,135,TGN126,136..(ADC,ASC)..(L,X)..(HDCR,HTWC); TGN136..S..LA201907-202010
DENSO TEN,ID=100436; DENSO TEN,ID=100436,AUDIO-AM/FM(10KHZ) & CD & *BT & 4SPEAKER; DENSO TEN,ID=100436,STEERING SWITCH-WITH(AUDIO & TELEPHONE)&AUDIO-AM/FM(10KHZ) & CD & *BT & 4SPEAKER
FUJITSU TEN,ID100435; FUJITSU TEN,ID100435,AUDIO-AVN & DVD & *BT & DIGITAL TV; FUJITSU TEN,ID100435,STEERING SWITCH-WITH(AUDIO & TELEPHONE)&AUDIO-AM/FM(10KHZ) &CD & *BT & 4SPEAKER
main86120-0KA50iGUN122,KUN122..RHD..X..GEN;GUN126,KUN125,126..RHD..TDC..L..GEN; GUN125,KUN125..TSC..X..GEN; GUN126..6F..S..GEN;KUN126..RHD..5FC..M..GEN;GUN126..RHD..6FC..(M,S)..GEN;GUN125,KUN125,126..RHD..TDC..S..GEN201505-202005
FUJITSU TEN,ID100433,CS AMERICA SPEC&AUDIO-AM/FM(10KHZ) & CD & *BT & 4SPEAKER; FUJITSU TEN,ID100433,CS AMERICA SPEC&STEERING SWITCH-WITH(AUDIO & TELEPHONE)&AUDIO-AM/FM(10KHZ) & CD & *BT & 4SPEAKER; FUJITSU TEN,ID100433,STEERING SWITCH-WITH(AUDIO & TELEPHONE)&AUDIO-AM/FM(10KHZ) &CD & *BT & 4SPEAKER
PIONEER,ID=P10797,AUDIO-AM/FM & CD & *BT & RDS & 4SPEAKER; PIONEER,ID=P10797,KAZAKHSTAN SPEC(EURO 2 REGULATION)&AUDIO-AM/FM & CD & *BT & RDS& 4SPEAKER; PIONEER,ID=P10797,KAZAKHSTAN SPEC(EURO 4 REGULATION)&AUDIO-AM/FM & CD & *BT & RDS& 4SPEAKER; PIONEER,ID=P10797,KAZAKHSTAN SPEC(EURO 5 REGULATION)&AUDIO-AM/FM & CD & *BT & RDS& 4SPEAKER
PIONEER,ID=P10798; PIONEER,ID=P10798,AUDIO-WITHOUT & WITH(AUDIO LESS COVER); PIONEER,ID=P10798,AUDIO-WITHOUT&WITH(AUDIO LESS COVER)&4SPEAKER
PIONEER,ID=P10799; PIONEER,ID=P10799,AUDIO-AM/FM & CD & *BT & RDS & 4SPEAKER; PIONEER,ID=P10799,AUDIO-WITHOUT&WITH(AUDIO LESS COVER)&4SPEAKER
FUJITSU TEN,ID100502,AUDIO-AM/FM & CD & *BT & 4SPEAKER
PIONEER,ID=P11298,AZERBAIJAN SPEC(EURO 4 REGULATION)&AUDIO-AM/FM & CD & *BT & RDS& 4SPEAKER; PIONEER,ID=P11298,KAZAKHSTAN SPEC(EURO 2 REGULATION)&AUDIO-AM/FM & CD & *BT & RDS& 4SPEAKER; PIONEER,ID=P11298,KAZAKHSTAN SPEC(EURO 4 REGULATION)&AUDIO-AM/FM & CD & *BT & RDS& 4SPEAKER; PIONEER,ID=P11298,KAZAKHSTAN SPEC(EURO 5 REGULATION)&AUDIO-AM/FM & CD & *BT & RDS& 4SPEAKER
86145CONNECTOR, ANTENNA MALE
main86145-52010iGUN135..SSC..X;GUN126..6FC..GEN;GUN122..LHD..S..DCR;KUN122,TGN120,121..GCC,GEN,PKN,SA;GUN125..TDC..(L,M,S)..(GCC,LA,PH,VN);GUN135,TGN136..LHD..(L,X)..(BZAGT,SA);GUN126,TGN126..GCC,LA,MA,PH,PKN,TAIW,VN;GUN126,TGN126..LHD..MTM..(H,L,X)..(GEN,SA);GUN126..(ASC,TDC)..6F..(M,S,X)..(BZAGT,GEN);GUN125..LHD..(SDC,TDC,TSC)..(L,X)..(GEN,LA,SA);GUN122,TGN136..(L,M,X)..(GCC,GEN,LA,PH,PKN,SA);GUN125..LHD..(ADC,TSC,TXT)..(L,S)..(GCC,GEN,LA);GUN135,KUN125,126,135..GCC,GEN,IDN,KEN,LA,MA,PH,PKN,VN;GUN125..RHD..(KDC,MDC,MSC,TDC,TSC,TXT)..(GEN,IDN,KEN,MA);GUN125..(ADC,ASC,KSC,SSC,TXT)..(L,M,X)..(BZAGT,GEN,KEN,LA,SA);GGN125,GUN112,136,KUN112,136,TGN11#..(L,M,S,X)..(GCC,GEN,IDN,LA);GUN126,KUN125,LAN125,TGN138..LHD..(ADC,SDC,SSC)..(L,X)..(BZAGT,SA)201505-202105
86190CADAPTER ASSY, STEREO JACK, NO.1
main86190-0K010iGUN126,136,TGN126..ADC..M..LA;GUN126,TGN138..S..(HTWCF,IART); GUN126,TGN138..S..(HTWCF,IART); GUN126..S..HDCR..BZAGT;GUN126,TGN138..(H,M)..BZAGT;GGN125,GUN125,13#,TGN128..(H,M,S)..BZAGT201907-202010
AUDIO-8INCH *DA & *BT; AUDIO-8INCH AVN & *BT & DIGITAL TV
86203WIRE, RADIO
main86203-71130iGUN126..6F..HDCR..BZAGT;GUN126,TGN138..6FC..(H,M)..BZAGT;GGN125,GUN125,13#,TGN128..(H,M,S)..(HDCR,HTWC,HTWCF)..BZAGT; KUN126,TGN136..M..LA;GUN126,136,TGN126..ADC..M..LA;GUN136,KUN136..LHD..(DCR,IART);GUN126,TGN138..S..(HTWCF,IART)201505-201907
AUDIO-*DA(10KHZ) & DVD & *BT
main86203-71200iGUN126,136,TGN126..ADC..M..LA;GUN126,TGN138..S..(HTWCF,IART); GUN126,TGN138..S..(HTWCF,IART); GUN126..(H,M)..BZAGT;GUN126..S..HDCR..BZAGT;GUN125,13#..(H,M,S)..BZAGT;GGN125,TGN128,138..ADC..(H,M)201907-202010
AUDIO-8INCH *DA & *BT; AUDIO-8INCH AVN & *BT & DIGITAL TV
AUDIO-8INCH *DA & *BT & RDS & DAB
86211BRACKET, RADIO, NO.1
main86211-KK030supersedes 86211-KK050iGGN125,TGN136..SDC;GUN125,135..RHD..S..SA;GUN126,136..RHD..M..SA; GUN122,TGN120..RHD..SA201505-201906
AUDIO-AM/FM & CD & *BT & RDS & 4SPEAKER
main86211-KK050supersedes 86211-KK030iGUN135..SSC..X;GUN126..6FC..GEN;GUN122..LHD..S..DCR;KUN122,TGN120,121..GCC,GEN,PKN,SA;GUN125..TDC..(L,M,S)..(GCC,LA,PH,VN);GUN135,TGN136..LHD..(L,X)..(BZAGT,SA);GUN126,TGN126..GCC,LA,MA,PH,PKN,TAIW,VN;GUN126,TGN126..LHD..MTM..(H,L,X)..(GEN,SA);GUN126..(ASC,TDC)..6F..(M,S,X)..(BZAGT,GEN);GUN125..LHD..(SDC,TDC,TSC)..(L,X)..(GEN,LA,SA);GUN122,TGN136..(L,M,X)..(GCC,GEN,LA,PH,PKN,SA);GUN125..LHD..(ADC,TSC,TXT)..(L,S)..(GCC,GEN,LA);GUN135,KUN125,126,135..GCC,GEN,IDN,KEN,LA,MA,PH,PKN,VN;GUN125..RHD..(KDC,MDC,MSC,TDC,TSC,TXT)..(GEN,IDN,KEN,MA);GUN125..(ADC,ASC,KSC,SSC,TXT)..(L,M,X)..(BZAGT,GEN,KEN,LA,SA);GGN125,GUN112,136,KUN112,136,TGN11#..(L,M,S,X)..(GCC,GEN,IDN,LA);GUN126,KUN125,LAN125,TGN138..LHD..(ADC,SDC,SSC)..(L,X)..(BZAGT,SA)201505-202105
main86211-KK100iGUN125..ADC..S..LA;GUN126,135..(L,X)..BZAGT;GUN125,TGN136..(ADC,ASC)..(L,X);GUN126,13#,TGN126..(ADC,ASC)..LA; GUN126,136,TGN126..ADC..M..LA; TGN136..S..LA;GGN125,GUN125,126,13#,TGN128,138..(H,M,S)..BZAGT201907-202010
AUDIO-8INCH *DA & *BT; AUDIO-AM/FM(10KHZ) & CD & *BT & 4SPEAKER
86212BRACKET, RADIO, NO.2
main86212-KK030supersedes 86212-KK050iGUN135..GEN,MA;GUN135..SSC..X;KUN122..GCC,SA;KUN122..TSC..X;GUN135..6FC..S..VN;GUN126,TGN126..GCC;KUN122,126..RHD..MTM..S;KUN122..LHD..(M,S)..GEN;KUN125..LHD..TDC..S..GEN;KUN125..LHD..M..(GCC,GEN);GUN126..RHD..6F..(M,S)..GEN;GUN135,TGN121..LHD..(GCC,SA);KUN122,125..RHD..TDC..L..GEN;GUN125..TDC..(M,S)..(GCC,PH);GUN125..LHD..(SSC,TXT)..(M,X);GUN122..(L,M,S)..DCR..(GCC,GEN);GUN125,KUN125..(MDC,TSC)..(L,S);GUN126,KUN126..ATM..(H,L)..(GEN,MA);GUN125,KUN125..LHD..(SDC,TDC)..(L,X)..(GCC,SA);GUN125..RHD..(KDC,MDC,MSC,SSC,TDC)..(H,L,M,X)..(GEN,KEN,MA,SA);GGN125,GUN112,KUN112,135,TGN11#,120..(SSC,TDC,TSC)..(GCC,GEN,SA);GUN122,LAN125,TGN126..LHD..(SDC,SSC,TSC)..X..(DCR,DEFI,HTWC)..(GEN,SA); TGN138..5F..M;GUN125..S..KEN;GUN136..RHD..(H,S);GUN136..M..(ARL,TH);TGN136..(TDC,TXT)..S;TGN126..6FC..(GEN,SA);GUN126..RHD..6F..H..GEN;GUN125,135..RHD..SDC..X;GUN125..LHD..TDC..S..GEN;GUN126,KUN125..RHD..(S,X)..SA;GUN126,135..(KDC,TDC,TSC,TXT)..(ARL,KEN,TH);GUN122,125,126..LHD..(SDC,SSC,TSC)..(M,S)..HDCR..(GEN,SA);GGN12#,GUN112,120,122,123,125,TGN121..(SXT,TDC,TSC,TXT)..(ARL,SA,TH);GUN126,KUN125,TGN126,136..LHD..MTM..(M,S)..(DCR,HTWC,IART)..(BZAGT,SA);GGN135,GUN136,KUN126,135,LAN125..(M,S)..(DCR,DEFI,HTWC,IART)..(BZAGT,SA)201505-202102
AUDIO-AM/FM & CD & *BT & 4SPEAKER
main86212-KK050supersedes 86212-KK030iGUN135..SSC..X;GUN126..6FC..GEN;GUN122..LHD..S..DCR;KUN122,TGN120,121..GCC,GEN,PKN,SA;GUN125..TDC..(L,M,S)..(GCC,LA,PH,VN);GUN135,TGN136..LHD..(L,X)..(BZAGT,SA);GUN126,TGN126..GCC,LA,MA,PH,PKN,TAIW,VN;GUN126,TGN126..LHD..MTM..(H,L,X)..(GEN,SA);GUN126..(ASC,TDC)..6F..(M,S,X)..(BZAGT,GEN);GUN125..LHD..(SDC,TDC,TSC)..(L,X)..(GEN,LA,SA);GUN122,TGN136..(L,M,X)..(GCC,GEN,LA,PH,PKN,SA);GUN125..LHD..(ADC,TSC,TXT)..(L,S)..(GCC,GEN,LA);GUN135,KUN125,126,135..GCC,GEN,IDN,KEN,LA,MA,PH,PKN,VN;GUN125..RHD..(KDC,MDC,MSC,TDC,TSC,TXT)..(GEN,IDN,KEN,MA);GUN125..(ADC,ASC,KSC,SSC,TXT)..(L,M,X)..(BZAGT,GEN,KEN,LA,SA);GGN125,GUN112,136,KUN112,136,TGN11#..(L,M,S,X)..(GCC,GEN,IDN,LA);GUN126,KUN125,LAN125,TGN138..LHD..(ADC,SDC,SSC)..(L,X)..(BZAGT,SA)201505-202105
main86212-KK100iGUN125..ADC..S..LA;GUN126,135..(L,X)..BZAGT;GUN125,TGN136..(ADC,ASC)..(L,X);GUN126,13#,TGN126..(ADC,ASC)..LA; GUN126,136,TGN126..ADC..M..LA; TGN136..S..LA;GGN125,GUN125,126,13#,TGN128,138..(H,M,S)..BZAGT201907-202010
AUDIO-8INCH *DA & *BT; AUDIO-AM/FM(10KHZ) & CD & *BT & 4SPEAKER
90153T0001
main90153-T0001
90159T0009
main90159-T0009
90167T0007
main90167-T0007
10 parts on this diagram · 1 diagram in section
