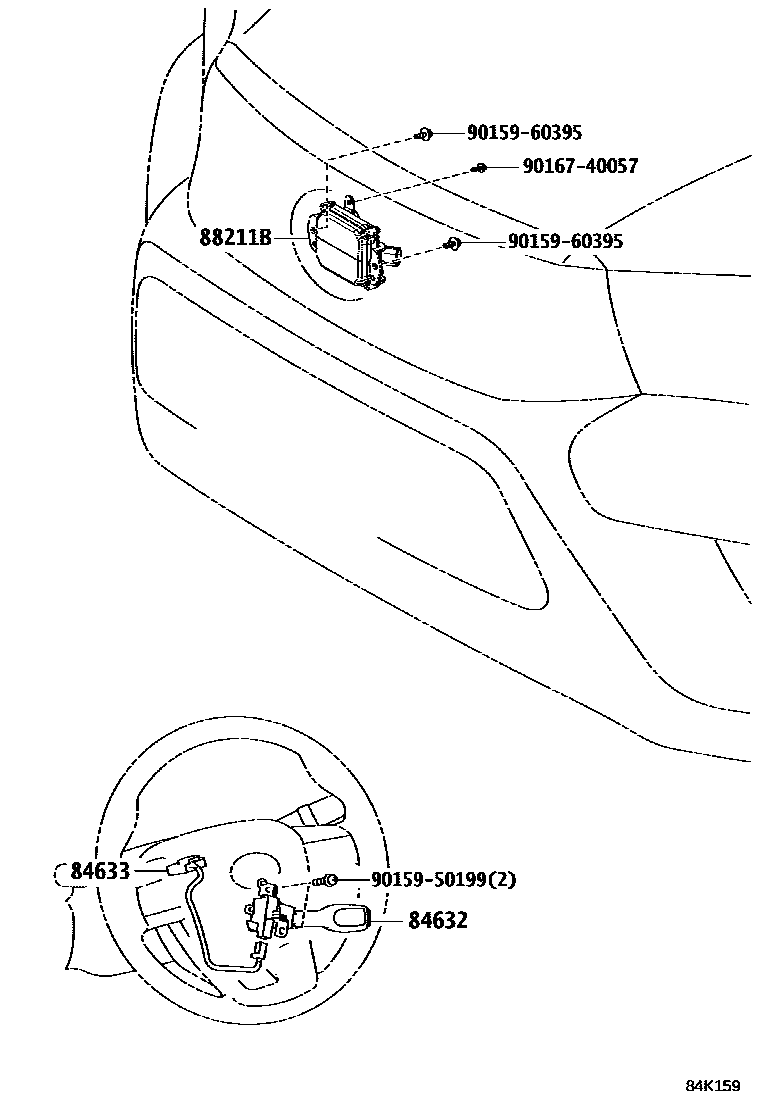

CRUISE CONTROL (AUTO DRIVE)

84632SWITCH, CRUISE CONTROL MAIN

main84632-34011iGUN125..(TDC,TSC)..6F..ARL;GUN126,13#,TGN121..(TDC,TSC)..(S,X)..ARL;GUN125,TGN126..TDC..6FC..(M,X)..(ARL,GEN); GUN126,136..TDC..M..ARL201505-201905

CRUISE CONTROL-WITH

main84632-47010iGUN125,126,13#,TGN121..(TDC,TSC)..(ARL,TAIW)201905-202005

84633WIRE, CRUISE CONTROL SWITCH

main84633-42040iGUN125,126,13#,TGN121..(TDC,TSC)..(ARL,TAIW)201905-202005

main84633-48020supersedes 84633-42030iGUN125..(TDC,TSC)..6F..ARL;GUN126,13#,TGN121..(TDC,TSC)..(S,X)..ARL;GUN125,TGN126..TDC..6FC..(M,X)..(ARL,GEN); GUN126,136..TDC..M..ARL201505-201905

CRUISE CONTROL-WITH

main84633-42030iGUN125..LHD..SDC..X;GUN122,135,TGN121..LHD..SA; TGN121..SA201601-202009

STEERING SWITCH-WITH(AUDIO & TELEPHONE)

88211BSENSOR ASSY, MILLIMETER WAVE RADAR

main88210-33120iGUN125,126,13#,TGN121..(TDC,TSC)..(ARL,TAIW)201905-202005

P/N LABEL=8821033120

9015950199

main90159-50199

9015960395

main90159-60395

9016740057

main90167-40057

6 parts on this diagram · 1 diagram in section
