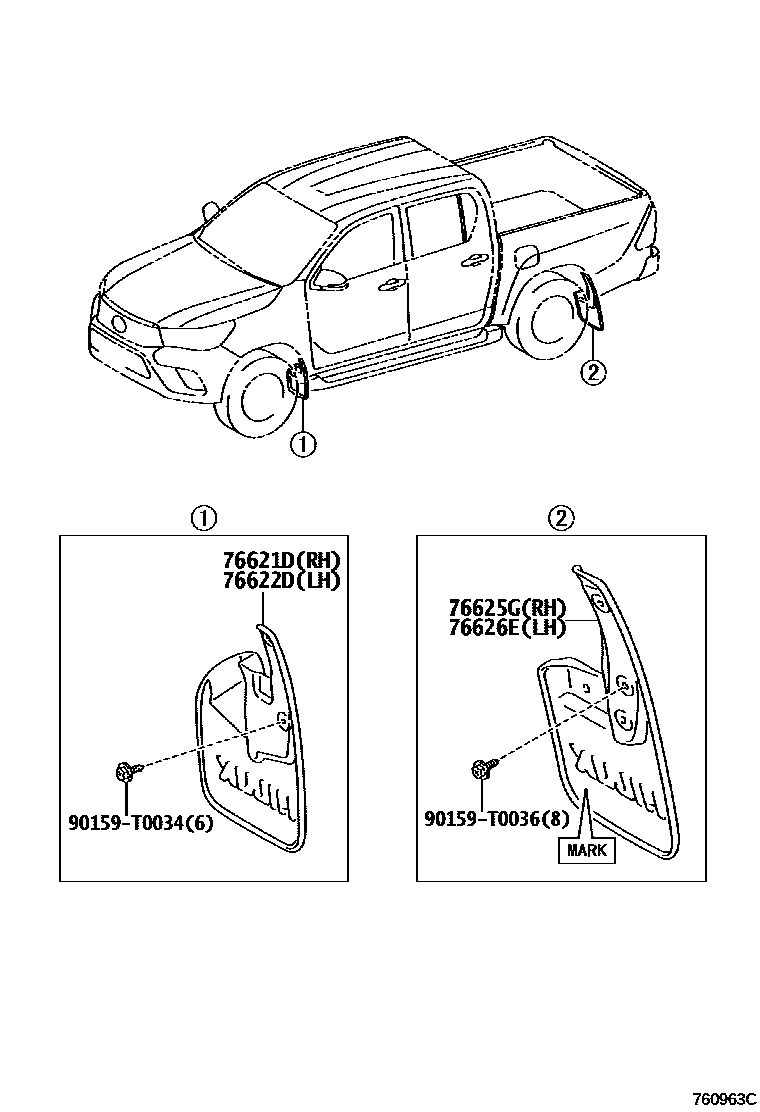

SPOILER & SIDE MUDGUARD
76621DMUDGUARD, FRONT FENDER, RH
main76621-0K130iKUN122..S..IV3;KUN125..TDC..X;GUN135,KUN125..TSC;GUN122,135..(L,S)..PH;GUN125..RHD..6F..L..GEN;KUN125..RHD..TDC..L..GEN;TGN136..(TDC,TSC)..X..LA;GGN120,GUN120,122..6F,6FC;KUN126,135..(TDC,TSC)..(L,X);GUN122,123,KUN122,TGN121..ARL,PKN;GUN122,126,136..TSC..S..HDCR..(ARL,GEN);GUN125..(MSC,TSC)..(M,S,X)..(ARL,GEN,MA);GUN122,KUN125..LHD..(TSC,TXT)..(L,X)..GEN;GUN126,TGN126..(TDC,TSC)..(5F,6FC)..(L,X)..(GEN,LA)201505-202105
main76621-0K140iGUN125..TDC..IV3;KUN125..TXT..(M,S);KUN135..TDC..(H,S);GUN125..TXT..S..GEN;GUN126..TDC..6FC..S..LA;GUN126..LHD..6F..H..GEN;GUN125..(MDC,TXT)..(M,X);GUN125..LHD..TDC..M..GEN;GUN135..LHD..TDC..(H,L,M);KUN125..TDC..(M,S)..(IDN,LA);KUN125..RHD..TDC..(H,M,S)..GEN;GUN125,135,KUN126..6F..(M,S)..VN;GUN125,126..6FC..(H,M,S)..(GEN,IDN);GUN126..TDC..6F..(M,S)..(GEN,LA,PH,VN);GUN125..RHD..(MDC,TDC)..6F..(H,M,S)..(GEN,IDN,MA);GUN126,135..(MDC,TDC,TXT)..(H,L,M,S)..(ARL,MA,TAIW);GGN125,GUN136,KUN126,136,TGN126,136..(TDC,TXT)..(H,M,S)..(ARL,GEN,LA)201505-202105
main76621-0K150iGUN125..S..KEN;TGN126,136..SDC..5F;GUN125..LHD..(SDC,SSC)..S;GUN125..(KDC,KSC,SDC,SSC)..X..CBU;GUN122,126,13#,KUN122,125,135,LAN125,TGN120,121..(KSC,SDC,SSC)..(S,X)..CBU201601-202102
main76621-0K160supersedes 76621-0K150iGUN126..LHD..SA;GUN125,135,KUN125..SXT;GUN126..6F..M..(KEN,SA);GUN126..(KDC,SSC,SXT)..6FC;GGN135,GUN125,136,KUN125,126..M..SA201601-202102
main76621-0K170iGUN125..L..BZAGT; GUN135,TGN136..ADC..(L,X)..BZAGT; GUN135,TGN136..ASC;TGN136..ADC..X..LA;GUN125,126..BZAGT..IV3;GUN126,KUN125,126,135,TGN126..(ADC,ASC)..X..LA; GUN135..ADC..X;GUN126..X..BZAGT..CBU;GUN125..(ADC,ASC)..X..CBU201511-202010
MUDGUARD-WITH(FRONT & REAR); TIRE & DISC WHEEL-225/70R17C STEEL; TIRE & DISC WHEEL-225/70R17C STEEL&MUDGUARD-WITH(FRONT & REAR)
main76621-0K180iGUN125,135..ADC..X; GUN126,KUN125,126,135,TGN126,136..ADC..X..LA; GUN126..6FC..BZAGT;GUN135..ADC..S..LA;GUN136..6FC..M..BZAGT;GUN126..ADC..6FC..M..LA;GUN126,136..ADC..6F..IART;GGN125,GUN125..ADC..(H,L,S); GUN136..ADC..6F..M;GUN126..ADC..S..HDCR;GUN126..ADC..6F..(H,M)..HDCR;KUN125,126,13#,TGN126,128,13#..ADC..(L,M,S);GUN13#,TGN136..ADC..(H,L,S,X)..(HDCR,HTWC)..BZAGT201511-202010
MUDGUARD-WITH(FRONT & REAR); TIRE & DISC WHEEL-265/65R17 STEEL; TIRE & DISC WHEEL-265/65R17 STEEL&MUDGUARD-WITH(FRONT & REAR)
76622DMUDGUARD, FRONT FENDER, LH
main76622-0K130iKUN122..S..IV3;KUN125..TDC..X;GUN135,KUN125..TSC;GUN122,135..(L,S)..PH;GUN125..RHD..6F..L..GEN;KUN125..RHD..TDC..L..GEN;TGN136..(TDC,TSC)..X..LA;GGN120,GUN120,122..6F,6FC;KUN126,135..(TDC,TSC)..(L,X);GUN122,123,KUN122,TGN121..ARL,PKN;GUN122,126,136..TSC..S..HDCR..(ARL,GEN);GUN125..(MSC,TSC)..(M,S,X)..(ARL,GEN,MA);GUN122,KUN125..LHD..(TSC,TXT)..(L,X)..GEN;GUN126,TGN126..(TDC,TSC)..(5F,6FC)..(L,X)..(GEN,LA)201505-202105
main76622-0K140iGUN125..TDC..IV3;KUN125..TXT..(M,S);KUN135..TDC..(H,S);GUN125..TXT..S..GEN;GUN126..TDC..6FC..S..LA;GUN126..LHD..6F..H..GEN;GUN125..(MDC,TXT)..(M,X);GUN125..LHD..TDC..M..GEN;GUN135..LHD..TDC..(H,L,M);KUN125..TDC..(M,S)..(IDN,LA);KUN125..RHD..TDC..(H,M,S)..GEN;GUN125,135,KUN126..6F..(M,S)..VN;GUN125,126..6FC..(H,M,S)..(GEN,IDN);GUN126..TDC..6F..(M,S)..(GEN,LA,PH,VN);GUN125..RHD..(MDC,TDC)..6F..(H,M,S)..(GEN,IDN,MA);GUN126,135..(MDC,TDC,TXT)..(H,L,M,S)..(ARL,MA,TAIW);GGN125,GUN136,KUN126,136,TGN126,136..(TDC,TXT)..(H,M,S)..(ARL,GEN,LA)201505-202105
main76622-0K150iGUN125..S..KEN;TGN126,136..SDC..5F;GUN125..LHD..(SDC,SSC)..S;GUN125..(KDC,KSC,SDC,SSC)..X..CBU;GUN122,126,13#,KUN122,125,135,LAN125,TGN120,121..(KSC,SDC,SSC)..(S,X)..CBU201601-202102
main76622-0K160supersedes 76622-0K150iGUN126..LHD..SA;GUN125,135,KUN125..SXT;GUN126..6F..M..(KEN,SA);GUN126..(KDC,SSC,SXT)..6FC;GGN135,GUN125,136,KUN125,126..M..SA201601-202102
main76622-0K170iGUN125..L..BZAGT; GUN135,TGN136..ADC..(L,X)..BZAGT; GUN135,TGN136..ASC;TGN136..ADC..X..LA;GUN125,126..BZAGT..IV3;GUN126,KUN125,126,135,TGN126..(ADC,ASC)..X..LA; GUN135..ADC..X;GUN126..X..BZAGT..CBU;GUN125..(ADC,ASC)..X..CBU201511-202010
MUDGUARD-WITH(FRONT & REAR); TIRE & DISC WHEEL-225/70R17C STEEL; TIRE & DISC WHEEL-225/70R17C STEEL&MUDGUARD-WITH(FRONT & REAR)
main76622-0K180iGUN125,135..ADC..X; GUN126,KUN125,126,135,TGN126,136..ADC..X..LA; GUN126..6FC..BZAGT;GUN135..ADC..S..LA;GUN136..6FC..M..BZAGT;GUN126..ADC..6FC..M..LA;GUN126,136..ADC..6F..IART;GGN125,GUN125..ADC..(H,L,S); GUN136..ADC..6F..M;GUN126..ADC..S..HDCR;GUN126..ADC..6F..(H,M)..HDCR;KUN125,126,13#,TGN126,128,13#..ADC..(L,M,S);GUN13#,TGN136..ADC..(H,L,S,X)..(HDCR,HTWC)..BZAGT201511-202010
MUDGUARD-WITH(FRONT & REAR); TIRE & DISC WHEEL-265/65R17 STEEL; TIRE & DISC WHEEL-265/65R17 STEEL&MUDGUARD-WITH(FRONT & REAR)
76625GMUDGUARD, QUARTER PANEL, REAR RH
main76625-0K240iGUN122..LHD..TDC..X;GUN122..(M,S)..DCR..GEN;GUN122..RHD..5F..(GEN,TH)..CBU;GUN112,123,KUN122,TGN121..(GEN,TH)..CBU; GUN122..S..HDCR;GUN122..(M,S)..GCC;GUN122..LHD..TDC..L;GUN120,122..(6F,6FC)..CBU;GUN122..LHD..TSC..(L,X)..CBU;GUN112,KUN112,122,TGN111,121..GCC..CBU; TGN110,120..GCC201505-202005
MUDGUARD-WITH(FRONT & REAR); MUDGUARD-WITH(REAR ONLY)
main76625-0K250iGUN135..S..PH;TGN126..TSC..S;KUN125,126..TDC..(L,X);KUN125..RHD..(TSC,TXT);GUN125..TDC..6F..L..GEN;TGN136..(TDC,TSC)..X..LA;GUN125..RHD..TSC..6F..CBU;GGN120,GUN122,123,TGN121..ARL..CBU;GUN135,KUN125..LHD..(TSC,TXT)..(L,X);GUN126,TGN126..TDC..6FC..(L,X)..(GEN,LA);KUN135,TGN126..(TDC,TSC)..MTM..(L,X)..CBU201505-202105
MARK = WA; MUDGUARD-WITH(FRONT & REAR),MARK = WA; MUDGUARD-WITH(REAR ONLY),MARK = WA
MARK = WB; MUDGUARD-WITH(FRONT & REAR),MARK = WB; MUDGUARD-WITH(REAR ONLY),MARK = WB
main76625-0K300iGUN125..L..BZAGT; GUN135,TGN136..ADC..(L,X)..BZAGT; GUN135..ADC..X;GUN125..(ADC,ASC)..X..CBU; TGN136..ADC..X..LA;GUN135,TGN136..ASC..CBU;GUN126,KUN125,126,135,TGN126..(ADC,ASC)..X..CBU201511-202010
MUDGUARD-WITH(FRONT & REAR); TIRE & DISC WHEEL-225/70R17C STEEL; TIRE & DISC WHEEL-225/70R17C STEEL&MUDGUARD-WITH(FRONT & REAR)
main76625-0K310iGUN125,135..ADC..X; GUN126,KUN125,126,135,TGN126,136..ADC..X..LA; GUN135..ADC..S..LA;GUN136..6FC..M..BZAGT;GGN125,GUN125..ADC..(H,L,S);GUN126..ADC..6FC..(H,M)..HDCR; GUN136..ADC..6F..M;GUN126..ADC..S..HDCR;GUN126..ADC..6F..(H,M)..HDCR;GUN13#,TGN136..ADC..(H,L,S,X)..BZAGT;GUN126,KUN125,126,13#,TGN126,128,13#..ADC..(H,L,M,S)..(DCR,HTWC,HTWCF,IART)201511-202010
MUDGUARD-WITH(FRONT & REAR); TIRE & DISC WHEEL-265/65R17 STEEL; TIRE & DISC WHEEL-265/65R17 STEEL&MUDGUARD-WITH(FRONT & REAR)
main76625-0K320iGUN125..S..KEN;TGN126,136..SDC..5F;GUN125..LHD..(SDC,SSC)..S;GUN125..(KDC,KSC,SDC,SSC)..X..CBU;GUN126,13#,KUN125,135,LAN125..(KSC,SDC,SSC)..(S,X)..CBU201601-202102
main76625-0K330supersedes 76625-0K320iGUN126..LHD..SA;GUN125,135,KUN125..SXT;GUN126..6F..M..(KEN,SA);GUN126..(KDC,SSC,SXT)..6FC;GGN135,GUN125,136,KUN125,126..M..SA201601-202102
76626EMUDGUARD, QUARTER PANEL, REAR LH
main76626-0K240iGUN122..LHD..TDC..X;GUN122..(M,S)..DCR..GEN;GUN122..RHD..5F..(GEN,TH)..CBU;GUN112,123,KUN122,TGN121..(GEN,TH)..CBU; GUN122..S..HDCR;GUN122..(M,S)..GCC;GUN122..LHD..TDC..L;GUN120,122..(6F,6FC)..CBU;GUN122..LHD..TSC..(L,X)..CBU;GUN112,KUN112,122,TGN111,121..GCC..CBU; TGN110,120..GCC201505-202005
MUDGUARD-WITH(FRONT & REAR); MUDGUARD-WITH(REAR ONLY)
main76626-0K250iGUN135..S..PH;TGN126..TSC..S;KUN125,126..TDC..(L,X);KUN125..RHD..(TSC,TXT);GUN125..TDC..6F..L..GEN;TGN136..(TDC,TSC)..X..LA;GUN125..RHD..TSC..6F..CBU;GGN120,GUN122,123,TGN121..ARL..CBU;GUN135,KUN125..LHD..(TSC,TXT)..(L,X);GUN126,TGN126..TDC..6FC..(L,X)..(GEN,LA);KUN135,TGN126..(TDC,TSC)..MTM..(L,X)..CBU201505-202105
MARK = WA; MUDGUARD-WITH(FRONT & REAR),MARK = WA; MUDGUARD-WITH(REAR ONLY),MARK = WA
MARK = WB; MUDGUARD-WITH(FRONT & REAR),MARK = WB; MUDGUARD-WITH(REAR ONLY),MARK = WB
main76626-0K300iGUN125..L..BZAGT; GUN135,TGN136..ADC..(L,X)..BZAGT; GUN135..ADC..X;GUN125..(ADC,ASC)..X..CBU; TGN136..ADC..X..LA;GUN135,TGN136..ASC..CBU;GUN126,KUN125,126,135,TGN126..(ADC,ASC)..X..CBU201511-202010
MUDGUARD-WITH(FRONT & REAR); TIRE & DISC WHEEL-225/70R17C STEEL; TIRE & DISC WHEEL-225/70R17C STEEL&MUDGUARD-WITH(FRONT & REAR)
main76626-0K310iGUN125,135..ADC..X; GUN126,KUN125,126,135,TGN126,136..ADC..X..LA; GUN135..ADC..S..LA;GUN136..6FC..M..BZAGT;GGN125,GUN125..ADC..(H,L,S);GUN126..ADC..6FC..(H,M)..HDCR; GUN136..ADC..6F..M;GUN126..ADC..S..HDCR;GUN126..ADC..6F..(H,M)..HDCR;GUN13#,TGN136..ADC..(H,L,S,X)..BZAGT;GUN126,KUN125,126,13#,TGN126,128,13#..ADC..(H,L,M,S)..(DCR,HTWC,HTWCF,IART)201511-202010
MUDGUARD-WITH(FRONT & REAR); TIRE & DISC WHEEL-265/65R17 STEEL; TIRE & DISC WHEEL-265/65R17 STEEL&MUDGUARD-WITH(FRONT & REAR)
main76626-0K320iGUN125..S..KEN;TGN126,136..SDC..5F;GUN125..LHD..(SDC,SSC)..S;GUN125..(KDC,KSC,SDC,SSC)..X..CBU;GUN126,13#,KUN125,135,LAN125..(KSC,SDC,SSC)..(S,X)..CBU201601-202102
main76626-0K330supersedes 76626-0K320iGUN126..LHD..SA;GUN125,135,KUN125..SXT;GUN126..6F..M..(KEN,SA);GUN126..(KDC,SSC,SXT)..6FC;GGN135,GUN125,136,KUN125,126..M..SA201601-202102
90159T0034
main90159-T0034
90159T0036
main90159-T0036
6 parts on this diagram · 1 diagram in section
