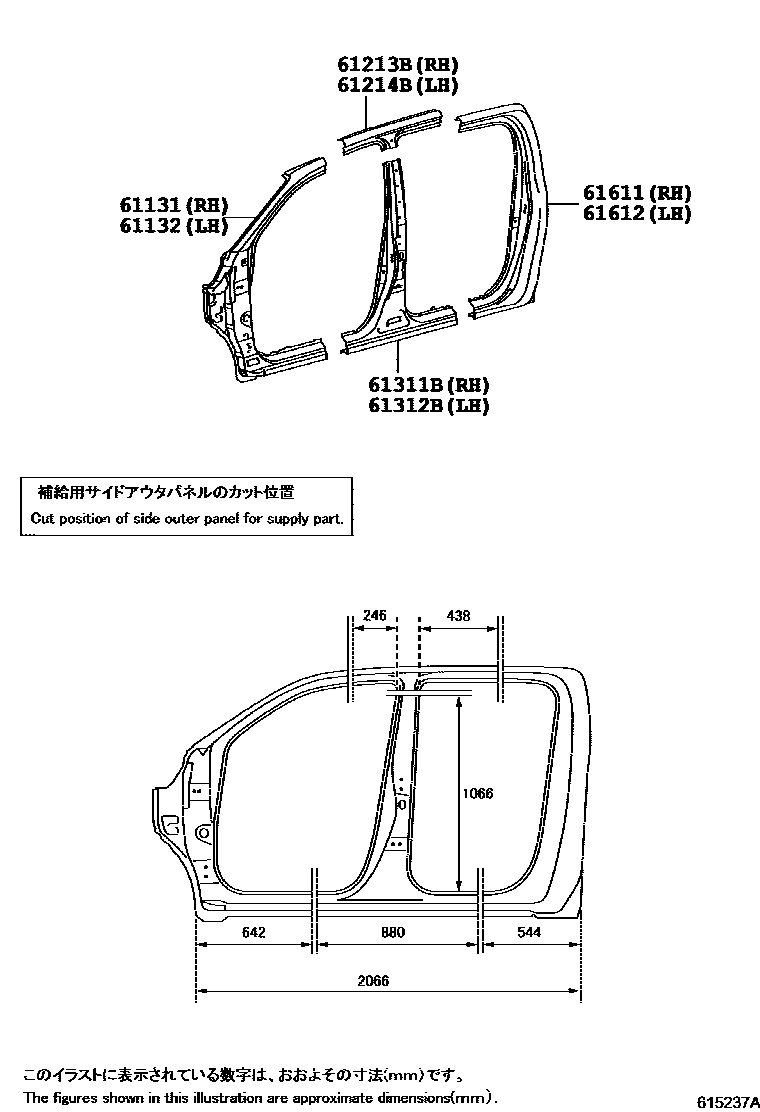

SIDE MEMBER

0001 1OUTER PANEL 0002 1OUTER PANEL 0003 1OUTER PANEL 0004 1INNER PANEL,RH 0005 1INNER PANEL,LH 0006 1INNER PANEL 0007 1INNER PANEL

61131PILLAR, FRONT BODY, UPPER OUTER RH

main61131-KK010×2iGUN120,122..TDC..(6F,6FC)201809-202005

main61131-KK020iTGN136..ASC,TSC;GUN122..(PSC,SSC,TSC)..5F;GUN112,123,125,126,13#,KUN112,12#,135,LAN125,TGN11#,120,121,126..ASC,KSC,MSC,PSC,SSC,TSC201505-202105

main61131-KK030×2iGUN120,122..TXT..(6F,6FC)201809-202005

61132PILLAR, FRONT BODY, UPPER OUTER LH

main61132-KK010iGUN122..(SDC,TDC)..5F;GGN12#,135,GUN123,125,126,13#,KUN12#,13#,LAN125,TGN12#,13#..ADC,KDC,MDC,PDC,SDC,TDC201505-202105

main61132-KK020iTGN136..SSC201906-202105

main61132-KK030×2iGUN120,122..TXT..(6F,6FC)201809-202005

61213BRAIL, ROOF SIDE, OUTER NO.2 RH

main61213-KK010iGUN122..(SDC,TDC)..5F;GGN12#,135,GUN123,125,126,13#,KUN12#,13#,LAN125,TGN12#,13#..ADC,KDC,MDC,PDC,SDC,TDC201505-202105

61214BRAIL, ROOF SIDE, OUTER NO.2 LH

main61214-KK010iGUN122..(SDC,TDC)..5F;GGN12#,135,GUN123,125,126,13#,KUN12#,13#,LAN125,TGN12#,13#..ADC,KDC,MDC,PDC,SDC,TDC201505-202105

61311BPILLAR, CENTER BODY, OUTER RH

main61311-KK010×2iGUN120,122..TDC..(6F,6FC)201809-202005

61312BPILLAR, CENTER BODY, OUTER LH

main61312-KK010iGUN122..(SDC,TDC)..5F;GGN12#,135,GUN123,125,126,13#,KUN12#,13#,LAN125,TGN12#,13#..ADC,KDC,MDC,PDC,SDC,TDC201505-202105

61611PANEL, QUARTER, RH

main61611-KK010×2iGUN120,122..TDC..(6F,6FC)201809-202005

main61611-KK020×2iGUN120,122..TSC..(6F,6FC)201809-202005

main61611-KK030iGUN122..TXT..5F;GUN123,125,126,13#,KUN12#,TGN121,136..SXT,TXT201506-202009

61612PANEL, QUARTER, LH

main61612-KK010iGUN122..(SDC,TDC)..5F;GGN12#,135,GUN123,125,126,13#,KUN12#,13#,LAN125,TGN12#,13#..ADC,KDC,MDC,PDC,SDC,TDC201505-202105

main61612-KK020iTGN136..ASC,TSC;GUN122..(PSC,SSC,TSC)..5F;GUN112,123,125,126,13#,KUN112,12#,135,LAN125,TGN11#,120,121,126..ASC,KSC,MSC,PSC,SSC,TSC201505-202105

main61612-KK030×2iGUN120,122..TXT..(6F,6FC)201809-202005

8 parts on this diagram · 7 diagrams in section
