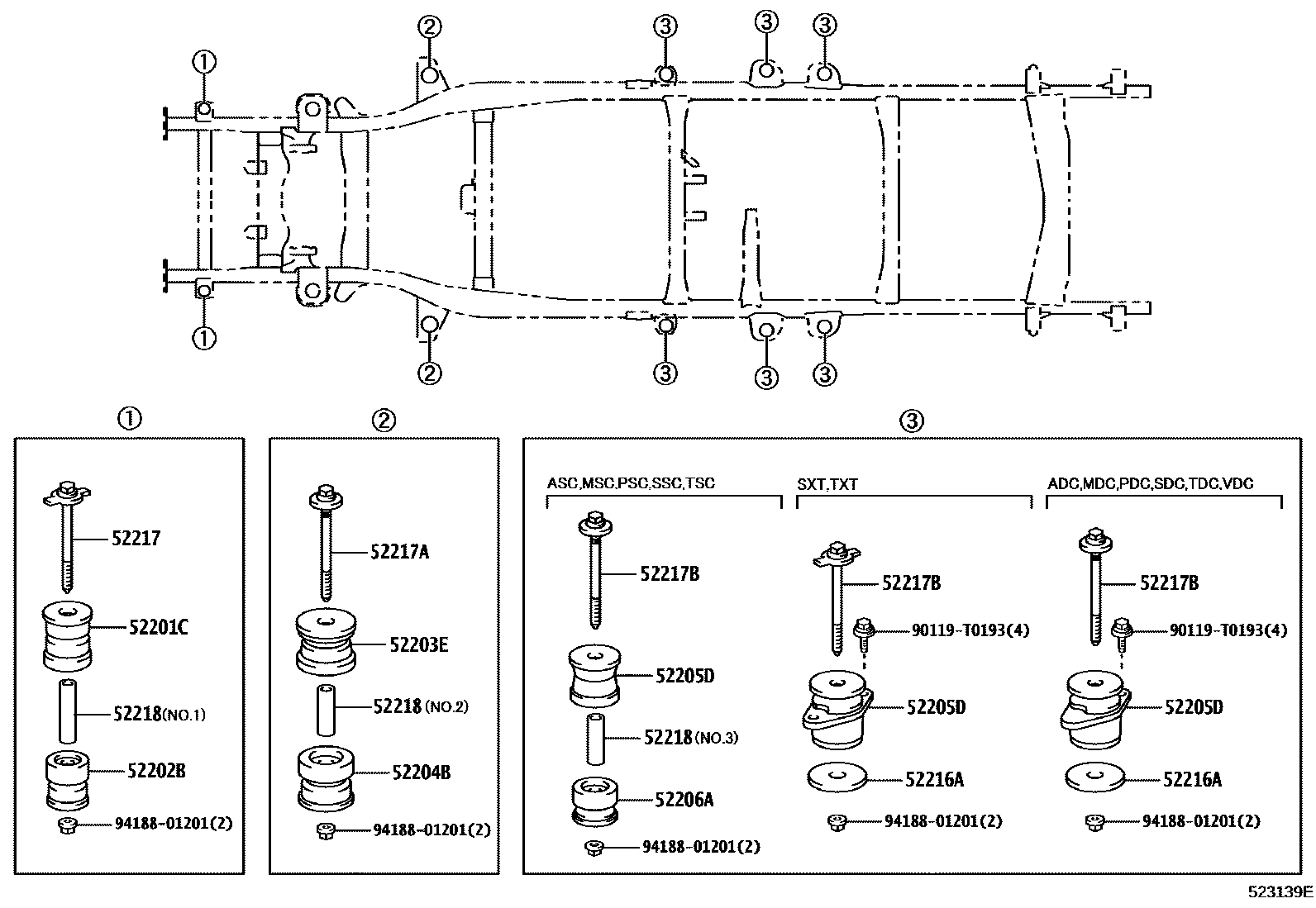

CAB MOUNTING & BODY MOUNTING

52201CCUSHIION SUB-ASSY, CAB MOUNTING, NO.1 UPPER

main52201-0K080×2iGUN125,126,13#,KUN125,126,13#,TGN126,128,13#..ADC,ASC201511-201712

main52201-0K100×2iKUN122..PKN201505-201905

52202BCUSHIION SUB-ASSY, CAB MOUNTING, NO.1 LOWER

main52202-0K080×2iGUN125,126,13#,KUN125,126,13#,TGN126,128,13#..ADC,ASC201511-201712

main52202-0K100×2iGUN125..(ADC,ASC)..6F;GUN126,13#,TGN126,128,13#..ADC,ASC201712-202105

52203ECUSHION SUB-ASSY, CAB MOUNTING, NO.2

main52203-0K100×2iGUN125,126,13#,KUN125,126,13#,TGN126,128,13#..ADC,ASC201511-201712

main52203-0K120×2iTGN136..SSC201505-201807

52204BCUSHION SUB-ASSY, CAB MOUNTING, NO.2 LOWER

main52204-0K100×2iGUN125,126,13#,KUN125,126,13#,TGN126,128,13#..ADC,ASC201511-201712

main52204-0K120×2iKUN122..PKN201505-201905

52205DCUSHION SUB-ASSY, CAB MOUNTING, NO.3 UPPER

main52205-0K110×2iTGN136..SSC201906-202105

main52205-0K140×2iGUN125,126,135,KUN125,135,TGN126,136..ASC201511-201712

main52205-0K150×2iGUN125,135..TXT;GUN125,135..SXT..6F..S;GUN120,122,123,126,136,KUN12#,TGN121,136..SXT,TXT201506-202009

main52205-0K160iGGN12#,GUN12#,13#,KUN12#,13#,TGN12#,136..TDC201505-201509

RH

main52205-0K161iGUN136..TDC..S;GUN135..LHD..SA;GUN135..MDC,TDC;GUN135..SDC..6F..S;GUN136..(SDC,TDC)..(H,M);GUN125,126,KUN125,126,13#,TGN126,136..KDC,MDC,PDC,SDC,TDC;GGN12#,135,GUN120,122,123,KUN122,LAN125,TGN120,121..(ADC,SDC,TDC)..(ARL,GCC,GEN,LA,PH,SA,TH)201510-202105

RH

main52205-0K171iGUN125,126,13#,KUN125,126,13#,TGN126,128,13#..ADC201511-201712

RH

main52206-0K100iGGN12#,GUN12#,13#,KUN12#,13#,TGN12#,136..TDC201505-201509

LH

main52206-0K101iGUN125..ADC..6F;GUN126,13#,TGN126,128,13#..ADC201712-202105

LH

main52206-0K111iGUN125,126,13#,KUN125,126,13#,TGN126,128,13#..ADC201511-201712

LH

52206ACUSHION SUB-ASSY, CAB MOUNTING, NO.3 LOWER

main52206-0K080×2iTGN136..SSC201505-201807

main52206-0K090×2iGUN125,126,135,KUN125,135,TGN126,136..ASC201511-201712

52216ASTOPPER, CAB MOUNTING CUSHION

main52216-0K010×2iGUN136..S..SA;GUN125..ADC..6FC;GUN135..RHD..SDC..X;GUN135..(SDC,SXT)..6FC;GGN125,GUN125..(ADC,SXT)..(H,X)..(BZAGT,SA)201810-202105

52217BOLT, BODY MOUNTING

main52217-0K010×2iTGN136..SSC201505-201807

52217ABOLT, BODY MOUNTING

main52217-0K020×2iGUN136..H,M;GUN135..SSC..X;GUN135..LHD..SA;GUN135..6F..S..SA;GUN125..TDC..6FC..LA;GUN126,TGN126,128,138;GUN136..S..(ARL,BZAGT);TGN136..ADC,ASC,SDC,TDC,TSC,TXT;GUN135..ADC,ASC,KSC,MDC,TDC,TSC,TXT;GUN125..LHD..(ADC,ASC,SXT,TDC,TSC)..6F..(LA,SA);GUN125,KUN122..(ADC,ASC,KDC,KSC,MDC,MSC,SDC,SSC,TDC,TSC,TXT)..(ARL,BZAGT,GCC,GEN,IDN,KEN,MA,PH,SA,TH,VN);GGN12#,135,GUN112,120,122,123,KUN112,125,126,13#,LAN125,TGN11#,120,121..ARL,GCC,GEN,IDN,LA,PH,PKN,SA,TH,VN201505-202105

52217BBOLT, BODY MOUNTING

main52217-0K020×2iGUN136..S..SA;GUN125..ADC..6FC;GUN135..RHD..SDC..X;GGN125,GUN135..(ADC,SDC,SSC)..6FC..(H,S)..(BZAGT,SA)201810-202105

main52217-0K031×2iGUN125..SXT..X;GUN135..SXT..6FC201810-202009

52218HOLDER, BODY MOUNT BOLT SPACER, NO.1

main52218-0K010×2iGUN136..S..SA;GUN135..6FC..SA;GUN135..RHD..SDC..X;GGN125,GUN125..(ADC,SXT)..(H,X)..(BZAGT,SA)201810-202105

NO.1

main52219-0K010×2iGUN136..H,M;GUN135..SSC..X;GUN135..LHD..SA;GUN135..6F..S..SA;GUN125..TDC..6FC..LA;GUN126,TGN126,128,138;GUN136..S..(ARL,BZAGT);TGN136..ADC,ASC,SDC,TDC,TSC,TXT;GUN135..ADC,ASC,KSC,MDC,TDC,TSC,TXT;GUN125..LHD..(ADC,ASC,SXT,TDC,TSC)..6F..(LA,SA);GUN125,KUN122..(ADC,ASC,KDC,KSC,MDC,MSC,SDC,SSC,TDC,TSC,TXT)..(ARL,BZAGT,GCC,GEN,IDN,KEN,MA,PH,SA,TH,VN);GGN12#,135,GUN112,120,122,123,KUN112,125,126,13#,LAN125,TGN11#,120,121..ARL,GCC,GEN,IDN,LA,PH,PKN,SA,TH,VN; TGN136..ASC,TSC;GUN135,KUN122..(ASC,KSC,SSC,TSC)..MTM;GUN112,12#,136,KUN112,125,126,135,LAN125,TGN11#,120,121,126..ASC,KSC,MSC,PSC,SSC,TSC201505-202105

NO.2; NO.3

90119T0193

main90119-T0193

9418801201

main94188-01201

13 parts on this diagram · 1 diagram in section
