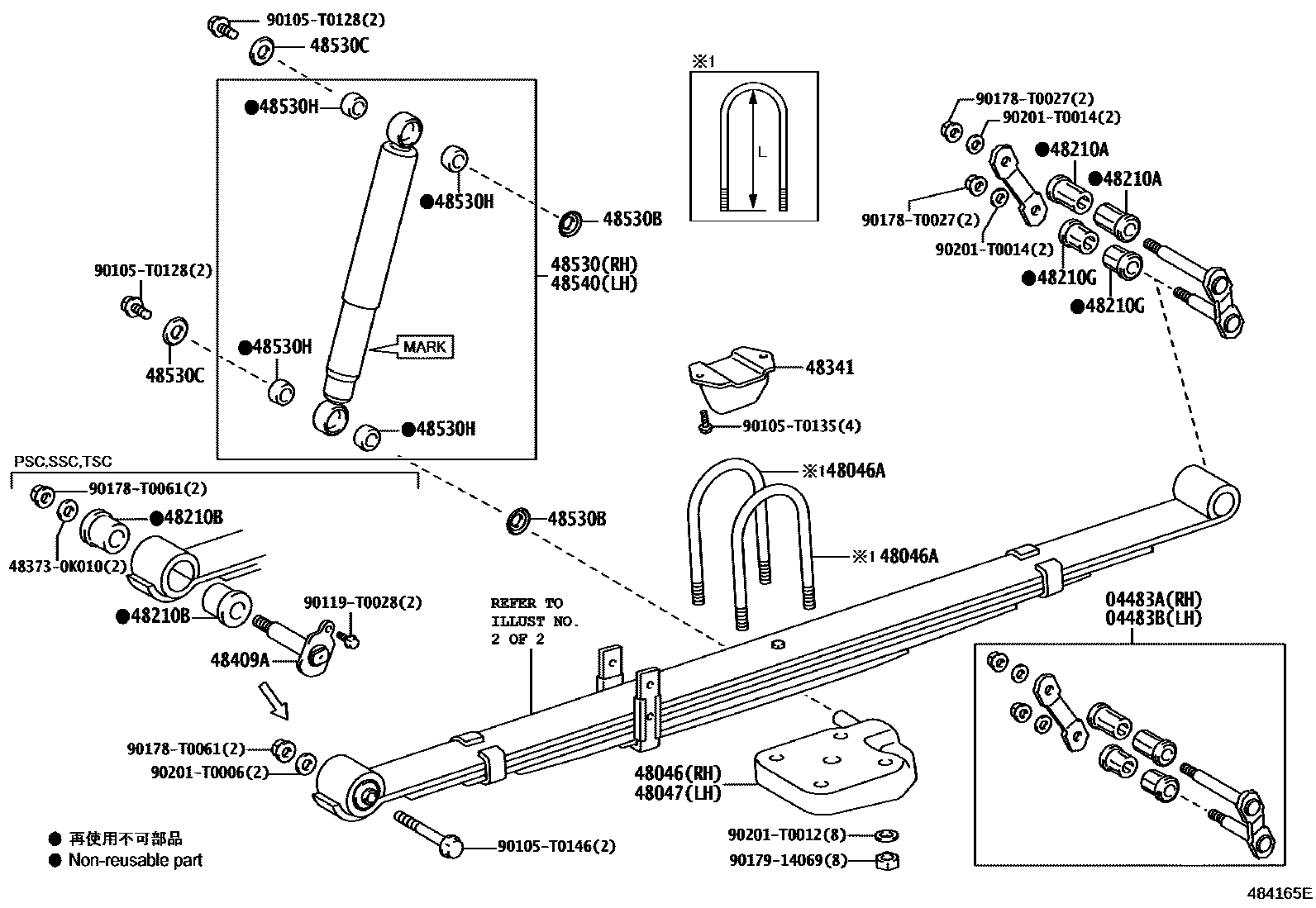

REAR SPRING & SHOCK ABSORBER

0001 1 0002 1 0003 15-LEAF 0004 15-LEAF 0005 15-LEAF 0006 15-LEAF 0007 15-LEAF 0008 15-LEAF 0009 15-LEAF 0010 15-LEAF 0011 15-LEAF 0012 15-LEAF 0013 15-LEAF, 1 TON PAY LOAD PACKAG

04483ASHACKLE KIT, REAR SPRING, RH

main04483-KK000iGGN120,GUN112,120,122,123,KUN112,122,TGN11#,120,121201505-202105

main04483-KK010iTGN136..SSC201505-201807

main04483-KK020iGUN125,126,13#,KUN125,126,13#,TGN126,128,13#..ADC,ASC201511-201711

04483BSHACKLE KIT, REAR SPRING, LH

main04483-KK000iGGN120,GUN112,120,122,123,KUN112,122,TGN11#,120,121201505-202105

main04483-KK010iTGN136..SSC201505-201807

main04483-KK020iGUN125,126,13#,KUN125,126,13#,TGN126,128,13#..ADC,ASC201511-201711

48046SEAT SUB-ASSY, SPRING U BOLT, RH

main48046-0K011iGGN120,GUN112,120,122,123,KUN112,122,TGN11#,120,121201505-202105

main48046-KK010iTGN136..SSC201505-201807

48046ABOLT, U(FOR REAR SPRING)

main90117-F0001×4iTGN136..SSC201906-202102

L=180

main90117-S0001×4iGGN125,GUN125,126,13#,KUN125,126,13#,TGN126,128,13#..ADC,ASC201511-202010

L=180

main90117-T0003×4iGGN120,GUN112,120,122,123,KUN112,122,TGN11#,120,121201505-202105

L=175

main90117-T0006×4iGUN135..L..MA;GUN135..TDC,TSC,TXT;GGN125,GUN125,126,136,KUN125,126,13#,TGN126,136..MDC,MSC,PDC,PSC,TDC,TSC,TXT201505-202105

L=180

48047SEAT SUB-ASSY, SPRING U BOLT, LH

main48046-0K011iGGN120,GUN112,120,122,123,KUN112,122,TGN11#,120,121201505-202105

main48046-KK010iTGN136..SSC201505-201807

48210SPRING ASSY, REAR RH

main48210-0K420iGUN120,122,123,KUN122,TGN120,121..TSC201505-202005

5-LEAF

main48210-0K430iGUN120,122,TGN121..TXT..(L,X);GGN120,GUN122,123,KUN122,TGN120,121..(TDC,TXT)..(ARL,GCC,GEN,PH)201505-202005

5-LEAF

main48210-0K440iGUN112,KUN112,TGN11#201505-202005

5-LEAF

main48210-0K450iGUN120,122..TDC..L..TH;GUN122,TGN121..(M,S)..TH201505-202005

5-LEAF

main48210-0K460iGUN122,KUN122,TGN120,121..SSC201602-202009

5-LEAF

main48210-0K470iGUN122,KUN122,TGN121..SDC201601-202009

5-LEAF

main48210-0K500iTGN136..SSC201906-202102

5-LEAF

main48210-0K510iGUN125,126,KUN125,126,135,TGN126,136..PSC,TSC201505-201706

5-LEAF

main48210-0K520iGUN125,126,KUN125..TXT..(ARL,GEN,IDN)201506-201706

5-LEAF

main48210-0K530iGUN126,135,KUN126,135..(5FC,6F)..VN201505-201707

5-LEAF

main48210-0K540iGUN126,136..H..TH201505-201811

5-LEAF

main48210-0K541iGUN125,135..S..TH201812-202005

5-LEAF,HEADLAMP LEVELING DEVICE-WITH(AUTO)

main48210-0K590iGUN125,126,13#,KUN125,126..SXT201704-202009

5-LEAF

main48210-0K600iGUN126..SDC;GUN126..6F..KEN;GGN125,135,GUN125,13#,KUN125,126,135,LAN125,TGN126,136..KDC,SDC201704-202102

5-LEAF

main48210-0K710iGUN125,126,135,KUN125,135,TGN126,136..ASC201511-201706

5-LEAF

main48210-0K720iGUN126..ADC..6F..M..LA201511-201706

5-LEAF,GR SPORT&HEADLAMP LEVELING DEVICE-WITH(AUTO)

main48210-0K740iGUN122,KUN122..PKN201610-202105

5-LEAF

main48210-0K810iGUN125..MSC201604-201706

5-LEAF

main48210-0K820iGUN126..MA201604-202012

5-LEAF

main48210-0K830iGUN125,126,13#,KUN125,126,LAN125,TGN136..SSC201602-201704

5-LEAF

main48210-0K840iGUN126,13#,KUN125,126..SXT201602-201704

5-LEAF

main48210-0K850iGUN126..6FC..KEN201601-202102

5-LEAF

main48210-0KA80iGUN126..PSC201706-201903

5-LEAF

main48210-0KA90iGUN126..TXT..S;GUN125,136,KUN125..TXT..(ARL,GEN,IDN)201706-202005

5-LEAF

main48210-0KB00iGUN126..TXT..M..ARL201706-202005

5-LEAF

main48210-0KB10iGUN126..PDC..(L,M)201706-201903

5-LEAF,MARK 48210-0KB10

main48210-0KB20iGUN126..H..PKN201706-201903

5-LEAF

main48210-0KB30supersedes 48210-0KB30iTGN126..M..GEN201706-202005

5-LEAF,MARK 48210-0KB30

main48210-0KB40iGUN125,126,13#,TGN136..(L,M,S)..TH201706-201811

5-LEAF

main48210-0KB41iGUN125,126,13#..(L,M,S)..TH201812-202005

5-LEAF

main48210-0KB80iGUN125,126,135,KUN125,135,TGN126,136..ASC201706-202010

5-LEAF

main48210-0KB90iGUN125,126,13#,KUN125,126,13#,TGN126,128,13#..ADC..(L,M,S,X)201706-202010

5-LEAF

main48210-0KC00iGUN125..MSC201706-202012

5-LEAF

main48210-0KC10iGUN125..MDC;GUN135..L..MA201706-202012

5-LEAF

main48210-0KE60iGUN126..PSC201903-202105

5-LEAF

main48210-0KE70iGUN126..PDC..(L,M)201903-202105

5-LEAF

main48210-0KE80iGUN126..H..PKN201903-202105

5-LEAF

main48210-0K860iGUN125..TDC..6FC..GEN201702-201706

5-LEAF,1 TON PAY LOAD PACKAGE

main48210-0KB50iGUN125..TDC..6FC..L..GEN201706-202005

5-LEAF,1 TON PAY LOAD PACKAGE

48210ABUSH(FOR REAR SPRING SHACKLE UPPER)

main90385-S0002×4iGUN125,126,13#,KUN125,126,13#,TGN126,128,13#..ADC,ASC201511-201712

main90385-T0014×4iTGN136..SSC201906-202105

48210BBUSH(FOR REAR SPRING PIN)

main90385-T0016×4iGUN112,120,122,123,KUN112,122,TGN11#,120,121..PSC,SSC,TSC201505-202105

48210GBUSH(FOR REAR SPRING SHACKLE LOWER)

main90385-S0001×4iGUN125,126,13#,KUN125,126,13#,TGN126,128,13#..ADC,ASC201511-201712

main90385-T0017×4iTGN136..SSC201505-201807

48341BUMPER, REAR SPRING

main48341-0K090×2iGGN120,GUN112,120,122,123,KUN112,122,TGN11#,120,121201505-202105

48409APIN SUB-ASSY, REAR SPRING BRACKET

main48409-0K010×2iGUN112,120,122,123,KUN112,122,TGN11#,120,121..PSC,SSC,TSC201505-202105

48530ABSORBER ASSY, SHOCK, REAR RH

main48531-09B20iGUN120,122,TGN121..TXT..(L,X);GGN120,GUN122,123,KUN122,TGN120,121..(TDC,TXT)..(ARL,GCC,GEN,PH)201505-202005

MARK 48531-0K510

main48531-09B30iGUN120,122..TDC..L..TH;GUN122,TGN121..(M,S)..TH201505-202005

MARK 48531-0K530

main48531-09B40iGUN13#,KUN135,TGN136..TSC201505-202005

MARK 48531-0K610

main48531-09B50iGUN135..6F..ARL..CBU201908-202005

MARK 48531-0K650

main48531-09B70iGUN125,126,13#,TGN136..(TDC,TXT)..TH201505-202005

MARK 48531-0K840

main48531-09B80iGUN125..MSC201604-202012

MARK 48531-0K870

main48531-09B90iGUN125,126..MDC201604-202012

MARK 48531-0K880

main48531-09C00iGUN135..L..MA201604-201905

MARK 48531-0K890

main48531-8Z001iGUN112,120,122,123,KUN112,122,TGN11#,120,121..TSC201505-202005

MARK 48531-0K500

main48531-8Z002iGUN122,KUN122,TGN120,121..SSC201602-202009

MARK 48531-0K540

main48531-8Z003iGUN122,KUN122,TGN121..SDC201601-202009

MARK 48531-0K550

main48531-8Z004iGUN122,KUN122..PKN201610-202105

MARK 48531-0KB20

main48531-8Z005iGUN125,126,KUN125,TGN126..TSC201505-202005

MARK 48531-0K600

main48531-8Z006iGGN125,GUN125,126,KUN125,126,TGN126..(TDC,TXT)..(ARL,GCC,GEN,IDN,LA,PH,TAIW,VN)201505-202005

MARK 48531-0K640

main48531-8Z007iGUN125,126,KUN125,126,LAN125..KSC,SSC201602-202102

MARK 48531-0K660

main48531-8Z008iGUN13#..KSC,SSC201602-202102

MARK 48531-0K670

main48531-8Z009iGGN125,GUN125,126,KUN125,126,LAN125,TGN126..KDC,SDC,SXT201601-202102

MARK 48531-0K760

main48531-8Z010iGGN135,GUN13#,KUN135,TGN136..SDC,SXT201601-202009

MARK 48531-0K770

main48531-8Z011iGUN125,126,KUN125,TGN126..ASC201511-201712

MARK 48531-0K790

main48531-8Z012iGUN135,KUN135,TGN136..ASC201511-201712

MARK 48531-0K800

main48531-8Z013iGUN126..H..BZAGT;GUN126..ADC..M..LA201511-201712

MARK 48531-0K810,GR SPORT

main48531-8Z014iGUN13#,KUN13#,TGN13#..ADC201511-201712

MARK 48531-0K820

main48531-8Z017iGUN126,KUN126..PSC201610-202105

MARK 48531-0KB00

main48531-8Z018iGUN126,KUN126..PDC201610-202105

MARK 48531-0KB10

main48531-8Z019iGUN125,126,TGN126..ASC201712-202010

MARK 48531-0K790

main48531-8Z020iGUN135,TGN136..ASC201712-202010

MARK 48531-0K800

main48531-8Z021iGGN125,GUN125,126,TGN126,128..ADC201712-202010

MARK 48531-0K810

main48531-8Z022iGUN13#,TGN13#..ADC201712-202010

MARK 48531-0K820

main48531-Y9005iGGN125..BZAGT201907-201912

MARK 48531-YQ010,GR SPORT

main48531-Y9015iGGN125..H201912-202010

MARK 48531-YQ020,GR SPORT

48530BWASHER, REAR SHOCK ABSORBER CUSHION, NO.1

main90948-T3001×4iGUN135..TDC..S;GUN135..6FC..ARL;TGN136..ADC,ASC,SDC,TDC,TSC,TXT;GUN135..ADC,ASC,KSC,SDC,SSC,SXT,TSC,TXT;GUN135..(MDC,TDC)..(H,L,M,X)..(GEN,LA,MA,PH,TH,VN);GGN12#,13201505-202105

48530CWASHER, REAR SHOCK ABSORBER CUSHION, NO.2

main90948-T3002×4iGUN135..TDC..S;GUN135..6FC..ARL;TGN136..ADC,ASC,SDC,TDC,TSC,TXT;GUN135..ADC,ASC,KSC,SDC,SSC,SXT,TSC,TXT;GUN135..(MDC,TDC)..(H,L,M,X)..(GEN,LA,MA,PH,TH,VN);GGN12#,13201505-202105

48530HBUSH, REAR SHOCK ABSORBER

main90385-S0003×8iGUN125,126,13#,KUN125,126,13#,TGN126,128,13#..ADC,ASC201511-201712

GR SPORT

main90385-T0019×8iGUN135..6F..ARL..CBU201908-202105

48540ABSORBER ASSY, SHOCK, REAR LH

main48531-09B20iGUN120,122,TGN121..TXT..(L,X);GGN120,GUN122,123,KUN122,TGN120,121..(TDC,TXT)..(ARL,GCC,GEN,PH)201505-202005

MARK 48531-0K510

main48531-09B30iGUN120,122..TDC..L..TH;GUN122,TGN121..(M,S)..TH201505-202005

MARK 48531-0K530

main48531-8Z001iGUN112,120,122,123,KUN112,122,TGN11#,120,121..TSC201505-202005

MARK 48531-0K500

main48531-8Z002iGUN122,KUN122,TGN120,121..SSC201602-202009

MARK 48531-0K540

main48531-8Z003iGUN122,KUN122,TGN121..SDC201601-202009

MARK 48531-0K550

main48531-8Z004iGUN122,KUN122..PKN201610-202105

MARK 48531-0KB20

main48541-09210iGUN13#,KUN135,TGN136..TSC201505-202005

MARK 48541-0K140

main48541-09220iGUN136..(TDC,TXT)..(ARL,LA);GUN135..6FC..(ARL,GEN,PH,VN);GUN135,KUN13#,TGN136..TDC..MTM..(GEN,LA,PH,VN)201505-202005

MARK 48541-0K180

main48541-09240iGUN125,126,13#,TGN136..(TDC,TXT)..TH201505-202005

MARK 48541-0K310

main48541-09250iGUN125..MSC201604-202012

MARK 48541-0K340

main48541-09260iGUN125,126..MDC201604-202012

MARK 48541-0K350

main48541-09270iGUN135..L..MA201604-201905

MARK 48541-0K360

main48541-09280iGUN125,126,KUN125,TGN126..TSC201505-202005

MARK 48541-0K130

main48541-09290iGUN126..KEN;GUN125..6FC..X..SA;GUN125..(KDC,SXT)..X201505-202001

MARK 48541-0K170

main48541-09300iGUN125,126,KUN125,126,LAN125..KSC,SSC201602-202102

MARK 48541-0K190

main48541-09310iTGN136..SSC201906-202102

MARK 48541-0K200

main48541-09320iGGN125,GUN125,126,KUN125,126,LAN125,TGN126..KDC,SDC,SXT201601-202102

MARK 48541-0K230

main48541-09330iGGN135,GUN13#,KUN135,TGN136..SDC,SXT201601-202009

MARK 48541-0K250

main48541-09340iGUN125,126,KUN125,TGN126..ASC201511-201712

MARK 48541-0K260

main48541-09341iGUN125,126,TGN126..ASC201712-202010

MARK 48541-0K260

main48541-09350iGUN135,KUN135,TGN136..ASC201511-201712

MARK 48541-0K270

main48541-09351iGUN135,TGN136..ASC201712-202010

MARK 48541-0K270

main48541-09360iGUN126..H..BZAGT;GUN126..ADC..M..LA201511-201712

MARK 48541-0K280

main48541-09361iGGN125,GUN125,126,TGN126,128..ADC201712-202010

MARK 48541-0K280

main48541-09370iGUN13#,KUN13#,TGN13#..ADC201511-201712

MARK 48541-0K290

main48541-09371iGUN13#,TGN13#..ADC201712-202010

MARK 48541-0K290

main48541-09400iGUN126,KUN126..PSC201610-202105

MARK 48541-0K400

main48541-09410iGUN126,KUN126..PDC201610-202105

MARK 48541-0K410

main48531-Y9005iGGN125..BZAGT201907-201912

MARK 48531-YQ010,GR SPORT

main48531-Y9015iGGN125..H201912-202010

MARK 48531-YQ020,GR SPORT

483730K010SPACER, REAR SPRING

main48373-0K010

90105T0128

main90105-T0128

90105T0135

main90105-T0135

90105T0146

main90105-T0146

90119T0028

main90119-T0028

90178T0027

main90178-T0027

90178T0061

main90178-T0061

9017914069

main90179-14069

90201T0006

main90201-T0006

90201T0012

main90201-T0012

90201T0014

main90201-T0014

27 parts on this diagram · 13 diagrams in section
