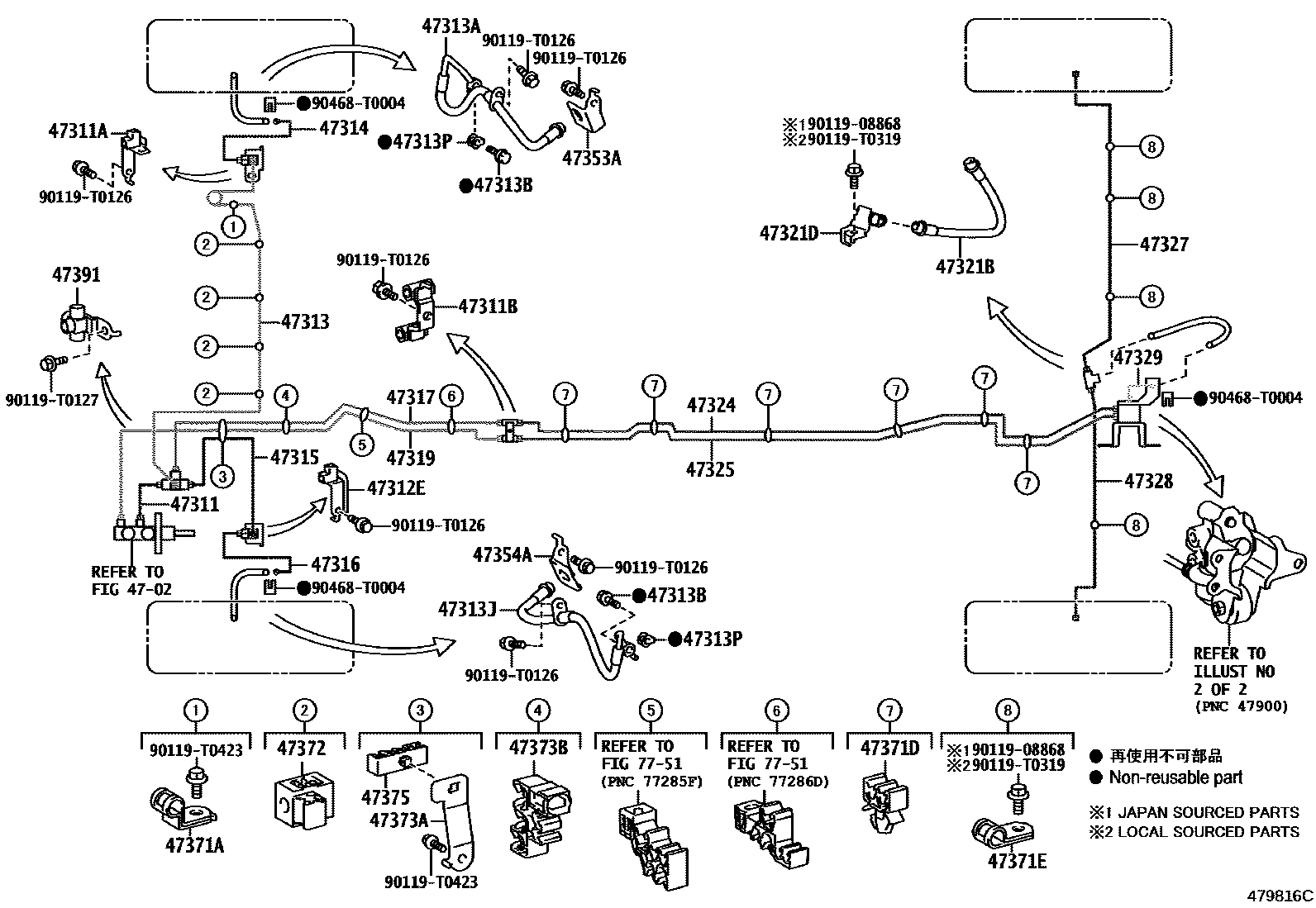

BRAKE TUBE & CLAMP
4702BRAKE MASTER CYLINDER
47311TUBE, FRONT BRAKE, NO.1
main47311-KK020supersedes 47311-KK030iGUN126..6FC..TH;GUN125,13#..(S,X)..ARL;GUN136..RHD..(SDC,SXT,TDC)..M;GUN125,126..RHD..(SDC,TDC)..M..(IDN,SA);GUN126..(KDC,MDC,SXT,TDC,TSC,TXT)..(ARL,KEN,MA,SA);GGN12#,135,GUN122,123,KUN125,TGN121..RHD..(SDC,TDC,TSC,TXT)..(5F,5FC,6FC)..(ARL,IDN,SA)201505-202105
main47311-KK050supersedes 47311-KK060iGUN125,126,135..TDC..(S,X)..LA;GUN136,TGN126..TDC..MTM..(M,S,X)..(GEN,LA)201905-202010
main47311-KK060iTGN126..ADC..LA;GUN126..L..BZAGT;TGN136..ADC..X..LA;GUN125,135,TGN128..ADC;TGN13#..5F..(S,X)..BZAGT;GUN126..ADC..(S,X)..HDCR;GUN136..ADC..6F..(M,S)..HDCR;GUN126,TGN138..6FC..(M,S)..BZAGT;GUN125,126,135..6F..(M,X)..HDCR..BZAGT..CBU201505-201907
SRS AIR BAG-WITHOUT
SRS AIR BAG-WITHOUT
47311AWAY(FOR FRONT BRAKE TUBE)
main90412-10299supersedes 90412-T0005iGUN122..PKN;KUN122..SDC;GGN120,KUN112..S;KUN122..RHD..(H,M,S);KUN122..LHD..(TDC,TXT)..L;GUN122,TGN121..S..(HDCR,HTWC)..(GEN,TH)201505-202105
main90412-T0005iGUN122..LHD..SSC;GUN122,TGN120..SDC,TDC,TSC,TXT;GUN112,120,123,KUN112,122,TGN11#,121201902-202009
(L)
(L)
47311BWAY, NO.1(FOR FRONT BRAKE TUBE)
main90412-10301iTGN121..L,M,X;TGN121..S..GCC;TGN136..ADC..S;GUN126..6F..IV3;GUN125..6FC..CBU;KUN122..RHD..(L,X);TGN136..(ADC,TDC)..X;GUN125..(ASC,TXT)..CBU;GUN135..LHD..TDC..6F..(H,L);GUN125..(TDC,TXT)..6FC..IV3;TGN126..LHD..(GCC,GEN,LA,SA);TGN136..(ASC,SDC)..(BZAGT,SA);GUN126,TGN138..(5F,6FC)..(H,M,S,X);GUN135..(ARL,BZAGT,LA,PH,SA,TH)..CBU;GUN126..(ASC,TDC)..6F..(ARL,BZAGT)..CBU;KUN122..LHD..(SSC,TDC,TSC,TXT)..(M,S,X);GUN125..(ADC,MDC,MSC,SDC,SSC,SXT,TDC,TSC)..6F;GUN135,LAN125..LHD..(SDC,TDC)..(5F,6FC)..(S,X);GUN126..6F..HDCR..(BZAGT,GCC,GEN,LA,PH,PKN,SA,TH);GUN126,KUN112,122..(ADC,TSC)..(L,X)..(BZAGT,GCC,IDN);GGN125,GUN112,120,TGN11#,120,128..BZAGT,GCC,IDN,SA,TH;GUN122,123,136..(DCR,HDCR)..(ARL,BZAGT,GCC,LA,PH,SA,TH);GUN122,135,LAN125..(MDC,S201505-201902
(L)
(L)
47312EWAY, NO.2(FOR FRONT BRAKE TUBE)
main90412-10300supersedes 90412-T0006iGUN122..PKN;KUN122..SDC;GGN120,KUN112..S;KUN122..RHD..(H,M,S);KUN122..LHD..(TDC,TXT)..L;GUN122,TGN121..S..(HDCR,HTWC)..(GEN,TH)201505-202105
main90412-T0006iGUN122..LHD..SSC;GUN122,TGN120..SDC,TDC,TSC,TXT;GUN112,120,123,KUN112,122,TGN11#,121201902-202009
(L)
(L)
47313TUBE, FRONT BRAKE, NO.3
main47313-KK040supersedes 47313-KK060iGUN125,126,135..TDC..(S,X)..LA;GUN136,TGN126..TDC..MTM..(M,S,X)..(GEN,LA)201505-201905
main47313-KK060iGGN125..LHD;TGN136..S..LA;GUN126..S..GCC;GUN126..6FC..PH;TGN126..TDC..S..GCC;TGN121,126..GCC..IV3;GUN126..M..(GCC,LA,TAIW);GUN125,135..LHD..SDC..(M,X);GUN136,TGN126..6FC..M..(BZAGT,GEN);GUN125..LHD..(SSC,TDC)..6F..S..(GCC,GEN,SA);GUN126,136,KUN126,TGN121..(ADC,SDC,SSC,TDC)..(H,X)..(BZAGT,SA,VN)201505-202010
SRS AIR BAG-WITHOUT
SRS AIR BAG-WITHOUT
47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)
47313BBOLT, UNION(FOR FRONT FLEXIBLE HOSE)
47313JHOSE, FLEXIBLE, NO.2(FOR FRONT)
47313PGASKET(FOR FRONT FLEXIBLE HOSE)
47314TUBE, FRONT BRAKE, NO.4
main47314-KK020iGUN135..L..MA;TGN136..ADC,ASC,SDC,TDC,TSC,TXT;GUN135..ARL,BZAGT,GEN,KEN,LA,PH,SA,TH,VN;GGN125,135,GUN125,126,136,KUN125,126,13#,LAN125,TGN126,128,138201505-202105
47315TUBE, FRONT BRAKE, NO.5
main47315-KK010iGUN135..L..MA;KUN125..RHD..6F;GUN126..6F..H..TH;GUN126..RHD..H..GEN;GUN135..RHD..(KEN,SA,TH);GUN125..RHD..TDC..(H,L,S);GUN126..(L,S,X)..(GEN,PKN,SA,TH);GUN136,TGN136..(SDC,TDC,TXT)..(H,S)..(SA,TH);GUN125,126,136..RHD..(SSC,TDC,TXT)..M..(GEN,SA,TH);GUN125..RHD..(KDC,KSC,MDC,MSC,SDC,SSC,SXT,TSC,TXT)..(GEN,IDN,KEN,MA,SA,TH);GUN112,120,122,123,KUN112,122,126,13#,TGN110,120,121,126..RHD..(GEN,IDN,PKN,SA,TH)201505-202105
main47315-KK030supersedes 47315-KK010iGUN126..6FC..TH;GUN125,13#..(S,X)..ARL;GUN136..RHD..(SDC,SXT,TDC)..M;GUN125,126..RHD..(SDC,TDC)..M..(IDN,SA);GUN126..(KDC,MDC,SXT,TDC,TSC,TXT)..(ARL,KEN,MA,SA);GGN12#,135,GUN122,123,KUN125,TGN121..RHD..(SDC,TDC,TSC,TXT)..(5F,5FC,6FC)..(ARL,IDN,SA)201505-202105
main47315-KK040supersedes 47315-KK060iTGN126..ADC..LA;GUN126..L..BZAGT;TGN136..ADC..X..LA;GUN125,135,TGN128..ADC;TGN13#..5F..(S,X)..BZAGT;GUN126..ADC..(S,X)..HDCR;GUN136..ADC..6F..(M,S)..HDCR;GUN126,TGN138..6FC..(M,S)..BZAGT;GUN125,126,135..6F..(M,X)..HDCR..BZAGT..CBU201505-201907
main47315-KK060iGGN125..LHD;TGN136..S..LA;GUN126..S..GCC;GUN126..6FC..PH;TGN126..TDC..S..GCC;TGN121,126..GCC..IV3;GUN126..M..(GCC,LA,TAIW);GUN125,135..LHD..SDC..(M,X);GUN136,TGN126..6FC..M..(BZAGT,GEN);GUN125..LHD..(SSC,TDC)..6F..S..(GCC,GEN,SA);GUN126,136,KUN126,TGN121..(ADC,SDC,SSC,TDC)..(H,X)..(BZAGT,SA,VN)201505-202010
SRS AIR BAG-WITHOUT
SRS AIR BAG-WITHOUT
47316TUBE, FRONT BRAKE, NO.6
47317TUBE, FRONT BRAKE, NO.7
main47321-KK010iGUN135..L..MA;KUN125..RHD..6F;GUN126..6F..H..TH;GUN126..RHD..H..GEN;GUN135..RHD..(KEN,SA,TH);GUN125..RHD..TDC..(H,L,S);GUN126..(L,S,X)..(GEN,PKN,SA,TH);GUN136,TGN136..(SDC,TDC,TXT)..(H,S)..(SA,TH);GUN125,126,136..RHD..(SSC,TDC,TXT)..M..(GEN,SA,TH);GUN125..RHD..(KDC,KSC,MDC,MSC,SDC,SSC,SXT,TSC,TXT)..(GEN,IDN,KEN,MA,SA,TH);GUN112,120,122,123,KUN112,122,126,13#,TGN110,120,121,126..RHD..(GEN,IDN,PKN,SA,TH)201505-202105
main47321-KK030supersedes 47321-KK040iTGN138..L;TGN136..ADC..M;KUN125,135..LHD;GUN125,135..LHD..IV3;GUN126..LHD..(GEN,SA);GUN125,126..6F..M..(PH,VN);GUN122,KUN122..LHD..(GEN,PH,SA);GUN135,TGN121..LHD..(GEN,PH,VN);TGN136..(ASC,TDC,TSC)..(M,X)..(GEN,LA);TGN126,138..5F..(L,M,X)..(BZAGT,GEN,SA);GUN125,TGN126..LHD..(SDC,TDC)..S..(PH,SA,VN);GUN125,135..LHD..(ASC,SXT,TSC,TXT)..(GEN,LA,SA);GUN125,KUN126..LHD..(SSC,TDC)..(H,L,X)..(GEN,SA)..CBU;GUN126,136,KUN112,126,136,LAN125..LHD..(5F,5FC,6F)..(M,S,X)..(DCR,DEFI,IART)201505-202010
main47321-KK040iGGN125..LHD;TGN136..S..LA;GUN126..S..GCC;GUN126..6FC..PH;TGN126..TDC..S..GCC;TGN121,126..GCC..IV3;GUN126..M..(GCC,LA,TAIW);GUN125,135..LHD..SDC..(M,X);GUN136,TGN126..6FC..M..(BZAGT,GEN);GUN125..LHD..(SSC,TDC)..6F..S..(GCC,GEN,SA);GUN126,136,KUN126,TGN121..(ADC,SDC,SSC,TDC)..(H,X)..(BZAGT,SA,VN)201505-202010
SRS AIR BAG-WITHOUT
SRS AIR BAG-WITHOUT
47319TUBE, FRONT BRAKE, NO.9
main47323-KK080supersedes 47323-KK090iGGN125..LHD;TGN136..S..LA;GUN126..S..GCC;GUN126..6FC..PH;TGN126..TDC..S..GCC;TGN121,126..GCC..IV3;GUN126..M..(GCC,LA,TAIW);GUN125,135..LHD..SDC..(M,X);GUN136,TGN126..6FC..M..(BZAGT,GEN);GUN125..LHD..(SSC,TDC)..6F..S..(GCC,GEN,SA);GUN126,136,KUN126,TGN121..(ADC,SDC,SSC,TDC)..(H,X)..(BZAGT,SA,VN)201505-202010
main47323-KK090iGUN125,126,135..TDC..(S,X)..LA;GUN136,TGN126..TDC..MTM..(M,S,X)..(GEN,LA)201505-201905
SRS AIR BAG-WITHOUT
SRS AIR BAG-WITHOUT
47321BHOSE, FLEXIBLE(FOR REAR BRAKE TUBE)
main90947-T2107iGUN135..L..MA;TGN136..ADC,ASC,SDC,TDC,TSC,TXT;GUN135..ARL,BZAGT,GEN,KEN,LA,PH,SA,TH,VN;GGN125,135,GUN125,126,136,KUN125,126,13#,LAN125,TGN126,128,138201505-202105
NO.1:REFER ILLUST.
NO.1:REFER ILLUST.
NO.2:REFER ILLUST.
NO.2:REFER ILLUST.
SRS AIR BAG-WITHOUT
47321DWAY, NO.1(FOR REAR BRAKE TUBE)
SRS AIR BAG-WITHOUT
47324TUBE, REAR BRAKE, NO.4
SRS AIR BAG-WITHOUT
SRS AIR BAG-WITHOUT
47325TUBE, REAR BRAKE, NO.5
SRS AIR BAG-WITHOUT
SRS AIR BAG-WITHOUT
47327TUBE, REAR BRAKE, NO.7
main47327-KK060iGUN120,122..6F,6FC;GGN120,GUN112,122,123,TGN111,121..ARL,GCC,GEN,PKN,SA201505-202105
main47327-KK120iGUN135..L..MA;GUN135..ADC,ASC,TDC,TSC,TXT;TGN136..5F..(BZAGT,GEN,LA,TH);GGN125,GUN125,126,136,KUN125,126,13#,TGN126,128,138..ADC,ASC,MDC,MSC,PDC,PSC,TDC,TSC,TXT201505-202105
SAUDI ARABIA SPEC&SRS AIR BAG-WITHOUT; SAUDI ARABIA SPEC(EURO4 REGULATION)&SRS AIR BAG-WITHOUT; SRS AIR BAG-WITHOUT
SRS AIR BAG-WITHOUT
47328TUBE, REAR BRAKE, NO.8
main47328-KK090iGUN135..L..MA;GUN135..ADC,ASC,TDC,TSC,TXT;GGN125,GUN125,126,136,KUN125,126,13#,TGN126,128,13#..ADC,ASC,MDC,MSC,PDC,PSC,TDC,TSC,TXT201505-202105
SAUDI ARABIA SPEC&SRS AIR BAG-WITHOUT; SAUDI ARABIA SPEC(EURO4 REGULATION)&SRS AIR BAG-WITHOUT; SRS AIR BAG-WITHOUT
47329TUBE, REAR BRAKE, NO.9
SRS AIR BAG-WITHOUT
47353ABRACKET, FLEXIBLE HOSE, FRONT RH NO.2
47354ABRACKET, FLEXIBLE HOSE, FRONT LH NO.2
main47354-KK010iGUN135..L..MA;TGN136..ADC,ASC,SDC,TDC,TSC,TXT;GUN135..ARL,BZAGT,GEN,KEN,LA,PH,SA,TH,VN;GGN125,135,GUN125,126,136,KUN125,126,13#,LAN125,TGN126,128,138201505-202105
47371ACLAMP, BRAKE TUBE, NO.1
main90461-T0007×2iGUN135..L..MA;TGN136..RHD..(SDC,TDC,TXT);GUN135..RHD..(ARL,GEN,KEN,SA,TH);GGN12#,135,GUN112,12#,136,KUN112,12#,13#,TGN110,120,121,126..RHD201505-202105
47371DCLAMP, BRAKE TUBE, NO.8
47371ECLAMP, BRAKE TUBE, NO.9
47372CLAMP, BRAKE TUBE, NO.2
main90949-T1003iGUN135..L..MA;TGN136..RHD..(SDC,TDC,TXT);GUN135..RHD..(ARL,GEN,KEN,SA,TH);GGN12#,135,GUN112,12#,136,KUN112,12#,13#,TGN110,120,121,126..RHD201505-202105
main90949-T1028supersedes 90949-T1029iGUN125,126,135..TDC..(S,X)..LA;GUN136,TGN126..TDC..MTM..(M,S,X)..(GEN,LA)201905-202010
main90949-T1029iTGN138..L;TGN136..ADC..M;KUN125,135..LHD;GUN125,135..LHD..IV3;GUN126..LHD..(GEN,SA);GUN125,126..6F..M..(PH,VN);GUN122,KUN122..LHD..(GEN,PH,SA);GUN135,TGN121..LHD..(GEN,PH,VN);TGN136..(ASC,TDC,TSC)..(M,X)..(GEN,LA);TGN126,138..5F..(L,M,X)..(BZAGT,GEN,SA);GUN125,TGN126..LHD..(SDC,TDC)..S..(PH,SA,VN);GUN125,135..LHD..(ASC,SXT,TSC,TXT)..(GEN,LA,SA);GUN125,KUN126..LHD..(SSC,TDC)..(H,L,X)..(GEN,SA)..CBU;GUN126,136,KUN112,126,136,LAN125..LHD..(5F,5FC,6F)..(M,S,X)..(DCR,DEFI,IART)201505-202010
SRS AIR BAG-WITHOUT
47373ABRACKET, TUBE CLAMP
main90949-T2003iGGN125,GUN112,122,125,126,13#,KUN112,12#,13#,LAN125,TGN11#,12#,13#..LHD201505-202010
47373BCLAMP, BRAKE TUBE, NO.3
main90949-T1016×3iGUN135..L..MA;TGN136..RHD..(SDC,TDC,TXT);GUN135..RHD..(ARL,GEN,KEN,SA,TH);GGN12#,135,GUN112,12#,136,KUN112,12#,13#,TGN110,120,121,126..RHD201505-202105
main90949-T1030×4iGGN125,GUN112,122,125,126,13#,KUN112,12#,13#,LAN125,TGN11#,12#,13#..LHD201505-202010
SRS AIR BAG-WITHOUT
47375CLAMP, BRAKE TUBE, NO.5
main90949-T1028supersedes 90949-T1029iGUN126..6FC..TH;GUN125,13#..(S,X)..ARL;GUN136..RHD..(SDC,SXT,TDC)..M;GUN125,126..RHD..(SDC,TDC)..M..(IDN,SA);GUN126..(KDC,MDC,SXT,TDC,TSC,TXT)..(ARL,KEN,MA,SA);GGN12#,135,GUN122,123,KUN125,TGN121..RHD..(SDC,TDC,TSC,TXT)..(5F,5FC,6FC)..(ARL,IDN,SA)201505-202105
main90949-T1029iGUN135..L..MA;KUN125..RHD..6F;GUN126..6F..H..TH;GUN126..RHD..H..GEN;GUN135..RHD..(KEN,SA,TH);GUN125..RHD..TDC..(H,L,S);GUN126..(L,S,X)..(GEN,PKN,SA,TH);GUN136,TGN136..(SDC,TDC,TXT)..(H,S)..(SA,TH);GUN125,126,136..RHD..(SSC,TDC,TXT)..M..(GEN,SA,TH);GUN125..RHD..(KDC,KSC,MDC,MSC,SDC,SSC,SXT,TSC,TXT)..(GEN,IDN,KEN,MA,SA,TH);GUN112,120,122,123,KUN112,122,126,13#,TGN110,120,121,126..RHD..(GEN,IDN,PKN,SA,TH)201505-202105
main90949-T1031iGGN125,GUN112,122,125,126,13#,KUN112,12#,13#,LAN125,TGN11#,12#,13#..LHD201505-202010
47391WAY, BRAKE TUBE
SRS AIR BAG-WITHOUT
7751FUEL TANK & TUBE
9011908868
main90119-08868
90119T0126
main90119-T0126
90119T0127
main90119-T0127
90119T0319
main90119-T0319
90119T0423
main90119-T0423
90468T0004
main90468-T0004
39 parts on this diagram · 18 diagrams in section
