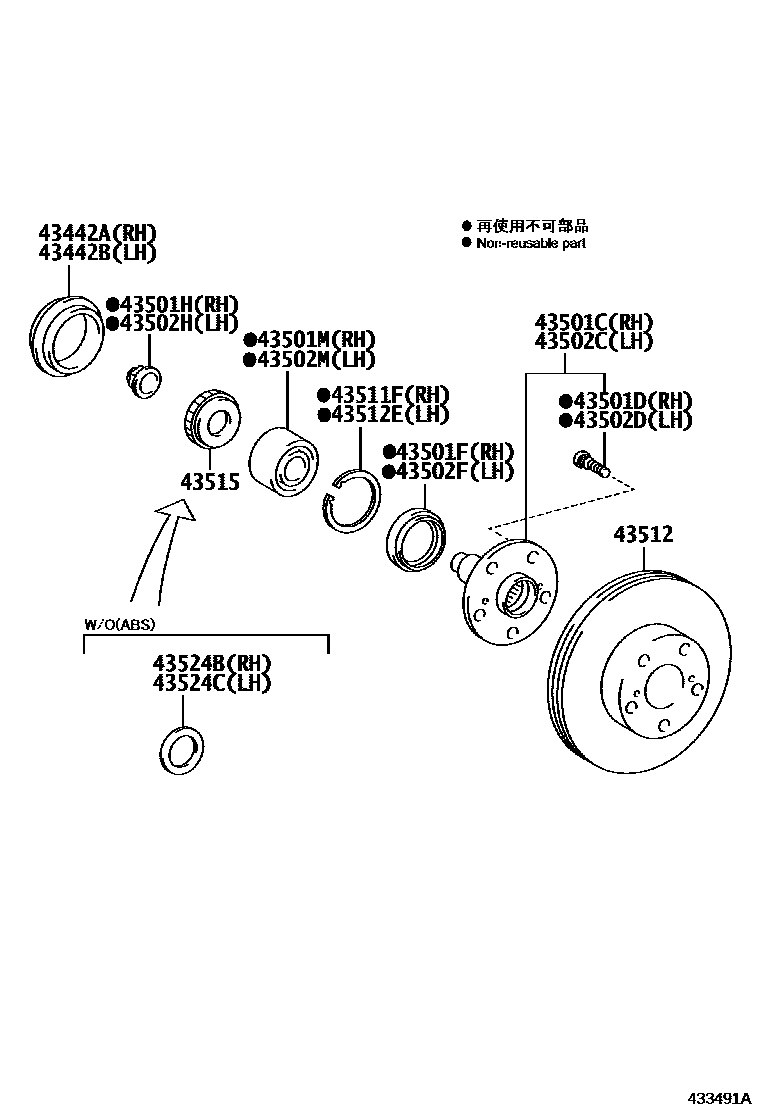

FRONT AXLE HUB
43442ACAP, KNUCKLE GREASE RETAINER, INNER, RH
main43442-0K010iTGN136..ADC,ASC,SDC,TDC,TSC,TXT;GGN120,135,GUN112,120,122,123,13#,KUN112,122,13#,TGN11#,120,121,138201505-202105
43442BCAP, KNUCKLE GREASE RETAINER, INNER, LH
43501CHUB SUB-ASSY, FRONT AXLE, RH
43501DBOLT, HUB (FOR FRONT AXLE RH)
main90942-02081×6iTGN138..5F..S;TGN136..ADC..(S,X)..LA;GUN126..6FC..(M,S)..IART;GUN126..(ADC,ASC)..(H,L,X);GUN13#,TGN126..(ADC,ASC)..LA;GGN125,GUN125,TGN128..(ADC,ASC)..CBU;GUN135,TGN136..(5F,6FC)..(S,X)..(BZAGT,VN);GUN135..(ASC,TDC)..(L,M,X)..(BZAGT,VN)..CBU;GUN126,TGN138..ADC..(6F,6FC)..(M,S)..(HDCR,HTWCF);GUN13#..(ADC,TDC,TSC,TXT)..HDCR..(ARL,BZAGT,GEN,PH,TH)201505-201911
43501FSEAL, OIL (FOR FRONT AXLE HUB RH)
43501HNUT (FOR FRONT AXLE SHAFT RH)
43501MBEARING (FOR FRONT AXLE HUB INNER RH)
main90366-T0061iGGN125,GUN125,126,13#,KUN125,126,13#,TGN126,128,13#..ADC,ASC,MDC,MSC,PDC,PSC,TDC,TSC,TXT201505-202105
43502CHUB SUB-ASSY, FRONT AXLE, LH
43502DBOLT, HUB (FOR FRONT AXLE LH)
main90942-02081×6iGGN120,GUN112,120,122,123,KUN112,122,TGN11#,120,121; TGN138..L;KUN125,126,135;GUN135..6F..S..VN;TGN13#..ADC..5F..M;GUN125,135..BZAGT..IV3;GUN135..LHD..(SDC,TDC,TSC)..X;GUN126,TGN126..MTM..(M,S)..(HTWC,IART)..BZAGT;TGN136..(ASC,SDC,TDC,TSC,TXT)..(GEN,LA,SA,TH);GUN13#..(MDC,SDC,SSC,SXT,TDC)..(L,M,S)..(LA,MA,SA);GGN125,135,GUN136,KUN136,LAN125..(M,S,X)..(DCR,DEFI,HTWC,IART);GUN125,126,TGN126..KDC,KSC,MDC,MSC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT201505-202105
43502FSEAL, OIL (FOR FRONT AXLE HUB LH)
43502HNUT (FOR FRONT AXLE SHAFT LH)
43502MBEARING (FOR FRONT AXLE HUB INNER LH)
main90366-T0061iGGN125,GUN125,126,13#,KUN125,126,13#,TGN126,128,13#..ADC,ASC,MDC,MSC,PDC,PSC,TDC,TSC,TXT201505-202105
43511FRING, HOLE SNAP (FOR FRONT AXLE HUB RH)
43512DISC, FRONT
main43512-0K060×2iGUN126..X..TH;GUN125..LHD..L..GEN;KUN125..TDC..L..DCR;GUN125,KUN125..TSC..(L,M,S)..GEN;GUN125,TGN126..RHD..(MSC,TDC)..(L,X)..(GEN,MA)201505-202012
main43512-0K071×2iKUN125..X..SA;LAN125,TGN126..SA;GUN125..LHD..SSC..X;GUN125..LHD..SDC..S;KUN125..LHD..(SDC,SSC)..S;GUN125,135..RHD..(KDC,KSC,SDC,SSC)..X201609-202102
TIRE & DISC WHEEL-225/70R17C STEEL
main43512-0K100×2iKUN125,LAN125,TGN126..LHD..(SDC,SSC)..S; KUN125,TGN126..LHD..(SDC,SSC)..(S,X); KUN125..SXT;KUN125..M..SA;KUN125..RHD..S..SA;GGN125,135,GUN125,126,13#,KUN126,135,TGN136..SA201601-201608
TIRE & DISC WHEEL-225/70R17C STEEL; TIRE & DISC WHEEL-265/65R17 ALUMINUM; TIRE & DISC WHEEL-265/65R17 STEEL
main43512-0K101×2iKUN125..M..SA;GUN125,KUN125..SXT;GUN125..LHD..SSC..S;GUN125,135..LHD..SDC..(M,X);GUN125,KUN125..RHD..S..(KEN,SA);GGN125,135,GUN126,13#,KUN126,135,TGN136..(M,S)..(KEN,SA)201609-202102
CS AMERICA SPEC&TIRE & DISC WHEEL-205/70R15C STEEL
main43512-0K170×2supersedes 43512-0K240iGUN122..TSC..HDCR; TGN121..5F..GCC..CBU;GUN112,122,KUN112,122,TGN11#,120..GCC; TGN121..L..GEN;GUN122..TSC..X..GEN201708-202004
BOLIVIA URUGUAY SPEC&TIRE & DISC WHEEL-215/65R16C STEEL; BOLIVIA URUGUAY SPEC&VEHICLE STABILITY CONTROL-W(*HSAC & TRAILER SWAY CONTROL)&TIRE & DISC WHEEL-215/65R16C STEEL; VEHICLE STABILITY CONTROL-W(*HSAC & TRAILER SWAY CONTROL)&TIRE & DISC WHEEL-215/65R16C ALUMINUM; VEHICLE STABILITY CONTROL-W(*HSAC & TRAILER SWAY CONTROL)&TIRE & DISC WHEEL-215/65R16C STEEL
main43512-0K230×2iTGN136..GEN;GUN125,126,136..TDC..LA;GUN125..TSC..X..(GEN,LA);GUN135,TGN126..(TDC,TSC)..LA201505-201910
main43512-0K240×2supersedes 43512-0K290iKUN122..SDC;KUN122..RHD..SA;GUN122,TGN120..SA; TGN121..SA201601-202009
VEHICLE STABILITY CONTROL-WITHOUT
main43512-0K270×2iGUN125,126..TDC..LA;TGN126..(TDC,TSC)..LA;GUN125..TSC..X..(GEN,LA);GUN13#,TGN136..(TDC,TSC)..(M,S,X)..(GEN,LA); GUN125..RHD..TDC..6F..L..GEN; GUN125..TXT..S..GEN; GUN126..6F..S..GEN;GUN125..TXT..S..GEN;GUN125..RHD..TDC..S..GEN;GUN126..RHD..6FC..(M,S)..GEN; GUN126..RHD..6FC..M..GEN201910-202005
BOLIVIA URUGUAY SPEC&VEHICLE STABILITY CONTROL-W(*HSAC & TRAILER SWAY CONTROL); CS AMERICA SPEC&VEHICLE STABILITY CONTROL-W(*HSAC & TRAILER SWAY CONTROL & *DAC); CS AMERICA SPEC&VEHICLE STABILITY CONTROL-W(*HSAC & TRAILER SWAY CONTROL); CS AMERICA SPEC&VEHICLE STABILITY CONTROL-W(*HSAC & TRAILER SWAY CONTROL)&TIRE & DISC WHEEL-225/70R17C STEEL; CS AMERICA SPEC&VEHICLE STABILITY CONTROL-W(*HSAC & TRAILER SWAY CONTROL)&TIRE & DISC WHEEL-265/60R18 ALUMINUM; CS AMERICA SPEC&VEHICLE STABILITY CONTROL-W(*HSAC & TRAILER SWAY CONTROL)&TIRE & DISC WHEEL-265/65R17 ALUMINUM; CS AMERICA SPEC&VEHICLE STABILITY CONTROL-W(*HSAC & TRAILER SWAY CONTROL)&TIRE & DISC WHEEL-265/65R17 STEEL
VEHICLE STABILITY CONTROL-W(*HSAC & TRAILER SWAY CONTROL)&TIRE & DISC WHEEL-215/65R16C STEEL
43512ERING, HOLE SNAP (FOR FRONT AXLE HUB LH)
43515ROTOR, SKID CONTROL, FRONT
43524BSPACER, FRONT WHEEL INNER BEARING, RH
SRS AIR BAG-WITHOUT
43524CSPACER, FRONT WHEEL INNER BEARING, LH
SRS AIR BAG-WITHOUT
18 parts on this diagram · 3 diagrams in section
