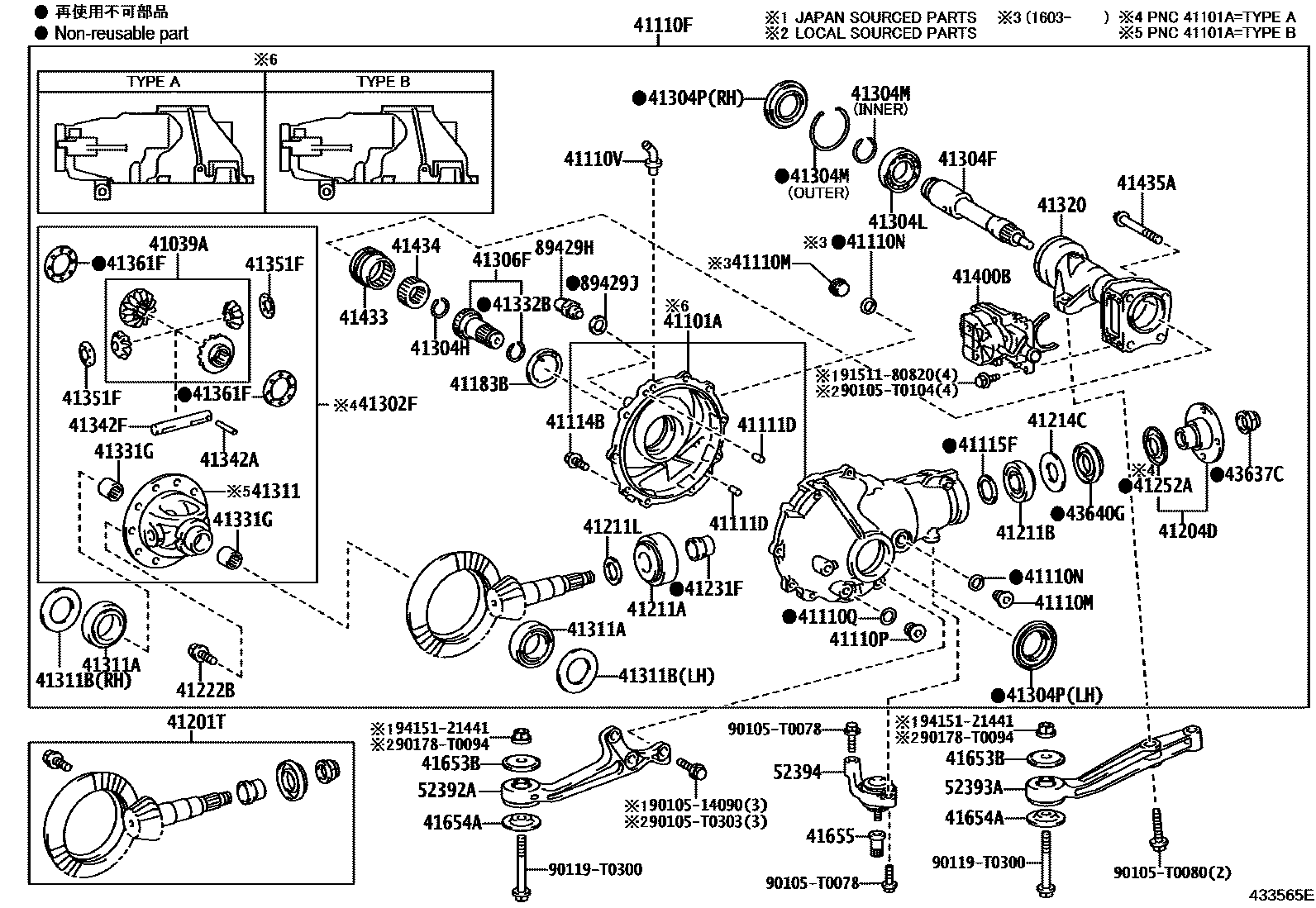

FRONT AXLE HOUSING & DIFFERENTIAL

41039AGEAR KIT, DIFFERENTIAL

main41039-71040i201804-202105

PNC 41101A=TYPE A; PNC 41101A=TYPE B

41101ACARRIER SUB-ASSY, DIFFERENTIAL, FRONT

main41101-0K060i201505-202105

TYPE B:REFER ILLUST.

main41101-71030i201511-202105

TYPE A:REFER ILLUST.

41110FCARRIER ASSY, DIFFERENTIAL, FRONT

main41110-0KA30i201505-201708

*FGR=43:12=3.583,PNC 41101A=TYPE B

main41110-0KA40i201505-202105

*FGR=43:11=3.909,PNC 41101A=TYPE B

main41110-0KA50i201505-202005

*FGR=41:10=4.100,PNC 41101A=TYPE B

main41110-0KA60i201505-201805

*FGR=43:10=4.300,PNC 41101A=TYPE B

main41110-0KA70i201505-202010

*FGR=41:9=4.555,PNC 41101A=TYPE B

main41110-0KA80i201804-202102

*FGR=43:12=3.583,PNC 41101A=TYPE B

main41110-0KA90i201505-202102

*FGR=43:11=3.909,PNC 41101A=TYPE B

main41110-0KB00i201505-202012

*FGR=41:10=4.100,PNC 41101A=TYPE B

main41110-0KB10i201505-202009

*FGR=43:10=4.300,PNC 41101A=TYPE B

main41110-0KB20i201505-202010

*FGR=41:9=4.555,AUTOMATIC DISCONNECTING DIFFERENTIAL-WITH,PNC 41101A=TYPE B; *FGR=41:9=4.555,PNC 41101A=TYPE B

main41110-71380i201804-202105

*FGR=43:12=3.583,PNC 41101A=TYPE A

main41110-71430i201804-202105

*FGR=43:11=3.909,PNC 41101A=TYPE A

main41110-71460supersedes 41110-0KA70i201511-202010

*FGR=41:9=4.555,PNC 41101A=TYPE A

main41110-71470i201804-202102

*FGR=43:12=3.583,PNC 41101A=TYPE A

main41110-71480supersedes 41110-71430i201511-202102

*FGR=43:11=3.909,PNC 41101A=TYPE A

main41110-71490supersedes 41110-71480i201804-201905

*FGR=41:10=4.100,PNC 41101A=TYPE A

main41110-71500supersedes 41110-71450i201601-202009

*FGR=43:10=4.300,PNC 41101A=TYPE A

main41110-71510supersedes 41110-0KA70i201511-202010

*FGR=41:9=4.555,AUTOMATIC DISCONNECTING DIFFERENTIAL-WITH,PNC 41101A=TYPE A; *FGR=41:9=4.555,PNC 41101A=TYPE A

main41110-71440i201804-202010

*FGR=41:10=4.100,AUTOMATIC DISCONNECTING DIFFERENTIAL-WITHOUT,PNC 41101A=TYPE A

41110MPLUG, FRONT DIFFERENTIAL FILLER

main90341-18032×2i201603-202105

(J),PNC 41101A=T/P B; PNC 41101A=TYPE A

main90341-T0002×2i201804-202105

(L),PNC 41101A=T/P B

41110NGASKET, FRONT DIFFERENTIAL FILLER PLUG

main12157-10010×2i201603-202105

PNC 41101A=TYPE A; PNC 41101A=TYPE B

41110PPLUG, FRONT DIFFERENTIAL DRAIN

main90341-24014i201511-202105

PNC 41101A=TYPE A

main90341-T0003i201505-202105

PNC 41101A=TYPE B

41110QGASKET, FRONT DIFFERENTIAL DRAIN PLUG

main90430-24003i201511-202105

PNC 41101A=TYPE A

41110VUNION (FOR FRONT DIFFERENTIAL)

main90404-08004i201511-202105

PNC 41101A=TYPE A

41111DPIN, STRAIGHT (FOR FRONT DIFFERENTIAL CARRIER)

main90250-10017×2i201511-202105

PNC 41101A=TYPE A

main90250-T0004×2i201505-202105

PNC 41101A=TYPE B

41114BBOLT, FRONT DIFFERENTIAL BEARING CAP

main90105-10391×10i201511-202105

PNC 41101A=TYPE A

main90105-T0101×10i201505-202105

PNC 41101A=TYPE B

41115FRING, FRONT DIFFERENTIAL OIL STORAGE

main41115-0K010i201505-202105

PNC 41101A=TYPE B

main41115-35010i201511-202105

PNC 41101A=TYPE A

41183BDEFLECTOR, FRONT DIFFERENTIAL SIDE BEARING RETAINER

main41183-0K010i201708-202102

PNC 41101A=TYPE B

main41183-35040i201804-201905

PNC 41101A=TYPE A

41201TFINAL GEAR KIT, DIFFERENTIAL, FRONT

main41201-09C60i201804-202105

*FGR=43:11=3.909,PNC 41101A=TYPE B

main41201-09C70i201505-202012

*FGR=41:10=4.100,PNC 41101A=TYPE B

main41201-09C80i201505-202009

*FGR=43:10=4.300,PNC 41101A=TYPE B

main41201-09C90i201505-202010

*FGR=41:9=4.555,PNC 41101A=TYPE B

main41201-09D00i201505-202105

*FGR=43:12=3.583,PNC 41101A=TYPE B

main41201-79465i201511-202105

*FGR=43:11=3.909,RH,PNC 41101A=TYPE A

main41201-79475i201601-202012

*FGR=41:10=4.100,RH,PNC 41101A=TYPE A

main41201-79485i201511-202009

*FGR=43:10=4.300,RH,PNC 41101A=TYPE A

main41201-79495supersedes 41201-09C90i201511-202010

*FGR=41:9=4.555,RH,PNC 41101A=TYPE A

main41201-79505i201804-202105

*FGR=43:12=3.583,RH,PNC 41101A=TYPE A

41204DFLANGE SUB-ASSY, FRONT DRIVE PINION COMPANION, FRONT

main41204-0K120i201804-202105

PNC 41101A=TYPE B

main41204-71030i201804-202105

PNC 41101A=TYPE A

41211ABEARING, TAPERED ROLLER (FOR FRONT DRIVE PINION FRONT)

main90366-35087i201804-202105

PNC 41101A=TYPE A

main90366-T0016i201804-202105

PNC 41101A=TYPE B

41211BBEARING, TAPERED ROLLER (FOR FRONT DRIVE PINION REAR)

main90366-30067i201804-202105

PNC 41101A=TYPE A

main90366-T0013i201505-202105

PNC 41101A=TYPE B

41211LSHIM (FOR DIFFERENTIAL DRIVE PINION)

main90201-35497i201804-202105

OD=47,T=1.70,PNC41101A=T/PA,OD=47; OD=47,T=1.70,PNC41101A=T/PB,OD=47

main90201-35498i201804-202105

OD=47,T=1.73,PNC41101A=T/PA,OD=47; OD=47,T=1.73,PNC41101A=T/PB,OD=47

main90201-35499i201804-202105

OD=47,T=1.76,PNC41101A=T/PA,OD=47; OD=47,T=1.76,PNC41101A=T/PB,OD=47

main90201-35500i201804-202105

OD=47,T=1.79,PNC41101A=T/PA,OD=47; OD=47,T=1.79,PNC41101A=T/PB,OD=47

main90201-35501i201804-202105

OD=47,T=1.82,PNC41101A=T/PA,OD=47; OD=47,T=1.82,PNC41101A=T/PB,OD=47

main90201-35502i201804-202105

OD=47,T=1.85,PNC41101A=T/PA,OD=47; OD=47,T=1.85,PNC41101A=T/PB,OD=47

main90201-35503i201511-202105

OD=47,T=1.88,PNC41101A=T/PA,OD=47

main90201-35504i201804-202105

OD=47,T=1.91,PNC41101A=T/PA,OD=47; OD=47,T=1.91,PNC41101A=T/PB,OD=47

main90201-35505i201510-202105

OD=47,T=1.94,PNC41101A=T/PB,OD=47

main90201-35506i201804-202105

OD=47,T=1.97,PNC41101A=T/PA,OD=47; OD=47,T=1.97,PNC41101A=T/PB,OD=47

main90201-35507i201804-202105

OD=47,T=2.00,PNC41101A=T/PA,OD=47; OD=47,T=2.00,PNC41101A=T/PB,OD=47

main90201-35508i201804-202105

OD=47,T=2.03,PNC41101A=T/PA,OD=47; OD=47,T=2.03,PNC41101A=T/PB,OD=47

main90201-35509i201804-202105

OD=47,T=2.06,PNC41101A=T/PA,OD=47; OD=47,T=2.06,PNC41101A=T/PB,OD=47

main90201-35510i201804-202105

OD=47,T=2.09,PNC41101A=T/PA,OD=47; OD=47,T=2.09,PNC41101A=T/PB,OD=47

main90201-35511i201510-202105

OD=47,T=2.12,PNC41101A=T/PB,OD=47

main90201-35512i201804-202105

OD=47,T=2.15,PNC41101A=T/PA,OD=47; OD=47,T=2.15,PNC41101A=T/PB,OD=47

main90201-35513i201804-202105

OD=47,T=2.18,PNC41101A=T/PA,OD=47; OD=47,T=2.18,PNC41101A=T/PB,OD=47

main90201-35514i201804-202105

OD=47,T=2.21,PNC41101A=T/PA,OD=47; OD=47,T=2.21,PNC41101A=T/PB,OD=47

main90201-35515i201804-202105

OD=47,T=2.24,MARK 01,PNC41101A=T/PA,OD=47; OD=47,T=2.24,MARK 01,PNC41101A=T/PB,OD=47

main90201-35516i201511-202105

OD=47,T=2.27,MARK 02,PNC41101A=T/PA,OD=47

main90201-35517i201804-202105

OD=47,T=2.30,MARK 03,PNC41101A=T/PA,OD=47; OD=47,T=2.30,MARK 03,PNC41101A=T/PB,OD=47

main90201-35518i201804-202105

OD=47,T=2.33,MARK 04,PNC41101A=T/PA,OD=47; OD=47,T=2.33,MARK 04,PNC41101A=T/PB,OD=47

main90564-35109i201511-202105

OD=52,T=1.70,PNC41101A=T/PA,OD=52

main90564-35110i201804-202105

OD=52,T=1.73,PNC41101A=T/PA,OD=52; OD=52,T=1.73,PNC41101A=T/PB,OD=52

main90564-35111i201804-202105

OD=52,T=1.76,PNC41101A=T/PA,OD=52; OD=52,T=1.76,PNC41101A=T/PB,OD=52

main90564-35112i201511-202105

OD=52,T=1.79,PNC41101A=T/PA,OD=52

main90564-35113i201511-202105

OD=52,T=1.82,PNC41101A=T/PA,OD=52

main90564-35114i201804-202105

OD=52,T=1.85,PNC41101A=T/PA,OD=52; OD=52,T=1.85,PNC41101A=T/PB,OD=52

main90564-35115i201511-202105

OD=52,T=1.88,PNC41101A=T/PA,OD=52

main90564-35116i201804-202105

OD=52,T=1.91,PNC41101A=T/PA,OD=52; OD=52,T=1.91,PNC41101A=T/PB,OD=52

main90564-35117i201804-202105

OD=52,T=1.94,PNC41101A=T/PA,OD=52; OD=52,T=1.94,PNC41101A=T/PB,OD=52

main90564-35118i201804-202105

OD=52,T=1.97,PNC41101A=T/PA,OD=52; OD=52,T=1.97,PNC41101A=T/PB,OD=52

main90564-35119i201505-202105

OD=52,T=2.00,PNC41101A=T/PB,OD=52

main90564-35120i201804-202105

OD=52,T=2.03,PNC41101A=T/PA,OD=52; OD=52,T=2.03,PNC41101A=T/PB,OD=52

main90564-35121i201511-202105

OD=52,T=2.06,PNC41101A=T/PA,OD=52

main90564-35123i201505-202105

OD=52,T=2.09,PNC41101A=T/PB,OD=52

main90564-35124i201804-202105

OD=52,T=2.12,PNC41101A=T/PA,OD=52; OD=52,T=2.12,PNC41101A=T/PB,OD=52

main90564-35125i201804-202105

OD=52,T=2.15,PNC41101A=T/PA,OD=52; OD=52,T=2.15,PNC41101A=T/PB,OD=52

main90564-35126i201505-202105

OD=52,T=2.18,PNC41101A=T/PB,OD=52

main90564-35127i201804-202105

OD=52,T=2.21,PNC41101A=T/PA,OD=52; OD=52,T=2.21,PNC41101A=T/PB,OD=52

main90564-35128i201505-202105

OD=52,T=2.24,PNC41101A=T/PB,OD=52

main90564-35129i201804-202105

OD=52,T=2.27,PNC41101A=T/PA,OD=52; OD=52,T=2.27,PNC41101A=T/PB,OD=52

main90564-35130i201511-202105

OD=52,T=2.30,PNC41101A=T/PA,OD=52

main90564-35131i201804-202105

OD=52,T=2.33,PNC41101A=T/PA,OD=52; OD=52,T=2.33,PNC41101A=T/PB,OD=52

41214CSLINGER, FRONT DIFFERENTIAL DRIVE PINION OIL

main41214-26011i201804-202105

PNC 41101A=TYPE A; PNC 41101A=TYPE B

41222BBOLT (FOR FRONT DIFFERENTIAL RING GEAR SET)

main90105-T0310×10i201804-202105

(L),PNC 41101A=T/P B

main90901-05002×10i201511-202105

PNC 41101A=TYPE A

41231FSPACER, FRONT DIFFERENTIAL DRIVE PINION BEARING

main41231-35040i201804-202105

PNC 41101A=TYPE A; PNC 41101A=TYPE B

41252ADEFLECTOR, DUST (FOR FRONT DIFFERENTIAL)

main41252-71030i201511-202105

PNC 41101A=TYPE A

41302FCASE SUB-ASSY, FRONT DIFFERENTIAL

main41301-71090i201804-202105

PNC 41101A=TYPE A

main41301-71100supersedes 41301-71120i201804-202105

PNC 41101A=TYPE A

main41301-71110i201511-202102

PNC 41101A=TYPE A

main41301-71120i201511-202102

PNC 41101A=TYPE A

41304FSHAFT SUB-ASSY, DIFFERENTIAL SIDE GEAR, RH

main41337-35050supersedes 41337-35060i201505-201708

AUTOMATIC DISCONNECTING DIFFERENTIAL-WITHOUT&TIRE & DISC WHEEL-225/70R17C STEEL,PNC 41101A=TYPE B; AUTOMATIC DISCONNECTING DIFFERENTIAL-WITHOUT&TIRE & DISC WHEEL-265/65R17 STEEL,PNC41101A=TYPE B; PNC 41101A=TYPE B

main41337-35060supersedes 41337-35050i201804-202102

PNC 41101A=TYPE A; PNC 41101A=TYPE B

41304HRING, HOLE SNAP (FOR DIFFERENTIAL SIDE GEAR SHAFT)

main90520-31011i201804-201905

PNC 41101A=TYPE A

main90520-T0028i201804-202102

PNC 41101A=TYPE B

41304LBEARING (FOR FRONT DIFFERENTIAL SIDE GEAR SHAFT RH)

main90363-T0014i201511-202105

PNC 41101A=TYPE A

41304MRING, SHAFT SNAP (FOR DIFFERENTIAL SIDE GEAR SHAFT RH)

main90520-41014i201511-202105

PNC41101A=T/PA,INNER

main90520-75002i201511-202105

PNC41101A=T/PA,OUTER

main90520-T0027i201505-202105

PNC41101A=T/PB,INNER

main90521-T0002i201505-202105

PNC41101A=T/PB,OUTER

41304PSEAL, OIL (FOR DIFFERENTIAL SIDE GEAR SHAFT)

main90311-47035i201909-202105

LH,PNC 41101A=TYPE A

main90311-47036i201804-201909

LH,PNC 41101A=TYPE A; TIRE & DISC WHEEL-205R16C STEEL,LH,PNC 41101A=TYPE A

main90311-47037i201804-201909

RH,PNC 41101A=TYPE A

main90311-47038i201909-202105

RH,PNC 41101A=TYPE A

main90311-T0083i201804-202001

LH,PNC 41101A=TYPE B

main90311-T0084i201505-202001

RH,PNC 41101A=TYPE B

main90311-T0101i202001-202105

LH,PNC 41101A=TYPE B

main90311-T0102i202001-202105

RH,PNC 41101A=TYPE B

41306FSHAFT SUB-ASSY, DIFFERENTIAL SIDE GEAR INTER

main41306-0K020i201505-201509

AUTOMATIC DISCONNECTING DIFFERENTIAL-WITH; AUTOMATIC DISCONNECTING DIFFERENTIAL-WITH&TIRE & DISC WHEEL-205R16C STEEL; AUTOMATIC DISCONNECTING DIFFERENTIAL-WITH&TIRE & DISC WHEEL-225/70R17C STEEL; AUTOMATIC DISCONNECTING DIFFERENTIAL-WITH&TIRE & DISC WHEEL-265/65R17 ALUMINUM; AUTOMATIC DISCONNECTING DIFFERENTIAL-WITH&TIRE & DISC WHEEL-265/65R17 STEEL

main41306-0K030i201708-201905

PNC 41101A=TYPE B

main41306-35060i201804-201905

PNC 41101A=TYPE A

41311CASE, FRONT DIFFERENTIAL

main41311-0K040i201505-202105

PNC 41101A=TYPE B

main41311-0K050i201505-202105

PNC 41101A=TYPE B

main41311-0K060i201708-202102

PNC 41101A=TYPE B

main41311-0K070supersedes 41311-0K040i201505-202102

PNC 41101A=TYPE B

41311ABEARING (FOR FRONT DIFFERENTIAL CASE)

main90366-53004×2i201804-202105

PNC 41101A=TYPE A

main90366-T0031×2i201804-202105

PNC 41101A=TYPE B

41311BWASHER, PLATE (FOR FRONT DIFFERENTIAL CASE)

main90564-50124i201804-202105

T=1.60,LH,PNC 41101A=TYPE A; T=1.60,LH,PNC 41101A=TYPE B

main90564-50126i201505-202105

T=1.66,LH,PNC 41101A=TYPE B

main90564-50128i201804-202105

T=1.72,LH,PNC 41101A=TYPE A; T=1.72,LH,PNC 41101A=TYPE B

main90564-50130i201804-202105

T=1.78,LH,PNC 41101A=TYPE A; T=1.78,LH,PNC 41101A=TYPE B

main90564-50132i201804-202105

T=1.84,LH,PNC 41101A=TYPE A; T=1.84,LH,PNC 41101A=TYPE B

main90564-50134i201804-202105

T=1.90,LH,PNC 41101A=TYPE A; T=1.90,LH,PNC 41101A=TYPE B

main90564-50136i201505-202105

T=1.96,LH,PNC 41101A=TYPE B

main90564-50138i201804-202105

T=2.02,LH,PNC 41101A=TYPE A; T=2.02,LH,PNC 41101A=TYPE B

main90564-50140i201804-202105

T=2.08,LH,PNC 41101A=TYPE A; T=2.08,LH,PNC 41101A=TYPE B

main90564-50142i201804-202105

T=2.14,LH,PNC 41101A=TYPE A; T=2.14,LH,PNC 41101A=TYPE B

main90564-50154i201804-202105

T=1.60,RH,PNC 41101A=TYPE A; T=1.60,RH,PNC 41101A=TYPE B

main90564-50156i201511-202105

T=1.66,RH,PNC 41101A=TYPE A

main90564-50158i201804-202105

T=1.72,RH,PNC 41101A=TYPE A; T=1.72,RH,PNC 41101A=TYPE B

main90564-50160i201804-202105

T=1.78,RH,PNC 41101A=TYPE A; T=1.78,RH,PNC 41101A=TYPE B

main90564-50162i201804-202105

T=1.84,RH,PNC 41101A=TYPE A; T=1.84,RH,PNC 41101A=TYPE B

main90564-50164i201505-202105

T=1.90,RH,PNC 41101A=TYPE B

main90564-50166i201505-202105

T=1.96,RH,PNC 41101A=TYPE B

main90564-50168i201505-202105

T=2.02,RH,PNC 41101A=TYPE B

main90564-50170i201804-202105

T=2.08,RH,PNC 41101A=TYPE A; T=2.08,RH,PNC 41101A=TYPE B

main90564-50172i201804-202105

T=2.14,RH,PNC 41101A=TYPE A; T=2.14,RH,PNC 41101A=TYPE B

main90564-50184i201804-202105

T=1.58,LH,PNC 41101A=TYPE A; T=1.58,LH,PNC 41101A=TYPE B

main90564-50185i201804-202105

T=1.62,LH,PNC 41101A=TYPE A; T=1.62,LH,PNC 41101A=TYPE B

main90564-50186i201804-202105

T=1.64,LH,PNC 41101A=TYPE A; T=1.64,LH,PNC 41101A=TYPE B

main90564-50187i201804-202105

T=1.68,LH,PNC 41101A=TYPE A; T=1.68,LH,PNC 41101A=TYPE B

main90564-50188i201804-202105

T=1.70,LH,PNC 41101A=TYPE A; T=1.70,LH,PNC 41101A=TYPE B

main90564-50189i201511-202105

T=1.74,LH,PNC 41101A=TYPE A

main90564-50190i201804-202105

T=1.76,LH,PNC 41101A=TYPE A; T=1.76,LH,PNC 41101A=TYPE B

main90564-50191i201804-202105

T=1.80,LH,PNC 41101A=TYPE A; T=1.80,LH,PNC 41101A=TYPE B

main90564-50192i201511-202105

T=1.82,LH,PNC 41101A=TYPE A

main90564-50193i201804-202105

T=1.86,LH,PNC 41101A=TYPE A; T=1.86,LH,PNC 41101A=TYPE B

main90564-50194i201804-202105

T=1.88,LH,PNC 41101A=TYPE A; T=1.88,LH,PNC 41101A=TYPE B

main90564-50195i201804-202105

T=1.92,LH,PNC 41101A=TYPE A; T=1.92,LH,PNC 41101A=TYPE B

main90564-50196i201804-202105

T=1.94,LH,PNC 41101A=TYPE A; T=1.94,LH,PNC 41101A=TYPE B

main90564-50197i201804-202105

T=1.98,LH,PNC 41101A=TYPE A; T=1.98,LH,PNC 41101A=TYPE B

main90564-50198i201511-202105

T=2.00,LH,PNC 41101A=TYPE A

main90564-50199i201511-202105

T=2.04,LH,PNC 41101A=TYPE A

main90564-50200i201804-202105

T=2.06,LH,PNC 41101A=TYPE A; T=2.06,LH,PNC 41101A=TYPE B

main90564-50201i201804-202105

T=2.10,LH,PNC 41101A=TYPE A; T=2.10,LH,PNC 41101A=TYPE B

main90564-50202i201804-202105

T=2.12,LH,PNC 41101A=TYPE A; T=2.12,LH,PNC 41101A=TYPE B

main90564-50203i201505-202105

T=2.16,LH,PNC 41101A=TYPE B

main90564-50204i201804-202105

T=1.58,RH,PNC 41101A=TYPE A; T=1.58,RH,PNC 41101A=TYPE B

main90564-50205i201804-202105

T=1.62,RH,PNC 41101A=TYPE A; T=1.62,RH,PNC 41101A=TYPE B

main90564-50206i201804-202105

T=1.64,RH,PNC 41101A=TYPE A; T=1.64,RH,PNC 41101A=TYPE B

main90564-50207i201511-202105

T=1.68,RH,PNC 41101A=TYPE A

main90564-50208i201505-202105

T=1.70,RH,PNC 41101A=TYPE B

main90564-50209i201804-202105

T=1.74,RH,PNC 41101A=TYPE A; T=1.74,RH,PNC 41101A=TYPE B

main90564-50210i201804-202105

T=1.76,RH,PNC 41101A=TYPE A; T=1.76,RH,PNC 41101A=TYPE B

main90564-50211i201804-202105

T=1.80,RH,PNC 41101A=TYPE A; T=1.80,RH,PNC 41101A=TYPE B

main90564-50212i201804-202105

T=1.82,RH,PNC 41101A=TYPE A; T=1.82,RH,PNC 41101A=TYPE B

main90564-50213i201505-202105

T=1.86,RH,PNC 41101A=TYPE B

main90564-50214i201511-202105

T=1.88,RH,PNC 41101A=TYPE A

main90564-50215i201505-202105

T=1.92,RH,PNC 41101A=TYPE B

main90564-50216i201804-202105

T=1.94,RH,PNC 41101A=TYPE A; T=1.94,RH,PNC 41101A=TYPE B

main90564-50217i201804-202105

T=1.98,RH,PNC 41101A=TYPE A; T=1.98,RH,PNC 41101A=TYPE B

main90564-50218i201804-202105

T=2.00,RH,PNC 41101A=TYPE A; T=2.00,RH,PNC 41101A=TYPE B

main90564-50219i201804-202105

T=2.04,RH,PNC 41101A=TYPE A; T=2.04,RH,PNC 41101A=TYPE B

main90564-50220i201804-202105

T=2.06,RH,PNC 41101A=TYPE A; T=2.06,RH,PNC 41101A=TYPE B

main90564-50221i201804-202105

T=2.10,RH,PNC 41101A=TYPE A; T=2.10,RH,PNC 41101A=TYPE B

main90564-50222i201804-202105

T=2.12,RH,PNC 41101A=TYPE A; T=2.12,RH,PNC 41101A=TYPE B

main90564-50223i201804-202105

T=2.16,RH,PNC 41101A=TYPE A; T=2.16,RH,PNC 41101A=TYPE B

main90564-50224i201804-202105

T=1.44,RH,PNC 41101A=TYPE A

main90564-50225i201804-202105

T=1.46,RH,PNC 41101A=TYPE A

main90564-50226i201511-202105

T=1.48,RH,PNC 41101A=TYPE A

main90564-50227i201511-202105

T=1.50,RH,PNC 41101A=TYPE A

main90564-50228i201804-202105

T=1.52,RH,PNC 41101A=TYPE A

main90564-50229i201804-202105

T=1.54,RH,PNC 41101A=TYPE A

main90564-50230i201804-202105

T=1.56,RH,PNC 41101A=TYPE A

main90564-50231i201511-202105

T=2.18,LH,PNC 41101A=TYPE A

main90564-50232i201804-202105

T=2.20,LH,PNC 41101A=TYPE A

main90564-50233i201804-202105

T=2.22,LH,PNC 41101A=TYPE A

main90564-50234i201804-202105

T=2.24,LH,PNC 41101A=TYPE A

main90564-50235i201511-202105

T=2.26,LH,PNC 41101A=TYPE A

main90564-50236i201511-202105

T=2.28,LH,PNC 41101A=TYPE A

main90564-50237i201804-202105

T=2.30,LH,PNC 41101A=TYPE A

41320TUBE ASSY, FRONT DIFFERENTIAL

main41320-0K020supersedes 41321-0K030i201505-202102

PNC 41101A=TYPE B

main41320-71020i201511-202102

PNC 41101A=TYPE A

main41321-0K030i201505-201708

main41321-71030i201804-202105

PNC 41101A=TYPE A

41331GBEARING, NEEDLE ROLLER(FOR FRONT DIFFERENTIAL SIDE GEAR)

main90364-35010×2i201804-201905

PNC 41101A=TYPE A

main90364-T0009×2i201505-202102

PNC 41101A=TYPE B

41332BRING, HOLE SNAP (FOR DIFF SIDE GEAR INTERMEDDIATE SHAFT)

main90521-34003i201505-202102

PNC 41101A=TYPE B

41342APIN, STRAIGHT (FOR FRONT DIFFERENTIAL PINION SHAFT)

main90250-06058i201511-202105

PNC 41101A=TYPE A

main90250-T0006i201505-202105

PNC 41101A=TYPE B

41342FSHAFT, FRONT DIFFERENTIAL PINION, NO.1

main41342-0K040i201505-202105

PNC 41101A=TYPE B

main41342-53020i201804-202105

PNC 41101A=TYPE A

41351FWASHER, FRONT DIFFERENTIAL PINION THRUST

main41351-0K010×2i201804-202105

(L),PNC 41101A=T/P B

main41351-35030×2i201804-202105

(J),PNC 41101A=T/P B; PNC 41101A=TYPE A

41361FWASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1

main41361-0K020×2i201804-202105

T=1.55,PNC 41101A=TYPE B

main41361-0K030×2i201505-202105

T=1.60,PNC 41101A=TYPE B

main41361-0K040×2i201804-202105

T=1.65,PNC 41101A=TYPE B

main41361-0K050×2i201505-202105

T=1.70,PNC 41101A=TYPE B

main41361-0K060×2i201804-202105

T=1.75,PNC 41101A=TYPE B

main41361-0K070×2i201505-202105

T=1.80,PNC 41101A=TYPE B

main41361-0K080×2i201804-202105

T=1.85,PNC 41101A=TYPE B

main41361-0K090×2i201505-202105

T=1.90,PNC 41101A=TYPE B

main41361-34010×2i201511-202105

T=1.50,PNC 41101A=TYPE A

main41361-34020×2i201511-202105

T=1.55,PNC 41101A=TYPE A

main41361-34030×2i201511-202105

T=1.60,PNC 41101A=TYPE A

main41361-34040×2i201511-202105

T=1.65,PNC 41101A=TYPE A

main41361-34050×2i201511-202105

T=1.70,PNC 41101A=TYPE A

main41361-34060×2i201511-202105

T=1.75,PNC 41101A=TYPE A

main41361-34070×2i201804-202105

T=1.80,PNC 41101A=TYPE A

main41361-34080×2i201511-202105

T=1.85,PNC 41101A=TYPE A

main41361-34090×2i201511-202105

T=1.90,PNC 41101A=TYPE A

41400BACTUATOR ASSY, DIFFERENTIAL MOTOR

main41400-35033i201505-201706

AUTOMATIC DISCONNECTING DIFFERENTIAL-WITH&TIRE & DISC WHEEL-205R16C STEEL,PNC 41101A=TYPE B; AUTOMATIC DISCONNECTING DIFFERENTIAL-WITH&TIRE & DISC WHEEL-225/70R17C STEEL,PNC 41101A=TYPE B; AUTOMATIC DISCONNECTING DIFFERENTIAL-WITH&TIRE & DISC WHEEL-265/65R17 ALUMINUM,PNC41101A=TYPE B; AUTOMATIC DISCONNECTING DIFFERENTIAL-WITH&TIRE & DISC WHEEL-265/65R17 STEEL,PNC 41101A=TYPE B; AUTOMATIC DISCONNECTING DIFFERENTIAL-WITH,PNC 41101A=TYPE B; PNC 41101A=TYPE B

main41400-35034i201708-201905

PNC 41101A=TYPE B

41433SLEEVE, DIFFERENTIAL CLUTCH

main41433-35010i201708-201905

PNC 41101A=TYPE B

41434HUB, DIFFERENTIAL CLUTCH

main41434-35030i201708-201905

PNC 41101A=TYPE B

41435ABOLT (FOR DIFFERENTIAL CLUTCH CASE SETTING)

main90107-12002×4i201804-202102

*12-1.25PX78-30,PNC 41101A=TYPE A

main90107-12003×4i201510-201708

*12-1.25PX24-16.5,(J),PNC 41101A=T/P B; *12-1.25PX24-16.5,AUTOMATIC DISCONNECTING DIFFERENTIAL-WITHOUT&TIRE & DISC WHEEL-225/70R17C STEEL,(J),PNC 41101A=T/P B; *12-1.25PX24-16.5,AUTOMATIC DISCONNECTING DIFFERENTIAL-WITHOUT&TIRE & DISC WHEEL-265/65R17 STEEL,(J),PNC 41101A=T/P B

main90107-T0001×4supersedes 90107-T0002i201708-202102

*12-1.25PX78-30,PNC 41101A=TYPE B

main90107-T0002×4i201505-201708

*12-1.25PX24-16.5,(L),PNC 41101A=T/P B; *12-1.25PX24-16.5,AUTOMATIC DISCONNECTING DIFFERENTIAL-WITHOUT&TIRE & DISC WHEEL-225/70R17C STEEL,(L),PNC 41101A=T/P B; *12-1.25PX24-16.5,AUTOMATIC DISCONNECTING DIFFERENTIAL-WITHOUT&TIRE & DISC WHEEL-265/65R17 STEEL,(L),PNC 41101A=T/P B

41653BSTOPPER, DIFFERENTIAL MOUNT, UPPER

main41653-0K010×2i201505-202105

41654ASTOPPER, DIFFERENTIAL MOUNT, LOWER

main41654-0K010×2i201505-202105

41655NUT, FRONT DIFFERENTIAL MOUNT, NO.1

main41655-0K011i201505-202105

43637CNUT, CASTLE (FOR FRONT AXLE DRIVE PINION)

main90177-22003i201804-202105

PNC 41101A=TYPE A; PNC 41101A=TYPE B

43640GSEAL, TYPE T OIL (FOR FRONT AXLE DIFFERENTIAL CARRIER)

main90311-41015i201511-202105

PNC 41101A=TYPE A
