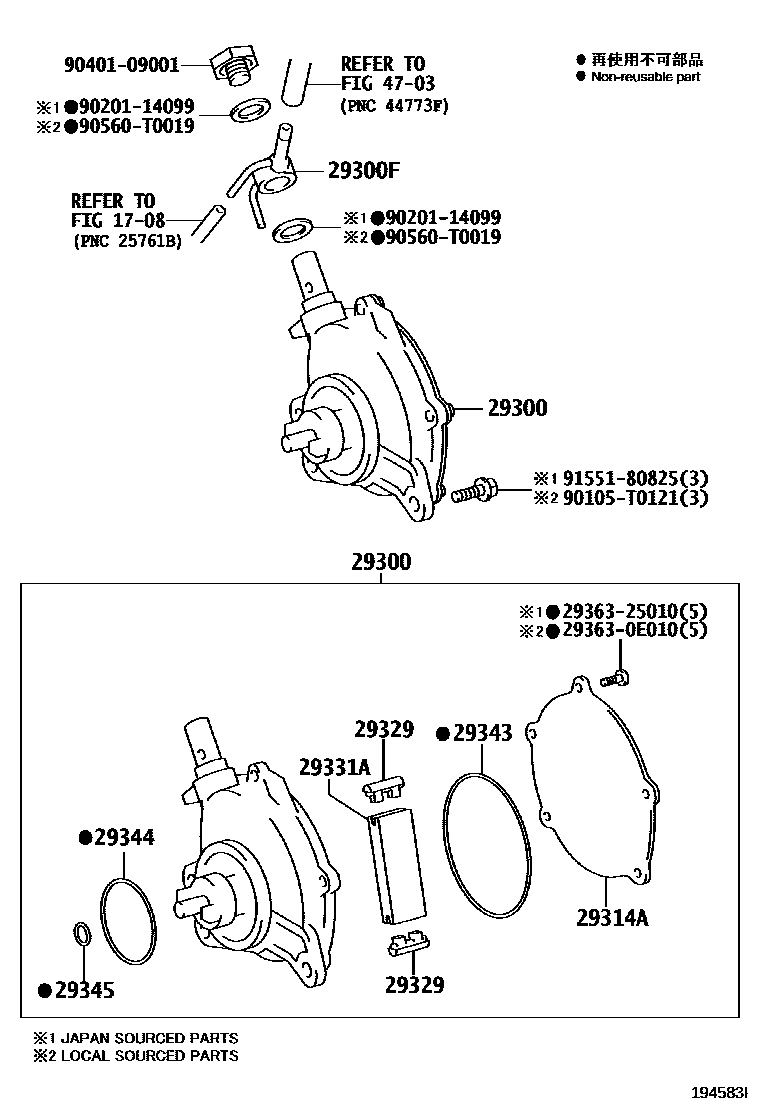

VACUUM PUMP
1708VACUUM PIPING
29300PUMP ASSY, VACUUM
main29300-0E010i1GDFTV..GUN136..H..BZAGT;1GDFTV..GUN136..6FC..M..BZAGT;1GDFTV..GUN126..ADC..6F..(M,S)..LA; 2GDFTV..GUN125,135..ADC..6F..LA201610-201809
*468; COLOMBIA SPEC,*468
main29300-0E011supersedes 29300-11021i1GDFTV..GUN126..ADC..6F..X; 1GDFTV..GUN126..ADC..X;2GDFTV..GUN135..ASC..LA;1GDFTV..GUN136..ADC..LA;1GDFTV..GUN126..ADC..6FC..S..LA; 2GDFTV..GUN135..ADC;2GDFTV..GUN125..ADC,ASC;2GDFTV..GUN135..X..BZAGT;1GDFTV..GUN126,136..BZAGT;1GDFTV..GUN126..ADC..M..LA;1GDFTV..GUN126..ADC..6F..S..LA201810-202010
*468; BOLIVIA URUGUAY SPEC,*468; MEXICO SPEC,*468; PERU SPEC,*468
main29300-11020i1GDFTV..GUN126..ADC..6F..(M,S)..LA; 2GDFTV..GUN125..LHD..SSC..S;2GDFTV..GUN125..LHD..SDC..(M,X)201710-201806
(J),*272; BOLIVIA URUGUAY SPEC,(J),*272
main29300-11021i1GDFTV..GUN126,136..6F..LA;2GDFTV..GUN135..(ASC,TSC)..LA; 1GDFTV..GUN126..6F..M..LA;1GDFTV..GUN126..TDC..6F..X; 2GDFTV..GUN125..TXT..S..GEN;2GDFTV..GUN125..LHD..L..GEN;2GDFTV..GUN125..TSC..6F..L..GEN;2GDFTV..GUN125..RHD..TDC..6F..(H,M,S)..GEN; 2GDFTV..GUN135..X..BZAGT;2GDFTV..GUN125..RHD..S..SA;2GDFTV..GUN125..LHD..SSC..S;1GDFTV..GUN126,136..6F..M..SA;2GDFTV..GUN125..6F..(ARL,BZAGT);2GDFTV..GUN125..LHD..TDC..M..GEN;2GDFTV..GUN135..(L,S)..(BZAGT,SA);2GDFTV..GUN125..RHD..TDC..6F..L..GEN;2GDFTV..GUN125..LHD..(ASC,SDC)..(M,X)..(LA,SA)201807-201809
(J),*272; BOLIVIA URUGUAY SPEC,(J),*272; COLOMBIA SPEC,(J),*272; EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),(J),*272
29300FUNION
main90405-09194i1GDFTV..GUN126..M..LA;1GDFTV..GUN126..S..GCC;1GDFTV..GUN126..6F..S..LA;1GDFTV..GUN126..TDC..6F..X;2GDFTV..GUN122..TSC..X..GEN;1GDFTV..GUN126..RHD..6F..H..GEN;2GDFTV..GUN125..RHD..TDC..6F..L..GEN;2GDFTV..GUN125..ARL,BZAGT,LA,PH,TH,VN;2GDFTV..GUN135..LHD..(ADC,SDC,TDC)..(LA,SA);2GDFTV..GUN122,125..TSC..(5F,6FC)..(L,S)..HDCR;2GDFTV..GUN122,125..LHD..TDC..(M,S,X)..HDCR..GEN;1GDFTV,2GDFTV..GUN112,120,122,123,126,13#..ARL,BZAGT,PH,TAIW,TH,VN201505-202010
(J)
main90405-T0001i1GDFTV..GUN126..M..LA;1GDFTV..GUN126..S..GCC;1GDFTV..GUN126..6F..S..LA;1GDFTV..GUN126..TDC..6F..X;2GDFTV..GUN122..TSC..X..GEN;1GDFTV..GUN126..RHD..6F..H..GEN;2GDFTV..GUN125..RHD..TDC..6F..L..GEN;2GDFTV..GUN125..ARL,BZAGT,LA,PH,TH,VN;2GDFTV..GUN135..LHD..(ADC,SDC,TDC)..(LA,SA);2GDFTV..GUN122,125..TSC..(5F,6FC)..(L,S)..HDCR;2GDFTV..GUN122,125..LHD..TDC..(M,S,X)..HDCR..GEN;1GDFTV,2GDFTV..GUN112,120,122,123,126,13#..ARL,BZAGT,PH,TAIW,TH,VN201505-202010
(L)
29314RING, STOP
29314ACOVER, END
(L),*501
(J),*272
29329CAP, VACUUM PUMP VANE
main29329-0E010×2supersedes 29329-37010i1GDFTV..GUN136..H..BZAGT;1GDFTV..GUN136..6FC..M..BZAGT;1GDFTV..GUN126..ADC..6F..(M,S)..LA201610-202010
*468
main29329-37010×2i1GDFTV..GUN126..ADC..6F..(M,S)..LA; 2GDFTV..GUN125..LHD..SSC..S;2GDFTV..GUN125..LHD..SDC..(M,X)201710-201809
(J),*272; BOLIVIA URUGUAY SPEC,(J),*272
29331BLADE, VACUUM PUMP, A
29331AVANE, VACUUM PUMP
main29331-0E010supersedes 29331-11020i1GDFTV..GUN136..H..BZAGT;1GDFTV..GUN136..6FC..M..BZAGT;1GDFTV..GUN126..ADC..6F..(M,S)..LA201610-202010
*468
main29331-11020i2GDFTV..GUN122..SSC..CBU;2GDFTV..GUN122..PSC,SDC,TDC,TSC,TXT;1GDFTV,2GDFTV..GUN112,120,123,125,126,13#201612-202105
(J),*501
29343RING, O VACUUM PUMP, NO.1
main29343-0E010supersedes 29343-11020i1GDFTV..GUN136..H..BZAGT;1GDFTV..GUN136..6FC..M..BZAGT;1GDFTV..GUN126..ADC..6F..(M,S)..LA201610-202010
*468
main29343-11020i1GDFTV..GUN126..ADC..6F..(M,S)..LA; 2GDFTV..GUN125..LHD..SSC..S;2GDFTV..GUN125..LHD..SDC..(M,X)201710-201809
(J),*272; BOLIVIA URUGUAY SPEC,(J),*272
29344RING, O VACUUM PUMP, NO.2
main29344-0E010supersedes 29344-22011i1GDFTV..GUN126..ADC..6F..X; 1GDFTV..GUN126..ADC..X;2GDFTV..GUN135..ASC..LA;1GDFTV..GUN136..ADC..LA;1GDFTV..GUN126..ADC..6FC..S..LA; 2GDFTV..GUN125..ASC..LA;1GDFTV..GUN136..6F..(M,S)..BZAGT;1GDFTV,2GDFTV..GUN125,126,135..BZAGT201710-202010
*468; BOLIVIA URUGUAY SPEC,*468; PERU SPEC,*468
main29344-22011i1GDFTV..GUN126..ADC..6F..(M,S)..LA; 2GDFTV..GUN125..LHD..SSC..S;2GDFTV..GUN125..LHD..SDC..(M,X)201710-201809
(J),*272; BOLIVIA URUGUAY SPEC,(J),*272
29345RING, O VACUUM PUMP, NO.3
main29345-0E010supersedes 29345-22011i2GDFTV..GUN122..SSC..CBU;2GDFTV..GUN122..PSC,SDC,TDC,TSC,TXT;1GDFTV,2GDFTV..GUN112,120,123,125,126,13#201505-202105
(L),*501
(J),*272
4703BRAKE BOOSTER & VACUUM TUBE
293630E010SCREW, HOLLOW VACUUM PUMP
main29363-0E010
2936325010SCREW, HOLLOW VACUUM PUMP
main29363-25010
90105T0121
main90105-T0121
9020114099
main90201-14099
9040109001
main90401-09001
90560T0019
main90560-T0019
9155180825
main91551-80825
19 parts on this diagram · 3 diagrams in section
