RADIO RECEIVER & AMPLIFIER & CONDENSER
86120RECEIVER ASSY, RADIO
main86120-0K290iTGN16..SCB..DLX..GCC..CBU;KUN10,15,TGN10,11,15,26..LHD..(SCB,XTR)..(GCC,GEN)..CBU; TGN16..SCB..SR201107-201308
FUJITSU TEN,ID100011,AUDIO-AM/FM CD 2SPEAKER,TYPE A:REFER ILLUST.; FUJITSU TEN,ID100011,TYPE A:REFER ILLUST.
PIONEER,ID=P10070,TYPE A:REFER ILLUST.
FUJITSU TEN,ID100010,AUDIO-AM/FM CD 4SPEAKER,TYPE A:REFER ILLUST.; FUJITSU TEN,ID100010,AUDIO-AM/FM CD 6SPEAKER,TYPE A:REFER ILLUST.; FUJITSU TEN,ID100010,TYPE A:REFER ILLUST.
PANASONIC,ID=53874,AUDIO-AM/FM CD RDS 4SPEAKER,TYPE A:REFER ILLUST.; PANASONIC,ID=53874,TYPE A:REFER ILLUST.
main86120-0K560iKUN2#,3#,TGN26..DCB..DLX..(DCR,HDCR,HTWC)..(CO,LA); TGN26..CO; TGN26..SR..HTWCF;TGN36..DCB..HTWCF;TGN36..DCB..DLX..HTWC..LA201112-201310
FUJITSU TEN,ID100013,AUDIO-AM/FM CD 4SPEAKER,TYPE A:REFER ILLUST.; FUJITSU TEN,ID100013,SRS AIR BAG-WITH(DRIVER & PASSENGER)&AUDIO-AM/FM CD 4SPEAKER,TYPE A:REFER ILLUST.; FUJITSU TEN,ID100013,TYPE A:REFER ILLUST.
PANASONIC,ID=53875,AUDIO-AM/FM CD RDS 2SPEAKER,TYPE A:REFER ILLUST.; PANASONIC,ID=53875,TYPE A:REFER ILLUST.
main86120-0K590iKUN15,25,35,TGN16..(DCB,SMT,XTR)..TH; KUN16,26,36..SMT; KUN16,36..DCB..TH201107-201308
FUJITSU TEN,ID100018,AUDIO-AM/FM CD 4SPEAKER,TYPE A:REFER ILLUST.; FUJITSU TEN,ID100018,AUDIO-AM/FM CD 6SPEAKER,TYPE A:REFER ILLUST.; FUJITSU TEN,ID100018,TYPE A:REFER ILLUST.
FUJITSU TEN,ID100019,TYPE A:REFER ILLUST.
FUJITSU TEN,ID100222,AUDIO-AM/FM(EXTRA) & CD & 4SPEAKER,TYPE B:REFER ILLUST.; FUJITSU TEN,ID100222,AUDIO-AM/FM(EXTRA) & CD & 6SPEAKER,TYPE B:REFER ILLUST.; FUJITSU TEN,ID100222,TYPE B:REFER ILLUST.
FUJITSU TEN,ID100223,AUDIO-AM/FM(EXTRA) & CD & 6SPEAKER,TYPE B:REFER ILLUST.; FUJITSU TEN,ID100223,TYPE B:REFER ILLUST.
main86120-0K661iKUN15,25..DCB..SR..SA; KUN25,LAN15,25,TGN16..LHD..DCB..DLX..SA; KUN25,LAN15,25..LHD..DCB..DLX..SA201310-201512
FUJITSU TEN,ID100224,AUDIO-AM/FM(EXTRA) & CD & 2SPEAKER,TYPE B:REFER ILLUST.; FUJITSU TEN,ID100224,AUDIO-AM/FM(EXTRA) & CD & 6SPEAKER,TYPE B:REFER ILLUST.; FUJITSU TEN,ID100224,TYPE B:REFER ILLUST.
FUJITSU TEN,ID100226,TYPE B:REFER ILLUST.
FUJITSU TEN,ID100227,AUDIO-AM/FM(EXTRA) & CD & 4SPEAKER & RDS,TYPE B:REFER ILLUST.; FUJITSU TEN,ID100227,TYPE B:REFER ILLUST.
FUJITSU TEN,ID100231,TYPE B:REFER ILLUST.
FUJITSU TEN,ID100233,TYPE B:REFER ILLUST.
FUJITSU TEN,ID100236,AUDIO-AM/FM(EXTRA) & CD & 2SPEAKER & RDS,TYPE B:REFER ILLUST.; FUJITSU TEN,ID100236,TYPE B:REFER ILLUST.
FUJITSU TEN,ID=17421,AUDIO-AM/FM CASSETTE 2SPEAKER,TYPE C:REFER ILLUST.
PIONEER,ID=P10071,AUDIO-AM/FM CD 2SPEAKER,TYPE A:REFER ILLUST.
main86120-0K490iKUN25,TGN15,26..DCB..GCC;KUN15,TGN16..LHD..DCB..DLX..(GCC,GEN,PHL); KUN26..LHD..DCB..(GEN,PHL); TGN16..DCB..(GCC,GEN);KUN25..LHD..(DCB,XTR)..(GCC,GEN);KUN15,TGN15,26..LHD..DCB..DLX..(GCC,GEN)201107-201308
FUJITSU TEN,ID100009,AUDIO-AM/FM CD 2SPEAKER,TYPE A:REFER ILLUST.; FUJITSU TEN,ID100009,AUDIO-AM/FM CD 4SPEAKER,TYPE A:REFER ILLUST.; FUJITSU TEN,ID100009,AUDIO-AM/FM CD 6SPEAKER,TYPE A:REFER ILLUST.
FUJITSU TEN,ID100012,AUDIO-AM/FM CD 2SPEAKER,TYPE A:REFER ILLUST.
main86120-0K610iKUN15..XTR..GEN;KUN15..LHD..SCB..DCR..GEN; TGN15,16,26..SCB..DLX..GCC..CBU; TGN16..SCB..DLX..GCC..CBU201208-201308
FUJITSU TEN,ID100156,COLOMBIA SPEC&AUDIO-AM/FM CD 2SPEAKER,TYPE A:REFER ILLUST.; FUJITSU TEN,ID100156,CS AMERICA SPEC&AUDIO-AM/FM CD 2SPEAKER,TYPE A:REFER ILLUST.; FUJITSU TEN,ID100156,ECUADOR SPEC&AUDIO-AM/FM CD 2SPEAKER,TYPE A:REFER ILLUST.
FUJITSU TEN,ID100157,CS AMERICA SPEC&AUDIO-AM/FM CD 4SPEAKER,TYPE A:REFER ILLUST.; FUJITSU TEN,ID100157,CS AMERICA SPEC&AUDIO-AM/FM CD 6SPEAKER,TYPE A:REFER ILLUST.
FUJITSU TEN,ID100158,CS AMERICA SPEC&AUDIO-AM/FM CD 2SPEAKER,TYPE A:REFER ILLUST.
FUJITSU TEN,ID100225,AUDIO-AM/FM(EXTRA) & CD & 6SPEAKER,TYPE B:REFER ILLUST.; FUJITSU TEN,ID100225,CS AMERICA SPEC&AUDIO-AM/FM(EXTRA) & CD & 4SPEAKER,TYPE B:REFER ILLUST.; FUJITSU TEN,ID100225,CS AMERICA SPEC&AUDIO-AM/FM(EXTRA) & CD & 6SPEAKER,TYPE B:REFER ILLUST.; FUJITSU TEN,ID100225,CS AMERICA SPEC,TYPE B:REFER ILLUST.
FUJITSU TEN,ID100232,AUDIO-AM/FM(EXTRA) & CD & 2SPEAKER,TYPE B:REFER ILLUST.
main86120-0K781iKUN15..LHD..SCB..DCR..GEN; TGN15,16,26..SCB..DLX..GCC..CBU; TGN16..SCB..DLX..GCC..CBU201308-201504
FUJITSU TEN,ID100235,COLOMBIA SPEC&AUDIO-AM/FM(EXTRA) & CD & 2SPEAKER,TYPE B:REFERILLUST.; FUJITSU TEN,ID100235,CS AMERICA SPEC&AUDIO-AM/FM(EXTRA) & CD & 2SPEAKER,TYPE B:REFER ILLUST.; FUJITSU TEN,ID100235,ECUADOR SPEC&AUDIO-AM/FM(EXTRA) & CD & 2SPEAKER,TYPE B:REFERILLUST.
FUJITSU TEN,ID100234,CS AMERICA SPEC&AUDIO-AM/FM(EXTRA) & CD & 2SPEAKER,TYPE B:REFER ILLUST.
FUJITSU TEN,ID100230,AUDIO-AM/FM(EXTRA) & CD & 4SPEAKER,TYPE B:REFER ILLUST.
FUJITSU TEN,ID100239,AUDIO-AM/FM(EXTRA) & CD & 2SPEAKER,TYPE B:REFER ILLUST.
FUJITSU TEN,ID100305,CAUCASUS SPEC&AUDIO-AM/FM(EXTRA) & CD & 4SPEAKER & RDS,TYPE B:REFER ILLUST.; FUJITSU TEN,ID100305,KAZAKHSTAN SPEC&AUDIO-AM/FM(EXTRA) & CD & 4SPEAKER & RDS,TYPEB:REFER ILLUST.
86120AKNOB, RADIO RECEIVER SWITCH
AUDIO-AM/FM(EXTRA) & CD & 4SPEAKER; AUDIO-AM/FM(EXTRA) & CD & 4SPEAKER & RDS
86190CADAPTER ASSY, STEREO JACK, NO.1
main86190-0K030iKUN36..TH;KUN16..SR;KUN26..4FC..PHL;KUN26..DCB..5F..(PHL,TH);KUN26..5FC..(ARL,CO,GEN,TH);GGN15,KUN16,TGN16..(SCB,XTR)..ARL;KUN26..(SCB,SMT,XTR)..5F..(ARL,TH);KUN26..LHD..(DCB,THDCB)..(4FC,5F)..SR..GEN201308-201512
86203WIRE, RADIO
main86203-71020iKUN35,LAN35..DCB..DLX..SA; KUN36..4FC;KUN36..5F..SA;KUN25..RHD..DCB..SA;GGN25,35,KUN15,26,35,TGN36..SR..SA;KUN15,16..(DCB,SMT,XTR)..(4FC,5F)..DCR..TH201107-201310
AUDIO-AM/FM CD 6SPEAKER
main86203-71060iKUN25,LAN15,25,TGN16..LHD..DCB..SA; KUN26..LHD..SADCB..SR;KUN26,36,TGN26,36..SR..(DCR,HTWC,IART)..(CO,LA); TGN26,36..DCB..HTWCF;KUN26..LHD..(DCB,SADCB)..DLX;KUN25,3#,TGN26,36..DCB..DLX..(DCR,HDCR,HTWC)..(CO,LA); TGN26,36..SR..HTWCF201107-201310
AUDIO-*DA(EXTRA) & CD & 6SPEAKER; AUDIO-AM/FM CD 2SPEAKER; AUDIO-AM/FM CD 4SPEAKER
main86203-71090iKUN36..TH;KUN16..SR;KUN26..RHD..5FC;KUN26..DCB..5F..TH;GGN15,KUN16,TGN16..(SCB,XTR)..ARL;KUN26..(SCB,SMT,XTR)..5F..(ARL,TH)201308-201512
main86203-71100iKUN26..(4FC,5F)..CO;KUN26..LHD..SADCB..SR;KUN26,36,TGN26,36..SR..(DCR,HTWC,IART)..LA201310-201512
86211BRACKET, RADIO, NO.1
main86211-0K030supersedes 86211-0K040iKUN26..5F..ARL;KUN16,TGN16..ARL;GGN15..(DCB,XTR)..5FC..DLX;GGN15,25..DCB..5FC..SR..ARL; KUN26..5FC..TH201107-201308
AUDIO-WITHOUT(AUDIO) & 6SPEAKER,MARK=CR; MARK=CR
main86211-0K040iKUN16..5FC;KUN16..GEN;KUN26..4FC..PHL;KUN26..(5F,5FC)..(PHL,TH);KUN36..(5F,5FC)..(GEN,TH);KUN26..LHD..(DCB,THDCB)..SR..GEN; KUN25,TGN26..4FC..GEN;KUN35,TGN16,26..(DCB,THDCB)..SR..(GCC,GEN); KUN35..SR..PHL;KUN26..RHD..DCB..GEN;KUN35..(DCB,SMT)..(GEN,TH);KUN15,25,TGN16..SR..(IDN,TH)201107-201308
AUDIO-*DA(EXTRA) & CD & 6SPEAKER,MARK=DR; AUDIO-*DA(EXTRA) & DVD & 6SPEAKER,MARK=DR; MARK=DR
main86211-0K070iKUN16,26..DCB..(GEN,PHL);KUN16,36..DCB..(5F,5FC)..(GEN,TH); KUN26,36..SMT;TGN16..DCB..(GCC,GEN);KUN25,TGN26..(DCB,THDCB,XTR)..(GCC,GEN);KUN15,26,35,TGN15,36..(DCB,THDCB)..DLX..(GCC,GEN); TGN16..SCB..SR;KUN15,25,35,TGN16..(CNG,HDCR,HTWC)..(IDN,TH); TGN26..4FC..GEN;KUN25,TGN26..SCB..GEN;TGN16..SCB..DLX..GCC..CBU;KUN10,25,TGN10,11,15,26..GCC;KUN15..(SCB,XTR)..(GCC,GEN)..CBU;KUN15,TGN16..LHD..DCB..DLX..(GCC,GEN,PHL)201107-201308
AUDIO-AM/FM CD 2SPEAKER,MARK=YR; AUDIO-AM/FM CD 4SPEAKER,MARK=YR; AUDIO-AM/FM CD 6SPEAKER,MARK=YR; MARK=YR
main86211-0K090supersedes 86211-0K030iKUN26..RHD..DCB..GEN; KUN35..XTR;TGN16..SCB..SR;KUN26..4FC..PHL;KUN15,25,35..IDN,TH;KUN15,25..DCB..SR..SA;KUN26..DCB..5F..(PHL,TH);KUN26..5FC..(ARL,CO,GEN,TH);KUN16,36,TGN16..RHD..(GEN,TH);GGN15,KUN16,TGN16..(SCB,XTR)..ARL;KUN26..(SCB,SMT,XTR)..5F..(ARL,TH);KUN26..LHD..(DCB,THDCB)..(4FC,5F)..SR..GEN; TGN16..DCB..(GCC,GEN);KUN15..DCB..DLX..(GCC,GEN);KUN25,TGN26..(DCB,THDCB,XTR)..(GCC,GEN);KUN35,TGN15,36..LHD..(DCB,THDCB)..DLX..(GCC,GEN); TGN26..4FC..GEN;KUN25,TGN26..SCB..GEN;TGN16..SCB..DLX..GCC..CBU;KUN10,25,TGN10,11,15,26..GCC;KUN15..(SCB,XTR)..(GCC,GEN)..CBU;KUN15,TGN16..LHD..DCB..DLX..(GCC,GEN,PHL)201308-201512
AUDIO-AM/FM(EXTRA) & CD & 2SPEAKER,MARK=IR; AUDIO-AM/FM(EXTRA) & CD & 4SPEAKER,MARK=IR; AUDIO-AM/FM(EXTRA) & CD & 6SPEAKER,MARK=IR; MARK=IR
AUDIO-AVN(EXTRA) & CD & 6SPEAKER & FOR BRAZIL,MARK=AR
86211HBRACKET, RADIO, NO.2
main86211-0K110iTGN26..HTWCF;TGN36..DLX..LA;TGN36..SR..HTWCF;KUN2#,3#,TGN26..DLX..(DCR,HDCR,HTWC,IART)..(CO,LA); TGN26..SR..HTWC..LA;KUN26..LHD..SADCB..4FC;KUN26,36,TGN36..(4FC,5F)..SR..(DCR,HTWC)..(CO,LA)201308-201310
AUDIO-WITHOUT(AUDIO) & 4SPEAKER
86212BRACKET, RADIO, NO.2
main86212-0K030supersedes 86212-0K040iGGN25..5FC..DLX;GGN15,25..DCB..5F;KUN26..4FC..ARL..CBU; KUN26..5FC..TH;KUN26..LHD..DCB..(GEN,PHL); KUN26..THDCB..DLX;TGN16..DCB..SR..GCC;KUN25,TGN26..GCC,GEN;TGN16..DLX..(ARL,GCC,GEN);KUN26..RHD..DCB..4FC..GEN;GGN15..(DCB,XTR)..5FC..DLX;GGN15,25..DCB..5FC..SR..ARL;KUN26..RHD..(DCB,SCB,XTR)..5F..(ARL,GEN);KUN1#,35,TGN10,11,15,36..5F..(ARL,GCC,GEN,IDN,PHL)201107-201308
AUDIO-WITHOUT(AUDIO) & 6SPEAKER,MARK=CL; MARK=CL
main86212-0K040iKUN16..5FC;KUN16..GEN;KUN26..4FC..PHL;KUN26..(5F,5FC)..(PHL,TH);KUN36..(5F,5FC)..(GEN,TH);KUN26..LHD..(DCB,THDCB)..SR..GEN; KUN25,TGN26..4FC..GEN;KUN35,TGN16,26..(DCB,THDCB)..SR..(GCC,GEN); KUN35..SR..PHL;KUN26..RHD..DCB..GEN;KUN35..(DCB,SMT)..(GEN,TH);KUN15,25,TGN16..SR..(IDN,TH)201107-201308
AUDIO-*DA(EXTRA) & CD & 6SPEAKER,MARK=DL; AUDIO-*DA(EXTRA) & DVD & 6SPEAKER,MARK=DL; MARK=DL
main86212-0K070iKUN16,26..DCB..(GEN,PHL);KUN16,36..DCB..(5F,5FC)..(GEN,TH); KUN26,36..SMT;TGN16..DCB..(GCC,GEN);KUN25,TGN26..(DCB,THDCB,XTR)..(GCC,GEN);KUN15,26,35,TGN15,36..(DCB,THDCB)..DLX..(GCC,GEN); TGN16..SCB..SR;KUN15,25,35,TGN16..(CNG,HDCR,HTWC)..(IDN,TH); TGN26..4FC..GEN;KUN25,TGN26..SCB..GEN;TGN16..SCB..DLX..GCC..CBU;KUN10,25,TGN10,11,15,26..GCC;KUN15..(SCB,XTR)..(GCC,GEN)..CBU;KUN15,TGN16..LHD..DCB..DLX..(GCC,GEN,PHL)201107-201308
AUDIO-AM/FM CD 2SPEAKER,MARK=YL; AUDIO-AM/FM CD 4SPEAKER,MARK=YL; AUDIO-AM/FM CD 6SPEAKER,MARK=YL; MARK=YL
main86212-0K090supersedes 86212-0K100iKUN26..DCB..5F..ARL;GGN15,25,KUN16,TGN16..DCB..ARL201311-201512
MARK=IL
MARK=CL
AUDIO-AVN(EXTRA) & CD & 6SPEAKER & FOR BRAZIL,MARK=AL
86221APANEL, RADIO RECEIVER
AUDIO-AM/FM CASSETTE 2SPEAKER
86221DPANEL, RADIO RECEIVER
AUDIO-AM/FM CASSETTE 2SPEAKER
90153T0001
main90153-T0001
90159T0009
main90159-T0009
90167T0007
main90167-T0007

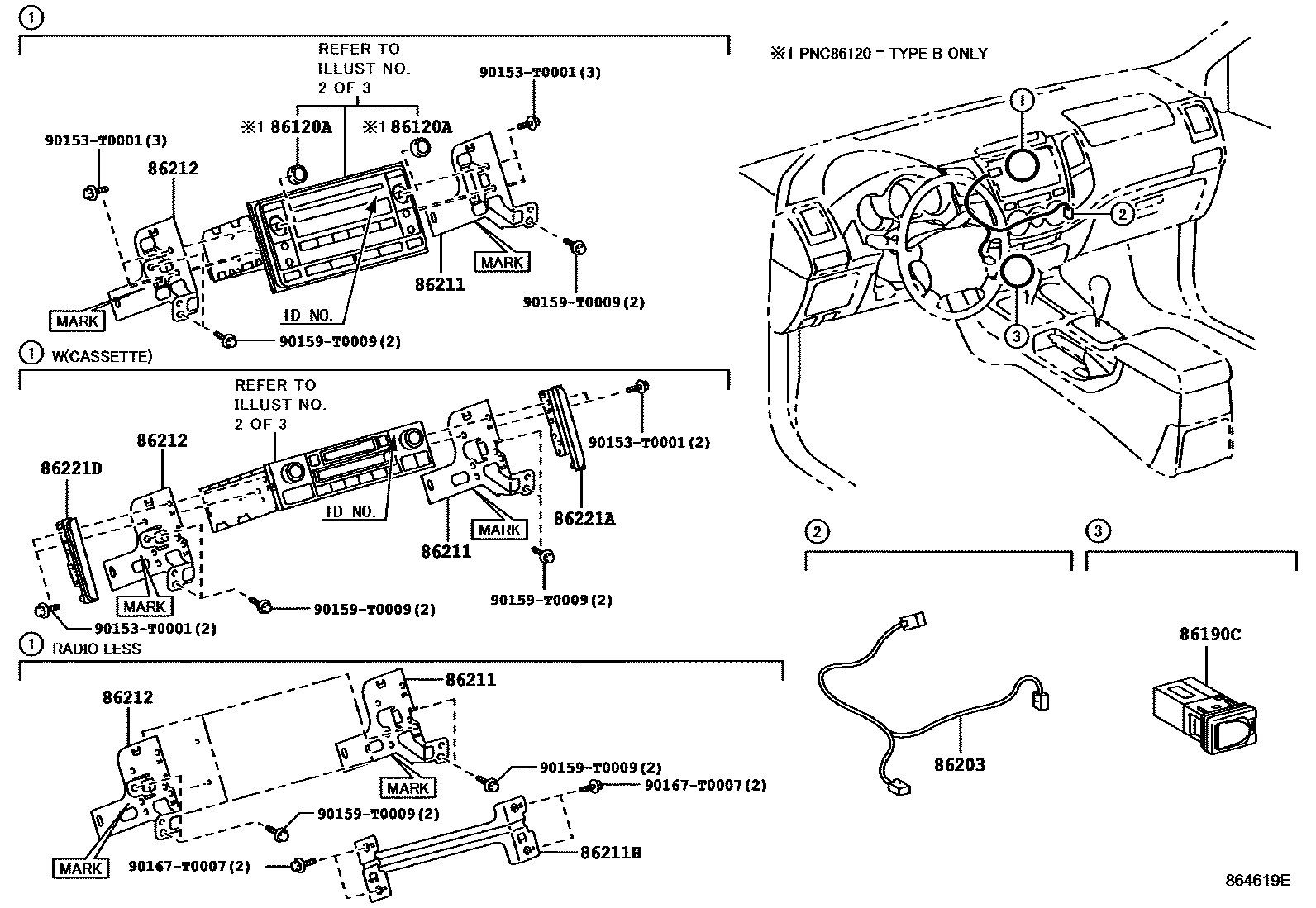

12 parts on this diagram · 4 diagrams in section
