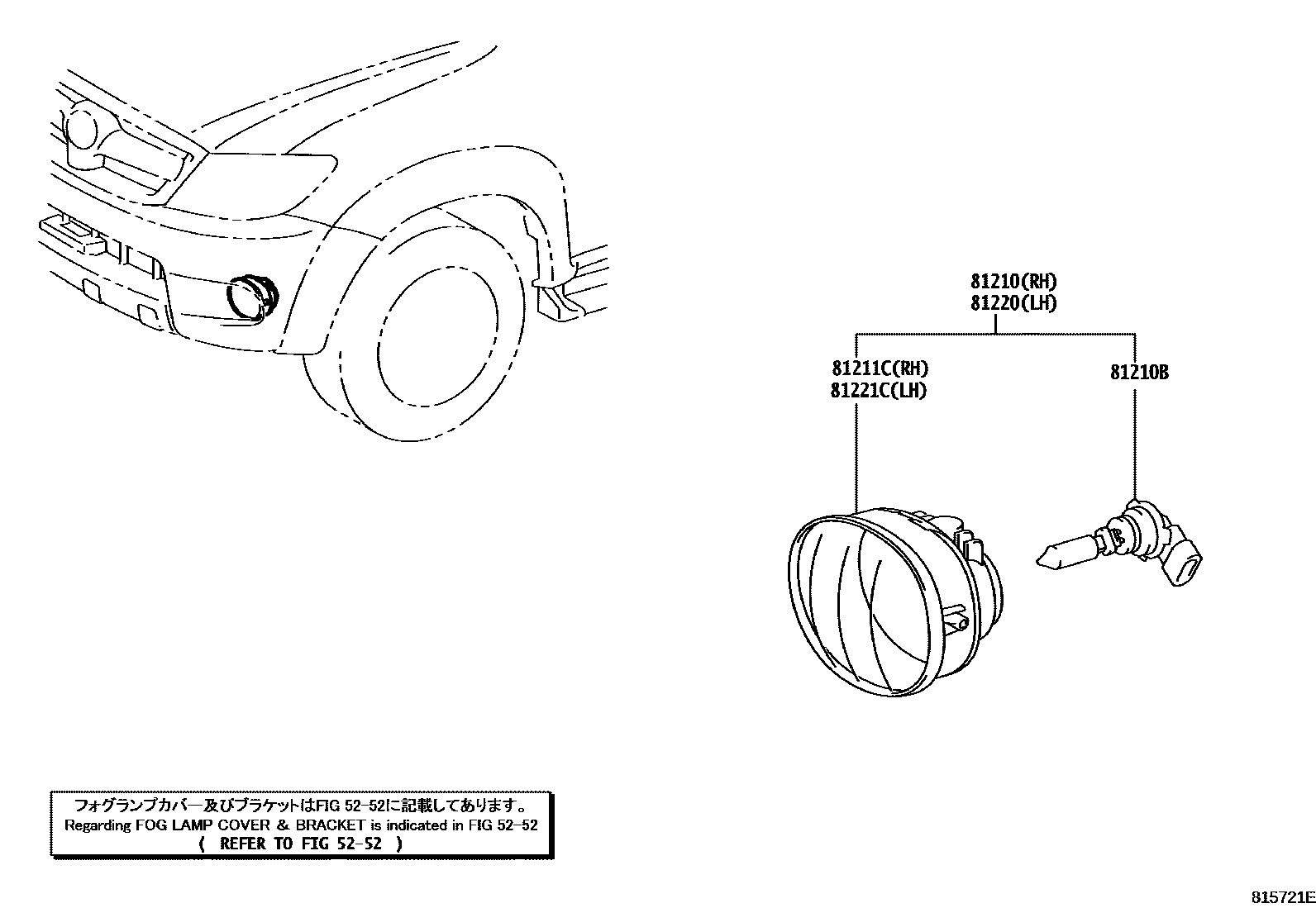

FOG LAMP
5252FRONT BUMPER & BUMPER STAY
81210LAMP ASSY, FOG
main81210-0K080iKUN36..5F..(GEN,TH);KUN16,TGN26..SR..GEN;KUN35..SR..(GEN,PHL,TH);KUN26..(SMT,XTR)..SR..(ARL,TH);KUN26..(DCB,THDCB)..5F..SR..(GEN,PHL);KUN26..(DCB,THDCB)..(4FC,5FC)..(GEN,PHL,TH); TGN16..SR;KUN36..5FC;KUN25..SR..IDN;KUN15..SMT..SR;KUN15..SCB..GCC;TGN16..SCB..GEN;KUN15..DCB..HDCR;KUN26..DCB..5F..TH;KUN15..DCB..(GCC,GEN,PHL);TGN16..DCB..DLX..(GCC,GEN);TGN26..(DCB,SCB)..(GCC,GEN);KUN25..(DCB,SMT,THDCB,XTR)..(GCC,GEN,TH);KUN26,35,TGN11,15,36..(DCB,SCB,THDCB)..DLX..(GCC,GEN,PHL)201107-201308
FRONT FOG LAMP-WITH(51W OR 55W)
81210BBULB, FOG LAMP
main90981-13047×2iKUN36..5F..(GEN,TH);KUN16,TGN26..SR..GEN;KUN35..SR..(GEN,PHL,TH);KUN26..(SMT,XTR)..SR..(ARL,TH);KUN26..(DCB,THDCB)..5F..SR..(GEN,PHL);KUN26..(DCB,THDCB)..(4FC,5FC)..(GEN,PHL,TH); TGN16..SR;KUN36..5FC;KUN25..SR..IDN;KUN15..SMT..SR;KUN15..SCB..GCC;TGN16..SCB..GEN;KUN15..DCB..HDCR;KUN26..DCB..5F..TH;KUN15..DCB..(GCC,GEN,PHL);TGN16..DCB..DLX..(GCC,GEN);TGN26..(DCB,SCB)..(GCC,GEN);KUN25..(DCB,SMT,THDCB,XTR)..(GCC,GEN,TH);KUN26,35,TGN11,15,36..(DCB,SCB,THDCB)..DLX..(GCC,GEN,PHL)201107-201308
12V 51W,HALOGEN; 12V 51W,HALOGEN,FRONT FOG LAMP-WITH(51W OR 55W)
12V 19W
81211CLAMP UNIT, FOG LAMP, RH
main81211-0D070iKUN36..5F..(GEN,TH);KUN16,TGN26..SR..GEN;KUN35..SR..(GEN,PHL,TH);KUN26..(SMT,XTR)..SR..(ARL,TH);KUN26..(DCB,THDCB)..5F..SR..(GEN,PHL);KUN26..(DCB,THDCB)..(4FC,5FC)..(GEN,PHL,TH); TGN16..SR;KUN36..5FC;KUN25..SR..IDN;KUN15..SMT..SR;KUN15..SCB..GCC;TGN16..SCB..GEN;KUN15..DCB..HDCR;KUN26..DCB..5F..TH;KUN15..DCB..(GCC,GEN,PHL);TGN16..DCB..DLX..(GCC,GEN);TGN26..(DCB,SCB)..(GCC,GEN);KUN25..(DCB,SMT,THDCB,XTR)..(GCC,GEN,TH);KUN26,35,TGN11,15,36..(DCB,SCB,THDCB)..DLX..(GCC,GEN,PHL)201107-201308
FRONT FOG LAMP-WITH(51W OR 55W)
81220LAMP ASSY, FOG, LH
main81220-0K080iKUN36..5F..(GEN,TH);KUN16,TGN26..SR..GEN;KUN35..SR..(GEN,PHL,TH);KUN26..(SMT,XTR)..SR..(ARL,TH);KUN26..(DCB,THDCB)..5F..SR..(GEN,PHL);KUN26..(DCB,THDCB)..(4FC,5FC)..(GEN,PHL,TH); TGN16..SR;KUN36..5FC;KUN25..SR..IDN;KUN15..SMT..SR;KUN15..SCB..GCC;TGN16..SCB..GEN;KUN15..DCB..HDCR;KUN26..DCB..5F..TH;KUN15..DCB..(GCC,GEN,PHL);TGN16..DCB..DLX..(GCC,GEN);TGN26..(DCB,SCB)..(GCC,GEN);KUN25..(DCB,SMT,THDCB,XTR)..(GCC,GEN,TH);KUN26,35,TGN11,15,36..(DCB,SCB,THDCB)..DLX..(GCC,GEN,PHL)201107-201308
FRONT FOG LAMP-WITH(51W OR 55W)
81221CLAMP UNIT, FOG LAMP, LH
main81221-0D070iKUN36..5F..(GEN,TH);KUN16,TGN26..SR..GEN;KUN35..SR..(GEN,PHL,TH);KUN26..(SMT,XTR)..SR..(ARL,TH);KUN26..(DCB,THDCB)..5F..SR..(GEN,PHL);KUN26..(DCB,THDCB)..(4FC,5FC)..(GEN,PHL,TH); TGN16..SR;KUN36..5FC;KUN25..SR..IDN;KUN15..SMT..SR;KUN15..SCB..GCC;TGN16..SCB..GEN;KUN15..DCB..HDCR;KUN26..DCB..5F..TH;KUN15..DCB..(GCC,GEN,PHL);TGN16..DCB..DLX..(GCC,GEN);TGN26..(DCB,SCB)..(GCC,GEN);KUN25..(DCB,SMT,THDCB,XTR)..(GCC,GEN,TH);KUN26,35,TGN11,15,36..(DCB,SCB,THDCB)..DLX..(GCC,GEN,PHL)201107-201308
FRONT FOG LAMP-WITH(51W OR 55W)
6 parts on this diagram · 2 diagrams in section
