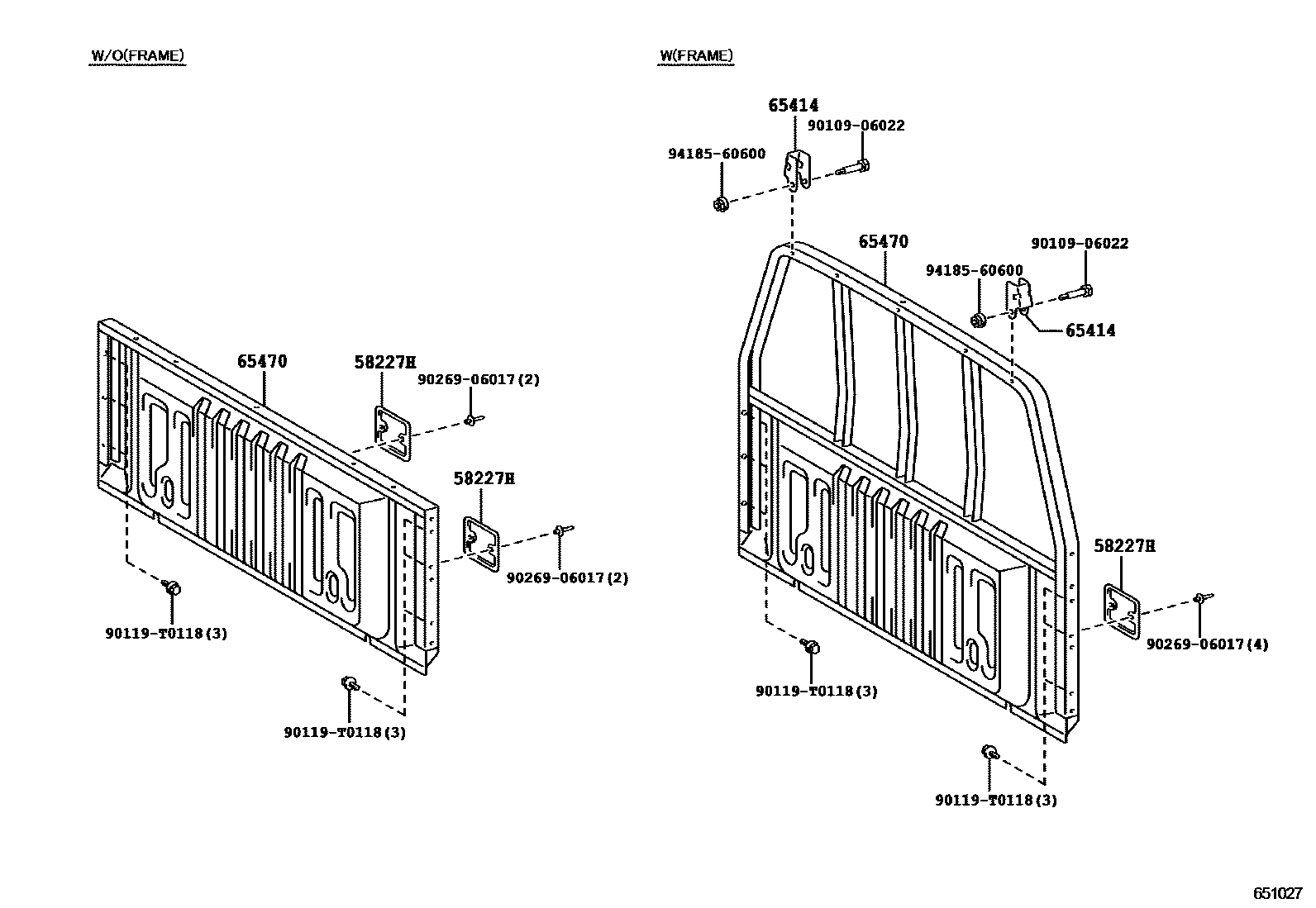

REAR BODY GUARD FRAME & TAIL GATE

0001 1HEADER BOARD & GUARD FRAME 0002 1TAIL GATE(LATCH TYPE) 0003 1TAIL GATE(LOCK TYPE),W/O(KEY)0004 1TAIL GATE(LOCK TYPE),W(KEY)

58227HCOVER, HEADER PANEL, NO.1

main58227-0K030×2iGGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36..CBU201107-201506

main58227-0K031×2iKUN25..SCB..MA;GGN25,35,KUN15,2#,3#,LAN15,25,TGN1#,26,36..(ANCOM,CO,GEN,LA,SA)..CBU201507

65414STOPPER, GUARD FRAME

main65414-0K010×2iKUN15..XTR..GEN;TGN16..DCB..GEN;KUN15..LHD..SCB..SA;KUN15..DCB..(GCC,SA);TGN26..SCB..(ANCOM,GEN);TGN16..(ARL,GCC,SA)..CBU;KUN25,LAN15,25,TGN26..LHD..(GCC,SA);TGN16,26..RHD..(DCB,SCB)..DLX..(GEN,TH);GGN15,25,KUN10,16,26,TGN10,11,15..DLX..(ARL,GCC,IDN,TH)..CBU;KUN15,2#,35,TGN36..(SCB,THSCB)..(ANCOM,GCC,GEN,LA,MA,PKN,TH)..CBU; TGN16..XTR;KUN25..RHD..SCB..SA;TGN26..DCB..5F..GEN;KUN35..(DCB,SCB)..SA;KUN26..RHD..(DCB,SCB,XTR)..(GEN,SA);KUN25..LHD..(DCB,THDCB,XTR)..(GEN,LA);KUN15,25..RHD..(DCB,XTR)..(GEN,PKN,SA);KUN15,35..LHD..(DCB,THDCB)..DLX..(GEN,LA);GGN25,35,KUN15,36,LAN15,25,35,TGN15,36..RHD..(DCR,DEFI,HTWC)..SA201107-201609

DECK GUARD FRAME-WITH(STOPPER)

65470BOARD ASSY, HEADER

main65470-0K010iKUN35..DCB..LA;KUN25..RHD..SCB..SA;KUN35..CO,GEN,PHL,SA,TH;TGN16..(SCB,XTR)..GEN..CBU;KUN15,LAN15,25..RHD..DLX..SA;KUN36,LAN35,TGN15..GEN,LA,SA,TH;KUN15,TGN26..LHD..(DCB,THDCB)..(ANCOM,CO,GEN,LA,PHL);KUN2#,TGN36..LHD..(DCB,SADCB,THDCB,XTR)..DLX..(ANCOM,CO,GEN,LA);GGN15,25,35,KUN16,26,TGN36..SR..(ANCOM,ARL,CO,GEN,LA,PHL,SA,TH);KUN15,25,TGN16..RHD..(DCB,SMT,XTR)..(DCR,HDCR,HTWC)..(GEN,IDN,SA,TH)201107

main65470-0K020iKUN15..XTR..GEN;TGN16..DCB..GEN;KUN15..LHD..SCB..SA;KUN15..DCB..(GCC,SA);TGN26..SCB..(ANCOM,GEN);TGN16..(ARL,GCC,SA)..CBU;KUN25,LAN15,25,TGN26..LHD..(GCC,SA);TGN16,26..RHD..(DCB,SCB)..DLX..(GEN,TH);GGN15,25,KUN10,16,26,TGN10,11,15..DLX..(ARL,GCC,IDN,TH)..CBU;KUN15,2#,35,TGN36..(SCB,THSCB)..(ANCOM,GCC,GEN,LA,MA,PKN,TH)..CBU; TGN16..XTR;KUN25..RHD..SCB..SA;TGN26..DCB..5F..GEN;KUN35..(DCB,SCB)..SA;KUN26..RHD..(DCB,SCB,XTR)..(GEN,SA);KUN25..LHD..(DCB,THDCB,XTR)..(GEN,LA);KUN15,25..RHD..(DCB,XTR)..(GEN,PKN,SA);KUN15,35..LHD..(DCB,THDCB)..DLX..(GEN,LA);GGN25,35,KUN15,36,LAN15,25,35,TGN15,36..RHD..(DCR,DEFI,HTWC)..SA201107-201609

DECK GUARD FRAME-WITH(STOPPER)

main65470-0K040iTGN16..SMT..CNG201205-201504

9010906022

main90109-06022

90119T0118

main90119-T0118

9026906017

main90269-06017

9418560600

main94185-60600

7 parts on this diagram · 4 diagrams in section
