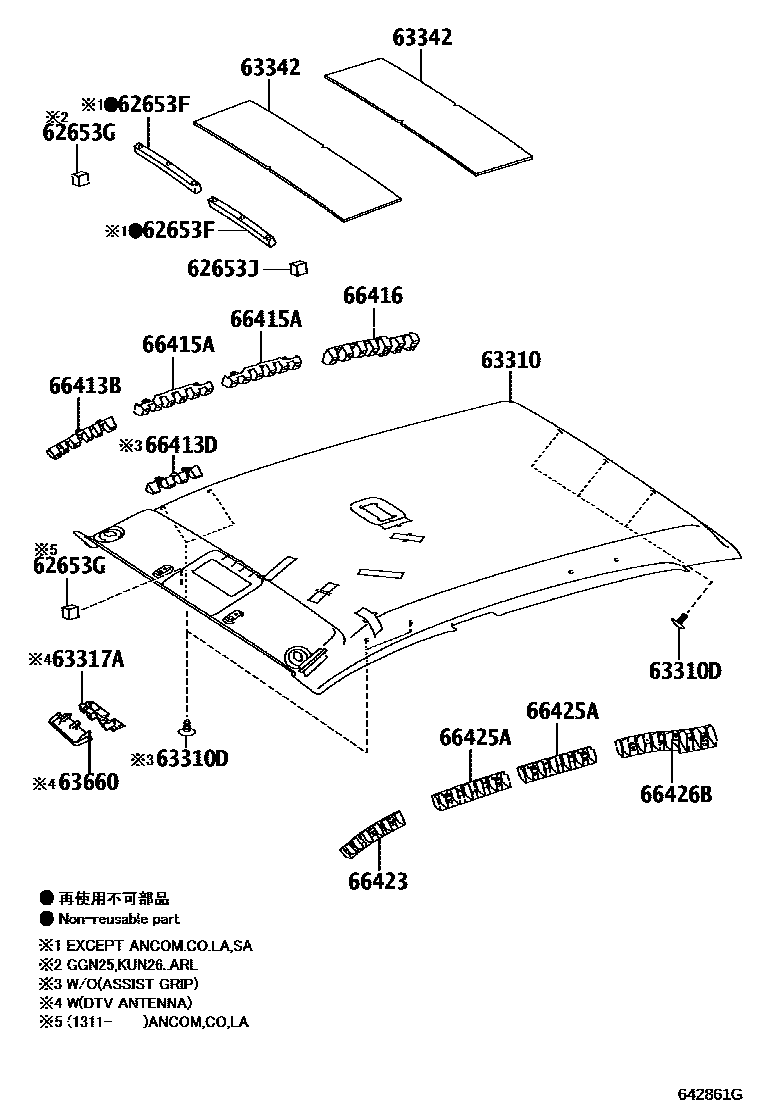

ROOF HEADLINING & SILENCER PAD
62653FPACKING (FOR ROOF HEADLINING)
main62653-0K250×2iGGN15,25,KUN15,16,2#,3#,TGN15,16,26,36..(DCB,SMT,THDCB,XTR)..(ARL,GCC,GEN,IDN,MA,PHL,PKN,TH)201107-201609
62653GPACKING,(FOR ROOF HEADLINING)
25X25X10
20X20X30
62653JPACKING
main62653-0K280iKUN26..4FC..LA;KUN26..DCB..(5F,5FC)..(CO,LA);KUN25,3#,TGN26,36..DCB..(CO,LA)201107-201503
30X45X30
30X45X25
63310HEADLINING ASSY, ROOF
LT. GRAY,TRIM1#,2#; LT. GRAY,TRIM1#,3#
LT. GRAY,TRIM1#
LT. GRAY,TRIM1#
LT. GRAY,TRIM1#
LT. GRAY,TRIM1#
LT. GRAY,TRIM1#,2#
main63310-0K470-E0iKUN35..LHD..SR;KUN25,35..DCB..(IDN,TH);KUN16,25,TGN26..(4FC,5FC)..(GEN,TH);KUN15,26,36,TGN16..DCB..SR..(GEN,PHL,TH)201107-201504
SAND BEIGE,TRIM4#
LT. GRAY,TRIM1#,2#
SAND BEIGE,TRIM4#
LT. GRAY,TRIM1#,2#
LT. GRAY,TRIM1#
LT. GRAY,TRIM1#,2#
LT. GRAY,TRIM1#
LT. GRAY,TRIM1#
LT. GRAY,TRIM1#
LT. GRAY,TRIM1#
LT. GRAY,TRIM1#
SAND BEIGE,TRIM4#
LT. GRAY,TRIM1#
main63310-0KD40-B0iKUN26,36,TGN26,36..(5F,5FC)..SR..(DCR,HTWC)..LA; KUN26,TGN26,36..SR..(HTWCF,IART)201310-201510
AUDIO-AVN(EXTRA)&DVD&DTV&6SPEAKER&ARGENTINA,LT. GRAY,TRIM1#,2#; AUDIO-AVN(EXTRA)&DVD&DTV&6SPEAKER&FOR BRAZIL,LT. GRAY,TRIM1#,2#
63310DCLIP, ROOF HEADLINING
main90467-T0004-B0×5iGGN25..5FC..SR..ARL;KUN26..(DCB,XTR)..(5F,5FC)..ARL; KUN10,15,25,TGN1#,26..GCC; KUN15,35..SR..PHL; KUN26..5FC..DLX..ARL..CBU; TGN10..IV3;KUN10,15..SCB..(IDN,PHL); TGN26..DCB..5F..GEN;GGN15..DCB..5FC..DLX;KUN35,TGN16..RHD..(ARL,GEN)..CBU;KUN15,16,25..DCB..DLX..(ARL,GEN,PHL)201107-201504
LT.GRAY,TRIM1#; LT.GRAY,TRIM1#,2#; LT.GRAY,TRIM1#,3#; LT.GRAY,TRIM2#; SRS AIR BAG-WITH(DRIVER & PASSENGER),LT.GRAY,TRIM1#,2#
SAND BEIGE,TRIM4#
63317ARETAINER, ROOF HEADLINING
main63317-0K090iKUN26,36,TGN26,36..(5F,5FC)..SR..(DCR,HTWC)..LA; KUN26,TGN26,36..SR..(HTWCF,IART)201310-201510
AUDIO-AVN(EXTRA)&DVD&DTV&6SPEAKER&ARGENTINA; AUDIO-AVN(EXTRA)&DVD&DTV&6SPEAKER&FOR BRAZIL
63342PAD, ROOF SILENCER, NO.2
200X800
main63342-0K020×2iKUN15,26,36..XTR..SA; KUN26..SADCB;KUN15,25..DCB..DLX..SA;GGN25,35,KUN26,3#,LAN15,25,TGN16,26,36..DCB..SA201310-201512
200X800
200X800
main63342-0K060iGGN15..DCB..5FC;GGN25..5FC..SR..ARL;KUN26..(DCB,THDCB)..4FC..(GEN,PHL,TH);KUN26..(DCB,THDCB)..(5F,5FC)..(ARL,GEN,PHL,TH);KUN15,16,25,3#,TGN15,16,26,36..(DCB,THDCB)..(ARL,GCC,GEN,IDN,PHL,TH)201308-201609
380X900
380X900
380X900
350X1000
380X900
200X800
63660COVER ASSY, ROOF HEADLINING TRIM, NO.1
LT.GRAY,TRIM1#
main63359-0K020iKUN26,36,TGN26,36..(5F,5FC)..SR..(DCR,HTWC)..LA; KUN26,TGN26,36..SR..(HTWCF,IART)201310-201510
AUDIO-AVN(EXTRA)&DVD&DTV&6SPEAKER&ARGENTINA; AUDIO-AVN(EXTRA)&DVD&DTV&6SPEAKER&FOR BRAZIL
66413BSPACER, SIDE RAIL, FRONT RH
main66413-0K010iKUN26..(DCB,SMT,THDCB)..(GEN,MA,PHL,TH);GGN15,KUN1#,25,3#,TGN1#,26,36..ARL,GCC,GEN,IDN,MA,PHL,PKN,TH201107-201609
main66413-0K020iKUN26..SADCB;KUN35..DLX..SA;KUN26,36..5F..SA;KUN15,25,LAN15,25,35,TGN15,16,26,36..SA201108-201512
66413DSPACER, SIDE RAIL
main66414-0K010×3iTGN26..DCB..5F..GEN;KUN35,TGN16..RHD..(ARL,GEN)..CBU;GGN15,KUN15,16,25..DCB..DLX..(ARL,GEN,PHL)201107-201504
main66414-0K020iKUN26..SADCB;KUN35..DLX..SA;KUN26,36..5F..SA;KUN15,25,LAN15,25,35,TGN15,16,26,36..SA201108-201512
66415ASPACER, SIDE RAIL, REAR NO.2 RH
main66415-0K021iKUN15,26,3#..XTR..SA; KUN26..SADCB;KUN35..DCB..DLX..SA;KUN26,36..DCB..5F..SA;KUN15,25,LAN15,25,35,TGN16,26,36..DCB..SA201108-201512
66416SPACER, SIDE RAIL, REAR NO.3 RH
main66416-0K011iKUN26..(DCB,THDCB)..(GEN,MA,PHL,TH);GGN15,KUN15,16,25,3#,TGN15,16,26,36..(DCB,THDCB)..(ARL,GCC,GEN,IDN,MA,PHL,PKN,TH)201107-201609
main66416-0K021iKUN26..SADCB;KUN35..DCB..DLX..SA;KUN26,36..DCB..5F..SA;KUN15,25,LAN15,25,35,TGN16,26,36..DCB..SA201108-201512
66423SPACER, SIDE RAIL, FRONT LH
main66423-0K010iKUN26..(DCB,SMT,THDCB)..(GEN,MA,PHL,TH);GGN15,KUN1#,25,3#,TGN1#,26,36..ARL,GCC,GEN,IDN,MA,PHL,PKN,TH201107-201609
main66423-0K020iKUN26..SADCB;KUN35..DLX..SA;KUN26,36..5F..SA;KUN15,25,LAN15,25,35,TGN15,16,26,36..SA201108-201512
66425ASPACER, SIDE RAIL, REAR NO.2 LH
main66415-0K021×2iKUN15,26,3#..XTR..SA; KUN26..SADCB;KUN35..DCB..DLX..SA;KUN26,36..DCB..5F..SA;KUN15,25,LAN15,25,35,TGN16,26,36..DCB..SA201108-201512
66426BSPACER, SIDE RAIL, REAR NO.3 LH
main66426-0K011iKUN26..(DCB,THDCB)..(GEN,MA,PHL,TH);GGN15,KUN15,16,25,3#,TGN15,16,26,36..(DCB,THDCB)..(ARL,GCC,GEN,IDN,MA,PHL,PKN,TH)201107-201609
main66426-0K021iKUN26..SADCB;KUN35..DCB..DLX..SA;KUN26,36..DCB..5F..SA;KUN15,25,LAN15,25,35,TGN16,26,36..DCB..SA201108-201512
15 parts on this diagram · 4 diagrams in section
