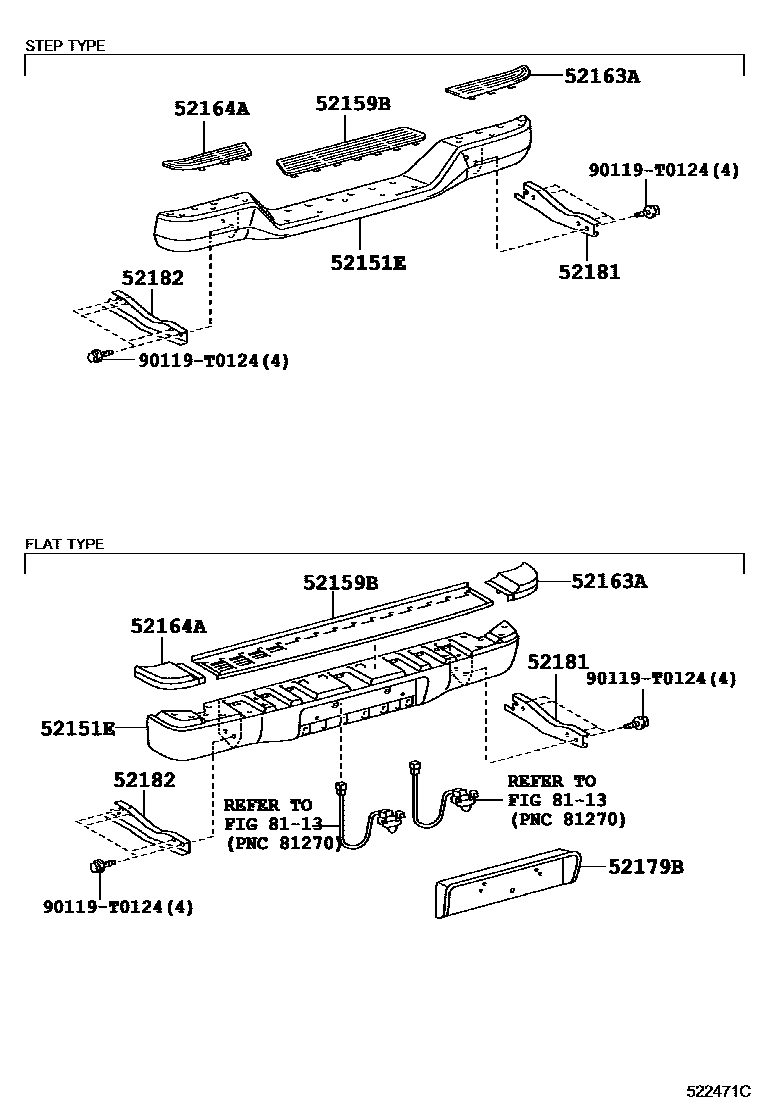

REAR BUMPER & BUMPER STAY

52151EBAR, REAR BUMPER

main52105-04040iTGN16..SCB..GEN..CBU;KUN2#,35,TGN26,36..(SADCB,THDCB,THSCB,XTR)..DLX..GEN201107-201512

NO PAINT REQ.

main52105-04060iTGN16..DCB..GEN;TGN26..4FC..GEN;TGN26..SCB..GEN;KUN26..XTR..SR..ARL;GGN15,KUN26..5FC..SR..ARL;KUN10,15,25,TGN1#,26..GCC..CBU;GGN25,TGN26..5F..SR..(ARL,GEN)201107-201504

PLATED

main52105-04060iTGN16..DCB..GEN;TGN26..4FC..GEN;TGN26..SCB..GEN;KUN26..XTR..SR..ARL;GGN15,KUN26..5FC..SR..ARL;KUN10,15,25,TGN1#,26..GCC..CBU;GGN25,TGN26..5F..SR..(ARL,GEN)201107-201504

PLATED,REAR BUMPER-STEP TYPE(STEEL & PLATED)

main52105-0K010iKUN25..XTR;KUN25..GCC;LAN25..RHD;KUN35..SR..SA;KUN15..DLX..PHL;LAN25..LHD..SCB;KUN15..SCB..(GCC,SA)..CBU;KUN25,LAN15,TGN15..SCB..SA;KUN25,LAN35..RHD..DCB..5F..(PKN,201107-201609

NO PAINT REQ.,REAR BUMPER-FLAT TYPE(STEEL & PAINTED)

main52105-0K010iTGN16..XTR;KUN25..SCB..PKN;KUN15..DLX..GEN;KUN25..(DCB,SCB)..GEN;TGN26..LHD..DCB..(GEN,SA);KUN15,25,LAN15,25..LHD..DCB..DLX..SA;KUN35,TGN16..(DCB,SCB)..DLX..(PHL,SA201107-201609

NO PAINT REQ.

main52105-0K021iKUN35..XTR;KUN25,35..(DCB,SMT)..(MA,TH);KUN15,25,35..SR..(GEN,IDN,PHL,SA);GGN25,35,KUN16,26,36,TGN36..SR..(GEN,MA,PHL,SA,TH)201107-201601

PLATED

main52105-0K030iTGN36..DCB..5F..HTWCF201110-201510

PLATED

main52105-0K040iTGN36..DCB..5F..HTWCF201110-201210

NO PAINT REQ.

main52105-0K050iGGN25,TGN26..SR..(ANCOM,CO)201111

PLATED

52159BPLATE, REAR BUMPER

main52159-04010iGGN25..5F..SR;TGN26..4FC..GEN;KUN26..XTR..SR..ARL;KUN15,25,TGN26..GCC..CBU;GGN15,KUN26..5FC..SR..ARL;TGN16..(DCB,SCB)..(GCC,GEN)..CBU;KUN25,TGN26..LHD..(SCB,THDCB,T201107-201512

main52159-0K010iTGN16..SA;TGN16..XTR;KUN35..PHL,SA,TH;KUN26..DCB..DLX..IART;KUN25..SCB..(GEN,PKN);KUN25..(DCB,SMT)..(GEN,MA,TH);KUN35,TGN26..LHD..DCB..(GEN,SA);KUN15,25,LAN15,25..L201107-201609

REAR BUMPER-FLAT TYPE(STEEL & PAINTED)

main52159-0K010iTGN16..SA;TGN16..XTR;KUN35..PHL,SA,TH;KUN26..DCB..DLX..IART;KUN25..SCB..(GEN,PKN);KUN25..(DCB,SMT)..(GEN,MA,TH);KUN35,TGN26..LHD..DCB..(GEN,SA);KUN15,25,LAN15,25..L201107-201609

REAR BUMPER-FLAT TYPE(STEEL & PLATED)

main52159-0K010iTGN36..DCB..5F..HTWCF201210-201609

main52159-35030iKUN26..SCB..LA;TGN26..ANCOM,CO;TGN36..SCB..DLX..CBU;TGN26,36..4FC..(ANCOM,LA);GGN25,KUN25,35..(ANCOM,CO,LA)..CBU;KUN26,36,TGN26,36..DCB..DLX..(DCR,HTWC)..LA201110-201210

52163APLATE, REAR BUMPER, RH

main52163-04010iGGN25..5FC..SR..ARL;KUN26..DCB..5F..SR..ARL201107-201512

main52163-0K010iTGN36..DCB..5F..HTWCF201210-201609

main52163-0K010iTGN16..SA;TGN16..XTR;KUN35..PHL,SA,TH;KUN26..DCB..DLX..IART;KUN25..SCB..(GEN,PKN);KUN25..(DCB,SMT)..(GEN,MA,TH);KUN35,TGN26..LHD..DCB..(GEN,SA);KUN15,25,LAN15,25..L201107-201609

REAR BUMPER-FLAT TYPE(STEEL & PAINTED)

main52163-0K010iTGN16..SA;TGN16..XTR;KUN35..PHL,SA,TH;KUN26..DCB..DLX..IART;KUN25..SCB..(GEN,PKN);KUN25..(DCB,SMT)..(GEN,MA,TH);KUN35,TGN26..LHD..DCB..(GEN,SA);KUN15,25,LAN15,25..L201107-201609

REAR BUMPER-FLAT TYPE(STEEL & PLATED)

main52163-35030iTGN36..DCB..5F..HTWCF201110-201210

52164APLATE, REAR BUMPER, LH

main52164-04010iGGN25..5F..SR;TGN26..4FC..GEN;KUN26..XTR..SR..ARL;KUN15,25,TGN26..GCC..CBU;GGN15,KUN26..5FC..SR..ARL;TGN16..(DCB,SCB)..(GCC,GEN)..CBU;KUN25,TGN26..LHD..(SCB,THDCB,T201107-201512

main52164-0K010iTGN36..DCB..5F..HTWCF201210-201609

main52164-0K010iTGN16..SA;TGN16..XTR;KUN35..PHL,SA,TH;KUN26..DCB..DLX..IART;KUN25..SCB..(GEN,PKN);KUN25..(DCB,SMT)..(GEN,MA,TH);KUN35,TGN26..LHD..DCB..(GEN,SA);KUN15,25,LAN15,25..L201107-201609

REAR BUMPER-FLAT TYPE(STEEL & PAINTED)

main52164-0K010iTGN16..SA;TGN16..XTR;KUN35..PHL,SA,TH;KUN26..DCB..DLX..IART;KUN25..SCB..(GEN,PKN);KUN25..(DCB,SMT)..(GEN,MA,TH);KUN35,TGN26..LHD..DCB..(GEN,SA);KUN15,25,LAN15,25..L201107-201609

REAR BUMPER-FLAT TYPE(STEEL & PLATED)

main52164-35030iTGN36..DCB..5F..HTWCF201110-201210

52179BPLATE, REAR BUMPER BAR

main52179-0K010iTGN16..SR;KUN25..4FC..PKN;KUN15..SMT..DCR;TGN16..SCB..DLX..GCC..CBU;KUN15,25,TGN15,26..GCC..CBU;KUN25,LAN25..RHD..DLX..(IDN,SA);LAN25,TGN26..LHD..SCB..(GEN,SA);KUN1201107-201609

REAR BUMPER-FLAT TYPE(STEEL & PLATED)

main52179-0K010iTGN16..SR;KUN25..4FC..PKN;KUN15..SMT..DCR;TGN16..SCB..DLX..GCC..CBU;KUN15,25,TGN15,26..GCC..CBU;KUN25,LAN25..RHD..DLX..(IDN,SA);LAN25,TGN26..LHD..SCB..(GEN,SA);KUN1201107-201609

REAR BUMPER-FLAT TYPE(STEEL & PAINTED)

main52179-0K020iTGN36..DCB..5F..HTWCF201110-201510

52181ARM, REAR BUMPER, RH

main52181-0K010iKUN25..XTR;KUN25..GCC;LAN25..RHD;KUN15..DLX..PHL;LAN25..LHD..SCB;KUN15..SCB..(GCC,SA)..CBU;KUN25,LAN15,TGN15..SCB..SA;KUN25,LAN35..RHD..DCB..5F..(PKN,SA)201107-201609

REAR BUMPER-FLAT TYPE(STEEL & PLATED)

main52181-0K010iTGN36..DCB..5F..HTWCF201210-201609

main52181-0K010iTGN16..SA;TGN16..XTR;KUN35..PHL,SA,TH;KUN26..DCB..DLX..IART;KUN25..SCB..(GEN,PKN);KUN25..(DCB,SMT)..(GEN,MA,TH);KUN35,TGN26..LHD..DCB..(GEN,SA);KUN15,25,LAN15,25..L201107-201609

REAR BUMPER-FLAT TYPE(STEEL & PAINTED)

main52181-0K020iGGN25..5FC..SR..ARL;KUN26..DCB..5F..SR..ARL201107-201512

main52181-0K030iTGN36..DCB..5F..HTWCF201110-201210

52182ARM, REAR BUMPER, LH

main52182-0K010iTGN16..SA;TGN16..XTR;KUN35..PHL,SA,TH;KUN26..DCB..DLX..IART;KUN25..SCB..(GEN,PKN);KUN25..(DCB,SMT)..(GEN,MA,TH);KUN35,TGN26..LHD..DCB..(GEN,SA);KUN15,25,LAN15,25..L201107-201609

REAR BUMPER-FLAT TYPE(STEEL & PLATED)

main52182-0K010iKUN25..4FC..PKN201107-201609

REAR BUMPER-FLAT TYPE(STEEL & PAINTED)

main52182-0K010iTGN36..DCB..5F..HTWCF201210-201609

main52182-0K020iGGN25..5F..SR;TGN26..4FC..GEN;KUN26..XTR..SR..ARL;KUN15,25,TGN26..GCC..CBU;GGN15,KUN26..5FC..SR..ARL;TGN16..(DCB,SCB)..(GCC,GEN)..CBU;KUN25,TGN26..LHD..(SCB,THDCB,T201107-201512

main52182-0K030iTGN36..DCB..5F..HTWCF201110-201210
