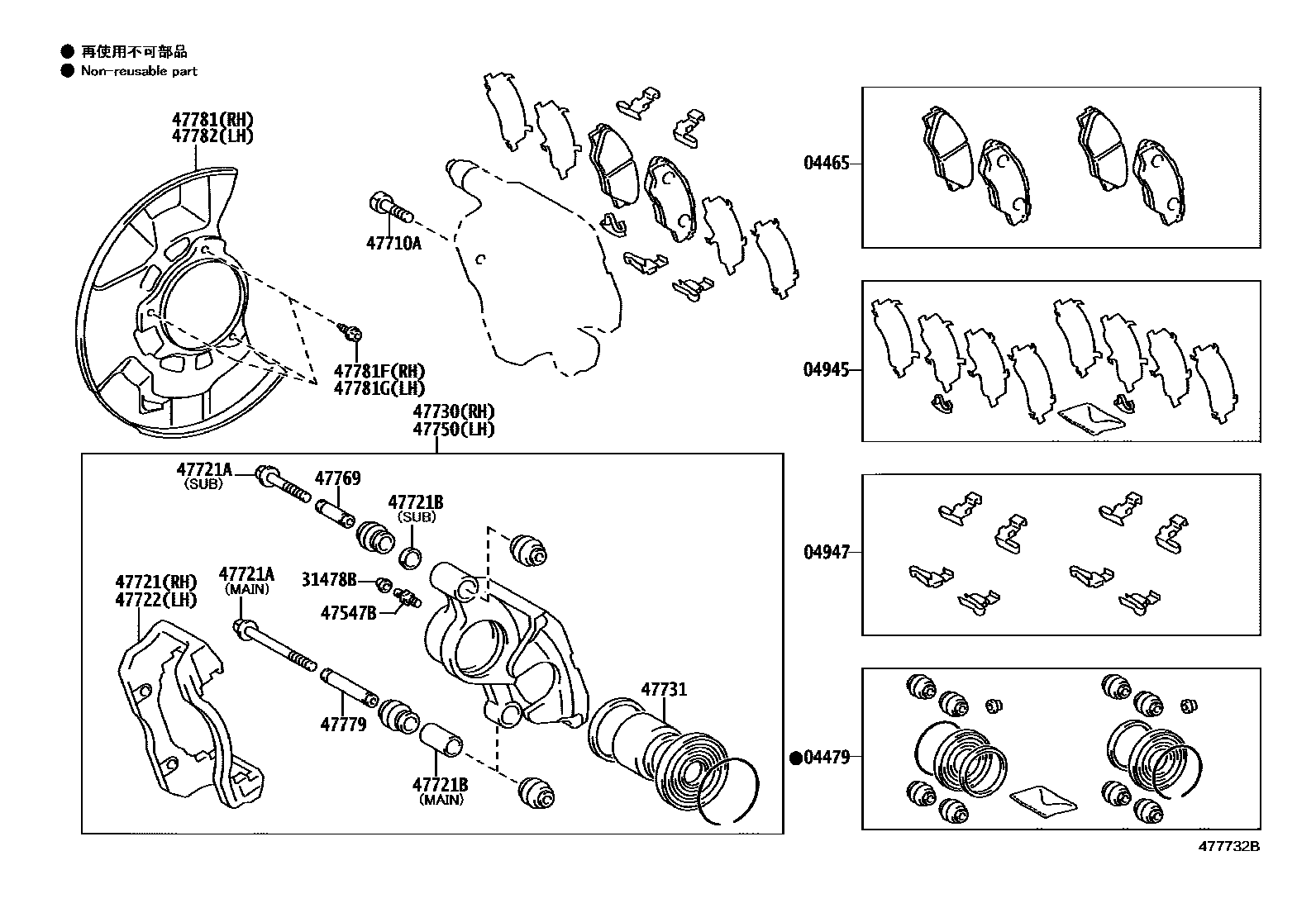

FRONT DISC BRAKE CALIPER & DUST COVER
04465PAD KIT, DISC BRAKE, FRONT
main04465-0K020iKUN26..SMT;KUN26..(DCB,SCB,XTR)..(ARL,GEN,PHL);GGN25,KUN25,3#,TGN26..(DCB,SCB,SMT)..(ARL,GCC,GEN,IDN,MA,PHL,TH)201107-201203
MARK ADVICS PS558H,MALAYSIA SPEC&TIRE & DISC WHEEL-255/70R15C 7J ALUMINUM,TYPE A:REFER ILLUST.
MARK SUMITOMO PS558H,TIRE & DISC WHEEL-265/65R17 7.5J ALUMINUM,TYPE B:REFER ILLUST.
MARK ADVICS PS558H
MARK ADVICS PS558H,EXPORT FROM SOUTH AFRICA&TIRE & DISC WHEEL-255/70R15C 7J ALUMINUM,TYPE C:REFER ILLUST.
MARK ADVICS PS558H,ECUADOR SPEC,TYPE D:REFER ILLUST.
main04465-0K280iTGN26..DLX..HTWCF;TGN36..DCB..HTWCF;TGN26..SR..(CO,LA);TGN36..SR..HTWC..LA;GGN25,KUN26,36..DCB..(ANCOM,CO,LA)201110
MARK SUMITOMO PS558H,TYPE B:REFER ILLUST.
MARK ADVICS PS558H
main04465-0K300iTGN26..ANCOM;KUN26,TGN36..LHD..SCB;TGN36..DCB..DLX..HTWC;KUN25,35,TGN26..DLX..(HDCR,HTWC)..(CO,LA)201110
MARK AK NS265H,TYPE E:REFER ILLUST.
MARK ADVICS PS558H
main04465-0K320iKUN26..SMT;KUN26..(DCB,SCB,XTR)..(ARL,GEN,PHL);GGN25,KUN25,3#,TGN26..(DCB,SCB,SMT)..(ARL,GCC,GEN,IDN,MA,PHL,PKN,TH)201201-201203
MARK ADVICS PS558H,TYPE D:REFER ILLUST.
MARK AK NS265H,TYPE D:REFER ILLUST.
main04465-0K340supersedes 04465-0K340iGGN25..5F;KUN26..SMT;KUN35..XTR;KUN25..SR..SA;KUN26..5FC..TH;KUN26..4FC..ARL;GGN25..5FC..DLX;KUN26..DCB..(GEN,MA,PHL);KUN25,3#,TGN26..(DCB,SCB,SMT,XTR)..(GCC,GEN,ID201203-201609
MARK ADVICS PS558H,TYPE D:REFER ILLUST.
MARK SUMITOMO PS558H,TYPE B:REFER ILLUST.
04479CYLINDER KIT, DISC BRAKE, FRONT
TYPE C:REFER ILLUST.
TYPE D:REFER ILLUST.
main04478-0K140iTGN26..DLX..HTWCF;TGN36..DCB..HTWCF;TGN26..SR..(CO,LA);TGN36..SR..HTWC..LA;GGN25,KUN26,36..DCB..(ANCOM,CO,LA)201110
TYPE B:REFER ILLUST.
main04478-0K210iKUN26..MA;KUN35..DLX..SA;KUN25,LAN25,TGN26..MA,PKN,SA;KUN26,36,TGN36..(SCB,XTR)..SA201505-201609
TYPE D:REFER ILLUST.
main04478-60050iKUN3#..DCB..SR..SA;KUN26..5FC..(ARL,GEN);KUN26,TGN36..DCB..5F..(SA,TH);GGN25,35,KUN26..(4FC,5FC)..SA;KUN26..(SADCB,THDCB)..(4FC,5F)201107-201512
TYPE B:REFER ILLUST.
04945SHIM KIT, ANTI SQUEAL, FRONT
main04945-0K150iKUN26..SMT;KUN26..(DCB,SCB,XTR)..(ARL,GEN,PHL);GGN25,KUN25,3#,TGN26..(DCB,SCB,SMT)..(ARL,GCC,GEN,IDN,MA,PHL,TH)201107-201203
TYPE A:REFER ILLUST.
PAKISTAN SPEC&TIRE & DISC WHEEL-255/70R15C 7J ALUMINUM,TYPE C:REFER ILLUST.
COLOMBIA SPEC,TYPE B:REFER ILLUST.
TYPE D:REFER ILLUST.
main04945-0K260iTGN26..DLX..HTWCF;TGN36..DCB..HTWCF;TGN26..SR..(CO,LA);TGN36..SR..HTWC..LA;GGN25,KUN26,36..DCB..(ANCOM,CO,LA)201110
TYPE B:REFER ILLUST.
main04945-0K270iTGN26..ANCOM;KUN26,TGN36..LHD..SCB;TGN36..DCB..DLX..HTWC;KUN25,35,TGN26..DLX..(HDCR,HTWC)..(CO,LA)201110
TYPE E:REFER ILLUST.
TYPE B:REFER ILLUST.
04947FITTING KIT, DISC BRAKE, FRONT
KENYA SPEC&TIRE & DISC WHEEL-255/70R15C 7J ALUMINUM,TYPE D:REFER ILLUST.
TYPE B:REFER ILLUST.
TYPE C:REFER ILLUST.
ECUADOR SPEC,TYPE D:REFER ILLUST.
TYPE D:REFER ILLUST.
main04947-35050iKUN3#..DCB..SR..SA;KUN26..5FC..(ARL,GEN);KUN26,TGN36..DCB..5F..(SA,TH);GGN25,35,KUN26..(4FC,5FC)..SA;KUN26..(SADCB,THDCB)..(4FC,5F)201107-201512
TYPE B:REFER ILLUST.
main04947-60080supersedes 04947-35050iKUN26..SMT;KUN26..(DCB,SCB,XTR)..(ARL,GEN,PHL);GGN25,KUN25,3#,TGN26..(DCB,SCB,SMT)..(ARL,GCC,GEN,IDN,MA,PHL,TH)201107-201203
TYPE A:REFER ILLUST.
main04947-71010iTGN26..DLX..HTWCF;TGN36..DCB..HTWCF;TGN26..SR..(CO,LA);TGN36..SR..HTWC..LA;GGN25,KUN26,36..DCB..(ANCOM,CO,LA)201111
TYPE B:REFER ILLUST.
31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)
TYPE C:REFER ILLUST.
main31478-30010×2supersedes 31478-30010iKUN3#..DCB..SR..SA;KUN26..5FC..(ARL,GEN);KUN26,TGN36..DCB..5F..(SA,TH);GGN25,35,KUN26..(4FC,5FC)..SA;KUN26..(SADCB,THDCB)..(4FC,5F)201107-201512
TYPE B:REFER ILLUST.
47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)
main47547-20030×2supersedes 47547-27030iKUN26..SMT;KUN26..(DCB,SCB,XTR)..(ARL,GEN,PHL);GGN25,KUN25,3#,TGN26..(DCB,SCB,SMT)..(ARL,GCC,GEN,IDN,MA,PHL,TH)201107-201203
TYPE A:REFER ILLUST.
COLOMBIA SPEC,TYPE B:REFER ILLUST.
TYPE B:REFER ILLUST.
PAKISTAN SPEC&TIRE & DISC WHEEL-255/70R15C 7J ALUMINUM,TYPE C:REFER ILLUST.
main90069-39011×2iTGN26..DLX..HTWCF;TGN36..DCB..HTWCF;TGN26..SR..(CO,LA);TGN36..SR..HTWC..LA;GGN25,KUN26,36..DCB..(ANCOM,CO,LA)201110
TYPE B:REFER ILLUST.
47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)
*12-1.25PX35-27
*12-1.25PX30-26.25,(L)
*12-1.25PX30-26.25,(J)
47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH
47721ABOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING)
*10-1.25PX89.7-30,MAIN PIN SIDE
*8-1.00PX22-14.5
*10-1.25PX63.7-30,SUB PIN SIDE
47721BCOLLAR(FOR FRONT DISC BRAKE CYLINDER MOUNTING)
MAIN PIN SIDE
SUB PIN SIDE
47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH
47730CYLINDER ASSY, FRONT DISC BRAKE, RH
main47730-0K061iKUN26..SMT;KUN26..(DCB,SCB,XTR)..(ARL,GEN,PHL);GGN25,KUN25,3#,TGN26..(DCB,SCB,SMT)..(ARL,GCC,GEN,IDN,MA,PHL,TH)201107-201203
TYPE A:REFER ILLUST.
main47730-0K130iTGN26..DLX..HTWCF;TGN36..DCB..HTWCF;TGN26..SR..(CO,LA);TGN36..SR..HTWC..LA;GGN25,KUN26,36..DCB..(ANCOM,CO,LA)201110
TYPE B:REFER ILLUST.
COLOMBIA SPEC,TYPE B:REFER ILLUST.
main47730-0K170iTGN26..ANCOM;KUN26,TGN36..LHD..SCB;TGN36..DCB..DLX..HTWC;KUN25,35,TGN26..DLX..(HDCR,HTWC)..(CO,LA)201110
TYPE E:REFER ILLUST.
TYPE C:REFER ILLUST.
TYPE D:REFER ILLUST.
TYPE B:REFER ILLUST.
47731PISTON, FRONT DISC BRAKE
main47731-0K060×8supersedes 47731-35040iKUN26..SMT;KUN26..(DCB,SCB,XTR)..(ARL,GEN,PHL);GGN25,KUN25,3#,TGN26..(DCB,SCB,SMT)..(ARL,GCC,GEN,IDN,MA,PHL,PKN,TH)201107-201203
TYPE A:REFER ILLUST.
TYPE C:REFER ILLUST.
main47731-0K130×8iTGN26..DLX..HTWCF;TGN36..DCB..HTWCF;TGN26..SR..(CO,LA);TGN36..SR..HTWC..LA;GGN25,KUN26,36..DCB..(ANCOM,CO,LA)201110
TYPE B:REFER ILLUST.
COLOMBIA SPEC,TYPE B:REFER ILLUST.
main47731-71010×8iKUN35..SR..SA;KUN26..DCB..5F..TH;GGN25,35,KUN26,36,TGN36..DCB..(ARL,SA);KUN26..(SADCB,SCB,THDCB,XTR)..(ARL,GEN)201403-201512
TYPE B:REFER ILLUST.
47750CYLINDER ASSY, DISC BRAKE, LH
main47750-0K061iKUN26..SMT;KUN26..(DCB,SCB,XTR)..(ARL,GEN,PHL);GGN25,KUN25,3#,TGN26..(DCB,SCB,SMT)..(ARL,GCC,GEN,IDN,MA,PHL,TH)201107-201203
TYPE A:REFER ILLUST.
main47750-0K130iTGN26..DLX..HTWCF;TGN36..DCB..HTWCF;TGN26..SR..(CO,LA);TGN36..SR..HTWC..LA;GGN25,KUN26,36..DCB..(ANCOM,CO,LA)201110
TYPE B:REFER ILLUST.
TYPE B:REFER ILLUST.
main47750-0K170iTGN26..ANCOM;KUN26,TGN36..LHD..SCB;TGN36..DCB..DLX..HTWC;KUN25,35,TGN26..DLX..(HDCR,HTWC)..(CO,LA)201110
TYPE E:REFER ILLUST.
TYPE C:REFER ILLUST.
main47750-0K190supersedes 47750-0K190iKUN26,36,TGN36..(SCB,XTR)..SA;KUN25,35,LAN25,TGN26..(DCB,SCB)..DLX..SA201310-201609
TYPE D:REFER ILLUST.
TYPE B:REFER ILLUST.
47769BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)
47779BUSH, CYLINDER SLIDE, NO.2(FOR FRONT DISC BRAKE)
47781COVER, DISC BRAKE DUST, FRONT RH
main47781-0K031iKUN26..SMT;KUN26..(DCB,SCB,XTR)..(ARL,GEN,PHL);GGN25,KUN25,3#,TGN26..(DCB,SCB,SMT)..(ARL,GCC,GEN,IDN,MA,PHL,TH)201107-201203
MALAYSIA SPEC&TIRE & DISC WHEEL-255/70R15C 7J ALUMINUM,PNC 47730=TYPE A
PNC 47730=TYPE B
PNC 47730=TYPE D
47781FBOLT(FOR DUST COVER TO STEERING KNUCKLE ARM RH)
47781GBOLT(FOR DUST COVER TO STEERING KNUCKLE ARM LH)
47782COVER, DISC BRAKE DUST, FRONT LH
main47782-0K031iKUN26..SMT;KUN26..(DCB,SCB,XTR)..(ARL,GEN,PHL);GGN25,KUN25,3#,TGN26..(DCB,SCB,SMT)..(ARL,GCC,GEN,IDN,MA,PHL,TH)201107-201203
PNC 47750=TYPE A
VSC-WITH,PNC 47750=TYPE B
main47782-0K070supersedes 47782-0K070iKUN26..MA;KUN36..GEN;KUN26,36..5FC..TH;KUN35..DLX..(GEN,SA);KUN26,36..(SCB,XTR)..SA;KUN26,35..LHD..DCB..GEN;KUN25,LAN25,35,TGN26..5F..SA;TGN36..(SCB,THDCB)..(GEN,SA201107
PNC47750=TYPE C OR D
