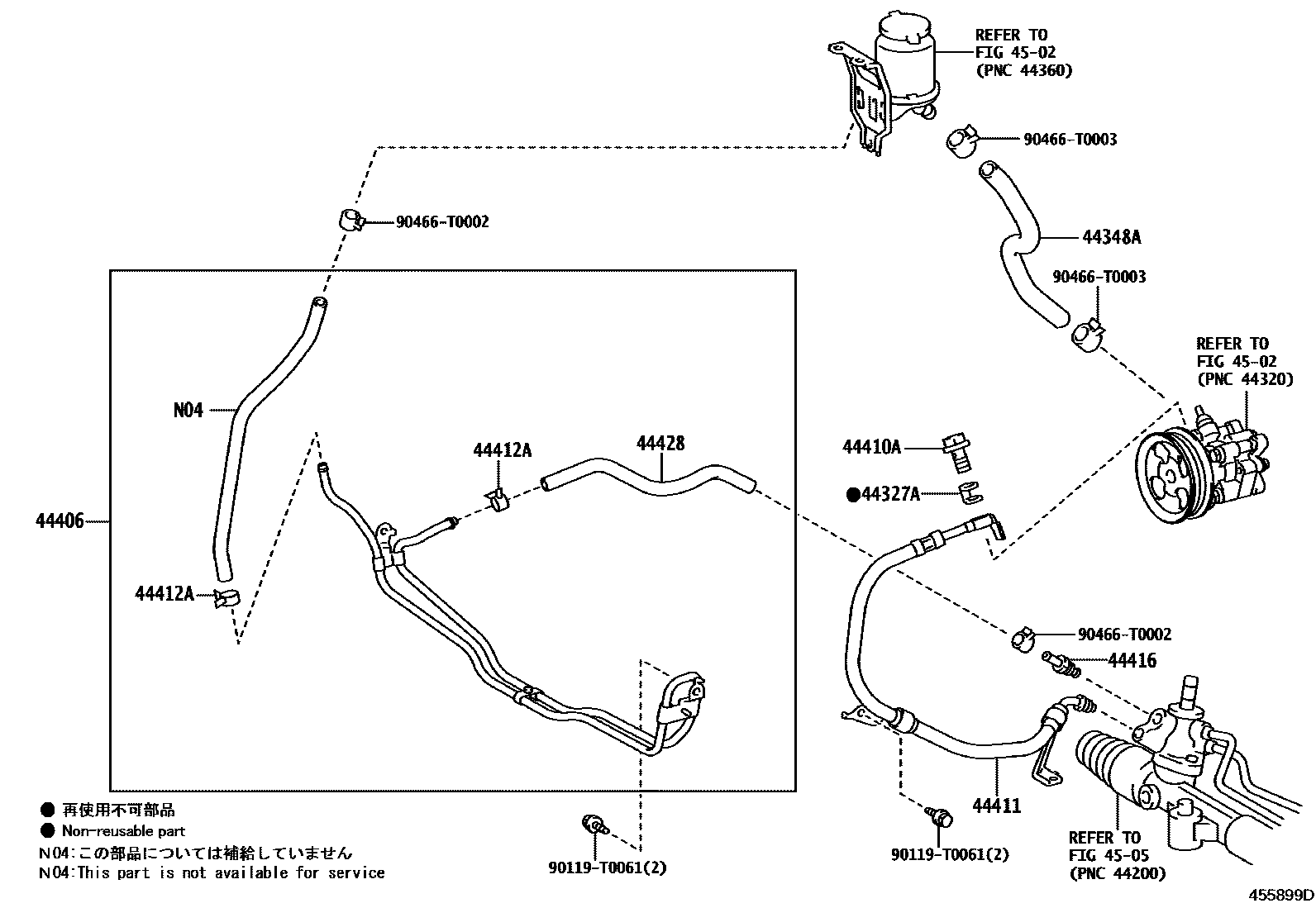

POWER STEERING TUBE

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1

44327AGASKET, PRESSURE PORT, NO.1

main44327-30030iGGN15,25,35,LAN15,25,35,TGN1#,26,36201107

44348AHOSE, OIL RESERVOIR TO PUMP, NO.1

main44348-0K010iKUN10,16,2#,3#;KUN15..DCB,SMT,XTR;KUN15..SCB..(GCC,GEN,PHL,PKN,SA)201107-201609

main44348-0K030iLAN15,25,35201108-201512

main44348-0K040iGGN15,25,35201107

44406TUBE SUB-ASSY, RETURN

main44406-0K020iKUN10,15..LHD201107-201512

main44406-0K030iLAN15..LHD201108-201512

main44406-0K050iKUN2#,3#..LHD201107-201512

main44406-0K060iLAN25..LHD201108-201512

main44406-0K070iGGN15201107-201504

main44406-0K080iGGN25,35..RHD201107-201512

main44406-0K100iTGN1#..LHD201107-201512

main44406-0K120iTGN26,36..LHD201107

44410TUBE ASSY, PRESSURE FEED

main44410-0K010iTGN10,15,16..RHD201107-201512

main44410-0K050iKUN10,16..RHD;KUN15..RHD..(DCB,SMT,XTR);KUN15..RHD..SCB..(GEN,PKN,SA)201107-201609

main44410-0K080iLAN15..RHD201108-201310

main44410-0K090iTGN26,36..RHD201108-201512

main44410-0K120iKUN2#,3#..RHD201107-201609

main44410-0K140iLAN25,35..RHD201108-201310

main44410-0K160iGGN25..ANCOM201204

44410ABOLT, UNION(FOR PRESSURE FEED TUBE)

main96341-41603iGGN15,25,35,LAN15,25,35,TGN1#,26,36201107

44411HOSE, PRESSURE FEED

main44411-0K010iKUN10,15..LHD201107-201512

main44411-0K020iLAN15..LHD201108-201512

main44411-0K030iKUN2#,3#..LHD201107-201512

main44411-0K040iLAN25..LHD201108-201512

main44411-0K050iGGN15201107-201504

main44411-0K060iGGN25,35..RHD201107-201512

main44411-0K070iTGN1#..LHD201107-201512

main44411-0K090iTGN26,36..LHD201107

44412ACLAMP, RUBBER HOSE COMPLETE (FOR RETURN HOSE)

main90466-T0002iTGN26,36..RHD;KUN15..DCB,SMT,XTR;KUN15..SCB..(GCC,GEN,PHL,PKN,SA);GGN15,25,35,KUN10,16,2#,3#,LAN15,25,35,TGN1#..ARL,CO,GCC,GEN,IDN,LA,MA,PHL,PKN,SA,TH201107-201609

44416TUBE, RETURN(FOR STEERING GEAR OUTLET)

main44416-0K010iKUN15,25..PKN201107-201609

44428HOSE, RETURN, NO.2

main44428-0K010iKUN10,15..LHD201107-201512

main44428-0K050iGGN15,25,35..RHD201107-201512

main44428-0K060iTGN1#..LHD201107-201512

main44428-0K070iTGN10,15,16..RHD201107-201512

main44428-0K080iKUN10,16..RHD;KUN15..RHD..(DCB,SMT,XTR);KUN15..RHD..SCB..(GEN,PKN,SA)201107-201609

main44428-0K090iLAN15..RHD201108-201310

main44428-0K100iTGN26,36..RHD201108-201512

main44428-0K110iKUN2#,3#..RHD201107-201609

main44428-0K120iLAN25,35..RHD201108-201310

4502VANE PUMP & RESERVOIR (POWER STEERING)

→ Go to FIG 45-02

4505FRONT STEERING GEAR & LINK

→ Go to FIG 45-05

90119T0061

main90119-T0061

90466T0002

main90466-T0002

90466T0003

main90466-T0003

14 parts on this diagram · 8 diagrams in section
