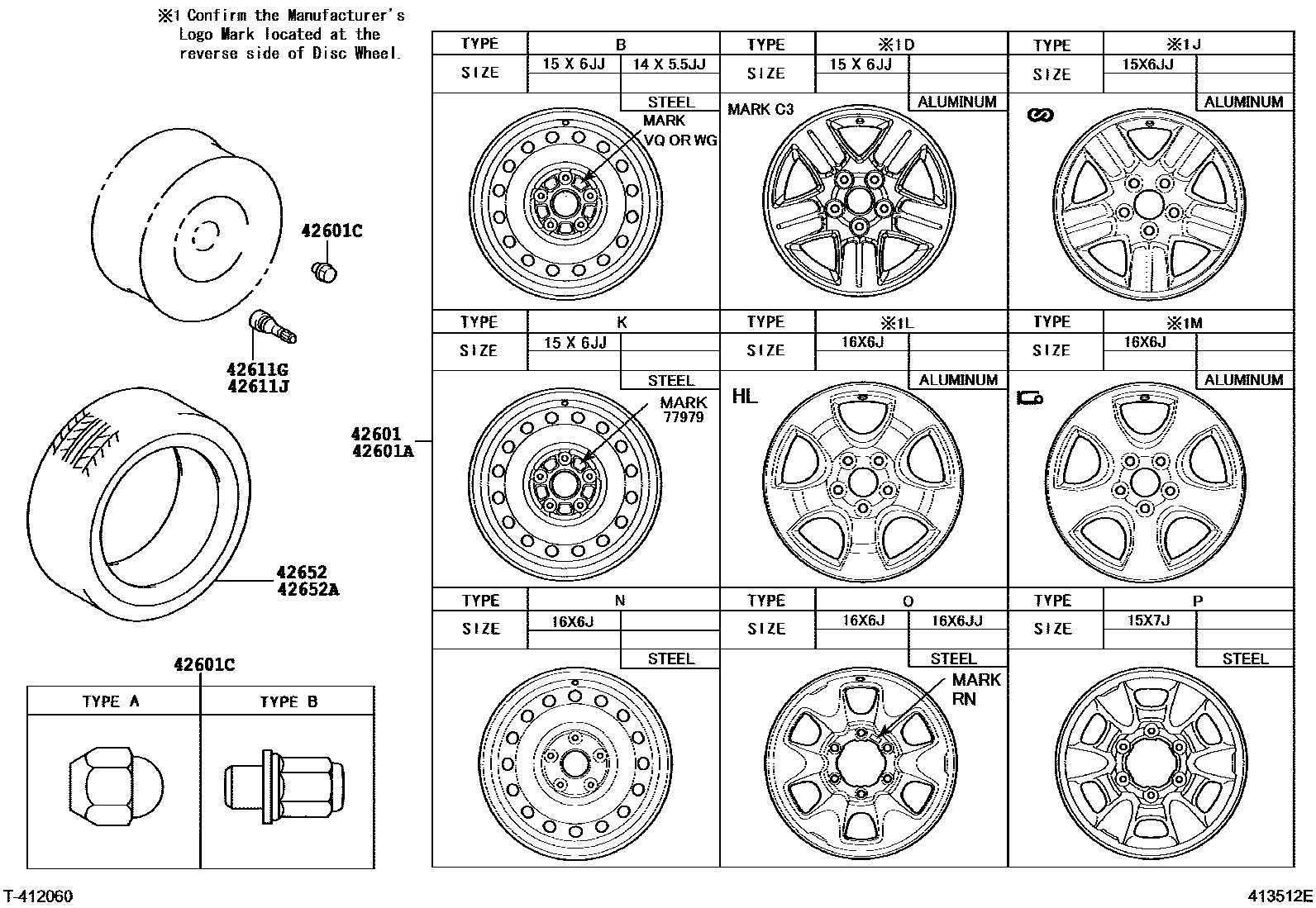

DISC WHEEL & WHEEL CAP
42601WHEEL, DISC
main42611-0K040×4iKUN26,36,TGN26,36..DCB..(5F,5FC)..DLX..(DCR,HTWCF,IART)..LA; TGN26,36..4FC..LA;KUN25,35,TGN26,36..DCB..(HDCR,HTWC)..LA201110-201212
16X7J, #,TIRE & DISC WHEEL-265/70R16 7J,TYPE T:REFER ILLUST.; 16X7J, #,TYPE T:REFER ILLUST.
main42611-0K041×4iKUN26,36,TGN26,36..DCB..(5F,5FC)..DLX..(DCR,HTWCF,IART)..LA; TGN26,36..4FC..LA;KUN25,35,TGN26,36..DCB..DLX..(HDCR,HTWC)..LA201301-201510
16X7J, #,TIRE & DISC WHEEL-265/70R16 7J,TYPE T:REFER ILLUST.; 16X7J, #,TYPE T:REFER ILLUST.
main42611-0K220×4iKUN25..IDN;GGN25,KUN26..SR..ARL; KUN26..DLX..ARL;TGN36..DCB..HTWC..LA;TGN36..(SCB,THDCB)..DLX;GGN25,KUN25,35,LAN25,35,TGN26..DLX..(ARL,GCC,GEN,LA,MA,SA)201107-201111
15X7J, #,TIRE & DISC WHEEL-255/70R15C 7JJ,TYPE P:REFER ILLUST.; 15X7J, #,TYPE P:REFER ILLUST.
main42611-0K222×4iKUN25..IDN;GGN25,KUN26..SR..ARL; KUN25..RHD..SA; KUN26..DLX..ARL;TGN36..DCB..HTWC..LA;TGN36..(SCB,THDCB)..DLX;GGN25,KUN25,35,LAN25,35,TGN26..DLX..(ARL,GCC,GEN,LA,MA,SA)201111-201204
15X7J, #,EXPORT FROM SOUTH AFRICA&TIRE & DISC WHEEL-255/70R15C 7JJ,TYPE P:REFER ILLUST.; 15X7J, #,KENYA SPEC&TIRE & DISC WHEEL-255/70R15C 7JJ,TYPE P:REFER ILLUST.; 15X7J, #,TIRE & DISC WHEEL-255/70R15C 7JJ,TYPE P:REFER ILLUST.; 15X7J, #,TYPE P:REFER ILLUST.
main42611-0K223×4iKUN25..DLX..IDN;GGN25,KUN26..SR..ARL; KUN26..DLX..ARL;GGN25,KUN25,35,TGN26,36..DLX..(HDCR,HTWC)..(ANCOM,ARL,GCC,GEN,LA,MA)201205-201301
15X7J, #,TIRE & DISC WHEEL-255/70R15C 7JJ,TYPE P:REFER ILLUST.; 15X7J, #,TYPE P:REFER ILLUST.
15X7J, #,TYPE P:REFER ILLUST.
main42611-0K240×4iKUN26..DLX..ARL;GGN25,KUN25,35,LAN25,35,TGN26,36..DLX..(ARL,GCC,GEN,PHL,SA)201107-201212
16X6JJ, #,TYPE O:REFER ILLUST.
main42611-0K241×4iKUN25..5F..PKN;KUN26..4FC..DLX;GGN25,KUN25,35,LAN25,35,TGN26,36..DLX..(ARL,GCC,GEN,MA,PHL,SA)201301-201609
16X6JJ, #,TYPE O:REFER ILLUST.
16X7J, #,TYPE T:REFER ILLUST.
16X7JJ, #,COLOMBIA SPEC,TYPE S:REFER ILLUST.; 16X7JJ, #,ECUADOR SPEC,TYPE S:REFER ILLUST.; 16X7JJ, #,TIRE & DISC WHEEL-265/70R16 7JJ ALUMINUM,TYPE S:REFER ILLUST.; 16X7JJ, #,TYPE S:REFER ILLUST.
16X7JJ, #,TIRE & DISC WHEEL-265/70R16 7JJ ALUMINUM,TYPE S:REFER ILLUST.; 16X7JJ, #,TYPE S:REFER ILLUST.
main42611-0K283×4iKUN2#,3#..(SMT,THDCB)..SR; TGN26..THDCB;KUN25,35..(SMT,XTR)..DLX..(GEN,TH)201404-201504
16X7JJ, #,T/P AE:REFER ILLUST.; 16X7JJ, #,TIRE & DISC WHEEL-265/70R16 7JJ ALUMINUM,T/P AE:REFER ILLUST.
16X7JJ, #,TYPE S:REFER ILLUST.
16X6J, #,TYPE L:REFER ILLUST.
16X6J, #,TYPE M:REFER ILLUST.
main42611-0K770×4iKUN26,TGN36..LHD..SCB;TGN36..DCB..DLX..HTWC;KUN25,35,TGN26..DLX..(HDCR,HTWC)..(ANCOM,CO,LA); TGN26,36..DCB..5F..HTWCF201110-201212
16X6JJ, #,TIRE & DISC WHEEL-205R16C 6J,TYPE O:REFER ILLUST.; 16X6JJ, #,TYPE O:REFER ILLUST.
main42611-0K771×4iKUN26,TGN36..LHD..SCB;TGN36..DCB..DLX..HTWC;KUN25,35,TGN26..DLX..(HDCR,HTWC)..(ANCOM,CO,LA)201301
16X6J, #,TYPE O:REFER ILLUST.
main42611-0K792×4supersedes 42611-0KE60iKUN26,36..5F..SR..DCR..LA; KUN26..5F..SR..DCR..LA; KUN26..CO;TGN36..4FC..LA;KUN26,TGN26..SR..(HTWC,HTWCF,IART)..(CO,LA); TGN26,36..DCB..5F..HTWCF201110-201212
16X7JJ, #,CHILE SPEC(EURO 4 REGULATION)&VSC-WITHOUT,TYPE S:REFER ILLUST.; 16X7JJ, #,EXPORT FROM ARGENTINA&VSC-WITHOUT,TYPE S:REFER ILLUST.; 16X7JJ, #,HIGH ALTITUDE COUNTRY SPEC&VSC-WITHOUT,TYPE S:REFER ILLUST.; 16X7JJ, #,PERU SPEC&VSC-WITHOUT,TYPE S:REFER ILLUST.; 16X7JJ, #,PERU SPEC(HIGH ALTITUDE SPEC)&VSC-WITHOUT,TYPE S:REFER ILLUST.; 16X7JJ, #,TIRE & DISC WHEEL-265/70R16 7JJ ALUMINUM,TYPE S:REFER ILLUST.; 16X7JJ, #,TYPE S:REFER ILLUST.
main42611-0K793×4iKUN26,TGN26..CO;KUN26,TGN36..4FC..LA;KUN26,TGN26..SR..(HTWCF,IART); TGN26,36..SR..HTWC..LA;TGN26,36..DCB..5F..HTWCF201301-201510
16X7JJ, #,TIRE & DISC WHEEL-265/70R16 7JJ ALUMINUM,TYPE S:REFER ILLUST.; 16X7JJ, #,TYPE S:REFER ILLUST.
14X5.5JJ, #,TYPE B:REFER ILLUST.
16X6J, #,T/P AA:REFER ILLUST.
15X6JJ, #,TYPE K:REFER ILLUST.
15X6JJ, #,SILVER,TYPE B
15X6JJ, #,SILVER,TYPE B
main42611-0KC01×4supersedes 42611-0KB91iKUN15..SCB..TH; KUN16,TGN16..DLX..TH;KUN15..SMT..DLX..HDCR;KUN15..(DCB,SMT,XTR)..DCR..TH201107-201301
15X6JJ, #,BLACK,T/P B:REF ILL.; 15X6JJ, #,PAINT PROTECTION WAX/FILM-WRAP GUARD&STEERING-POWER STEERING,BLACK,T/P B:REF ILL.; 15X6JJ, #,STEERING-POWER STEERING,BLACK,T/P B:REF ILL.
15X6JJ, #,BLACK,T/P B:REF ILL.; 15X6JJ, #,PAINT PROTECTION WAX/FILM-WRAP GUARD&STEERING-POWER STEERING,BLACK,T/P B:REF ILL.; 15X6JJ, #,STEERING-POWER STEERING,BLACK,T/P B:REF ILL.
main42611-0KC20×4iKUN25..DLX..IDN; KUN36,TGN36..GEN;KUN26..LHD..DCB..GEN;KUN25,35,TGN26..DCB..GEN;GGN25,KUN26..SR..(ARL,PHL); TGN26..SR..GEN;KUN35..SMT..DLX;KUN26..RHD..DCB..GEN201107-201212
15X7J, #,TIRE & DISC WHEEL-255/70R15C 7J ALUMINUM&SRS AIR BAG-WITH(DRIVER & PASSENGER),TYPE Q:REFER ILLUST.; 15X7J, #,TIRE & DISC WHEEL-255/70R15C 7J ALUMINUM,TYPE Q:REFER ILLUST.; 15X7J, #,TYPE Q:REFER ILLUST.
main42611-0KC21×4iKUN25..DCB..5F..PKN; TGN26..SR..GEN;KUN35..SMT..DLX;KUN26..RHD..DCB..GEN201301-201609
15X7J, #,TIRE & DISC WHEEL-255/70R15C 7J ALUMINUM&SRS AIR BAG-WITH(DRIVER & PASSENGER),TYPE Q:REFER ILLUST.; 15X7J, #,TYPE Q:REFER ILLUST.
main42611-0KD90×4supersedes 42611-0KE40iKUN25..DLX..IDN; KUN36,TGN36..GEN;KUN26..LHD..DCB..GEN;KUN25,35,TGN26..DCB..GEN;GGN25,KUN26..SR..(ARL,PHL); TGN26..SR..GEN;KUN35..SMT..DLX;KUN26..RHD..DCB..GEN201107-201212
15X7J, #,TIRE & DISC WHEEL-255/70R15C 7J ALUMINUM&SRS AIR BAG-WITH(DRIVER & PASSENGER),TYPE R:REFER ILLUST.; 15X7J, #,TIRE & DISC WHEEL-255/70R15C 7J ALUMINUM,TYPE R:REFER ILLUST.; 15X7J, #,TYPE R:REFER ILLUST.
main42611-0KD91×4supersedes 42611-0K224iKUN25..DCB..5F..PKN; TGN26..SR..GEN;KUN35..SMT..DLX;KUN26..RHD..DCB..GEN201301-201609
15X7J, #,TIRE & DISC WHEEL-255/70R15C 7J ALUMINUM&SRS AIR BAG-WITH(DRIVER & PASSENGER),TYPE R:REFER ILLUST.; 15X7J, #,TYPE R:REFER ILLUST.
15X7J, #,EXPORT FROM SOUTH AFRICA,TYPE X:REFER ILLUST.; 15X7J, #,TYPE X:REFER ILLUST.
15X7J, #,TYPE Y:REFER ILLUST.
15X7J, #,TYPE Y:REFER ILLUST.
15X7J, #,TYPE R:REFER ILLUST.
main42611-0KE30×4iKUN26..RHD..DCB..GEN; KUN35..SR..PHL;KUN35..DCB..(GEN,TH);KUN26..LHD..DCB..5F..GEN;KUN26..DCB..(5F,5FC)..(PHL,TH);KUN26..LHD..DCB..4FC..(GEN,PHL);KUN25,36..DCB..SR..(GEN,IDN,TH)201107-201212
17X7.5J, #,TIRE & DISC WHEEL-265/65R17 7.5J ALUMINUM,TYPE W:REFER ILLUST.; 17X7.5J, #,TYPE W:REFER ILLUST.
17X7.5J, #,TYPE W:REFER ILLUST.
main42611-0KE32×4iKUN35..DCB..TH;KUN35..LHD..SR;KUN26..LHD..DCB..GEN;KUN36..DCB..(GEN,TH);GGN25,KUN2#..(DCB,XTR)..SR..(ARL,IDN,PHL,TH)201410-201510
17X7.5J, #,TYPE W:REFER ILLUST.
main42611-0KE40×4iKUN26..RHD..DCB..GEN; KUN35..SR..PHL;KUN35..DCB..(GEN,TH);KUN26..LHD..DCB..5F..GEN;KUN26..DCB..(5F,5FC)..(PHL,TH);KUN26..LHD..DCB..4FC..(GEN,PHL);KUN25,36..DCB..SR..(GEN,IDN,TH)201107-201212
17X7.5J, #,TIRE & DISC WHEEL-265/65R17 7.5J ALUMINUM,TYPE V:REFER ILLUST.; 17X7.5J, #,TYPE V:REFER ILLUST.
main42611-0KE41×4supersedes 42611-0KD91iKUN26..4FC..TH;KUN26..5F..SR..ARL;GGN25..5FC..SR..ARL201308-201504
17X7.5J, #,TYPE V:REFER ILLUST.
17X7.5J, #,TYPE V:REFER ILLUST.
17X7.5J, #,T/P AD:REFER ILLUST.
main42611-0KE61×4iTGN26..SR..HTWC..LA;GGN25,KUN26,36,TGN36..(5F,5FC)..SR..(DCR,HTWC)..(ANCOM,LA)201301
17X7.5J, #,T/P AD:REFER ILLUST.
17X7.5J, #,TYPE W:REFER ILLUST.
17X6J, #,TYPE U:REFER ILLUST.
main42611-0KS40×4iKUN26,TGN26..CO;KUN26,TGN36..4FC..LA;KUN26,TGN26..SR..(HTWCF,IART); KUN26..DCB..DLX..IART;TGN26,36..DCB..5F..LA201405-201510
16X7JJ, #,T/P AE:REFER ILLUST.; 16X7JJ, #,TIRE & DISC WHEEL-265/70R16 7JJ ALUMINUM,T/P AE:REFER ILLUST.
main42611-0KS50×4iKUN26,TGN36..SCB..LA;TGN36..DCB..DLX..HTWC..LA;KUN25,35,TGN26..DLX..(HDCR,HTWC)..(CO,LA)201409
16X6J, #,T/P AL:REFER ILLUST.
16X6J, #,T/P AF:REFER ILLUST.
15X6JJ, #,TIRE & DISC WHEEL-205/70R15C 6JJ ALUMINUM,TYPE J:REFER ILLUST.
15X6JJ, #,TIRE & DISC WHEEL-205/70R15C 6JJ ALUMINUM,TYPE D:REFER ILLUST.
17X7.5J, #,TIRE & DISC WHEEL-265/65R17 7.5J,TYPE U:REFER ILLUST.
17X7.5J, #,TIRE & DISC WHEEL-265/65R17 7.5J,TYPE U:REFER ILLUST.
17X7.5J, #,TIRE & DISC WHEEL-265/65R17 7.5J,TYPE U:REFER ILLUST.
17X7.5J, #,TIRE & DISC WHEEL-265/65R17 7.5J ALUMINUM,TYPE W:REFER ILLUST.; 17X7.5J, #,VSC-WITH&TIRE & DISC WHEEL-265/65R17 7.5J ALUMINUM,TYPE W:REFER ILLUST.
17X7.5J, #,TIRE & DISC WHEEL-265/65R17 7.5J ALUMINUM,T/P AD:REFER ILLUST.; 17X7.5J, #,VSC-WITH&TIRE & DISC WHEEL-265/65R17 7.5J ALUMINUM,T/P AD:REFER ILLUST.
17X7.5J, #,STEP & STEP COVER-WITH(INLINE ACCESSORY PACKAGE),T/P AG:REFER ILLUST.
42601AWHEEL, DISC (FOR SPARE)
main42611-0K040supersedes 42611-0KF70iKUN25,35,TGN26,36..DCB..(HDCR,HTWC)..LA; KUN26,36..5F..SR..DCR..LA; KUN26,TGN26..CO;KUN26,36..DLX..DCR..LA;KUN26,TGN26,36..DCB..(HTWCF,IART); KUN26..5F..SR..DCR..LA201110-201212
16X7J, #,CHILE SPEC(EURO 4 REGULATION)&VSC-WITHOUT,TYPE T:REFER ILLUST.; 16X7J, #,EXPORT FROM ARGENTINA&VSC-WITHOUT,TYPE T:REFER ILLUST.; 16X7J, #,HIGH ALTITUDE COUNTRY SPEC&VSC-WITHOUT,TYPE T:REFER ILLUST.; 16X7J, #,PERU SPEC&VSC-WITHOUT,TYPE T:REFER ILLUST.; 16X7J, #,PERU SPEC(HIGH ALTITUDE SPEC)&VSC-WITHOUT,TYPE T:REFER ILLUST.; 16X7J, #,TIRE & DISC WHEEL-265/70R16 7J,TYPE T:REFER ILLUST.; 16X7J, #,TYPE T:REFER ILLUST.
main42611-0K041iKUN25,35,TGN26,36..DCB..DLX..(HDCR,HTWC)..LA; KUN26..4FC..LA;KUN26,TGN26..CO;KUN26,36..DLX..DCR..LA;KUN26,TGN26,36..DCB..(HTWCF,IART); TGN26,36..SR..HTWC..LA201301-201510
16X7J, #,TIRE & DISC WHEEL-265/70R16 7J,TYPE T:REFER ILLUST.; 16X7J, #,TIRE & DISC WHEEL-265/70R16 7JJ ALUMINUM,TYPE T:REFER ILLUST.; 16X7J, #,TYPE T:REFER ILLUST.
main42611-0K220iKUN25..IDN;TGN26..SR..GEN;KUN35..SMT..DLX;GGN25,KUN2#..RHD..SR..(ARL,GEN,MA); KUN26..4FC..TH; KUN26..DLX..ARL;TGN36..DCB..HTWC..LA;TGN36..(SCB,THDCB)..DLX;GGN25,KUN25,35,LAN25,35,TGN26..DLX..(ARL,GCC,GEN,LA,MA,SA); KUN26..PHL;KUN2#,3#..SMT..SR;KUN25,TGN26..DCB..GEN;TGN36..(DCB,THDCB)..DLX..HTWC201107-201111
15X7J, #,MALAYSIA SPEC&VSC-WITHOUT,TYPE P:REFER ILLUST.; 15X7J, #,TIRE & DISC WHEEL-255/70R15C 7J ALUMINUM,TYPE P:REFER ILLUST.; 15X7J, #,TIRE & DISC WHEEL-255/70R15C 7JJ,TYPE P:REFER ILLUST.; 15X7J, #,TYPE P:REFER ILLUST.
15X7J, #,TIRE & DISC WHEEL-255/70R15C 7JJ,TYPE P:REFER ILLUST.; 15X7J, #,TYPE P:REFER ILLUST.
main42611-0K223iKUN25,3#,TGN26..DCB..GEN;KUN26..LHD..DCB..(GEN,PHL);TGN36..(DCB,THDCB)..5F..DLX..HTWC; KUN25..DLX..IDN;KUN35..SMT..DLX;TGN26..SR..(ANCOM,GEN);GGN25,KUN2#..RHD..(DCB,XTR)..SR..(ARL,GEN,MA); KUN25..PKN; KUN26..DLX..ARL;GGN25,KUN25,35,TGN26,36..DLX..(HDCR,HTWC)..(ANCOM,ARL,GCC,GEN,LA,MA)201205-201301
15X7J, #,TIRE & DISC WHEEL-255/70R15C 7J ALUMINUM&SRS AIR BAG-WITH(DRIVER & PASSENGER),TYPE P:REFER ILLUST.; 15X7J, #,TIRE & DISC WHEEL-255/70R15C 7J ALUMINUM,TYPE P:REFER ILLUST.; 15X7J, #,TIRE & DISC WHEEL-255/70R15C 7JJ,TYPE P:REFER ILLUST.; 15X7J, #,TYPE P:REFER ILLUST.
main42611-0K224iKUN25..DCB..LA;KUN26..4FC..DLX;KUN35..LHD..(DCB,THDCB)..DLX..(GEN,LA);TGN26..(DCB,SCB)..DLX..(ANCOM,GCC,GEN);GGN25,KUN25,TGN36..DLX..(ANCOM,ARL,GCC,GEN,MA); KUN25..DLX..IDN;KUN25..4FC..PKN;KUN35..SMT..DLX;KUN26..4FC..SR..ARL;KUN26..RHD..DCB..GEN;GGN25,KUN25,TGN26..(4FC,5F)..SR..(ANCOM,ARL,GEN,MA,SA)201304
15X7J, #,TIRE & DISC WHEEL-255/70R15C 7JJ,TYPE P:REFER ILLUST.; 15X7J, #,TYPE P:REFER ILLUST.
16X6JJ, #,TYPE O:REFER ILLUST.
main42611-0K241iKUN25..5F..PKN;KUN26..4FC..DLX;GGN25,KUN25,35,LAN25,35,TGN26,36..DLX..(ARL,GCC,GEN,MA,PHL,SA)201301-201609
16X6JJ, #,TYPE O:REFER ILLUST.
16X7J, #,TYPE T:REFER ILLUST.
16X6J, #,TYPE L:REFER ILLUST.
16X6J, #,TYPE M:REFER ILLUST.
main42611-0K770iKUN26,TGN36..LHD..SCB;TGN36..DCB..DLX..HTWC;KUN25,35,TGN26..DLX..(HDCR,HTWC)..(ANCOM,CO,LA); TGN26,36..DCB..5F..HTWCF201110-201212
16X6JJ, #,TIRE & DISC WHEEL-205R16C 6J,TYPE O:REFER ILLUST.; 16X6JJ, #,TYPE O:REFER ILLUST.
main42611-0K771iKUN26,TGN36..LHD..SCB;TGN36..DCB..DLX..HTWC;KUN25,35,TGN26..DLX..(HDCR,HTWC)..(ANCOM,CO,LA)201301
16X6J, #,TYPE O:REFER ILLUST.
14X5.5JJ, #,TYPE B:REFER ILLUST.
16X6J, #,T/P AA:REFER ILLUST.
16X6J,TYPE N:REFER ILLUST.
15X6JJ, #,TYPE K:REFER ILLUST.
15X6JJ, #,TYPE B:REFER ILLUST.
15X6JJ, #,TYPE B:REFER ILLUST.
main42611-0KC01supersedes 42611-0KB91iKUN15..SCB..TH; KUN16,TGN16..DLX..TH;KUN15..SMT..DLX..HDCR;KUN15..(DCB,SMT,XTR)..DCR..TH201107-201301
15X6JJ, #,BLACK,T/P B:REF ILL.; 15X6JJ, #,PAINT PROTECTION WAX/FILM-WRAP GUARD&STEERING-POWER STEERING,BLACK,T/P B:REF ILL.; 15X6JJ, #,STEERING-POWER STEERING,BLACK,T/P B:REF ILL.
15X6JJ, #,TYPE B:REFER ILLUST.
15X7J, #,EXPORT FROM SOUTH AFRICA,TYPE X:REFER ILLUST.; 15X7J, #,TYPE X:REFER ILLUST.
17X7.5J, #,TYPE W:REFER ILLUST.
17X7.5J, #,TYPE W:REFER ILLUST.
17X7.5J, #,TYPE W:REFER ILLUST.
17X7.5J, #,TYPE V:REFER ILLUST.
17X7.5J, #,TYPE V:REFER ILLUST.
17X7.5J, #,TYPE V:REFER ILLUST.
main42611-0KF70iGGN25,KUN26..DCB..(ARL,GEN)..CBU; GGN25,KUN26..DCB..DLX..ARL..CBU; KUN26..RHD..SADCB;GGN25,KUN2#,3#..DCB..(ANCOM,TH)201107-201207
17X7.5J, #,TIRE & DISC WHEEL-265/65R17 7.5J ALUMINUM,TYPE U:REFER ILLUST.; 17X7.5J, #,TIRE & DISC WHEEL-265/65R17 7.5J,TYPE U:REFER ILLUST.; 17X7.5J, #,TYPE U:REFER ILLUST.
main42611-0KF71iGGN25,KUN26..DCB..DLX..ARL..CBU; GGN25,KUN26..RHD..DCB..(ARL,GEN)..CBU; KUN26,35..DCB..(5F,5FC)..TH;GGN25,KUN25,36..DCB..SR..(ANCOM,GEN,IDN,TH)201208-201301
17X7.5J, #,TIRE & DISC WHEEL-265/65R17 7.5J ALUMINUM,TYPE U:REFER ILLUST.; 17X7.5J, #,TIRE & DISC WHEEL-265/65R17 7.5J,TYPE U:REFER ILLUST.; 17X7.5J, #,TYPE U:REFER ILLUST.
main42611-0KF72supersedes 42611-0K241iKUN35..DCB..TH;KUN26,TGN26..DCB..(5F,5FC)..SR..(DCR,HTWC)..(LA,TH);GGN25,KUN25,36,TGN36..DCB..SR..(DCR,HDCR,HTWC)..(ANCOM,GEN,IDN,LA,TH)201304
17X7.5J, #,TYPE U:REFER ILLUST.
17X6J, #,TYPE U:REFER ILLUST.
main42611-0KS50iKUN26,TGN36..SCB..LA;TGN36..DCB..DLX..HTWC..LA;KUN25,35,TGN26..DLX..(HDCR,HTWC)..(CO,LA)201409
16X6J, #,T/P AL:REFER ILLUST.
17X7.5J, #,STEP & STEP COVER-WITH(INLINE ACCESSORY PACKAGE),T/P AG:REFER ILLUST.
42601CNUT, HUB (FOR AXLE)
TYPE A:REFER ILLUST.
main90942-01109×20iGGN15..DCB;TGN16..SR..GCC;KUN16..ARL..CBU; KUN15,16,TGN16..SR..(GEN,PHL,TH); KUN25,TGN26..LHD..DCB..GEN; KUN25..LHD..DCB..GEN201503-201504
(J),TYPE B:REF ILL.; CAUCASUS SPEC&TIRE & DISC WHEEL-255/70R15C 7J ALUMINUM,(J),TYPE B:REF ILL.; KAZAKHSTAN SPEC&TIRE & DISC WHEEL-255/70R15C 7J ALUMINUM,(J),TYPE B:REF ILL.; TIRE & DISC WHEEL-205/70R15C 6JJ ALUMINUM,(J),TYPE B:REF ILL.
main90942-T1005×20iGGN15..DCB;TGN16..SR..GCC;KUN16..ARL..CBU; KUN15,16,TGN16..SR..(GEN,PHL,TH); KUN25,TGN26..LHD..DCB..GEN; KUN25..LHD..DCB..GEN201503-201504
(L),TYPE B:REF ILL.; CAUCASUS SPEC&TIRE & DISC WHEEL-255/70R15C 7J ALUMINUM,(L),TYPE B:REF ILL.; KAZAKHSTAN SPEC&TIRE & DISC WHEEL-255/70R15C 7J ALUMINUM,(L),TYPE B:REF ILL.; TIRE & DISC WHEEL-205/70R15C 6JJ ALUMINUM,(L),TYPE B:REF ILL.
42611GVALVE (FOR TUBELESS TIRE)
42611JVALVE (FOR TUBELESS TIRE SPARE)
42652TIRE
205R16C-8PR,*B/S
265/70R16,*B/S; 265/70R16,*B/S,TIRE & DISC WHEEL-265/70R16 7JJ ALUMINUM
265/70R16,MICHELIN; 265/70R16,MICHELIN,TIRE & DISC WHEEL-265/70R16 7JJ ALUMINUM
main42652-0K300×4iKUN26,TGN36..SCB..LA;TGN36..DCB..DLX..HTWC..LA;KUN25,35,TGN26..DLX..(HDCR,HTWC)..(CO,LA); TGN26,36..DCB..5F..HTWCF201110-201510
205R16C-8PR,*B/S; 205R16C-8PR,*B/S,TIRE & DISC WHEEL-205R16C 6J
main42652-0K311×4iKUN26,TGN36..SCB..LA;TGN36..DCB..DLX..HTWC..LA;KUN25,35,TGN26..DLX..(HDCR,HTWC)..(CO,LA); TGN26,36..DCB..5F..HTWCF201110-201510
205R16C-8PR,GOODYEAR; 205R16C-8PR,GOODYEAR,TIRE & DISC WHEEL-205R16C 6J
main42652-0K371×4iKUN2#,35..LHD..DCB..GEN;TGN26,36..(DCB,THDCB)..5F..DLX..GEN; TGN26..LHD..(DCB,SCB)..(GCC,GEN);KUN25,35,TGN36..LHD..DLX..(GCC,GEN); TGN26..SR..GEN201304-201504
255/70R15C,*B/S; 255/70R15C,*B/S,TIRE & DISC WHEEL-255/70R15C 7J ALUMINUM; 255/70R15C,*B/S,TIRE & DISC WHEEL-255/70R15C 7JJ
195R14C
255/70R15C,*B/S,TIRE & DISC WHEEL-255/70R15C 7J ALUMINUM&SRS AIR BAG-WITH(DRIVER &PASSENGER)
255/70R15C,*B/S,TIRE & DISC WHEEL-255/70R15C 7J ALUMINUM
255/70R15C,GOODYEAR,TIRE & DISC WHEEL-255/70R15C 7J ALUMINUM
42652ATIRE (FOR SPARE)
205R16C-8PR,*B/S
265/70R16,*B/S; 265/70R16,*B/S,TIRE & DISC WHEEL-265/70R16 7JJ ALUMINUM
265/70R16,MICHELIN; 265/70R16,MICHELIN,TIRE & DISC WHEEL-265/70R16 7JJ ALUMINUM
main42652-0K300iKUN26,TGN36..SCB..LA;TGN36..DCB..DLX..HTWC..LA;KUN25,35,TGN26..DLX..(HDCR,HTWC)..(CO,LA); TGN26,36..DCB..5F..HTWCF201110-201510
205R16C-8PR,*B/S; 205R16C-8PR,*B/S,TIRE & DISC WHEEL-205R16C 6J
main42652-0K311iKUN26,TGN36..SCB..LA;TGN36..DCB..DLX..HTWC..LA;KUN25,35,TGN26..DLX..(HDCR,HTWC)..(CO,LA); TGN26,36..DCB..5F..HTWCF201110-201510
205R16C-8PR,GOODYEAR; 205R16C-8PR,GOODYEAR,TIRE & DISC WHEEL-205R16C 6J
main42652-0K371iKUN2#,35..LHD..DCB..GEN;TGN26,36..(DCB,THDCB)..5F..DLX..GEN; TGN26..LHD..(DCB,SCB)..(GCC,GEN);KUN25,35,TGN36..LHD..DLX..(GCC,GEN); TGN26..SR..GEN201304-201504
255/70R15C,*B/S; 255/70R15C,*B/S,TIRE & DISC WHEEL-255/70R15C 7J ALUMINUM; 255/70R15C,*B/S,TIRE & DISC WHEEL-255/70R15C 7JJ
195R14C
255/70R15C,*B/S,TIRE & DISC WHEEL-255/70R15C 7J ALUMINUM&SRS AIR BAG-WITH(DRIVER &PASSENGER)
main42652-0K280iTGN36..DCB..HTWC..LA; TGN36..SCB..LA;TGN36..DCB..HTWC..LA;KUN25,35,TGN26..DLX..LA201110-201111
255/70R15C,*B/S,TIRE & DISC WHEEL-255/70R15C 7J ALUMINUM; 255/70R15C,*B/S,TIRE & DISC WHEEL-255/70R15C 7JJ
main42652-0K290iTGN36..DCB..HTWC..LA; TGN36..SCB..LA;TGN36..DCB..HTWC..LA;KUN25,35,TGN26..DLX..LA201110-201111
255/70R15C,GOODYEAR,TIRE & DISC WHEEL-255/70R15C 7J ALUMINUM; 255/70R15C,GOODYEAR,TIRE & DISC WHEEL-255/70R15C 7JJ
7 parts on this diagram · 5 diagrams in section
