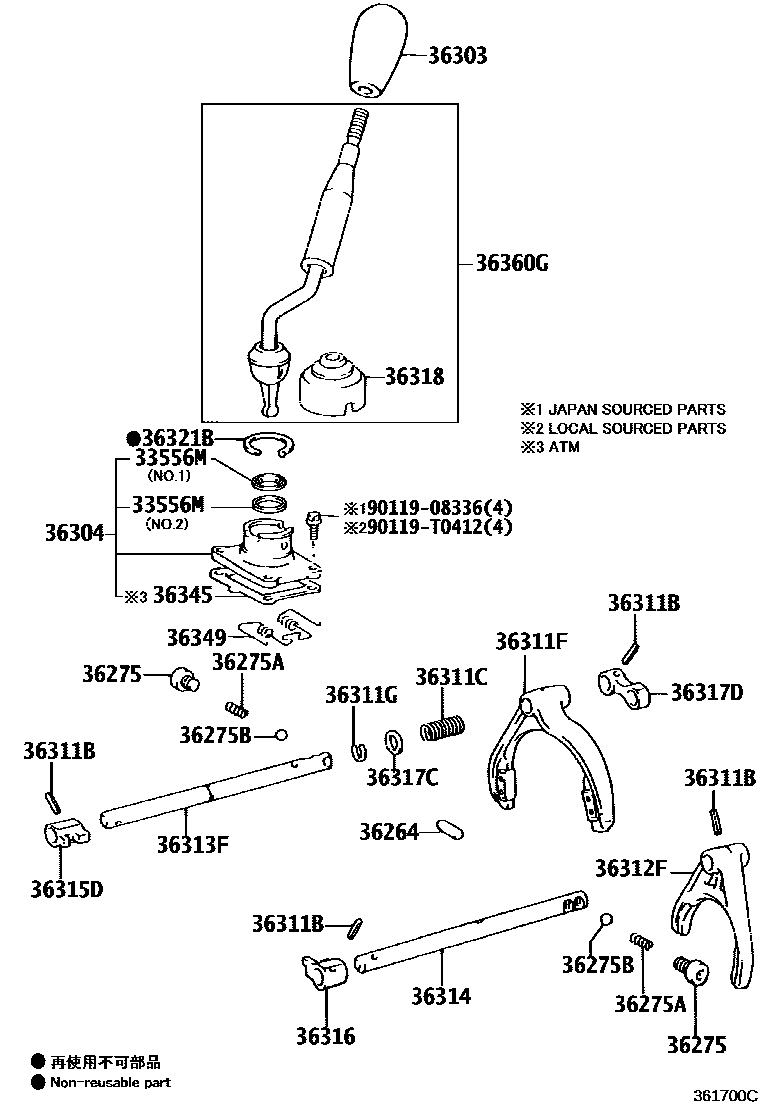

TRANSFER LEVER & SHIFT ROD
33556MSEAT, TRANSFER SHIFT LEVER BALL
NO.1
NO.2
36264PIN OR ROLLER, SHIFT INTER-LOCK
L=25.7,OD=9.53,TYPE A:REFER 36-08
L=25.7,OD=9.53,TYPE B:REFER 36-08
L=25.7,OD=9.53,TYPE B:REFER 36-08
36275PLUG, SHIFT DETENT BALL SPRING
main90341-12014iLAN25..LHD;KUN25,TGN26;KUN26..5F,5FC;GGN25..5FC..SR;KUN26..4FC..(GEN,LA,MA,PHL,SA,TH)201107-201411
TYPE B:REFER 36-08
TYPE A:REFER 36-08
TYPE B:REFER 36-08
36275ASPRING, COMPRESSION (FOR SHIFT DETENT BALL)
L=23,TYPE A:REFER 36-08
L=23,TYPE B:REFER 36-08
L=23,TYPE B:REFER 36-08
36275BBALL, SHIFT DETENT
OD=9.52,STEEL,TYPE B:REFER 36-08
main90360-10003iTGN26..5F;GGN25..SR;GGN25..5F..DLX;KUN2#,LAN25..ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH201107-201609
OD=9.52,STEEL,TYPE A:REFER 36-08
OD=9.53,STEEL,TYPE B:REFER 36-08
36303KNOB SUB-ASSY, SHIFT LEVER
DK.GRAY,TRIM1#
DK.GRAY,TRIM1#,3#
BLACK,TRIM1#
BLACK,TRIM1#,4#
BLACK,TRIM4#
BLACK,TRIM1#,3#
BLACK,TRIM2#,4#
BLACK,TRIM1#,2#,4#
main36303-0K020-C0iKUN25..5F..GEN;KUN25..SCB..LA;GGN25..5FC..SR..ARL;KUN25..DCB..(CO,LA,MA);KUN26..4FC..(CO,LA,MA);TGN26..LHD..(CO,GEN,LA);KUN26..(SADCB,SCB,THDCB)..(GEN,LA);KUN26..(D201308-201601
BLACK,TRIM1#,2#
ASH BROWN,TRIM4#
36304RETAINER SUB-ASSY, TRANSFER CONTROL SHIFT LEVER
TYPE C:REFER 33-01
TYPE B:REFER 33-01
TYPE B:REFER 36-08
TYPE A,D:SEE 33-01
TYPE D:REFER 33-01
VSC-WITH&TIRE & DISC WHEEL-265/65R17 7.5J ALUMINUM,TYPE B:REFER 36-08
VSC-WITH&TIRE & DISC WHEEL-265/65R17 7.5J,TYPE B:REFER 36-08
TIRE & DISC WHEEL-255/70R15C 7JJ,TYPE B:REFER 36-08
TYPE B:REFER 36-08
TYPE A:REFER 36-08
36311BPIN, SLOTTED SPRING (FOR TRANSFER SHIFT FORK)
L=22,TYPE B:REFER 36-08
L=22,TYPE A:REFER 36-08
L=22,TYPE B:REFER 36-08
36311CSPRING, COMPRESION (FOR SHIFT FORK)
TYPE A:REFER 36-08
TYPE B:REFER 36-08
TYPE B:REFER 36-08
36311FFORK, TRANSFER GEAR SHIFT, NO.1
TYPE B:REFER 36-08
TYPE A:REFER 36-08
AUTO DISCONNECT DIFFERENTIAL-WITHOUT&ABS (ANTI-LOCK BRAKE SYSTEM)-WITH,TYPE B:REFER 36-08,TYPE A:REFER 36-08
TYPE B:REFER 36-08,TYPE A:REFER 36-08
main36311-35030iLAN25..RHD;TGN26..4FC;KUN25..SCB..SA;TGN26..DLX..ANCOM;KUN26..5FC..DLX..ARL;KUN25..(DCB,SMT)..(IDN,MA,SA,TH);GGN25,KUN26,TGN26..SR..(DCR,HTWC,IART);KUN26,LAN25,TGN2201107
TYPE B:REFER 36-08,TYPE A:REFER 36-08
36311GRING, SHAFT SNAP (FOR TRANSFER GEAR SHIFT FORK)
TYPE B:REFER 36-08
TYPE A:REFER 36-08
TYPE B:REFER 36-08
36312FFORK, TRANSFER GEAR SHIFT, NO.2
main36312-35040iGGN25..SR;GGN25..5F..DLX;KUN2#,LAN25,TGN26..ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH201107
TYPE B:REFER 36-08
main36312-35040iGGN25..SR;GGN25..5F..DLX;KUN2#,LAN25,TGN26..ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH201107-201310
TYPE A:REFER 36-08
TYPE B:REFER 36-08,TYPE A:REFER 36-08
36313FSHAFT, TRANSFER FRONT DRIVE SHIFT FORK
TYPE B:REFER 36-08
TYPE B:REFER 36-08
TYPE B:REFER 36-08,TYPE A:REFER 36-08
TYPE A:REFER 36-08
TYPE B:REFER 36-08
TYPE A:REFER 36-08
TYPE B:REFER 36-08
36314SHAFT, TRANSFER HIGH AND LOW SHIFT FORK
TYPE B:REFER 36-08
TYPE B:REFER 36-08
TYPE B:REFER 36-08
TYPE A:REFER 36-08
TYPE B:REFER 36-08,TYPE A:REFER 36-08
TYPE A:REFER 36-08
TYPE B:REFER 36-08
36315DHEAD, TRANSFER GEAR SHIFT, NO.1
TYPE B:REFER 36-08
TYPE B:REFER 36-08
TYPE A:REFER 36-08
36316HEAD, TRANSFER GEAR SHIFT, NO.2
TYPE B:REFER 36-08
TYPE B:REFER 36-08
TYPE A:REFER 36-08
36317CSTOPPER, TRANSFER SHIFT SHAFT
TYPE B:REFER 36-08,TYPE A:REFER 36-08
TYPE A:REFER 36-08
TYPE B:REFER 36-08
36317DSTOPPER, NO.2, TRANSFER SHIFT SHAFT
TYPE B:REFER 36-08
TYPE A:REFER 36-08
TYPE B:REFER 36-08
36318BOOT, TRANSFER FRONT DRIVE SHIFT
36321BRING, HOLE SNAP (FOR TRANSFER FRONT DRIVE SHIFT LEVER)
36345GASKET, TRANSFER CONTROL SHIFT LEVER RETAINER
TYPE B:REFER 36-08
TYPE A:REFER 36-08
TYPE B:REFER 36-08
36349SPRING, TRANSFER SELECT RETURN
TYPE B:REFER 36-08,TYPE A:REFER 36-08
36360GLEVER ASSY, TRANSFER HIGH & LOW SHIFT
9011908336
main90119-08336
90119T0412
main90119-T0412
25 parts on this diagram · 2 diagrams in section
