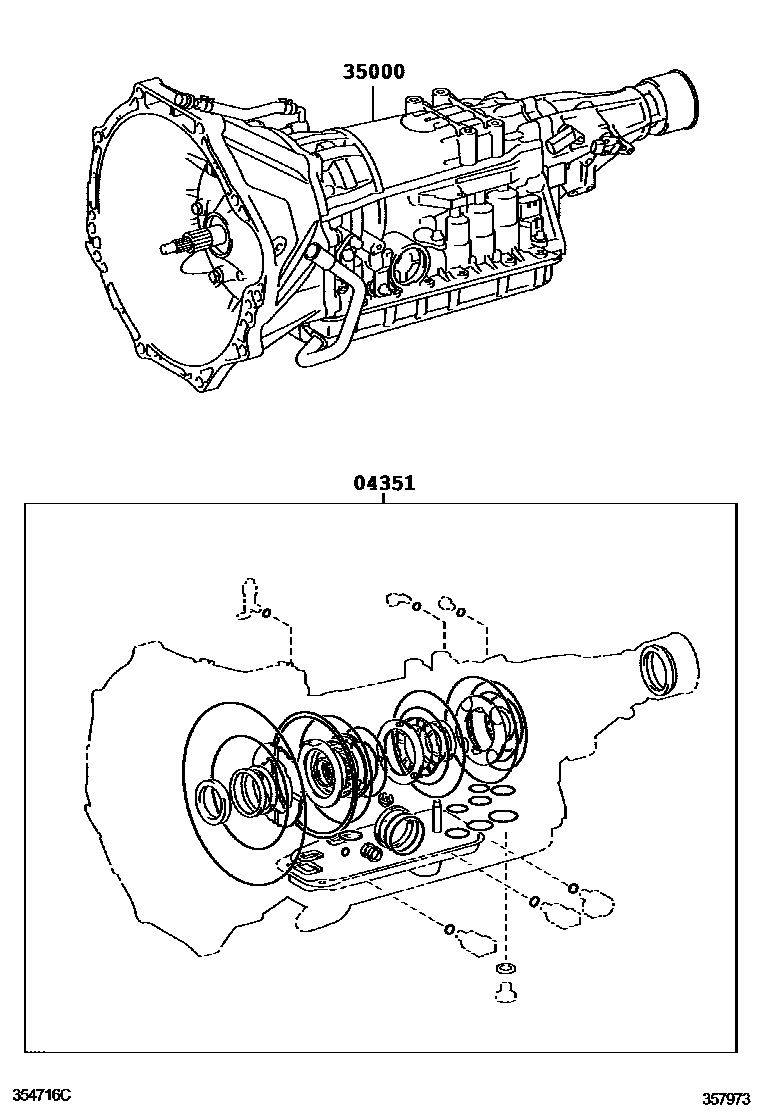

TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (ATM)

0001 1A340E,A343E 0002 1A340F,A343F 0003 1A750E 0004 1A750F 0005 1A750F 0006 1A750E

04351GASKET KIT, AUTOMATIC TRANSMISSION OVERHAUL

main04351-30630iKUN16,3#..4FC201107-201512

main04351-35270iTGN16,36..4FC201107

main04351-35380iKUN26..SADCB..4FC201204-201512

main04351-35390iTGN26..4FC201107-201512

main04351-60470iGGN15,25,35,KUN16,26,3#..5FC201107

main04351-71060iKUN25..4FC..MA201107-201210

35000TRANSMISSION ASSY, AUTOMATIC

main35000-71020iTGN16,36..4FC..HTWC201107

A343E

main35000-71030iTGN26..4FC..HTWC201107-201512

A343F

main35000-71050iKUN16..4FC201107-201504

A340E

main35000-71110iKUN25..4FC..MA201109-201210

A340F

main35000-71140iGGN35201108-201512

A750E

main35000-71150iGGN15..5FC201107-201504

A750E

main35000-71170iGGN25..5FC201107

A750F

main35000-71180iKUN26..4FC..ARL201107-201311

A340F

main35000-71190iKUN26..5FC201204-201510

A750F

main35000-71210iKUN3#..4FC201107-201512

A340E

main35000-71240iKUN26..SADCB..4FC201204-201512

A340F

main35000-71250iTGN36..4FC..LA201110-201510

A343E

main35000-71260iTGN26..SR..HTWCF201110-201510

A343F

main35000-71300iKUN16..TH201302-201504

A750E

main35000-71310iKUN3#..5FC201208-201504

A750E

2 parts on this diagram · 6 diagrams in section
