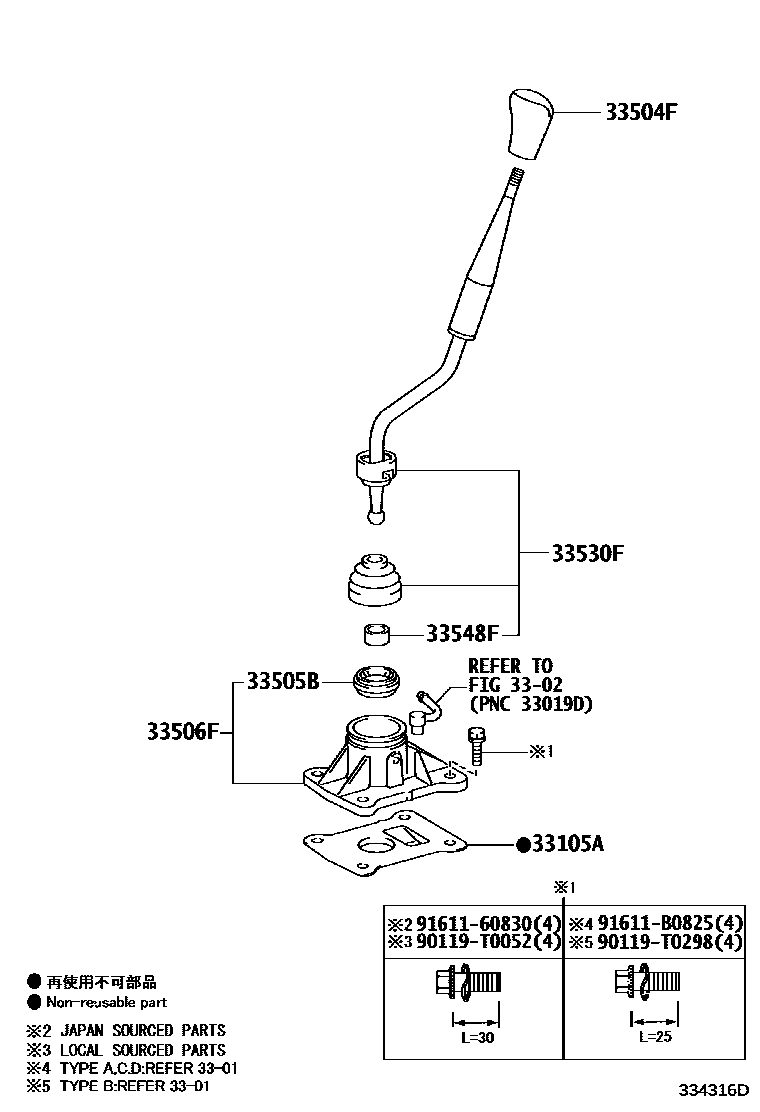

SHIFT LEVER & RETAINER
3302CLUTCH HOUSING & TRANSMISSION CASE (MTM)
33105ADEFLECTOR SUB-ASSY, EXTENSION HOUSING OIL(MTM)
main33144-35030iGGN25,KUN2#,TGN26..5F; KUN2#,TGN26..5F..(ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH)201107
TYPE C:REFER 33-01; TYPE D:REFER 33-01
TYPE A:REFER 33-01
33504FKNOB SUB-ASSY, SHIFT LEVER
main33504-02070-B0iKUN35..DLX..SA;KUN26..LHD..SADCB..5F;KUN15,25,LAN15,25,35,TGN15,16,26..5F..SA201108-201310
DK.GRAY,TRIM1#
main33504-02070-C0iKUN15..DCB..DLX..SA;KUN15..(SCB,XTR)..SA;KUN25,35,LAN15,25,TGN15,16,26..5F..DLX..SA; KUN26..LHD..SADCB..5F201310-201512
BLACK,TRIM1#; BLACK,TRIM1#,2#
DK.GRAY,TRIM10,11; DK.GRAY,TRIM10,30
main33504-0D050-C0iKUN10,15,25,TGN1#,26..5F..GCC; KUN15,26,35..5F..SR..PHL; KUN15,3#..SR..GEN;KUN26..LHD..DCB..5F..GEN; KUN25..DLX..IDN;KUN15,TGN16..SR..TH; KUN35..DCB..DLX..GEN201308-201504
BLACK,TRIM1#,2#; BLACK,TRIM1#,2#,40; BLACK,TRIM10,2#,40; BLACK,TRIM10,30; BLACK,TRIM2#,40
main33504-0D050-E1iKUN35..SR..PHL;KUN26..LHD..DCB..5F..GEN;KUN2#..5F..(IDN,PHL,PKN,TH);KUN35..(DCB,SMT)..5F..(GEN,TH);KUN15,36,TGN16..5F..SR..(GEN,PHL,TH)201107-201308
ASH BROWN,TRIM4#
BLACK,TRIM2#,40
ASH BROWN,TRIM4#
DK.GRAY,TRIM10,30; DK.GRAY,TRIM11
main33504-0K010-C0iKUN16..GEN;KUN26..LHD..DCB..4FC..GEN; KUN16..TH; KUN26..4FC..PHL; KUN35..4FC; TGN16,26..4FC..GCC201308-201504
BLACK,TRIM1#,2#,40; BLACK,TRIM10,2#,40; BLACK,TRIM10,30; BLACK,TRIM2#,4#; BLACK,TRIM2#,40
main33504-0K010-E1supersedes 33504-71010-E0iKUN16..SR;KUN25..4FC..PKN;KUN26..LHD..DCB..4FC..(GEN,PHL)201308-201601
ASH BROWN,TRIM40
main33504-0K040-B0iKUN36..5F..SA;KUN26..5F..SR..IART;KUN26,35,TGN36..RHD..5F..SR..(ARL,GEN,SA); TGN26..SR..HTWC..LA;KUN26..LHD..(SADCB,THDCB)..5F..SR;KUN26,36,TGN36..5F..SR..(DCR,HTWC)..(CO,LA)201308-201311
DK.GRAY,TRIM10,(L); SEAT COVER MATERIAL-LEATHER,DK.GRAY,TRIM10,(L)
main33504-0K040-C0iKUN26,3#,TGN36..5F..SR..SA; KUN26..5F..SR..IART;KUN26..DCB..5F..SR..ARL;KUN26..RHD..(SADCB,XTR)..5F..SR..(ARL,GEN); TGN26..SR..HTWC..LA;KUN26..LHD..(SADCB,THDCB)..5F..SR;KUN26,36,TGN36..5F..SR..(DCR,HTWC)..(CO,LA)201311-201512
BLACK,TRIM1#,(L); BLACK,TRIM1#,2#,(L); SEAT COVER MATERIAL-LEATHER,BLACK,TRIM1#,2#,(L)
main33504-0K040-E0iKUN26..DCB..5F..(PHL,TH);KUN26..LHD..DCB..5F..GEN; KUN26..RHD..DCB..5F..GEN201110-201308
ASH BROWN,TRIM4#,(L); SEAT COVER MATERIAL-LEATHER,ASH BROWN,TRIM4#,(L)
main33504-22140-B2iKUN36..5F..SA;KUN26..5F..SR..IART;KUN26,35,TGN36..RHD..5F..SR..(ARL,GEN,SA); TGN26..SR..HTWC..LA;KUN26..LHD..(SADCB,THDCB)..5F..SR;KUN26,36,TGN36..5F..SR..(DCR,HTWC)..(CO,LA)201308-201311
DK.GRAY,TRIM10,(J); SEAT COVER MATERIAL-LEATHER,DK.GRAY,TRIM10,(J)
main33504-22140-C0iKUN26,3#,TGN36..5F..SR..SA; KUN26..5F..SR..IART;KUN26..DCB..5F..SR..ARL;KUN26..RHD..(SADCB,XTR)..5F..SR..(ARL,GEN); KUN26..RHD..DCB..5F..GEN; TGN26..SR..HTWC..LA;KUN26..LHD..(SADCB,THDCB)..5F..SR;KUN26,36,TGN36..5F..SR..(DCR,HTWC)..(CO,LA)201308-201311
BLACK,TRIM10,(J); BLACK,TRIM10,2#,(J); BLACK,TRIM10,2#,40,(J); SEAT COVER MATERIAL-LEATHER,BLACK,TRIM10,2#,(J)
main33504-22140-E4iKUN26..DCB..5F..(PHL,TH);KUN26..LHD..DCB..5F..GEN; KUN26..RHD..DCB..5F..GEN201110-201308
ASH BROWN,TRIM4#,(J); SEAT COVER MATERIAL-LEATHER,ASH BROWN,TRIM4#,(J)
DK.GRAY,TRIM1#; SEAT COVER MATERIAL-LEATHER,DK.GRAY,TRIM1#
main33504-71010-C1iGGN25,35,KUN26,36..(4FC,5FC)..SA; KUN25,TGN26..4FC..GEN; KUN26..5FC..TH;KUN26..RHD..DCB..4FC..GEN; KUN26..LHD..(SADCB,THDCB)..4FC;KUN26,TGN26,36..4FC..SR..(CO,LA); KUN26..RHD..SADCB..4FC;GGN15,25,KUN26..5FC..SR..(HTWC,IART)..(ARL,LA)201308-201311
BLACK & SILVER,TRIM10; BLACK & SILVER,TRIM10,2#; BLACK & SILVER,TRIM10,2#,4#; SEAT COVER MATERIAL-LEATHER,BLACK & SILVER,TRIM10,2#; SEAT COVER MATERIAL-LEATHER,BLACK & SILVER,TRIM10,2#,4#
main33504-71010-E0iKUN26..5FC..TH;KUN26..RHD..DCB..4FC..GEN; KUN26..LHD..DCB..4FC..(GEN,PHL)201107-201308
ASH BROWN,TRIM4#; SEAT COVER MATERIAL-LEATHER,ASH BROWN,TRIM4#
33505BSEAT SUB-ASSY, SHIFT LEVER
TYPE D:REFER 33-01
TYPE A:REFER 33-01
main33505-35030iKUN16,36..5F..TH;TGN16..(DCB,SCB)..GEN;KUN15,35,TGN36..5F..(HDCR,HTWC)..(ANCOM,TH); TGN26..DCB..ANCOM201107-201504
TYPE A:REFER 33-01; TYPE A:SEE 33-01,(J)
33506FRETAINER SUB-ASSY, CONTROL SHIFT LEVER (FOR FLOOR SHIFT)
TYPE C:REFER 33-01
TYPE C:REFER 33-01
main33506-0K020iGGN25,KUN2#,TGN26..(DCB,SCB,SMT,THDCB,THSCB,XTR)..5F..(ARL,GCC,GEN,IDN,PHL,TH)201107-201504
TYPE B:REFER 33-01
TYPE A:REFER 33-01
TYPE D:REFER 33-01
TYPE A:REFER 33-01
TYPE D:REFER 33-01
main33570-0K040iKUN16,36..5F;TGN16..5F..(ARL,GCC,GEN,SA);KUN15,35,TGN11,36..5F..(HDCR,HTWC,HTWCF)201107-201512
TYPE C:REFER 33-01
33530FLEVER ASSY, SHIFT (FOR FLOOR SHIFT)
33548FBUSH, NO.1, SHIFT LEVER (FOR FLOOR SHIFT)
90119T0052
main90119-T0052
90119T0298
main90119-T0298
9161160830
main91611-60830
91611B0825
main91611-B0825
11 parts on this diagram · 5 diagrams in section
