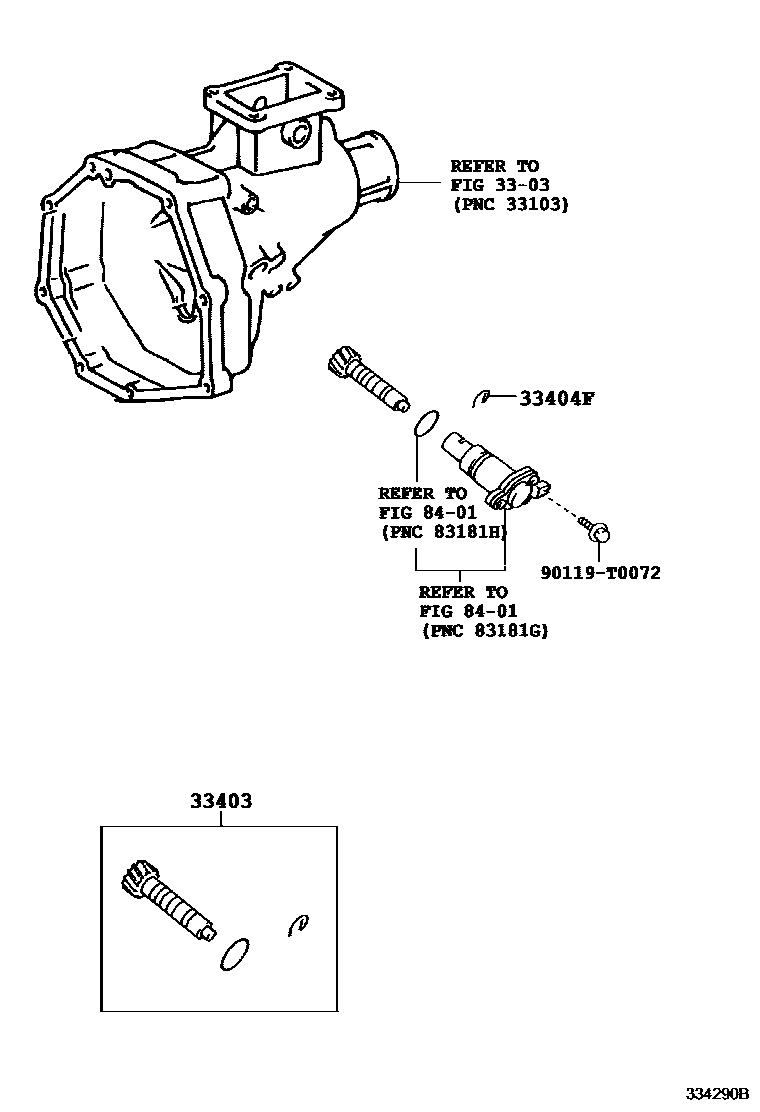

SPEEDOMETER DRIVEN GEAR (MTM)

0001 1G50,G55,G58 0002 1R150,R151 0003 1R150F,R151,R151F

3303

33403GEAR SUB-ASSY, SPEEDOMETER DRIVEN (MTM)

main33403-29315iTGN36..(SCB,THDCB)..HTWC;TGN36..DCB..DLX..HTWC..LA;TGN16,26..DLX..(CNG,HTWC)..(LA,TH);LAN25,TGN11,16,26..5F..(ANCOM,ARL,GCC,GEN,SA)201107

N=32,MARK 32:10

main33403-39305iKUN10,15,LAN15,35..DCR,DEFI201107-201609

N=19,MARK 19:6

main33403-39325iTGN10,15201107-201512

N=21,MARK 21:6

main33403-39355iTGN26..DLX..HTWCF;TGN16,26,36..DCB..SR..HTWC..(CO,LA,SA,TH)201107-201512

N=31,MARK 31:10

main33403-39365iKUN25..5F..MA;KUN35..SR..SA201107-201210

N=30,MARK 30:11

main33403-39515iKUN35..SR..GEN;KUN35..DCB..DLX..(GEN,PHL)201208-201601

N=29,MARK 29:11

main33403-39575supersedes 33403-39585iKUN36..SCB;KUN35..SMT..5F..SR;GGN25,KUN25..5F..SR..(ARL,TH);KUN26..RHD..(DCB,SADCB,SCB,XTR)..5F..SR;KUN26..LHD..DCB..5F..SR..DCR..(GEN,LA,PHL)201107-201512

N=27,MARK 27:11

main33403-39585iKUN26..SCB..LA;KUN3#..DCB..5F..SR..TH;GGN25,KUN25,35..5F..DLX..(ARL,IDN,TH)201107-201601

N=28,MARK 28:11

main33403-79015iKUN26..5F..CO;KUN36..SMT,XTR;KUN26..5F..SR..IART;KUN26..(SMT,THDCB)..5F;KUN26..LHD..SADCB..5F..SR;KUN36..DCB..5F..(GEN,LA,SA);KUN26..LHD..(DCB,SADCB)..5F..DLX201107-201512

N=26,MARK 26:11

33404FCLIP (FOR MTM SPEEDOMETER SHAFT SLEEVE)

main90468-12005iKUN15,25..5F..PKN201107-201609

8401

90119T0072

main90119-T0072

5 parts on this diagram · 3 diagrams in section
