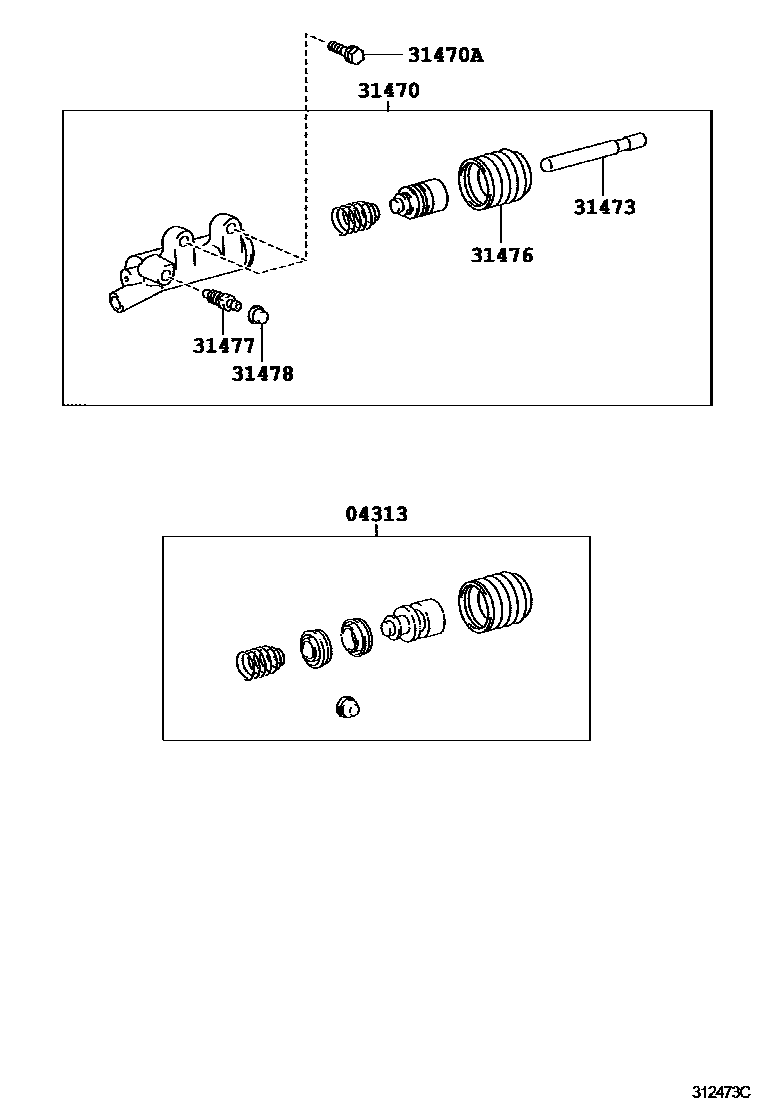

CLUTCH RELEASE CYLINDER

0001 1 0002 1 0003 1 0004 1

04313CYLINDER KIT, CLUTCH RELEASE

main04313-0K010iTGN11,16,26,36..5F201107

main04313-0K020iGGN15,25..5F201107-201311

main04313-0K030iKUN10,15..DCR201107-201609

main04313-0K040iKUN16..5F..TH;KUN35..LHD..GEN;KUN15..XTR..HDCR;KUN26,36..5F..(CO,LA);KUN35..DLX..(CO,LA,SA);KUN25..5F..(CO,GCC,GEN,LA,PKN,SA)201107-201609

main04313-0K050iLAN15,25,35,TGN10,15201107-201512

main04313-0K070iKUN35..DLX..PHL;KUN35..5F..SR..(PHL,SA);KUN35..RHD..5F..(GEN,TH);KUN15..(DCB,SCB,SMT)..HDCR;KUN16,25..5F..(ARL,IDN,MA,TH);KUN26,36..5F..(ARL,GEN,PHL,SA,TH)201411-201601

31470CYLINDER ASSY, CLUTCH RELEASE

main31470-0K010iLAN15,25,35201108-201311

main31470-0K020iKUN10,15..DCR201107-201609

main31470-0K030iKUN25..5F..(IDN,MA,TH);KUN35..5F..SR..(PHL,SA);KUN35..RHD..5F..(GEN,TH);KUN16,35..DLX..(ARL,PHL);KUN15..(DCB,SCB,SMT)..HDCR;KUN26,36..5F..(ARL,GEN,PHL,SA,TH)201107-201609

main31470-0K040iTGN10,15201107-201512

main31470-0K051iTGN11,16,26,36..5F201107

main31470-0K060iGGN15,25..5F201107-201311

main31470-0K150iLAN15,25201312-201512

main31470-0K160iKUN35..DLX..PHL;KUN35..5F..SR..(PHL,SA);KUN35..RHD..5F..(GEN,TH);KUN15..(DCB,SCB,SMT)..HDCR;KUN16,25..5F..(ARL,IDN,MA,TH);KUN26,36..5F..(ARL,GEN,PHL,SA,TH)201411-201601

31470ABOLT(FOR CLUTCH RELEASE CYLINDER SETTING)

main90119-T0221iGGN15,25..5F201107-201609

*8-1.25PX25-20.1

31473ROD, CLUTCH RELEASE CYLINDER PUSH, NO.1

main31473-04010iKUN35..LHD..GEN;KUN15..XTR..HDCR;KUN35..DLX..(CO,LA,SA);KUN25..5F..(CO,GCC,GEN,LA,PKN,SA);KUN10,26,36,TGN10..5F..(CO,GCC,IDN,LA);KUN15,16,TGN15..5F..(DCR,HTWC)..(GC201107-201609

main31473-0D020iKUN35..DLX..PHL;KUN35..5F..SR..(PHL,SA);KUN35..RHD..5F..(GEN,TH);KUN15..(DCB,SCB,SMT)..HDCR;KUN16,25..5F..(ARL,IDN,MA,TH);KUN26,36..5F..(ARL,GEN,PHL,SA,TH)201411-201601

main31473-0K010iLAN15,25,35,TGN11,16,26,36..5F201107

main31473-0K020iGGN15,25..5F201107-201311

31476BOOT, CLUTCH RELEASE CYLINDER

main31476-04010iKUN1#,2#,3#,LAN15,25,35,TGN1#,26,36..5F..(ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH)201107-201609

main31476-0K010iGGN15,25..5F201107-201311

31477PLUG, BLEEDER(FOR RELEASE CYLINDER)

main47547-12010iKUN15,25..5F..PKN201107-201609

31478CAP, BLEEDER PLUG(FOR RELEASE CYLINDER)

main31478-30010iKUN15,25..5F..PKN201107-201609

7 parts on this diagram · 4 diagrams in section
