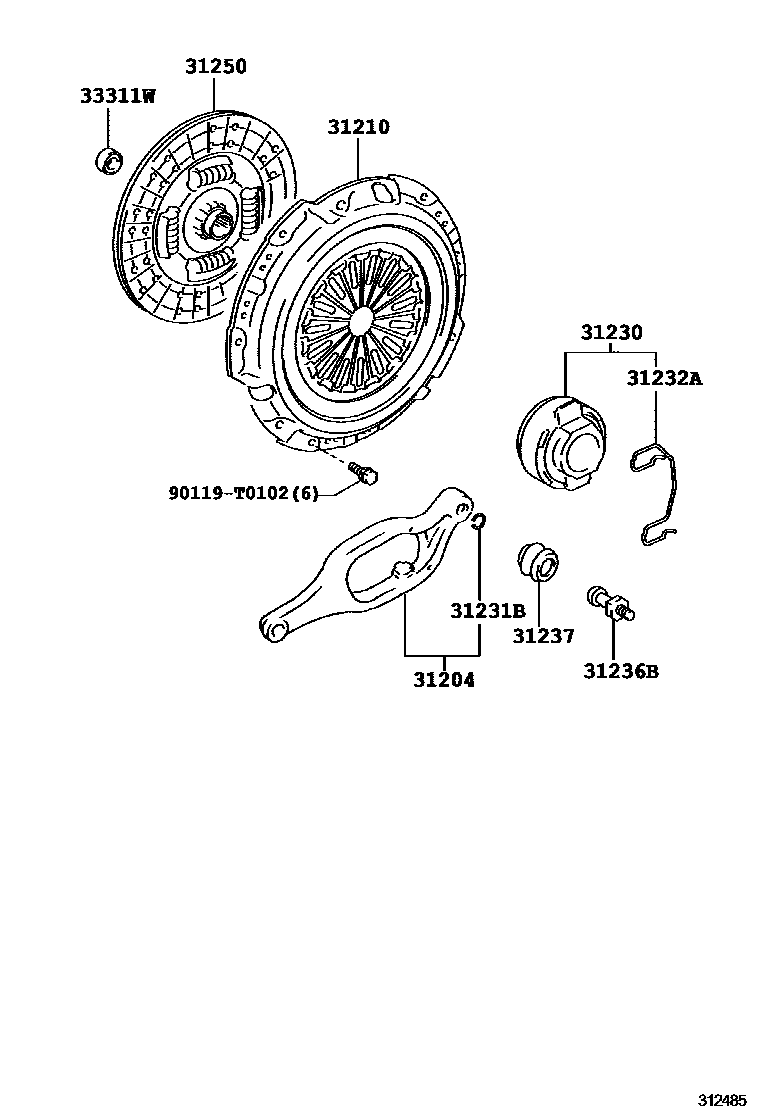

CLUTCH & RELEASE FORK

0001 1 0002 1 0003 1 0004 1 0005 1

31204FORK SUB-ASSY, CLUTCH RELEASE

main31204-0K020iTGN11,16,26,36..5F..(ANCOM,ARL,CO,GCC,GEN,LA,SA)201107-201601

TYPE C:REFER 33-01

main31204-0K030iTGN10,15..GCC,IDN201107-201504

TYPE D:REFER 33-01

main31204-0K061iGGN15,25..5F201107-201311

TYPE D:REFER 33-01,TYPE B:REFER 33-01

main31204-0K071iKUN15..HDCR;KUN2#,36..5F;KUN35..SMT..DLX;KUN35..(DCB,SCB,THDCB,XTR)..5F;KUN1#..5F..DCR..(ARL,GCC,GEN,IDN,PHL,PKN)201107-201503

TYPE D:REFER 33-01

main31204-0K081iKUN16,26,36..5F;KUN15,25,35..5F..HDCR..(CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH)201107-201502

TYPE C:REFER 33-01

main31204-0K150iTGN26201601

TYPE C:REFER 33-01

main31204-0K160iKUN16,26,36..5F;KUN15,25,35..5F..HDCR..(CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH)201502-201601

TYPE C:REFER 33-01

main31204-0K180iKUN15..PKN201504-201508

TYPE D:REFER 33-01

main31204-20071iTGN10,15201107-201512

TYPE A:REFER 33-01

main31204-35031iTGN11,16,26,36..5F..HTWC..(ANCOM,ARL,GCC,GEN,TH)201204-201411

TYPE A:REFER 33-01

main31204-35050iLAN15,25,35201108-201512

TYPE A:REFER 33-01

main31204-35070iKUN15..HDCR..(GEN,TH);KUN16,2#,3#..(DCB,SCB,SMT,THDCB,THSCB,XTR)..5F..(ARL,GCC,GEN,IDN,PHL,TH)201107-201504

TYPE B:SEE 33-01,(J)

main31204-71020iTGN36..5F..ANCOM;TGN26..DCB..ANCOM201411-201504

TYPE A:REFER 33-01

main31204-71030iKUN25..TH;KUN15..LHD..DCR;KUN10,26,3#..5F..(GCC,IDN,TH);KUN15..RHD..(DCB,SCB,SMT)..(DLX,SR)201502-201609

TYPE A:REFER 33-01

31210COVER ASSY, CLUTCH

main31210-0K023iKUN10,15..DCR..(GCC,GEN,IDN,PHL,PKN,TH)201107-201609

main31210-0K040iKUN25..5F..MA201107-201210

main31210-0K050iKUN35..DLX..SA;KUN15,25..5F..HDCR..SA201108-201512

main31210-0K060iKUN25,35..CO201111-201410

main31210-0K090iKUN25,35..CO201410-201510

main31210-0K101iTGN10,15..GCC,IDN201107-201504

main31210-0K110iTGN15..SA201108-201512

main31210-0K131iTGN26,36..5F..HTWCF;TGN11,16,26,36..5F..(ANCOM,ARL,GCC,GEN,TH)201107

main31210-0K140iTGN16,26,36..SA201108-201111

main31210-0K141iTGN16,26,36..5F..SA201112-201512

main31210-0K150iTGN26,36..SR..HTWC..LA201110-201301

main31210-0K151iTGN26,36..HTWC..(CO,LA)201301-201510

main31210-0K190iKUN25,35..THDCB; KUN35..RHD..5F..(GEN,TH);KUN15..(DCB,SCB,SMT)..HDCR;KUN16,25..5F..(ARL,IDN,TH);KUN26,36..5F..(ARL,GEN,PHL,SA,TH)201107-201411

*450; CHILE SPEC(EURO 5 REGULATION),*450

main31210-0K200iGGN15,25..5F201107-201311

main31210-0K210iKUN15..DCR..SA;LAN15,25,35..RHD201108-201512

main31210-0K400iLAN15,25201311-201512

main31210-0K440iKUN35..DLX..PHL;KUN35..5F..SR..(PHL,SA);KUN35..RHD..5F..(GEN,TH);KUN15..(DCB,SCB,SMT)..HDCR;KUN16,25..5F..(ARL,IDN,MA,TH);KUN26,36..5F..(ARL,GEN,PHL,SA,TH)201411-201601

*450

31230BEARING ASSY, CLUTCH RELEASE

main31230-35061iLAN15,25,35201108-201512

TYPE A:REFER 33-01

main31230-35091iTGN10,15..GCC,IDN201107-201504

TYPE D:REFER 33-01

main31230-71011iKUN15..HDCR..(GEN,TH);KUN16,2#,3#..(DCB,SCB,SMT,THDCB,THSCB,XTR)..5F..(ARL,GCC,GEN,IDN,PHL,TH); KUN16,26,36..5F..TH;KUN15,25,35..5F..HDCR..TH201107-201504

TYPE A:REFER 33-01; TYPE B:REFER 33-01

main31230-71020iTGN11,16,26,36..5F..(ANCOM,ARL,CO,GCC,GEN,LA,SA); TGN11,16,26..5F;TGN36..5F..HTWC201107

TYPE C:REFER 33-01; TYPE D:REFER 33-01

main31230-71030iKUN10,15..DCR..(GCC,GEN,IDN,PHL,SA,TH)201107-201609

TYPE A:REFER 33-01

main31230-71040iGGN15,25..5F201107-201311

TYPE B:REFER 33-01,TYPE D:REFER 33-01

31231BRING, SNAP(FOR CLUTCH RELEASE HUB)

main90520-T0031iKUN15..HDCR..(GEN,TH);KUN16,2#,3#..(DCB,SCB,SMT,THDCB,THSCB,XTR)..5F..(ARL,GCC,GEN,IDN,PHL,TH); KUN15..HDCR..SA;KUN10,16,2#,3#..5F;KUN15..GCC,GEN,PHL,PKN,TH201107-201504

TYPE B:SEE 33-01,(L); TYPE D:REFER 33-01

main90521-22003iKUN16,26,36..5F;KUN15,25,35..5F..HDCR..(CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH); KUN25..TH;KUN15..XTR..TH;KUN15..LHD..DCR;KUN10,16,26,3#..5F..(GCC,IDN,TH);KUN15..RHD..(DCB,SCB,SMT)..(DLX,SR)201107-201502

TYPE A:REFER 33-01; TYPE C:REFER 33-01

31232ACLIP, RELEASE BEARING HUB

main31232-35020iLAN15,25,35,TGN10,15201107-201512

TYPE A:REFER ILLUST.

main31232-35030iLAN15,25,35201108-201512

TYPE B:REFER ILLUST.

main31232-35040iTGN10,15201107-201512

TYPE B:REFER ILLUST.

main31232-71010iKUN15..HDCR..(GEN,TH);KUN16,2#,3#..(DCB,SCB,SMT,THDCB,THSCB,XTR)..5F..(ARL,GCC,GEN,IDN,PHL,TH); KUN16,26,36..5F..TH;KUN15,25,35..5F..HDCR..TH201107-201504

TYPE A:REFER 33-01; TYPE B:REFER 33-01

main31232-71020iTGN11,16,26,36..5F..(ANCOM,ARL,CO,GCC,GEN,LA,SA); TGN11,16,26..5F;TGN36..5F..HTWC201107

TYPE C:REFER 33-01; TYPE D:REFER 33-01

main31232-71030iKUN10,15..DCR..(GCC,GEN,IDN,PHL,SA,TH)201107-201609

TYPE A:REFER 33-01

main31232-71040iGGN15,25..5F201107-201311

TYPE B:REFER 33-01,TYPE D:REFER 33-01

31236BSUPPORT, RELEASE FORK

main31236-26010iLAN15,25,35,TGN10,15201107-201512

TYPE A:REFER 33-01

main31236-35030iTGN11,16,26,36..5F..HTWC..(ANCOM,ARL,GCC,GEN,TH)201204-201411

TYPE A:REFER 33-01

main31236-35050iKUN26,36..5F;KUN15,25,35..5F..HDCR201504-201609

TYPE D:REFER 33-01

main31236-71011iKUN16,26,36..5F;KUN15,25,35..5F..HDCR..(CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH); KUN25..TH;KUN15..XTR..TH;KUN15..LHD..DCR;KUN10,16,26,3#..5F..(GCC,IDN,TH);KUN15..RHD..(DCB,SCB,SMT)..(DLX,SR)201107-201502

TYPE A:REFER 33-01; TYPE C:REFER 33-01

main31236-71030iTGN11,16,26..5F;TGN36..5F..HTWC201107-201411

TYPE D:REFER 33-01

main31236-71040iTGN11,16,26,36..5F..(ANCOM,ARL,CO,GCC,GEN,LA,SA); TGN11,16,26..5F;TGN36..5F..HTWC201411

TYPE C:REFER 33-01; TYPE D:REFER 33-01

31237BOOT, CLUTCH RELEASE FORK SUPPORT

main31237-0K010iKUN15..HDCR..(GEN,TH);KUN16,2#,3#..(DCB,SCB,SMT,THDCB,THSCB,XTR)..5F..(ARL,GCC,GEN,IDN,PHL,TH); KUN15..HDCR..SA;KUN15..GCC,GEN,PHL,PKN,TH;GGN15,25,KUN10,16,2#,3#..5F201107-201504

TYPE B:SEE 33-01,(L); TYPE D:REFER 33-01

main31237-0K020iTGN26201601

TYPE C:REFER 33-01

main31237-60010iKUN16,26,36..5F;KUN15,25,35..5F..HDCR..(CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH); KUN25..TH;KUN15..XTR..TH;KUN15..LHD..DCR;KUN10,16,26,3#..5F..(GCC,IDN,TH);KUN15..RHD..(DCB,SCB,SMT)..(DLX,SR)201107-201502

TYPE A:REFER 33-01; TYPE C:REFER 33-01

31250DISC ASSY, CLUTCH

main31250-0K011iLAN15,25,35201108-201512

main31250-0K030iKUN15..DCR..SA201108-201512

main31250-0K060iKUN35..DLX..SA;KUN15,25..5F..HDCR..SA201108-201512

main31250-0K070iKUN2#,3#..5F..(CO,LA)201110-201510

main31250-0K080iTGN10,15..GCC,IDN201107-201504

main31250-0K090iTGN15..SA201108-201512

main31250-0K121iTGN16,26,36..5F..SA201108-201512

main31250-0K131iTGN26,36..HTWC..(CO,LA)201110-201510

main31250-0K151iTGN11,16,26,36..5F..(ANCOM,ARL,GCC,GEN,TH)201107-201709

main31250-0K152iTGN26201710

main31250-0K205iKUN25..5F..(GCC,GEN,PKN);KUN15,35..LHD..(DCB,THDCB,XTR)..HDCR..GEN201107-201609

main31250-0K210iKUN10,15..DCR..(GCC,GEN,IDN,PHL,PKN,TH)201107-201609

main31250-0K221iKUN15..(DCB,SCB,SMT)..HDCR;KUN16,25,35..5F..(ARL,IDN,TH);KUN26,36..5F..(ARL,GEN,PHL,SA,TH); KUN25,35..THDCB,THSCB201107-201306

CHILE SPEC(EURO 4 REGULATION); CHILE SPEC(EURO 5 REGULATION)

main31250-0K222iKUN26..SADCB..5F;KUN26,3#..5F..SR..SA201307-201409

main31250-0K231iGGN15,25..5F201107-201311

main31250-0K270iTGN26,36..5F..HTWCF201110-201510

main31250-0K460iKUN26..SADCB..5F;KUN26,3#..5F..SR..SA201410-201512

33311WBEARING (FOR INPUT SHAFT)

main90080-36199iKUN2#,3#..5F..(CO,LA)201110-201408

main90363-12002iKUN2#,3#..5F..(CO,LA)201408

(J)

main90363-T0006iKUN15..DCR..TH;TGN16..5F..(ARL,GCC,GEN,TH);KUN16,TGN10,11,15,26,36..5F..(GCC,GEN,IDN,TH)201107-201504

(L)

main90363-T0019iTGN15,16,26,36..5F..(ANCOM,CO,LA,SA)201108

(L)

90119T0102

main90119-T0102

10 parts on this diagram · 5 diagrams in section
