VENTURI

0001 1 0002 1

1701MANIFOLD

→ Go to FIG 17-01

2501EXHAUST GAS RECIRCULATION SYSTEM

→ Go to FIG 25-01

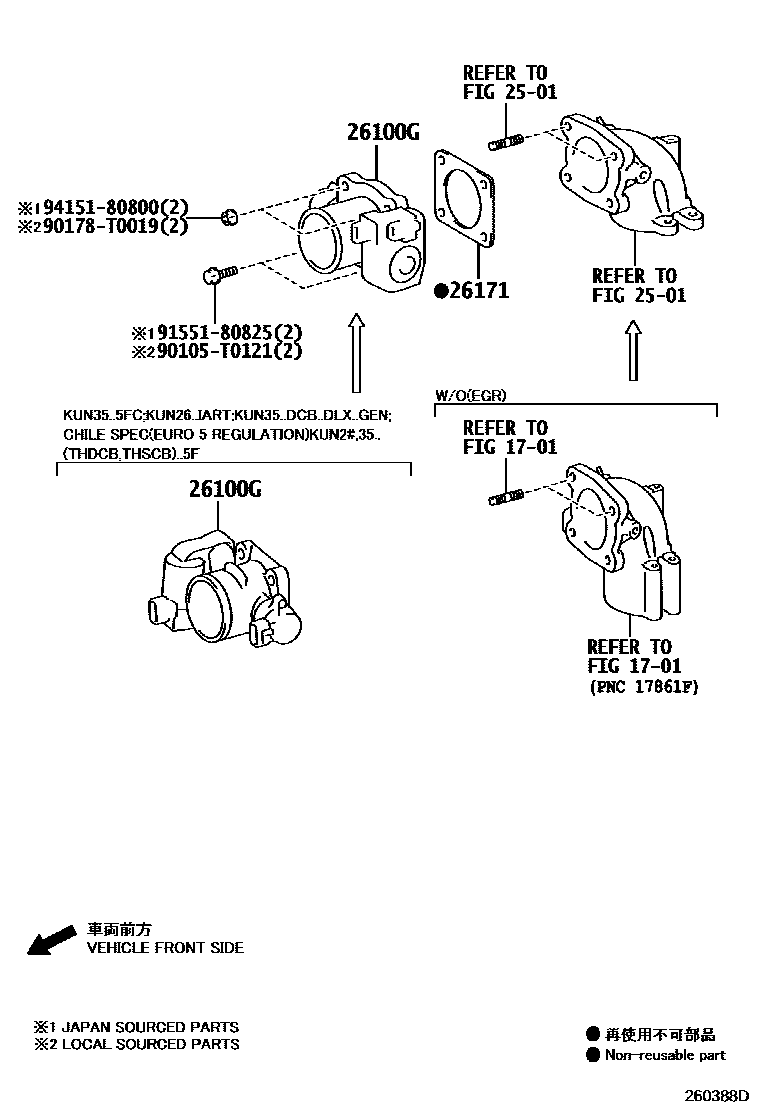

26100VENTURI ASSY

main26100-54290i5LE..LAN15,25,35201108-201512

26100GBODY ASSY, DIESEL THROTTLE

main26100-0L010i2KDFTV..KUN25;2KDFTV..KUN15..RHD;2KDFTV..KUN15..LHD..SCB..DCR;2KDFTV..KUN15..LHD..(DCB,XTR);1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV..KUN26..LHD..DCB..4FC..GEN;2KDFTV..KUN35..(4FC,5F)..(CO,LA,PHL,SA,TH);1KDFTV,2KDFTV..KUN26,35..LHD..(DCB,THDCB)..5F..GEN;1KDFTV,2KDFTV..KUN10,16,26,36..DCR..(CO,GCC,IDN,LA,MA,PHL,SA,TH)201107-201609

*130

main26100-30070i1KDFTV..KUN36..4FC;2KDFTV..KUN35..THDCB;2KDFTV..KUN15..DLX,STD;1KDFTV..KUN36..5F..(GEN,SA);2KDFTV..KUN15..(SMT,XTR)..SR;2KDFTV..KUN35..DLX..(PHL,SA,TH);1KDFTV,2KDFTV..KUN10,16..4FC,5F;1KDFTV,2KDFTV..KUN2#..4FC..(IDN,TH);2KDFTV..KUN15,35..DCB..SR..(GEN,PHL,SA);1KDFTV,2KDFTV..KUN2#..ARL,GCC,GEN,MA,PHL,PKN,SA201107-201610

*360

main26100-30080i2KDFTV..KUN35..5FC;1KDFTV..KUN26..IART;2KDFTV..KUN35..DCB..DLX..GEN201204-201510

26171GASKET, VENTURI

main17116-54030i5LE..LAN15,25,35201108-201512

main26171-0L020i2KDFTV..KUN25;2KDFTV..KUN15..RHD;2KDFTV..KUN15..LHD..SCB..DCR;2KDFTV..KUN15..LHD..(DCB,XTR);1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV..KUN26..LHD..DCB..4FC..GEN;2KDFTV..KUN35..(4FC,5F)..(CO,LA,PHL,SA,TH);1KDFTV,2KDFTV..KUN26,35..LHD..(DCB,THDCB)..5F..GEN;1KDFTV,2KDFTV..KUN10,16,26,36..DCR..(CO,GCC,IDN,LA,MA,PHL,SA,TH)201107-201609

*130

main26171-30020i2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH;2KDFTV..KUN25..5F..(IDN,TH)201208-201610

*360

90105T0121

main90105-T0121

90178T0019

main90178-T0019

9155180825

main91551-80825

9415180800

main94151-80800

9 parts on this diagram · 2 diagrams in section
