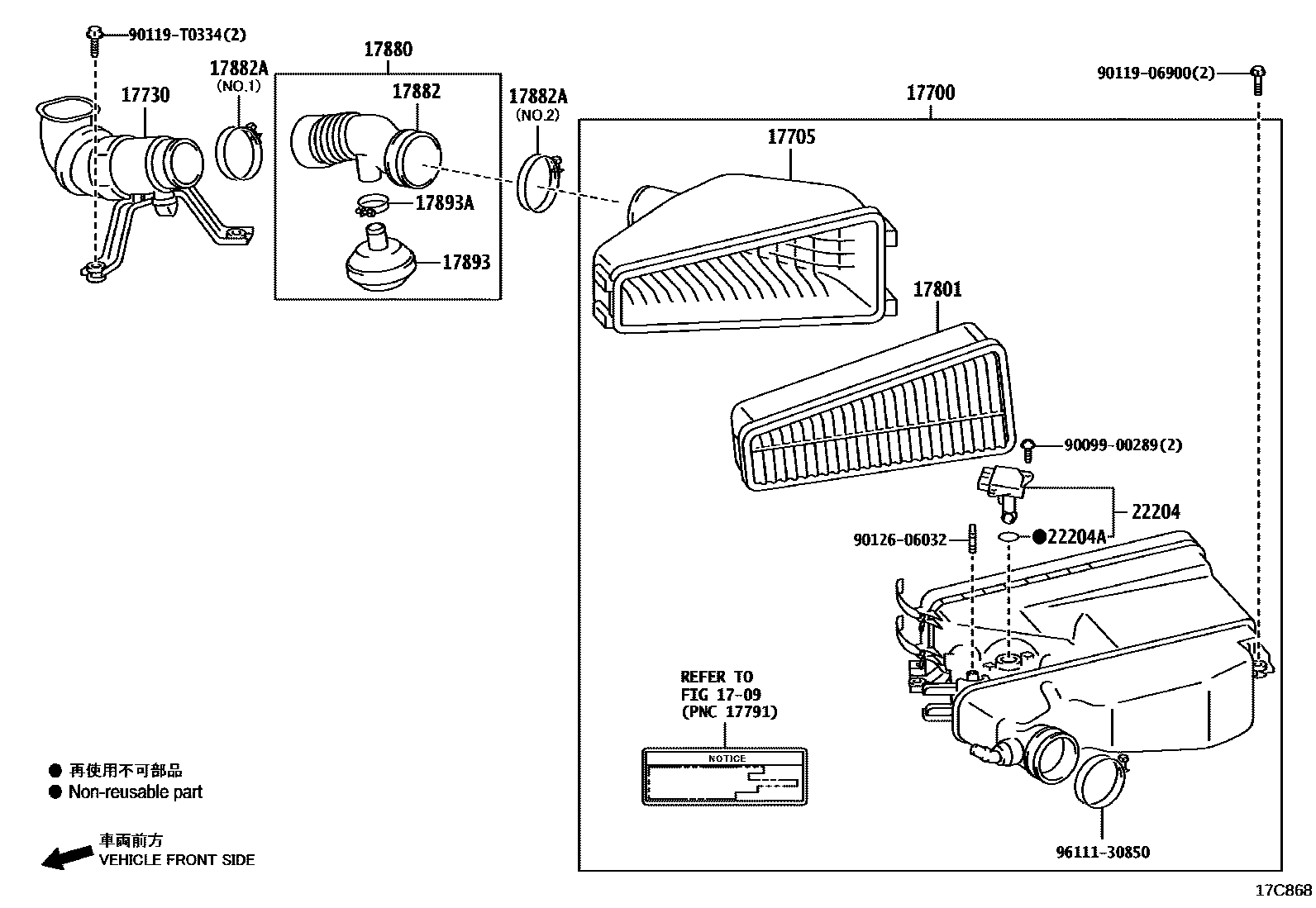

AIR CLEANER

0001 1 0002 1EURO 4 REGULATION 0009 1 0012 1 0016 1EURO 4 REGULATION 0018 1CHILE SPEC(EURO 4 REGULATION)0019 1EURO 5 REGULATION 0021 1MOROCCO SPEC 0022 1EURO 4 REGULATION 0033 1 0034 1 0035 1CHILE SPEC(EURO 4 REGULATION)0036 1EURO 5 REGULATION 0037 1EURO 4 REGULATION 0039 1 0042 1MOROCCO SPEC 0043 1W/O(INTERCOOLER) 0048 1 0049 1 0050 1

1709

17700CLEANER ASSY, AIR

main17080-0C011i1TRFE,2TRFE..TGN1#,26,36..ARL,GCC,GEN,IDN,TH201107-201504

main17700-05101i5LE..LAN15,25,35201108-201512

main17700-0C121i1TRFE,2TRFE..TGN15,16,26,36..SA201108-201512

main17700-0C131i2TRFE..TGN26,36..ANCOM,CO,LA201110

sub17700-0C141

main17700-0L051i2KDFTV..KUN25..IDN;1KDFTV..KUN26..4FC..TH;1KDFTV..KUN16..(4FC,5F)..(GEN,TH);1KDFTV,2KDFTV..KUN3#..4FC..(PHL,TH);1KDFTV..KUN26,36..(DCB,THDCB)..(4FC,5F)..(GEN,MA,PHL201107-201601

main17700-0L061i2KDFTV..KUN35..SR..SA201108-201512

main17700-0L071i1KDFTV..KUN26..4FC..LA201111-201510

main17700-0L082i2KDFTV..KUN15..XTR..GEN;2KDFTV..KUN25..(DCB,SCB,XTR)..(GCC,GEN,PKN);2KDFTV..KUN10,15..(DLX,STD)..DCR..(GCC,GEN,PKN)201107-201609

main17700-0L101i2KDFTV..KUN15,25..LHD..SA;2KDFTV..KUN35..DCB..DLX..SA201108-201512

KENYA SPEC

main17700-0L101i2KDFTV..KUN15,25..LHD..SA;2KDFTV..KUN35..DCB..DLX..SA201108-201512

EXPORT FROM SOUTH AFRICA

main17700-0L141i2KDFTV..KUN35..SR..SA201108-201512

main17700-0L230i2KDFTV..KUN25,35..CO201111-201410

main17700-0L240i1KDFTV,2KDFTV..KUN2#,35..5F..CO201110-201510

main17700-31542i1GRFE..GGN15,25,35201107

17705CAP SUB-ASSY, AIR CLEANER

main17705-05070i5LE..LAN15,25,35201108-201512

main17705-0C070i1TRFE,2TRFE..TGN1#,26,36..ARL,GCC,GEN,IDN,TH201107-201504

main17705-0C090i1TRFE,2TRFE..TGN15,16,26,36..SA201108-201512

main17705-0C100i2TRFE..TGN26,36..ANCOM,CO,LA201110

main17705-0L020i1KDFTV..KUN26,36..5F..TH;2KDFTV..KUN15,25,35..HDCR..TH201107-201601

main17705-0L030i1KDFTV..KUN26,36..SA;1KDFTV..KUN26..SADCB201108-201512

main17705-0L040i1KDFTV..KUN26..4FC..CO201111-201510

sub17705-0L020

main17705-0L050i2KDFTV..KUN15..XTR..GEN;2KDFTV..KUN25..(DCB,SCB,XTR)..(GCC,GEN,PKN);2KDFTV..KUN10,15..(DLX,STD)..DCR..(GCC,GEN,PKN)201107-201609

main17705-0L070i2KDFTV..KUN15,25..RHD..DLX..SA201108-201512

KENYA SPEC

main17705-0L070i2KDFTV..KUN15,25..LHD..SA;2KDFTV..KUN35..DCB..DLX..SA201108-201512

EXPORT FROM SOUTH AFRICA

main17705-0L100i2KDFTV..KUN15..SR..GEN;2KDFTV..KUN35..LHD..GEN;2KDFTV..KUN25..THDCB,THSCB;2KDFTV..KUN10,15..DCR..(IDN,PHL,TH)201107-201504

main17705-0L110i2KDFTV..KUN35..SR..SA201108-201512

main17705-0L130i1KDFTV..KUN16,26..ARL;2KDFTV..KUN15..SCB..HDCR..GEN;1KDFTV..KUN16,26,36..5FC..(GEN,TH)201107-201504

main17705-0L150i1KDFTV..KUN26..IART201204-201510

main17705-0L210i2KDFTV..KUN25,35..CO201111-201410

main17705-0L220i2KDFTV..KUN35..5FC;2KDFTV..KUN35..DCB..DLX..GEN201208-201504

main17705-0L240i1KDFTV..KUN26..LHD..DCB..5FC..DCR;1KDFTV,2KDFTV..KUN2#,3#..5F..(DCR,HDCR)..LA201110-201510

main17705-31091i1GRFE..GGN15,25,35201107

17730PRECLEANER ASSY, AIR W/HOSE

main17730-0P010i1GRFE..GGN15,25,35201107

17801ELEMENT SUB-ASSY, AIR CLEANER FILTER

main17801-0C010i5LE..LAN15,25,35201108-201512

MARK 17801-0C010

main17801-0C010i1KDFTV..KUN26,36..5F..TH;2KDFTV..KUN15,25,35..HDCR..TH201107-201609

main17801-0C020i5LE..LAN15,25,35201108-201512

MARK 17801-0C020

sub17801-0C010

main17801-31090i1GRFE..GGN15,25,35201107

17880HOSE ASSY, AIR CLEANER

main17880-0C050i1TRFE,2TRFE..TGN1#,26,36201107

main17880-0P070i1GRFE..GGN15,25,35201107

17882HOSE, AIR CLEANER, NO.2

main17882-0P021i1GRFE..GGN15,25,35201107

17882ACLAMP(FOR AIR CLEANER HOSE, NO.2)

main90460-T0006i1GRFE..GGN15,25,35201107

NO.1

main90460-T0007i1GRFE..GGN15,25,35201107

NO.2

17893RESONATOR, INTAKE AIR

main17893-0C030i1TRFE,2TRFE..TGN1#,26,36201107

main17893-0P040i1GRFE..GGN15,25,35201107

17893ACLAMP, HOSE

main90460-T0008i1TRFE,2TRFE..TGN1#,26,36201107

main96111-10430i1GRFE..GGN15,25,35201107

22204METER SUB-ASSY, INTAKE AIR FLOW

main22204-0C020i1TRFE,2TRFE..TGN1#,26,36..ARL,GCC,GEN,IDN,TH201107

main22204-0J010i1TRFE,2TRFE..TGN15,16,26,36..ANCOM,CO,LA,SA201108-201509

sub22204-0C020

main22204-0L010i2KDFTV..KUN25..IDN,MA;2KDFTV..KUN15..DCR..(PHL,TH);1KDFTV,2KDFTV..KUN10,16..RHD;2KDFTV..KUN35..LHD..(GEN,PHL);1KDFTV..KUN26,36..(4FC,5FC)..TH;1KDFTV,2KDFTV..KUN15,3201107-201601

main22204-0L010i1KDFTV..KUN26..SADCB;2KDFTV..KUN35..SR..SA;2KDFTV..KUN35..(SCB,XTR)..SA;1KDFTV,2KDFTV..KUN15,2#,36..RHD..SA201108-201510

MARK 22204-0L010

main22204-0N010i1KDFTV,2KDFTV..KUN2#,3#..(DCR,HDCR)..(CO,LA)201110-201510

sub22204-0L010

main22204-0N010i1KDFTV..KUN26..SADCB;2KDFTV..KUN35..SR..SA;2KDFTV..KUN35..(SCB,XTR)..SA;1KDFTV,2KDFTV..KUN15,2#,36..RHD..SA201108-201510

MARK 22204-0N010

sub22204-0L010

main22204-22010i1GRFE..GGN15,25,35201107

main22204-30020i2KDFTV..KUN35..5FC;1KDFTV..KUN26..IART;2KDFTV..KUN35..DCB..DLX..GEN201204-201510

22204ARING, O(FOR INTAKE AIR FLOW METER)

main90099-14141i1GRFE..GGN15,25,35201107

9009900289

main90099-00289

9011906900

main90119-06900

90119T0334

main90119-T0334

9012606032

main90126-06032

9611130850

main96111-30850

17 parts on this diagram · 20 diagrams in section
