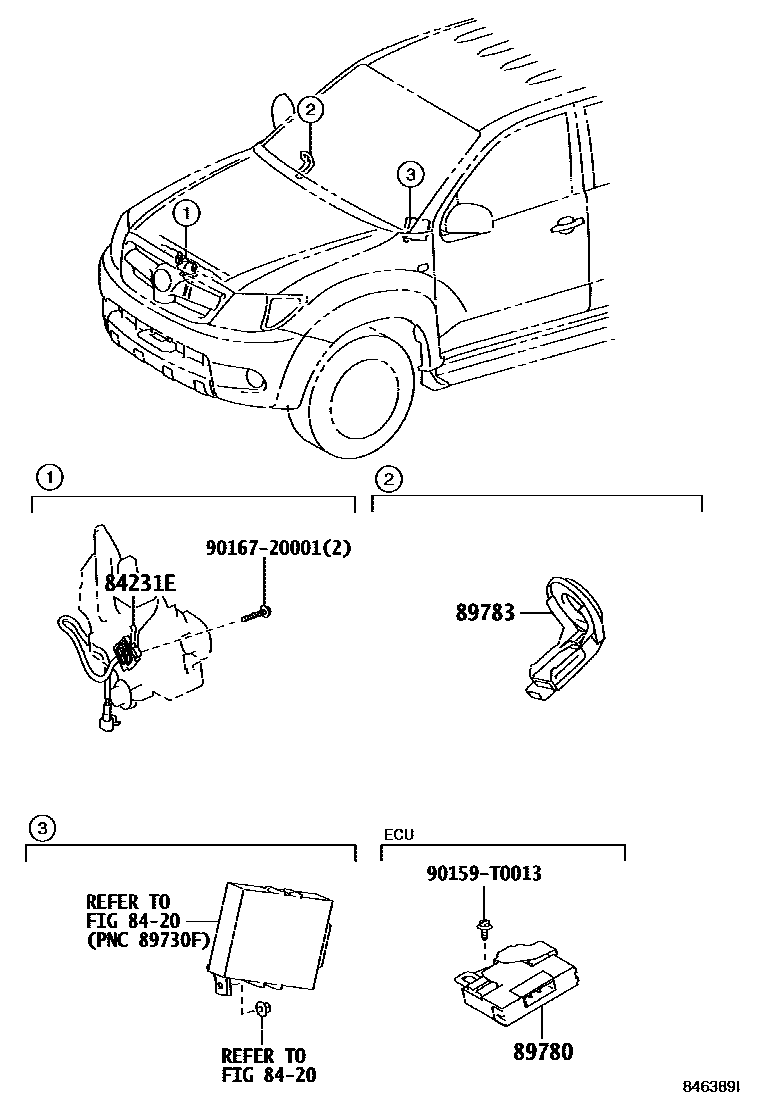

ANTI-THEFT DEVICE
8420WIRELESS DOOR LOCK
84231ESWITCH, COURTESY(FOR SECURITY)
main84231-0K010iKUN16..DCB..TH;KUN15,26,36..XTR..SA;KUN26,TGN16..4FC..TH; KUN16..SMT;KUN26..DCB..4FC..GEN;KUN26,36..RHD..5F..(GEN,IDN,TH);KUN15,35,TGN16..(DCB,SMT)..5F..(HDCR,HTWC)..TH; KUN16..SMT;KUN26..DCB..4FC..GEN;KUN26,36..RHD..5F..(GEN,TH);KUN15,25,35,TGN16..(DCB,SMT)..5F..(HDCR,HTWC)..TH; KUN26..4FC..TH200808-201012
ANTI-THEFT SYSTEM-IMMOBILIZER & SECURITY HORN; ANTI-THEFT SYSTEM-IMMOBILIZER&SECURITY HORN(FOR MALYSIA); ANTI-THEFT SYSTEM-SECURITY HORN
main84231-0K040iKUN26..LHD..SR..(GEN,PHL);GGN25,KUN15,35,TGN26,36..SR..(GEN,LA,PHL); TGN36..4FC..DLX..LA;KUN26,TGN26..THDCB..DLX200808-201012
ANTI-THEFT SYSTEM-IMMOBILIZER & SECURITY HORN
main84231-71010iKUN16..DCB..TH;KUN26..4FC..TH;TGN16,26..RHD..(SA,TH);GGN25,KUN15,2#,3#,TGN15,36..SA; KUN16..XTR;KUN15,26,36..5F..SR..TH200408-200601
ANTI-THEFT SYSTEM-IMMOBILIZER & SECURITY HORN
main84231-71050iKUN15,25..SA; KUN16..DCB..TH;KUN26..4FC..TH;TGN16,26..RHD..(SA,TH);GGN25,KUN15,2#,3#,TGN15,36..SA; KUN16..XTR;KUN15,26,36..5F..SR..TH200602-200710
ANTI-THEFT SYSTEM-IMMOBILIZER & SECURITY HORN; ANTI-THEFT SYSTEM-WITHOUT
POWER DOOR LOCK-WITH
ANTI-THEFT SYSTEM-IMMOBILIZER & SECURITY HORN
main84237-0K020iKUN16..DCB..TH;KUN26..4FC..TH;KUN15,26,36..XTR..SA; KUN16..SMT;KUN26..DCB..4FC..GEN;KUN26,36..RHD..5F..(GEN,IDN,TH);KUN15,35,TGN16..(DCB,SMT)..(HDCR,HTWC)..TH; KUN16..SMT;KUN26..DCB..4FC..GEN;KUN26,36..RHD..5F..(GEN,TH);KUN15,25,35,TGN16..(DCB,SMT)..(HDCR,HTWC)..TH201101-201106
ANTI-THEFT SYSTEM-IMMOBILIZER & SECURITY HORN; ANTI-THEFT SYSTEM-SECURITY HORN
main84237-71020iGGN25,35,KUN15,2#,3#,TGN15,36..RHD..(DCB,SCB)..SA; KUN35..DCB..DLX..SA;KUN15,25..RHD..DLX..SA201009-201106
ANTI-THEFT SYSTEM-WITHOUT
main84237-71030iGGN25,KUN26,36,TGN26..SR; KUN26,36..DLX; TGN36..IV3;TGN36..DCB;KUN26,36,TGN26..DLX201108-201109
ANTI-THEFT SYSTEM-*IM & TRACKING&BLOCKING SYS & *SEH; ANTI-THEFT SYSTEM-IMMOBILIZER & SECURITY HORN
main84237-71050iGGN25,35,KUN15,2#,3#,TGN15,36..RHD..(DCB,SCB)..SA; KUN35..DCB..DLX..SA;KUN15,25..RHD..DLX..SA201107-201108
ANTI-THEFT SYSTEM-WITHOUT
main84237-71060iGGN25,KUN26,36,TGN26..LHD..SR; KUN26,36..DLX; TGN36..IV3;TGN36..DCB..DLX;KUN26,36,TGN26..DLX..(ANCOM,LA)201107-201108
ANTI-THEFT SYSTEM-*IM & TRACKING&BLOCKING SYS & *SEH; ANTI-THEFT SYSTEM-IMMOBILIZER & SECURITY HORN
89780COMPUTER ASSY, TRANSPONDER KEY
ANTI-THEFT SYSTEM-IMMOBILIZER & SECURITY HORN&POWER DOOR LOCK-WITH
main89780-71011iTGN26..ANCOM..CBU;TGN26..SR..(GEN,LA);KUN25,35,TGN36..ANCOM;GGN25,KUN26,36,TGN36..SR..(ANCOM,GEN,LA); TGN26..THDCB..DLX;KUN26,36..LHD..DLX;TGN26..DCB..DLX..LA; TGN36..DLX..LA..CBU;KUN25,35,TGN26..THDCB..DLX200808-200908
ANTI-THEFT SYSTEM-IMMOBILIZER & SECURITY HORN&POWER DOOR LOCK-WITH,P/N LABEL=8978071011; ANTI-THEFT SYSTEM-IMMOBILIZER,P/N LABEL=8978071011; P/N LABEL=8978071011
main89780-71020iKUN16..XTR;KUN15,26,36..5F..SR..TH; TGN16,26..RHD;KUN16..DCB..TH;KUN26..4FC..TH;GGN15,25,KUN15,16,2#,3#,TGN15,36..ARL,SA200408-200704
ANTI-THEFT SYSTEM-IMMOBILIZER & SECURITY HORN
main89780-71030supersedes 89780-71011iKUN25,35,TGN36..ANCOM;TGN26..SCB..(ANCOM,LA);TGN26..DCB..DLX..ANCOM;GGN25,KUN26,36,TGN26,36..LHD..SR..(ANCOM,GEN,LA)200908-201204
P/N LABEL=8978071030
P/N LABEL=8978071040
89783AMPLIFIER, TRANSPONDER KEY
main89783-22020iKUN16..DCB..TH;KUN26,TGN16..4FC..TH; KUN16..SMT;KUN15,26,3#,TGN16..5F..SR..(IDN,TH); KUN26,36,TGN26,36..DCB..DLX..LA; KUN26..ARL,SA;TGN36..5F..SR;KUN26..5F..SR..(GEN,LA);KUN26..4FC..(GEN,LA,TH);KUN25,3#..SR..(LA,MA,SA);KUN16,TGN26..(DCB,THDCB)..SR;GGN15,25,35,KUN16..ANCOM,ARL,LA,SA; TGN36..IV3;TGN26..SCB..ANCOM;TGN26..DCB..DLX..LA;KUN26,36,TGN36..LHD..(DCB,THDCB)..DLX200908-201008
ANTI-THEFT SYSTEM-*IM & TRACKING&BLOCKING SYS & *SEH&POWER DOOR LOCK-WITH; ANTI-THEFT SYSTEM-IMMOBILIZER & SECURITY HORN; ANTI-THEFT SYSTEM-IMMOBILIZER & SECURITY HORN&POWER DOOR LOCK-WITH; ANTI-THEFT SYSTEM-SECURITY HORN
main89783-22021iKUN16..DCB..TH;KUN26..4FC..TH; KUN16..SMT;KUN15,35..HDCR..TH;KUN26..DCB..4FC..GEN;KUN26,36,TGN16..RHD..5F..SR..(GEN,IDN,TH); KUN26,36..DLX..LA; KUN26..4FC..TH;KUN26..THDCB..SR;KUN26,3#..SR..(ARL,LA,SA);GGN15,25,35,KUN15,16,TGN26,36..(DCB,SCB,THDCB,XTR)..SR..(DCR,HTWC)..(ANCOM,ARL,GEN,SA,TH); TGN36..IV3;TGN26..SCB..ANCOM;KUN26,TGN36..LHD..(DCB,THDCB)..DLX;KUN36,TGN16,26..(DCB,SMT)..DLX..(LA,TH)201009-201106
ANTI-THEFT SYSTEM-*IM & TRACKING&BLOCKING SYS & *SEH&POWER DOOR LOCK-WITH; ANTI-THEFT SYSTEM-IMMOBILIZER & SECURITY HORN; ANTI-THEFT SYSTEM-IMMOBILIZER & SECURITY HORN&POWER DOOR LOCK-WITH; ANTI-THEFT SYSTEM-SECURITY HORN
main89783-22022iGGN25,35,KUN15,26,3#,TGN26,36..SR; TGN26..SCB;TGN36..IV3;TGN36..DCB..DLX;KUN26,36,TGN26..DLX..LA201107-201204
ANTI-THEFT SYSTEM-IMMOBILIZER & SECURITY HORN&POWER DOOR LOCK-WITH
main89783-71010iKUN16..DCB..TH;KUN26,TGN16,26..4FC..TH; KUN16..DCB..TH;KUN26..5F..SR..GEN;KUN26..4FC..(GEN,TH);TGN16,26,36..SR..(ANCOM,GEN,SA,TH);GGN15,25,KUN16,26,36..ANCOM,ARL,SA; KUN16..XTR;KUN15,26,36..5F..SR..TH200408-200802
ANTI-THEFT SYSTEM-IMMOBILIZER & SECURITY HORN; ANTI-THEFT SYSTEM-SECURITY HORN
main89783-71011iKUN16..DCB..TH;KUN26,TGN16,26..4FC..TH; KUN16..XTR;KUN15,26,36..5F..SR..TH; KUN25..5F..SR..MA200803-200808
ANTI-THEFT SYSTEM-IMMOBILIZER & SECURITY HORN; ANTI-THEFT SYSTEM-SECURITY HORN
main89783-71020iKUN26,36..LHD..DLX; TGN26..SCB..(ANCOM,SA);KUN25,TGN26..DCB..DLX..ANCOM;KUN15,25,TGN16..RHD..(ARL,SA);KUN35,TGN15,36..DLX..(ANCOM,SA)200501-200802
ANTI-THEFT SYSTEM-IMMOBILIZER & SECURITY HORN&POWER DOOR LOCK-WITH
main89783-71021iKUN25..SCB..MA;TGN26..SCB..(ANCOM,SA);KUN25,TGN26..DCB..DLX..ANCOM;KUN35,TGN15,36..DLX..(ANCOM,SA);KUN15,25,TGN16..RHD..5F..(ARL,SA)200803-200812
main89783-71040iKUN25,35,TGN26,36..DLX..ANCOM; TGN26..THDCB..DLX; TGN36..4FC..DLX..LA; TGN36..DLX..LA;KUN25,35,TGN26..THDCB..DLX200908-201106
ANTI-THEFT SYSTEM-IMMOBI & TRACKING&BLOCKING SYS; ANTI-THEFT SYSTEM-IMMOBILIZER; ANTI-THEFT SYSTEM-IMMOBILIZER & SECURITY HORN&POWER DOOR LOCK-WITH
90159T0013
main90159-T0013
9016720001
main90167-20001
6 parts on this diagram · 2 diagrams in section
