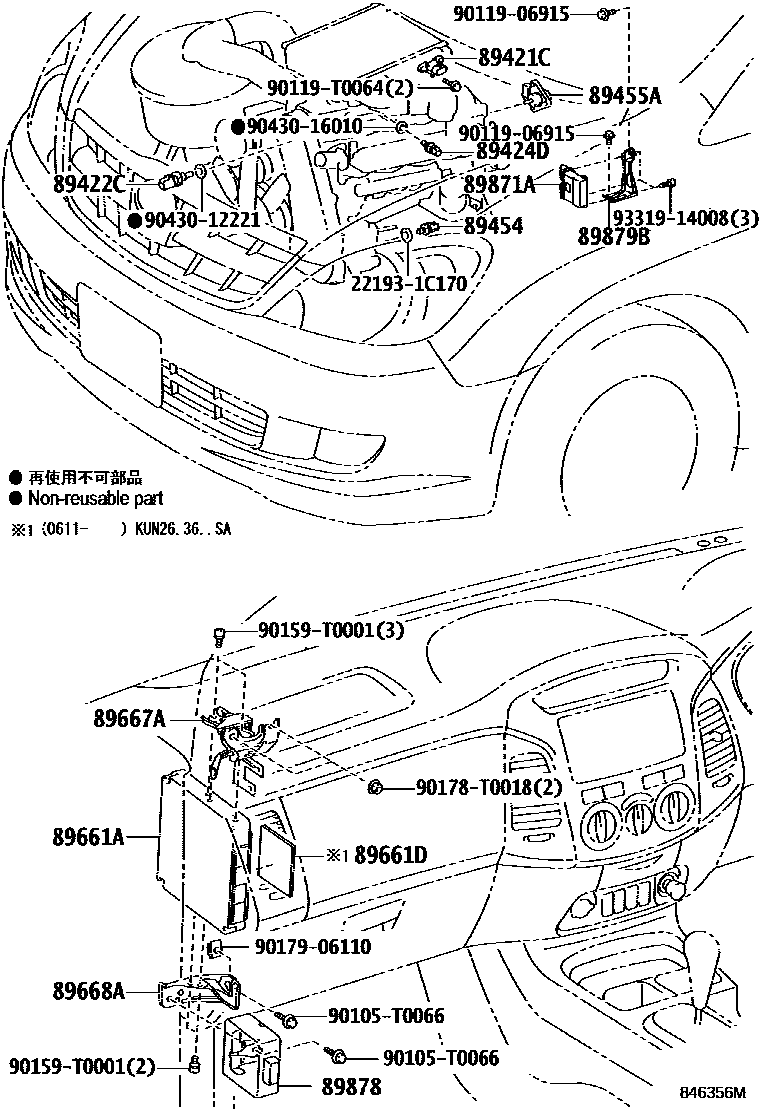

ELECTRONIC CONTROLED DIESEL (ECD)
89421CSENSOR, TURBO PRESSURE (FOR DIESEL TURBO)
main89421-71030iKUN35..TH;KUN16,25..ARL,PKN;KUN26,36..XTR..SA;KUN26..RHD..(ARL,GEN);KUN15..(SCB,XTR)..(SR,STD)..(PHL,SA)200808-201204
89422CSENSOR, DIESEL ENGINE WATER TEMPERATURE
89424DSENSOR, INLET AIR TEMPERATURE
89454SENSOR, FUEL TEMPERATURE
89455ASENSOR, EGR VALVE POSITION
89661ACOMPUTER, ENGINE CONTROL
P/N LABEL=896610K200
P/N LABEL=896610K220
P/N LABEL=896610K300
P/N LABEL=896610K310
P/N LABEL=896610K330
LABEL=-0K360,-71100
P/N LABEL=896610K410
main89661-0K440supersedes 89661-71140iKUN25,35..THDCB,THSCB; KUN25..(DCB,SCB)..(GCC,GEN); KUN25..LHD..DCB..(GCC,GEN)200808-201008
LATIN AMERICA SPEC,P/N LABEL=896610KB50,P/N LABEL=896610K440; P/N LABEL=896610K440; P/N LABEL=896610KB50
P/N LABEL=896610K460
P/N LABEL=896610K470
P/N LABEL=896610K480; P/N LABEL=896610KB60
P/N LABEL=896610K500
P/N LABEL=896610K670
P/N LABEL=896610K700
P/N LABEL=896610K850
P/N LABEL=896610K860
P/N LABEL=896610KC40
P/N LABEL=896610KC41
P/N LABEL=896610KC70
P/N LABEL=896610KC71
P/N LABEL=896610KC80
P/N LABEL=896610KC81
P/N LABEL=896610KE80
P/N LABEL=896610KF90
P/N LABEL=896610KG00
P/N LABEL=896610KG10
LABEL=-0KG10,-0KG20
P/N LABEL=896610KG40; PHILIPPINES SPEC,P/N LABEL=896610KG40
P/N LABEL=896610KJ00
LABEL=-0KJ00,-0KJ10
P/N LABEL=896610KJ80
LABEL=-0KJ80,-0KJ90
P/N LABEL=896610KN20
P/N LABEL=896610KN30
P/N LABEL=896610KN60
P/N LABEL=896610KP40
P/N LABEL=896610KP41
P/N LABEL=896610KP50
P/N LABEL=896610KP51
CHILE SPEC,P/N LABEL=896610KQ60; P/N LABEL=896610KQ60
P/N LABEL=896610KQ70
CHILE SPEC,P/N LABEL=896610KQ80; P/N LABEL=896610KQ80
P/N LABEL=896610KR10
P/N LABEL=896610KR20
P/N LABEL=896610KS00
P/N LABEL=896610KS10
P/N LABEL=896610KS20
P/N LABEL=896610KS90
P/N LABEL=896610KT00
P/N LABEL=896610KT10
P/N LABEL=896610KT20
P/N LABEL=896610KT70
P/N LABEL=896610KU30
P/N LABEL=896610KU40
main89661-0KU50iKUN25..LA;KUN35..SR..SA;KUN25..RHD..SA;KUN35..DCB..LA;KUN35..SCB..(LA,SA)201010-201204
P/N LABEL=896610KU50
P/N LABEL=896610KU60
P/N LABEL=896610KU80
P/N LABEL=896610KU90
P/N LABEL=896610KV00
P/N LABEL=896610KV20
P/N LABEL=896610KV30
P/N LABEL=896610KV40
EXPORT FROM SOUTH AFRICA,P/N LABEL=896610KV50; KENYA SPEC,P/N LABEL=896610KV50; P/N LABEL=896610KV50
EXPORT FROM SOUTH AFRICA,P/N LABEL=896610KV60; KENYA SPEC,P/N LABEL=896610KV60; P/N LABEL=896610KV60
P/N LABEL=8966171010
P/N LABEL=8966171250
BRAZIL SPEC,P/N LABEL=896610K260
BRAZIL SPEC,P/N LABEL=896610K340
HIGH ALTITUDE COUNTRY SPEC,P/N LABEL=896610K660
EXPORT FROM SOUTH AFRICA,P/N LABEL=896610KA80
HIGH ALTITUDE COUNTRY SPEC,P/N LABEL=896610KJ40; LATIN AMERICA SPEC,P/N LABEL=896610KJ40
EXPORT FROM SOUTH AFRICA,LABEL=-0KJ40,-0KJ50
CHILE SPEC,P/N LABEL=896610KP00
CHILE SPEC,P/N LABEL=896610KP10
CHILE SPEC,P/N LABEL=896610KR60
CHILE SPEC,P/N LABEL=896610KR70
ECUADOR SPEC,LABEL=-0KS50,-0KS60; LATIN AMERICA SPEC,LABEL=-0KS50,-0KS60
EXPORT FROM SOUTH AFRICA,LABEL=-0KS50,-0KS60
ECUADOR SPEC,P/N LABEL=896610KT50; LATIN AMERICA SPEC,P/N LABEL=896610KT50
BRAZIL SPEC,P/N LABEL=896610KT90
BRAZIL SPEC,P/N LABEL=896610KU10
BRAZIL SPEC,P/N LABEL=896610KU70
HIGH ALTITUDE COUNTRY SPEC,P/N LABEL=896610KV10
BRAZIL SPEC,P/N LABEL=896610K260,P/N LABEL=8966171060
BRAZIL SPEC,P/N LABEL=896610K340,P/N LABEL=8966171120
HIGH ALTITUDE COUNTRY SPEC,P/N LABEL=8966171240
89661DCUSHION, ENGINE CONTROL COMPUTER
89667ABRACKET, ENGINE CONTROL COMPUTER, NO.1
main89667-0K010iKUN25..SCB..MA;KUN16,36..XTR..TH;KUN25..RHD..(GEN,SA);KUN15,35..RHD..DLX..SA;KUN25..(DCB,XTR)..5F..SR;KUN26..DCB..5F..(ARL,SA,TH);KUN26..(SCB,XTR)..5F..(ARL,TH);KUN15..RHD..(DCB,SCB,XTR)..(GEN,PKN,TH);KUN16,36,LAN15,25,35..RHD..(DCB,SCB)..5F200408-201202
89668ABRACKET, ENGINE CONTROL COMPUTER, NO.2
main89668-0K030iKUN15..XTR..TH;KUN16..DCB..ARL;KUN16..SCB,SMT,XTR;KUN26,36..RHD..5F..(ARL,GEN,SA,TH);KUN15,25,35,LAN15,25,35..RHD..(DCB,SCB,SMT)..5F..(DLX,SR)200808
89871ADRIVER, INJECTOR
main89871-25010iKUN16..4FC;KUN26..THDCB;KUN26..PHL,TH;KUN16..(SCB,SMT)..CBU;KUN10,25,35..GCC,GEN,PHL;KUN15,36..(DLX,SR)..(GCC,GEN,PHL,TH)201008
89878DRIVER, TURBO MOTOR
89879BBRACKET, INJECTOR DRIVER
221931C170RING, O(FOR LEVER CONNECTING PIN)
main22193-1C170
90105T0066
main90105-T0066
9011906915
main90119-06915
90119T0064
main90119-T0064
90159T0001
main90159-T0001
90178T0018
main90178-T0018
9017906110
main90179-06110
9043012221
main90430-12221
9043016010
main90430-16010
9331914008
main93319-14008
22 parts on this diagram · 7 diagrams in section
