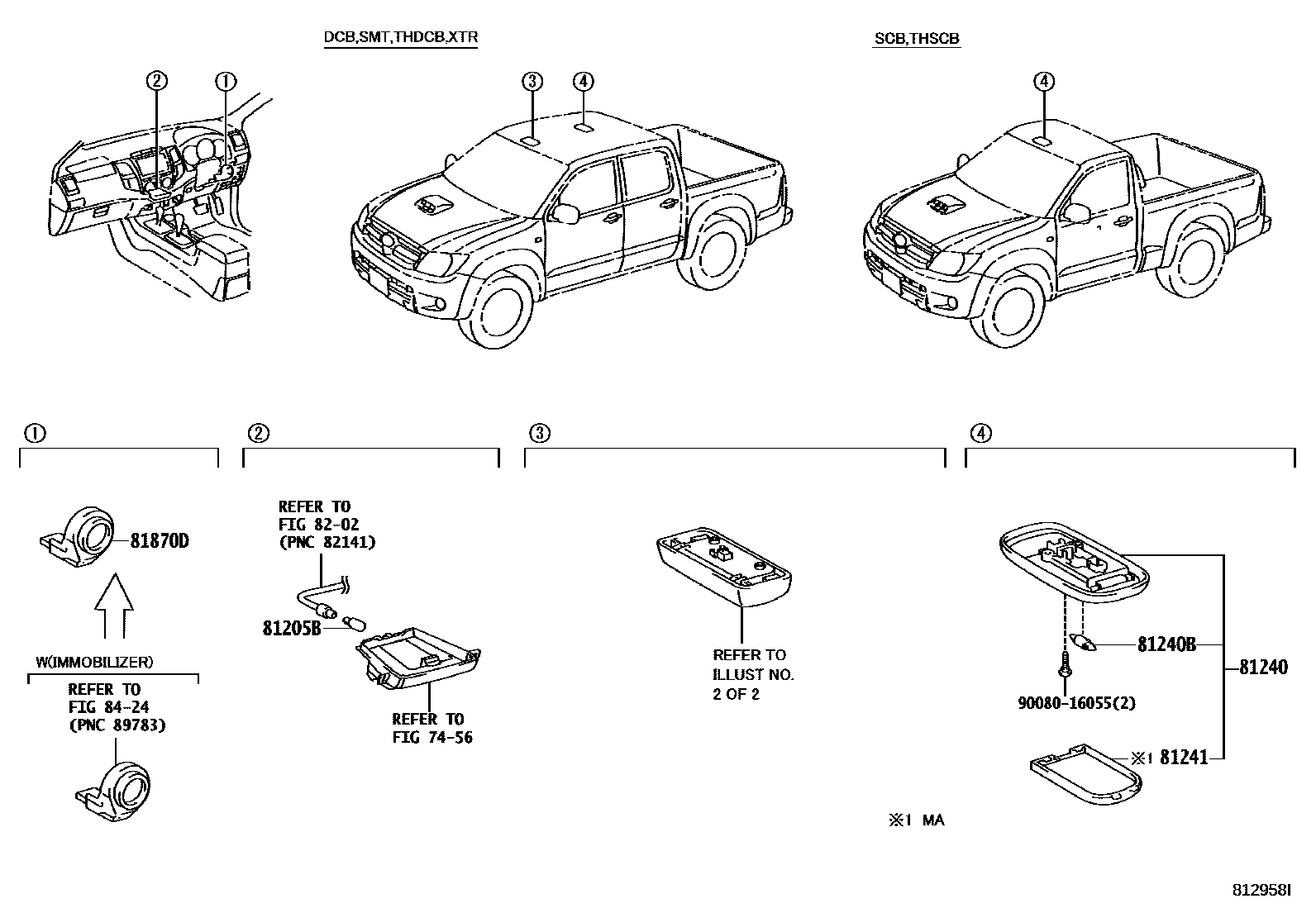

INTERIOR LAMP

0001 1 0002 1

7456ASH RECEPTACLE

→ Go to FIG 74-56

81205BBULB, ASH RECEPTACLE LAMP

main90981-11014iKUN36..(DCB,SCB,XTR)..5F..SR;KUN26..(DCB,THDCB,XTR)..5F..SR;KUN26..4FC..SR..(ARL,GEN,LA,PHL,TH);GGN15,25,KUN15,16,25,TGN16,26,36..(DCB,SCB,THDCB,XTR)..SR..(ANCOM,ARL,GEN,MA,PHL,SA,TH)200803-200812

14V 1.4W,(J)

main90981-TB001iKUN36..(DCB,SCB,XTR)..5F..SR;KUN26..(DCB,THDCB,XTR)..5F..SR;KUN26..4FC..SR..(ARL,GEN,LA,PHL,TH);GGN15,25,KUN15,16,25,TGN16,26,36..(DCB,SCB,THDCB,XTR)..SR..(ANCOM,ARL,GEN,MA,PHL,SA,TH)200803-200812

14V 1.4W,(L)

81240LAMP ASSY, ROOM, NO.1

main81240-0K010-A0iTGN16..(DCB,XTR)..SR;TGN26..(DCB,XTR)..(SA,TH);LAN15,25,35,TGN16..DCB..SA;KUN25..RHD..(DCB,XTR)..(SA,TH);GGN15,25,KUN15,16,26,36,TGN36..SR..(ARL,LA,PHL,SA,TH)200408-200808

IVORY,TRIM0#

main81240-0K010-B0iKUN10,15,25,TGN1#,26..GCC200808-201107

LT.GRAY,TRIM1#,3#

main81240-0K010-E0iKUN35..TH;KUN35..SR..PHL;KUN15,16,2#,36,TGN16..SR..(IDN,PHL,TH)200808-201107

SAND BEIGE,TRIM4#

main81240-12080-A1iKUN25..SR..MA200503-200809

IVORY,TRIM0#

main81240-12080-B2iKUN25..MA200503-200809

LT.GRAY,TRIM1#

main81240-12080-E2iKUN25..DCB..MA200809-200908

SAND BEIGE,TRIM4#

81240BBULB, ROOM LAMP, NO.1

main90981-14011iKUN26..IDN;GGN25..SCB,XTR;TGN16..(DCB,SCB)..GEN;GGN15,KUN16..DCB..5F..SR200808-201107

12V 8W

81241LENS, ROOM LAMP, NO.1

main81241-12020iKUN25..MA200503-200809

81870DLAMP ASSY, KEY CYLINDER

main81870-0K010iKUN25..SR..MA200408-200709

8202WIRING & CLAMP

→ Go to FIG 82-02

8424ANTI-THEFT DEVICE

→ Go to FIG 84-24

9008016055

main90080-16055

9 parts on this diagram · 2 diagrams in section
