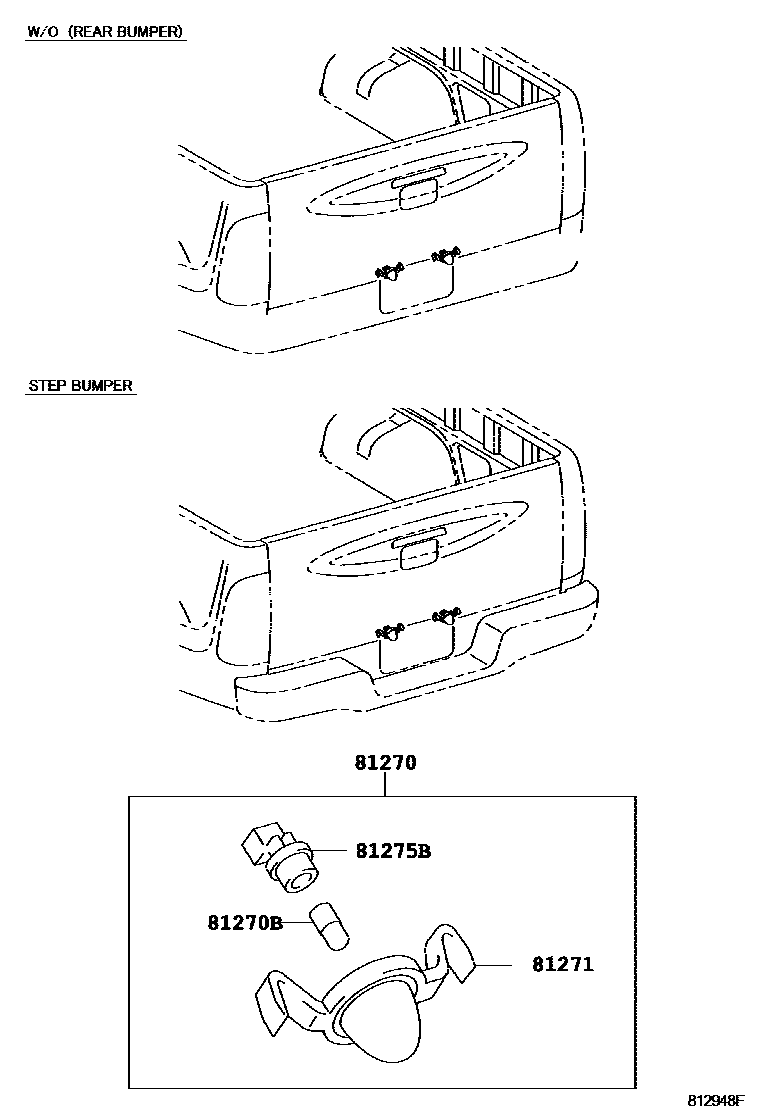

REAR LICENSE PLATE LAMP

0001 1W/O(REAR BUMPER) OR STEP BUMP0002 1FLAT BUMPER 0003 1

81270LAMP ASSY, LICENSE PLATE

main81270-04040×2iKUN25..SCB..MA;KUN26..ARL..CBU;KUN15..DLX..(PHL,SA);KUN16..(SCB,XTR)..TH;KUN2#..DLX..(GCC,GEN,SA);TGN16..5F..(ARL,GCC,GEN,SA)..CBU;KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH)..CBU;GGN15,25,KUN10,35,TGN10,11..(ARL,GCC,GEN,IDN)..CBU;KUN16,LAN15,25,35,TGN15,26..(DCB,SCB,THDCB)..(ARL,GCC,GEN,PKN,SA)..CBU200408-201202

main81270-0K010×2iKUN15,16..DCB..SR..DCR;KUN26..(DCB,THDCB,XTR)..SR..(GEN,PHL,SA,TH);GGN25,KUN3#,TGN16..RHD..(DCB,SCB,XTR)..(SA,TH);KUN25,TGN26,36..(DCB,SCB,XTR)..SR..(MA,PHL,SA,TH); TGN26..4FC..GCC;KUN15..SCB..GCC..CBU;KUN25,TGN16,26..LHD..DCB..SA;KUN26,LAN25,35..DLX..(GEN,SA);KUN15,16,TGN16..(SCB,XTR)..5F..SR200408-200810

REAR BUMPER-STEEL, FLAT TYPE, CHROME PLATED

main81270-0K050×2iTGN36..DLX..CBU;TGN26..ANCOM..CBU;KUN26,36,TGN26..DCB..DLX..LA;GGN25,KUN25,35..(ANCOM,LA)..CBU200501-200812

main81270-0K060×2iKUN26,36..DLX..LA; KUN26,36..SR..LA200501-200810

REAR BUMPER-STEEL, FLAT TYPE, CHROME PLATED

main81270-71010×2iKUN15..IV3200409-200411

main81270-71011×2iGGN25..IV3200808-201107

81270BBULB (FOR LICENSE PLATE LAMP)

main90981-12013×2iGGN25..IV3200808-201107

12V 10W

main99132-12050×2iKUN15..SR..SA200808-201108

12V 5W

81271LENS, LICENSE PLATE LAMP

main81271-04040×2iKUN15..SR..SA200808-201108

main81271-25040×2iKUN15..IV3200409-200411

81275BSOCKET PLUG, LICENSE PLATE LAMP

main90075-99012×2iKUN15..SR..SA200808-201108

4 parts on this diagram · 3 diagrams in section
