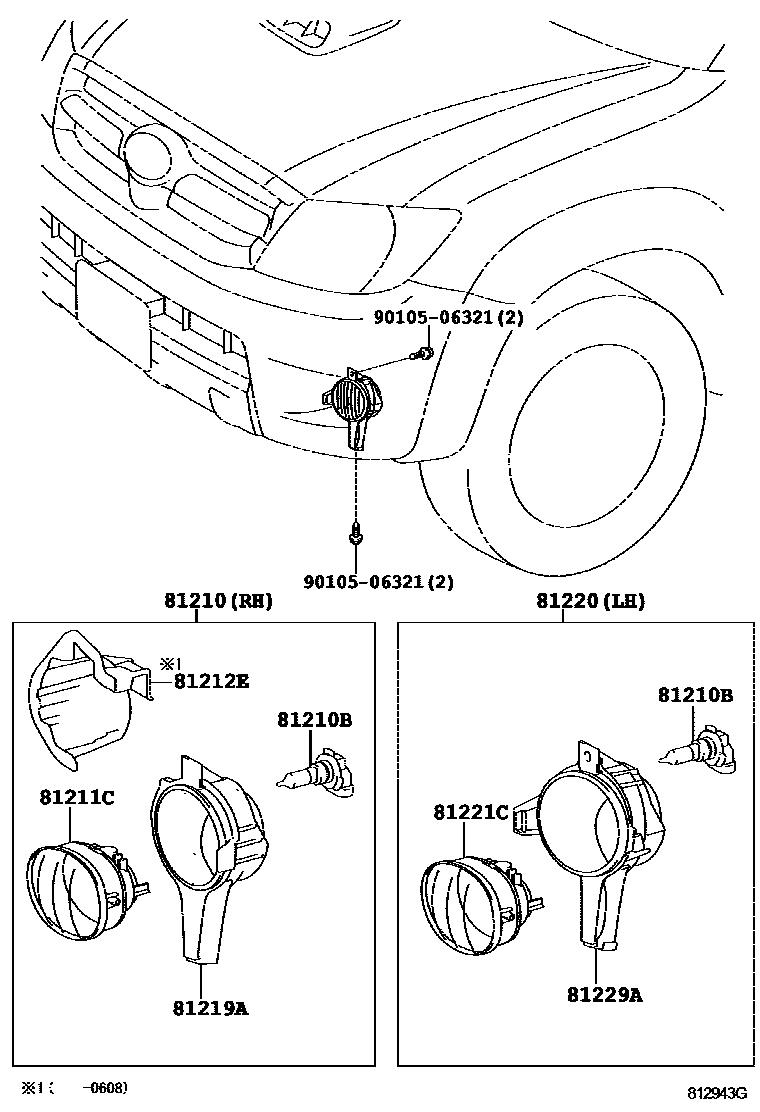

FOG LAMP

0001 1 0005 1

81210LAMP ASSY, FOG

main81210-0K020iKUN16..DCB..TH;KUN26..4FC..TH;KUN2#,36..SR..(LA,MA,PHL,SA);GGN25,TGN16,26,36..SR..(ANCOM,PHL,SA,TH); KUN26,36..5F..TH;KUN15,16..XTR..SR200408-200607

FRONT FOG LAMP-WITH

main81210-0K021iKUN16..DCB..TH;KUN36..5F..SR..(LA,SA);TGN26..SR..(ANCOM,GEN,TH);GGN15,25,KUN25,TGN36..SR..(ANCOM,ARL,MA,PHL,SA);KUN26..(DCB,THDCB,XTR)..5F..SR..(ARL,GEN,LA,PHL,SA);KUN26,TGN16..(DCB,THDCB,XTR)..4FC..SR..(ARL,GEN,LA,PHL,TH)200608-200812

main81210-0K080iGGN25..XTR;GGN15,KUN16..DCB..5F..SR; KUN26..IDN200808-201107

FRONT FOG LAMP-WITH

81210BBULB, FOG LAMP

main90981-13047×2iKUN25..SR..MA;KUN36..5F..SR..(LA,SA);TGN26..SR..(ANCOM,GEN,TH);KUN26..(DCB,THDCB)..5F..SR..(GEN,LA,PHL,SA);KUN26,TGN16..(DCB,THDCB,XTR)..4FC..(GEN,LA,PHL,TH);GGN25,KUN16,TGN36..(DCB,SCB)..SR..(ANCOM,PHL,SA,TH)200408-200812

12V 51W,HALOGEN

81211CLAMP UNIT, FOG LAMP, RH

main81211-0D070iKUN25..SR..MA;KUN36..5F..SR..(LA,SA);TGN26..SR..(ANCOM,GEN,TH);KUN26..(DCB,THDCB)..5F..SR..(GEN,LA,PHL,SA);KUN26,TGN16..(DCB,THDCB,XTR)..4FC..(GEN,LA,PHL,TH);GGN25,KUN16,TGN36..(DCB,SCB)..SR..(ANCOM,PHL,SA,TH)200408-200812

81212EBACK COVER, FOG LAMP

main81212-0K020iKUN16..DCB..TH;KUN26..4FC..TH;KUN2#,36..SR..(LA,MA,PHL,SA);GGN25,TGN16,26,36..SR..(ANCOM,PHL,SA,TH); KUN26,36..5F..TH;KUN15,16..XTR..SR200408-200608

FRONT FOG LAMP-WITH

81219ABRACKET, FOG LAMP, RH

main81219-0K021iKUN15..SCB..GCC;TGN26..4FC..GCC;KUN26,36..5F..TH;KUN15..XTR..HDCR;KUN16,TGN16..(SCB,XTR)..5F..SR; KUN16..DCB..TH;TGN26..SR..(GEN,TH);KUN26..5F..SR..(GEN,PHL);KUN26,TGN16,36..4FC..(GEN,PHL,TH)200408-200808

FRONT FOG LAMP-WITH

81220LAMP ASSY, FOG, LH

main81220-0K020iKUN25..SR..MA;KUN36..5F..SR..(LA,SA);TGN26..SR..(ANCOM,GEN,TH);KUN26..(DCB,THDCB)..5F..SR..(GEN,LA,PHL,SA);KUN26,TGN16..(DCB,THDCB,XTR)..4FC..(GEN,LA,PHL,TH);GGN25,KUN16,TGN36..(DCB,SCB)..SR..(ANCOM,PHL,SA,TH)200408-200812

main81220-0K080iGGN25..XTR;GGN15,KUN16..DCB..5F..SR; KUN26..IDN200808-201107

FRONT FOG LAMP-WITH

81221CLAMP UNIT, FOG LAMP, LH

main81221-0D070iKUN25..SR..MA;KUN36..5F..SR..(LA,SA);TGN26..SR..(ANCOM,GEN,TH);KUN26..(DCB,THDCB)..5F..SR..(GEN,LA,PHL,SA);KUN26,TGN16..(DCB,THDCB,XTR)..4FC..(GEN,LA,PHL,TH);GGN25,KUN16,TGN36..(DCB,SCB)..SR..(ANCOM,PHL,SA,TH)200408-200812

81229ABRACKET, FOG LAMP, LH

main81229-0K020iKUN15..SCB..GCC;TGN26..4FC..GCC;KUN26,36..5F..TH;KUN15..XTR..HDCR;KUN16,TGN16..(SCB,XTR)..5F..SR; KUN16..DCB..TH;TGN26..SR..(GEN,TH);KUN26..5F..SR..(GEN,PHL);KUN26,TGN16,36..4FC..(GEN,PHL,TH)200408-200808

FRONT FOG LAMP-WITH

9010506321

main90105-06321

9 parts on this diagram · 2 diagrams in section
