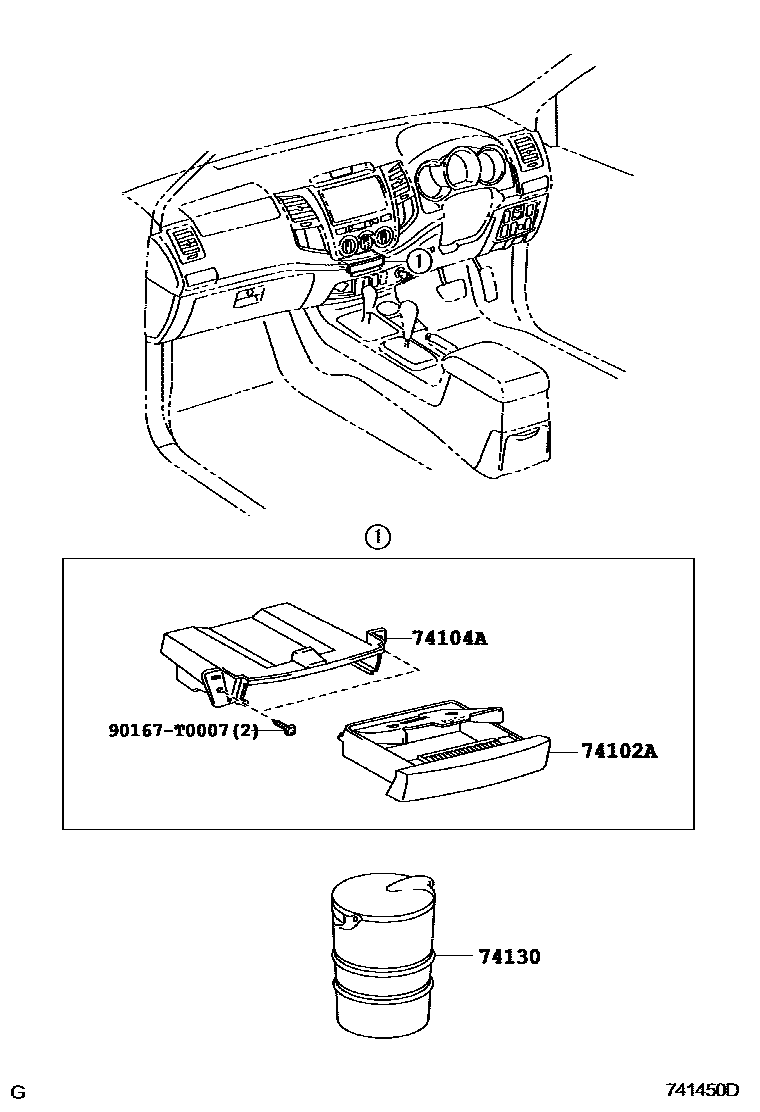

ASH RECEPTACLE

74102ARECEPTACLE ASSY, FRONT ASH

main74102-0K010-B0iKUN36..LA,SA;GGN15,25,KUN1#,2#,35,LAN15,25,35,TGN1#,26,36200408-200608

DK.GRAY,TRIM1#

main74102-0K010-D0iKUN10,15,25,TGN1#,26..GCC200507-200608

RED,TRIM3#

main74102-0K010-E0iGGN15,25,KUN15,16,2#,36,TGN16,26,36..SR..(ARL,LA,MA,PHL,SA,TH)200408-200608

SANDAL WOOD,TRIM0#

main74102-0K011-B0iTGN36..SCB;KUN26..THDCB;KUN25..SR..MA;KUN26..ARL,LA;KUN25..SCB..MA;KUN26..DCB..5F..SA;TGN36..DCB..(ANCOM,SA);TGN26..ANCOM,GCC,GEN,SA;KUN36..(DCB,SCB)..5F..(LA,SA);KUN35..DLX..(ANCOM,GEN,LA,SA);KUN15,TGN26,36..DCB..5F..DLX..(LA,PHL);KUN15..(DCB,SCB,XTR)..(DLX,STD)..(GCC,GEN,PKN,SA,TH);GGN15,25,KUN10,LAN15,25,35,TGN11,15,16..(5F,5FC)..(ANCOM,ARL,GCC,GEN,PKN,SA);KUN16,25,TGN10..(DCB,SCB,THDCB,THSCB)..DLX..(ANCOM,ARL,GCC,GEN,IDN,LA,SA,TH)200608-201202

DK.GRAY,TRIM1#

main74102-0K011-D0iKUN10,15,25,TGN1#,26..GCC200608-200808

RED,TRIM3#

main74102-0K011-E0iKUN15,16,2#,36,TGN16,26,36..SR..(MA,PHL,TH)200608-200809

SANDAL WOOD,TRIM0#

main74102-0K011-E1iKUN35..SR..PHL;KUN25,35..(DCB,SMT)..(MA,TH);KUN15,16,26,36,TGN16..SR..(IDN,PHL,TH)200808-201109

ASH BROWN,TRIM4#

74104ARETAINER SUB-ASSY, FRONT ASH RECEPTACLE

main74104-0K010iGGN15,25,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36200408-200608

main74104-0K011iTGN36..SCB;KUN26..THDCB;KUN25..SCB..MA;KUN15..PHL..CBU;KUN26..DCB..5F..SA;KUN25..(DCB,XTR)..SR;TGN26..ANCOM,GCC,GEN,SA,TH;TGN26,36..DCB..5F..DLX..LA;KUN15,16,36,TGN16..XTR..TH;TGN36..DCB..(ANCOM,PHL,SA);KUN16,TGN10..(DCB,SCB)..(DLX,SR);KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);KUN15,36..(DCB,SCB)..5F..(GCC,GEN,LA,PKN,SA,TH);GGN15,25,KUN10,LAN15,25,35,TGN11,15,16..(5F,5FC)..(ANCOM,ARL,GCC,GEN,PKN,SA)200608-201202

74130RECEPTACLE ASSY, REAR ASH

main74130-0K010iGGN15,25,KUN15,16,2#,35,TGN15,16,26,36..(DCB,THDCB)..(ARL,GCC,GEN,PHL)200411-200808

90167T0007

main90167-T0007

4 parts on this diagram · 1 diagram in section
