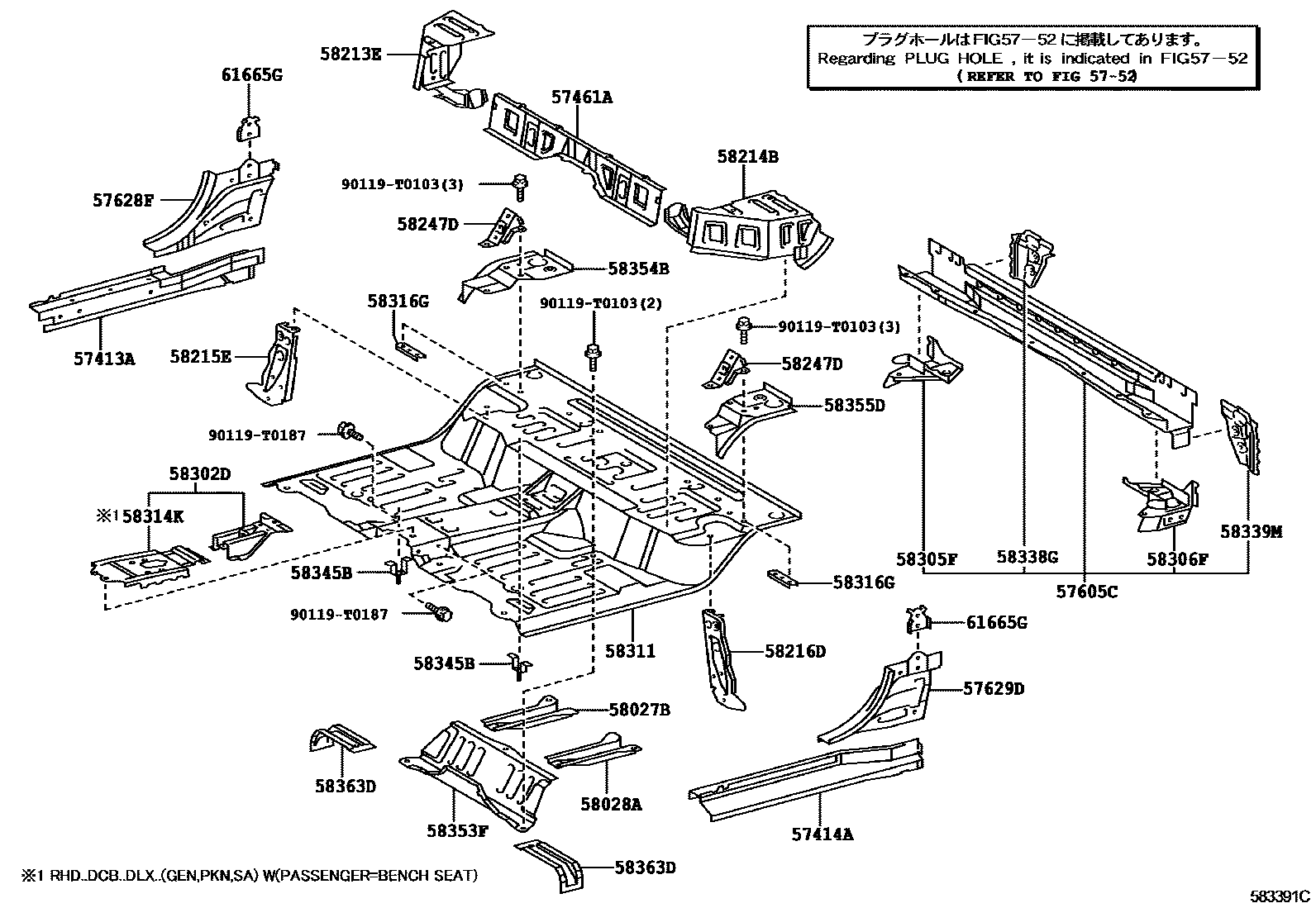

REAR FLOOR PANEL & REAR FLOOR MEMBER

0001 1 0002 1

57413AMEMBER, FLOOR SIDE, INNER REAR RH

main57403-0K020iGGN25..XTR200808-201107

main57403-0K030iKUN15,16,2#,3#,TGN16..SMT200809-201107

main57413-0K010iKUN25..DCB..SR;KUN26..DCB..5F..SA;TGN26..DCB..DLX..LA;KUN36,TGN16..DCB..5F;KUN26..(DCB,THDCB)..(ARL,GEN,LA,PHL,TH);KUN25,35,TGN36..(DCB,THDCB)..5F..DLX..(ANCOM,GCC,GEN,LA,SA);GGN15,25,KUN15,16,LAN15,25,35,TGN15,26,36..(DCB,THDCB)..(ANCOM,ARL,GCC,GEN,PHL,SA,TH)200408-200812

57414AMEMBER, FLOOR SIDE, INNER REAR LH

main57404-0K020iGGN15,25,KUN15,16,2#,36,TGN16,26..XTR200408-200808

main57404-0K030iKUN15,16,2#,3#,TGN16..SMT200809-201107

main57414-0K010iKUN26..IDN;TGN16..DCB..GEN;GGN15,KUN16..DCB..5F..SR200808-201107

57461AMEMBER, CENTER FLOOR CROSS

main57461-0K010iGGN15,25,KUN15,16,2#,3#,TGN15,16,26,36..(DCB,THDCB)..(ARL,GCC,GEN,PHL,TH)200408-200808

5752HOLE PLUG

→ Go to FIG 57-52

57605CMEMBER SUB-ASSY, REAR FLOOR CROSS

main57605-0K010iKUN15,16,2#,3#,TGN15,16,26,36..(DCB,THDCB)..(GCC,GEN,PHL,TH)200408-200808

main57605-0K020iGGN15,25,KUN16,26,TGN16..DCB..ARL200502-200808

main57605-0K030iKUN15..SR..DCR..TH200408-200608

57628FPLATE, REAR FLOOR SIDE MEMBER, RH

main57628-0K010iKUN2#,3#,TGN26,36..DCB..LA200710-200810

main57628-0K060iKUN25..DCB..SR;KUN26..DCB..5F..SA;KUN26..(DCB,THDCB)..(ARL,GEN,PHL,TH);KUN36,TGN16..DCB..5F..(ARL,GCC,GEN,SA,TH);KUN25,35..(DCB,THDCB)..DLX..(ANCOM,GCC,GEN,SA);GGN15,25,KUN15,16,LAN15,25,35,TGN15,26,36..(DCB,THDCB)..(ANCOM,ARL,GCC,GEN,PHL,SA,TH)200710-200812

57629DPLATE, REAR FLOOR SIDE MEMBER, LH

main57629-0K010iGGN25,KUN2#,3#,TGN26,36..DCB..LA200810

main57629-0K060iKUN25..DCB..SR;KUN26..DCB..5F..SA;KUN26..(DCB,THDCB)..(ARL,GEN,PHL,TH);KUN36,TGN16..DCB..5F..(ARL,GCC,GEN,SA,TH);KUN25,35..(DCB,THDCB)..DLX..(ANCOM,GCC,GEN,SA);GGN15,25,KUN15,16,LAN15,25,35,TGN15,26,36..(DCB,THDCB)..(ANCOM,ARL,GCC,GEN,PHL,SA,TH)200710-200812

58027BREINFORCE SUB-ASSY, SEAT BELT ANCHOR

main58027-0K010iGGN25..5FC..SA;GGN15,KUN16..DCB..DLX;GGN25..DCB..(ANCOM,ARL,LA);TGN16..DCB..(ARL,GCC,SA,TH);GGN15,KUN16..DCB..(4FC,5FC)..SR;GGN35,KUN15,2#,3#,LAN15,25,35,TGN15,26,36..(DCB,THDCB)..(ANCOM,ARL,GCC,GEN,LA,MA,PHL,PKN,SA,TH)200808

58028AREINFORCE SUB-ASSY, SEAT BELT ANCHOR, NO.2

main58028-0K010iGGN25..5FC..SA;GGN15,KUN16..DCB..DLX;GGN25..DCB..(ANCOM,ARL,LA);TGN16..DCB..(ARL,GCC,SA,TH);GGN15,KUN16..DCB..(4FC,5FC)..SR;GGN35,KUN15,2#,3#,LAN15,25,35,TGN15,26,36..(DCB,THDCB)..(ANCOM,ARL,GCC,GEN,LA,MA,PHL,PKN,SA,TH)200808

58213EPANEL, SEAT FLOOR SIDE, RH

main58201-0K010iKUN26..IDN;TGN16..DCB..GEN;GGN15,KUN16..DCB..5F..SR200808-201107

main58201-0K020iKUN15..XTR..DLX;KUN15..XTR..HDCR;GGN15,25,KUN16,2#,36,TGN16,26..XTR200408-200707

main58201-0K021iGGN15,25,KUN15,16,2#,36,TGN16,26..XTR200708-200808

58214BPANEL, SEAT FLOOR SIDE, LH

main58202-0K010iGGN25..5FC..SA;GGN15,KUN16..DCB..DLX;GGN25..DCB..(ANCOM,ARL,LA);TGN16..DCB..(ARL,GCC,SA,TH);GGN15,KUN16..DCB..(4FC,5FC)..SR;GGN35,KUN15,2#,3#,LAN15,25,35,TGN15,26,36..(DCB,THDCB)..(ANCOM,ARL,GCC,GEN,LA,MA,PHL,PKN,SA,TH)200808

main58202-0K020iKUN15..SR..DCR..TH200408-200608

main58202-0K021iGGN15,KUN15,16,2#,3#,TGN16..SMT,XTR200808-201108

58215EBRACKET, REAR SEAT MOUNTING, RH

main58215-0K010iKUN26..IDN;TGN16..DCB..GEN;GGN15,KUN16..DCB..5F..SR200808-201107

58216DBRACKET, REAR SEAT MOUNTING, LH

main58216-0K010iKUN26..IDN;TGN16..DCB..GEN;GGN15,KUN16..DCB..5F..SR200808-201107

main58216-0K020iKUN15..SR..DCR..TH200408-200608

58247DBRACKET, REAR SEAT HINGE, OUTER RH

main58247-0K010×2iGGN15,25,KUN15,16,2#,3#,TGN15,16,26,36..(DCB,THDCB)..(ARL,GCC,GEN,PHL,TH)200408-200808

58302DPANEL SUB-ASSY, REAR FLOOR, FRONT

main58302-0K010iGGN15,25,KUN15,16,2#,3#,TGN15,16,26,36..(DCB,THDCB)..(ARL,GCC,GEN,PHL,TH)200408-200808

58305FPANEL SUB-ASSY, REAR FLOOR SIDE, RH

main58305-0K010iGGN15,25,KUN15,16,2#,3#,TGN15,16,26,36..(DCB,THDCB)..(ARL,GCC,GEN,PHL,TH)200408-200808

58306FPANEL SUB-ASSY, REAR FLOOR SIDE, LH

main58306-0K010iGGN15,25,KUN15,16,2#,3#,TGN15,16,26,36..(DCB,THDCB)..(ARL,GCC,GEN,PHL,TH)200408-200808

58311PAN, REAR FLOOR

main58311-0K010supersedes 58311-0K020iKUN25..RHD..DCB..GEN;KUN15,35,LAN25,35..RHD..DCB..(GEN,SA)200502-200810

main58311-0K020supersedes 58311-0K030iTGN26..SR..ANCOM;KUN25,TGN26..THDCB;KUN15..DCB..(PHL,TH);TGN26..DCB..4FC..(GCC,TH);TGN36..DCB..(ANCOM,PHL,SA);KUN26..4FC..(GEN,LA,PHL,TH);KUN35..LHD..(DCB,THDCB)..DLX;KUN25,TGN26,36..DCB..5F..DLX..(ANCOM,LA);GGN25,KUN16,25..DCB..SR..(ANCOM,MA,SA,TH);KUN26,36..(DCB,THDCB)..5F..(GEN,LA,PHL,SA,TH)200408-200812

main58311-0K030iKUN15,25,LAN15,25,TGN15,16,26..LHD..DCB..5F..(GCC,GEN,SA)200502-200810

main58311-0K050supersedes 58311-0K040iTGN16..4FC..ARL..CBU;GGN15,25,KUN16,26..DCB..ARL; TGN16..5F..ARL..CBU200808-201107

FRONT SEAT-PASSENGER SEAT(FOR ONE PERSON)

main58311-0K090iKUN15,16,2#,36,TGN16,26..XTR..TH200408-200808

main58311-0K100iGGN15,25,KUN26,TGN16..XTR..(ARL,GEN)200502-200808

58314KPANEL, REAR FLOOR, CENTER

main58314-0K010iGGN15,25,KUN15,16,2#,36,TGN16,26..XTR200408-200808

58316GRETAINER, REAR SEAT, NO.1

main58316-0K010×2iGGN15,25,KUN15,16,2#,3#,TGN15,16,26,36..(DCB,THDCB)..(ARL,GCC,GEN,PHL,TH)200408-200808

58338GGUSSET, CAB REAR MOUNTING, RR RH

main58338-0K010iKUN15..SR..DCR..TH200408-200608

58339MGUSSET, CAB REAR MOUNTING, REAR LH

main58339-0K010iKUN15..SR..DCR..TH200408-200608

58345BBRACKET, REAR FLOOR HEAT INSULATOR, NO.1

main58345-0K010iGGN15,25,KUN15,16,2#,3#,TGN15,16,26,36..(DCB,THDCB)..(ARL,GCC,GEN,PHL,TH); KUN15..XTR..DLX;KUN15..XTR..HDCR;GGN15,25,KUN16,2#,36,TGN16,26..XTR200408-200808

58353FREINFORCEMENT, REAR FLOOR PANEL, NO.3

main58353-0K010iKUN25..SR..MA200408-200809

58354BREINFORCEMENT, REAR FLOOR PANEL, NO.4

main58354-0K010iGGN25..5FC..SA;GGN15,KUN16..DCB..DLX;GGN25..DCB..(ANCOM,ARL,LA);TGN16..DCB..(ARL,GCC,SA,TH);GGN15,KUN16..DCB..(4FC,5FC)..SR;GGN35,KUN15,2#,3#,LAN15,25,35,TGN15,26,36..(DCB,THDCB)..(ANCOM,ARL,GCC,GEN,LA,MA,PHL,PKN,SA,TH)200808

main58354-0K020iGGN25..XTR200808-201107

58355DREINFORCEMENT, REAR FLOOR PANEL, NO.5

main58355-0K010iGGN25..5FC..SA;GGN15,KUN16..DCB..DLX;GGN25..DCB..(ANCOM,ARL,LA);TGN16..DCB..(ARL,GCC,SA,TH);GGN15,KUN16..DCB..(4FC,5FC)..SR;GGN35,KUN15,2#,3#,LAN15,25,35,TGN15,26,36..(DCB,THDCB)..(ANCOM,ARL,GCC,GEN,LA,MA,PHL,PKN,SA,TH)200808

main58355-0K020iKUN15..XTR..DLX;KUN15..XTR..HDCR;GGN15,25,KUN16,2#,36,TGN16,26..XTR200408-200808

58363DREINFORCEMENT, REAR FLOOR PANEL, NO.2 RH

main58363-0K010×2iKUN25..SR..MA200408-200809

61665GREINFORCEMENT, SEAT BELT ANCHORAGE TO QUATER WHEE HOUSE, RH

main61665-0K010×2iKUN26..IDN;TGN16..DCB..GEN;GGN15,KUN16..DCB..5F..SR200808-201107

90119T0103

main90119-T0103

90119T0187

main90119-T0187

30 parts on this diagram · 2 diagrams in section
