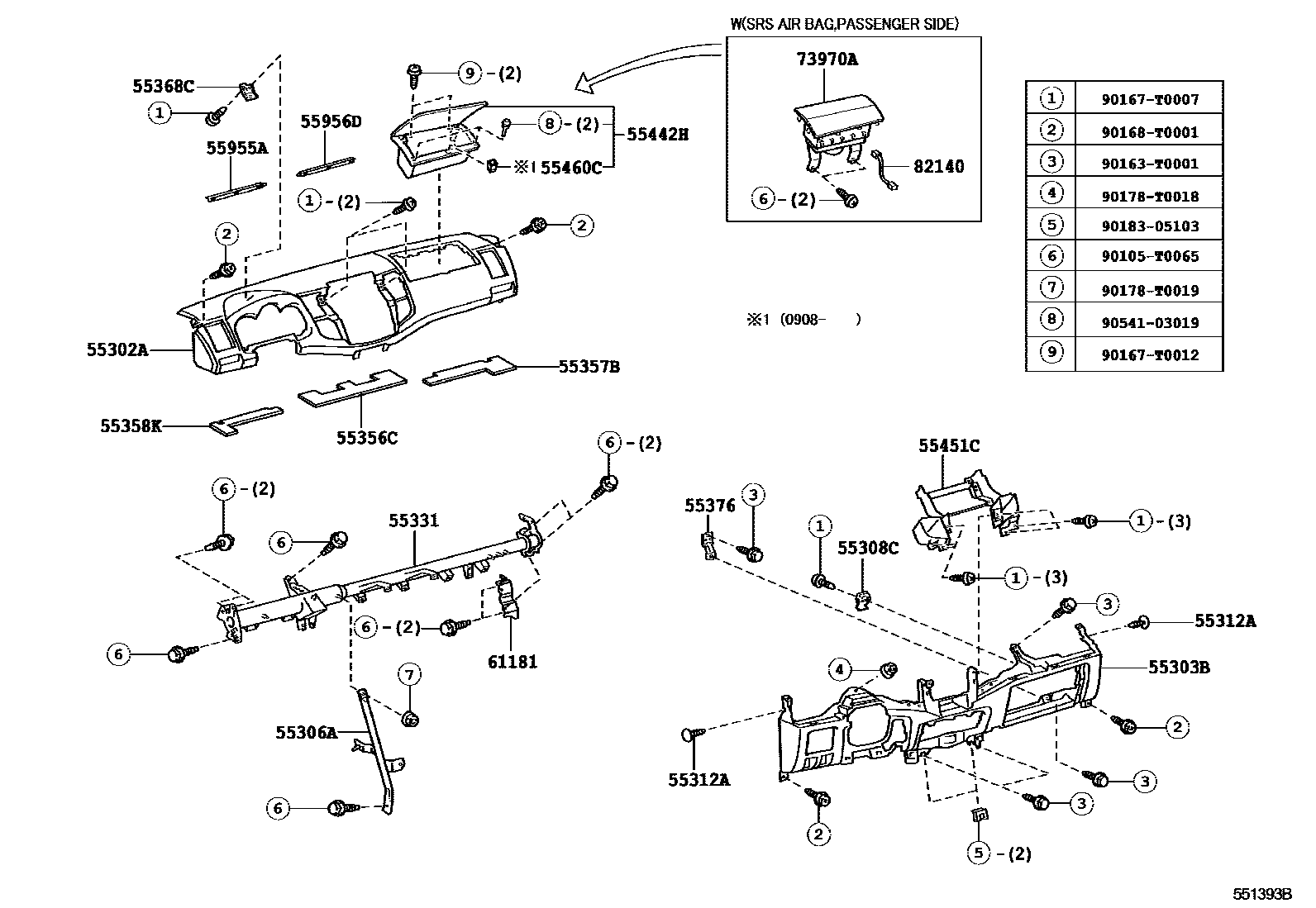

INSTRUMENT PANEL & GLOVE COMPARTMENT
55302APANEL SUB-ASSY, INSTRUMENT, UPPER
main55302-0K010-B0iKUN26..ARL;KUN25..SR..MA;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F..SA;KUN15,35,TGN10..RHD..DLX..(IDN,SA);KUN15..RHD..(DCB,SCB,XTR)..DCR..(GEN,PKN,TH);KUN16,25..RHD..(DCB,SCB)..DLX..(ARL,GEN,SA,TH);GGN15,25,LAN15,25,35,TGN15,16,26,36..RHD..(5F,5FC)..(ARL,PKN,SA)200408-201202
DK.GRAY,TRIM1#
main55302-0K010-E0iKUN25..RHD..DCB..SA;KUN15,25,36,TGN36..RHD..(DCB,SCB,XTR)..SR;GGN25,KUN16,26,LAN25,35,TGN16,26..RHD..(DCB,XTR)..(SA,TH)200408-200810
SANDAL WOOD,TRIM0#
ASH BROWN,TRIM4#
DK.GRAY,TRIM1#
RED,TRIM3#
SANDAL WOOD,TRIM0#
ASH BROWN,TRIM4#
DK.GRAY,TRIM1#
55303BPANEL SUB-ASSY, INSTRUMENT, LOWER
main55303-0K010-A0iKUN25,LAN25,35..RHD..DCB..SA;GGN15,25,KUN15,16,2#,36,TGN16,26,36..RHD..(DCB,SCB,XTR)..SR200408-200810
IVORY,TRIM0#
main55303-0K010-B0iGGN25..5FC..SA;TGN16..SMT..DLX;KUN15,26,LAN15..RHD..(ARL,GEN,SA,TH);GGN25,TGN16..(DCB,SCB,XTR)..(ARL,TH);GGN15,35,KUN16,25,3#,LAN25,35,TGN10,15,36..RHD200808-201202
GRAY,TRIM1#
SAND BEIGE,TRIM4#
main55303-0K020-A0iKUN15,26,36,TGN16..LHD..DCB..SR;LAN15,25,TGN16,26,36..LHD..DCB..(PHL,SA)200411-200810
IVORY,TRIM0#
main55303-0K020-B0iTGN36..PHL;TGN26..DCB..DLX..LA;KUN35,TGN36..LHD..DLX;TGN26..LHD..(ANCOM,GEN,SA);GGN25,KUN15,2#,36,LAN15,25,TGN15,16..LHD..(ANCOM,GEN,LA,PHL,SA)200411-200812
GRAY,TRIM1#
SAND BEIGE,TRIM4#
55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1
55308CBRACKET SUB-ASSY, INSTRUMENT PANEL, CENTER
main55308-0K010iKUN16..DCB,SCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN25..(DCB,XTR)..SR;KUN25..RHD..(GEN,SA);KUN16,36,TGN16..XTR..TH;KUN36..RHD..(DCB,SCB)..5F;KUN26..(DCB,SCB,XTR)..(ARL,TH);GGN15,25,LAN15,25,35,TGN15,26,36..RHD;KUN15..RHD..(DCB,SCB,XTR)..(GEN,PKN,TH);KUN15,35,TGN10,16..RHD..5F..DLX..(ARL,IDN,SA)200408-201202
55312ACLIP, INSTRUMENT PANEL
main90467-T0002-A0×2iTGN16..(DCB,XTR)..SR;GGN15,25,KUN15,16,2#,36,TGN26,36..(DCB,SCB,XTR)..SR..(ARL,MA,PHL,SA,TH)200408-200810
IVORY,TRIM0#
GRAY,TRIM1#,3#
main90467-T0002-E1×2iKUN35..SR..PHL;KUN25,35..(DCB,SMT)..(MA,TH);KUN15,16,26,36,TGN16..SR..(IDN,PHL,TH)200808-201109
SAND BEIGE,TRIM4#
55331REINFORCEMENT, INSTRUMENT PANEL
main55330-0K010iKUN16..(DCB,SCB)..ARL;GGN15,25,KUN26,36,TGN16,36..RHD..5F..(ARL,SA); KUN35..DCB..SA;KUN15,25..RHD..GEN;LAN15,25,35..RHD..SA200502-200810
SRS AIR BAG-WITH(DRIVER & PASSENGER)
main55330-0K220supersedes 55330-0K260iGGN25..(SCB,XTR)..5F;GGN15,KUN16..DCB..5F..SR; KUN26..IDN200808-201107
SRS AIR BAG-WITH(DRIVER & PASSENGER)
main55330-0K240supersedes 55330-0K280iKUN26,35,TGN26..LHD..5F..SR..(GEN,PHL); TGN16..(DCB,SCB)..GEN200808-201107
SRS AIR BAG-WITH(DRIVER & PASSENGER)
SRS AIR BAG-WITH(DRIVER & PASSENGER)
main55330-0K260iKUN15..XTR..TH;KUN35..RHD..DLX;KUN26,35..5F..SR..TH;KUN16..(SCB,SMT)..CBU;KUN36,TGN10,16..5F..(IDN,TH);KUN15,25,LAN15,25,35,TGN15..RHD..(DCB,SCB,SMT)..(GEN,SA,TH)200808-201108
main55330-0K280iTGN16..XTR;TGN16..5F..(GCC,SA);KUN26,35,TGN26..LHD..5F..DLX..(GCC,GEN,PHL,SA);KUN10,15,25,LAN15,25,TGN10,11,15..LHD..(GCC,GEN,PHL,SA)200808-201108
BRAZIL SPEC; BRAZIL SPEC&SRS AIR BAG-WITH(DRIVER & PASSENGER)
ANTI-THEFT SYSTEM-*IM & TRACKING&BLOCKING SYS & *SEH; ANTI-THEFT SYSTEM-*IM & TRACKING&BLOCKING SYS & *SEH&SRS AIR BAG-WITH(DRIVER & PASSENGER); ANTI-THEFT SYSTEM-IMMOBI & TRACKING&BLOCKING SYS&SRS AIR BAG-WITH(DRIVER & PASSENGER)
ANTI-THEFT SYSTEM-*IM & TRACKING&BLOCKING SYS & *SEH
main55330-0K320iTGN26,36..DCB..5F..DLX..LA; TGN26..SCB..LA; TGN36..5F..DLX..LA;TGN26..DCB..DLX..LA200810-201009
ANTI-THEFT SYSTEM-*IM & TRACKING&BLOCKING SYS & *SEH; ANTI-THEFT SYSTEM-IMMOBI & TRACKING&BLOCKING SYS
ANTI-THEFT SYSTEM-*IM & TRACKING&BLOCKING SYS & *SEH; ANTI-THEFT SYSTEM-IMMOBI & TRACKING&BLOCKING SYS
55356CCUSHION, INSTRUMENT PANEL, NO.2
55357BCUSHION, INSTRUMENT PANEL, NO.3
main55358-0K040iKUN26..IDN;GGN25..SCB,XTR;TGN16..(DCB,SCB)..GEN;GGN15,KUN16..DCB..5F..SR200808-201107
55358KCUSHION, INSTRUMENT PANEL, NO.4
55368CBRACKET, METER MOUNTING
main55368-0K010iTGN36..SCB;KUN26..THDCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN25..(DCB,XTR)..SR;KUN16,36,TGN16..XTR..TH;TGN26,36..DCB..5F..DLX..LA;TGN26..ANCOM,GCC,GEN,SA,TH;TGN36..DCB..(ANCOM,PHL,SA);KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN16,TGN10..(DCB,SCB)..(DLX,SR);KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,25,KUN10,LAN15,25,35,TGN11,15,16..(5F,5FC)..(ANCOM,ARL,GCC,GEN,PKN,SA)200408-201202
55376BRACKET, INSTRUMENT PANEL MOUNTING, NO.1
main55376-0K010iTGN36..SCB;KUN26..THDCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN25..(DCB,XTR)..SR;KUN16,36,TGN16..XTR..TH;TGN26,36..DCB..5F..DLX..LA;TGN26..ANCOM,GCC,GEN,SA,TH;TGN36..DCB..(ANCOM,PHL,SA);KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN16,TGN10..(DCB,SCB)..(DLX,SR);KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,25,KUN10,LAN15,25,35,TGN11,15,16..(5F,5FC)..(ANCOM,ARL,GCC,GEN,PKN,SA)200408-201202
55442HDOOR, INSTRUMENT PANEL
main55042-0K010-B0iKUN25..SCB..MA;KUN15..RHD..(DCB,SCB);KUN2#..(DCB,XTR)..SR..(MA,TH);KUN15,TGN16..XTR..(DCR,HTWC)..TH;KUN25,35,TGN10..RHD..DLX..(GEN,IDN,SA);KUN16,LAN15,25,35,TGN15,26..RHD..(DCB,SCB,XTR)..(PKN,SA,TH)200408-201202
DK.GRAY,TRIM1#
main55042-0K010-E0iKUN25..RHD..DCB..SA;KUN15,2#,36..(DCB,XTR)..SR..(MA,TH);KUN16,LAN25,35,TGN16,26..RHD..(DCB,XTR)..(SA,TH)200408-200810
SANDAL WOOD,TRIM0#
main55042-0K010-E1iKUN16..SMT;KUN25..DCB..DLX..MA;KUN15,25,35..HDCR..TH;KUN26,36,TGN16..5F..SR..(IDN,TH)200808-201108
ASH BROWN,TRIM4#
DK.GRAY,TRIM1#
RED,TRIM3#
SANDAL WOOD,TRIM0#
ASH BROWN,TRIM4#
55451CBOX, INSTRUMENT PANEL, NO.1
main55451-0K010iKUN26..IDN;GGN25..SCB,XTR;TGN16..(DCB,SCB)..GEN;GGN15,KUN16..DCB..5F..SR200808-201107
55460CLOCK ASSY, INSTRUMENT PANEL BOX
main55460-0K010iKUN25..SCB..MA;TGN16..XTR..TH;KUN25..RHD..(GEN,SA);KUN2#..(DCB,XTR)..SR..(MA,TH);KUN15,35,TGN10..RHD..DLX..(IDN,SA);KUN15,36..RHD..(DCB,SCB,XTR)..(GEN,PKN,TH);KUN16,LAN15,25,35,TGN15,26..RHD..(DCB,SCB,XTR)..(PKN,SA,TH)200408-201202
55955APLATE, DEFROSTER NOZZLE OPENING, NO.1
main55955-0K010-B0iKUN16..4FC;TGN16..XTR;KUN26,3#..TH;TGN16..5F..TH;KUN16..(SCB,SMT)..CBU;KUN15,35..(DLX,STD)..PHL;KUN15,25,TGN10,15,26..(DCB,SCB,SMT,XTR)..(GEN,IDN,MA,TH)200808-201109
DK.GRAY,TRIM1#
SANDAL WOOD,TRIM0#
ASH BROWN,TRIM4#
55956DPLATE, DEFROSTER NOZZLE OPENING, NO.2
main55956-0K010-B0iKUN16..4FC;TGN16..XTR;KUN26,3#..TH;TGN16..5F..TH;KUN16..(SCB,SMT)..CBU;KUN15,35..(DLX,STD)..PHL;KUN15,25,TGN10,15,26..(DCB,SCB,SMT,XTR)..(GEN,IDN,MA,TH)200808-201109
DK.GRAY,TRIM1#
SANDAL WOOD,TRIM0#
ASH BROWN,TRIM4#
61181BRACKET, INSTRUMENT PANEL SIDE
main61181-0K010iGGN25..5FC..SA;KUN15..XTR..TH;GGN25..DCB..ARL;GGN15,KUN16..DCB..DLX;KUN26..RHD..(ARL,GEN,SA,TH);GGN15,KUN16..DCB..(4FC,5FC)..SR;GGN35,KUN25,3#,LAN25,35,TGN10,16,36..RHD;KUN15,TGN15..RHD..(DCB,SCB,SMT)..(DLX,SR)..CBU;GGN15,KUN16,LAN15..RHD..(SCB,SMT,XTR)..(DLX,SR)200808
73970AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER
main73970-0K010-B0iGGN15,25,KUN16,26,TGN16..ARL; KUN15,25..RHD..GEN; KUN26,TGN16..DCB..5F..ARL200502-200503
DK.GRAY,TRIM1#; SRS AIR BAG-WITH(DRIVER & PASSENGER),DK.GRAY,TRIM1#
SANDAL WOOD,TRIM0#; SRS AIR BAG-WITH(DRIVER & PASSENGER),SANDAL WOOD,TRIM0#
main73970-0K011-B0iKUN25..SR..MA;KUN16..DCB..TH;KUN26..4FC..TH;KUN15,26,36..XTR..SA;GGN15,25,KUN16,26,TGN16..RHD..(ARL,GEN)200808-201109
DK.GRAY,TRIM1#
ASH BROWN,TRIM4#
DK.GRAY,TRIM1#
DK.GRAY,TRIM1#
SANDAL WOOD,TRIM0#; SRS AIR BAG-WITH(DRIVER & PASSENGER),SANDAL WOOD,TRIM0#
ASH BROWN,TRIM4#
DK.GRAY,TRIM1#; SRS AIR BAG-WITH(DRIVER & PASSENGER),DK.GRAY,TRIM1#
SRS AIR BAG-WITH(DRIVER & PASSENGER),SANDAL WOOD,TRIM0#
SRS AIR BAG-WITH(DRIVER & PASSENGER),RED,TRIM3#
SRS AIR BAG-WITH(DRIVER & PASSENGER),DK.GRAY,TRIM1#
82140WIRE ASSY, INSTRUMENT PANEL
main82140-0K010iGGN15..SCB,XTR;GGN25..5FC..SA;KUN26..4FC..TH;GGN15..DCB..DLX;GGN25..DCB..ARL;KUN25,35..SR..(MA,SA);GGN15,KUN16,TGN16..(DCB,SMT)..(4FC,5FC)..SR;GGN35,KUN16,26,36,TGN16,36..RHD..(ARL,GEN,SA)200808-201109
main82140-0K020iTGN36..4FC..ANCOM;TGN26..SR..(ANCOM,GEN);GGN25,KUN26,36..SR..(ANCOM,GEN,LA)200501-200812
90105T0065
main90105-T0065
90163T0001
main90163-T0001
90167T0007
main90167-T0007
90167T0012
main90167-T0012
90168T0001
main90168-T0001
90178T0018
main90178-T0018
90178T0019
main90178-T0019
9018305103
main90183-05103
9054103019
main90541-03019
