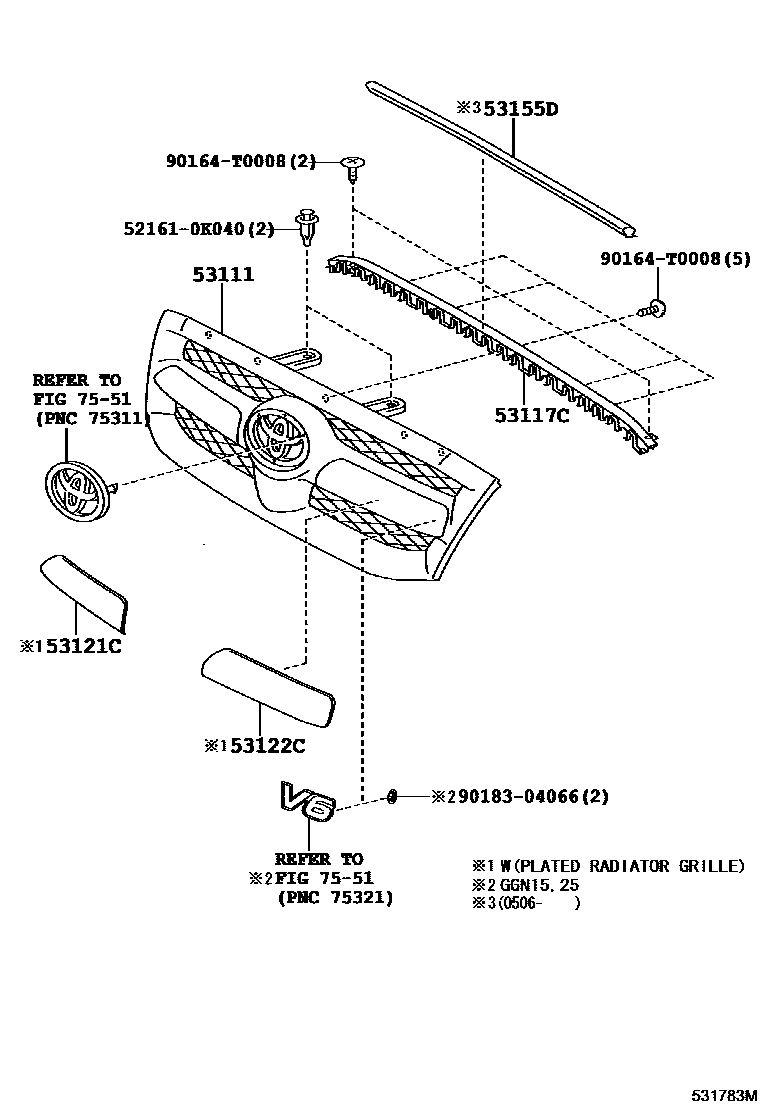

RADIATOR GRILLE
53111GRILLE, RADIATOR
main53111-0K010iKUN16,TGN16..XTR..TH;TGN16..5F..(ARL,GCC,GEN);KUN16,35..(DCB,SCB,THDCB)..(ARL,GEN,TH);KUN10,15,2#,36,TGN10,11,15,26,36..ARL,GCC,GEN,IDN,MA,PHL,TH200408-200809
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.
WHITE,056
SILVER ME.,1C0
BLACK MC.,209
DK.RED MC.,3Q2
GRAYISH BROWN ME,4P9
DK.GREEN M.M.,6S3
NO PAINT REQ.
SUPER WHITE 2,040
SILVER ME.,1C0
BLACK MC.,209
DK.RED MC.,3Q2
GRAYISH BROWN ME,4P9
LT.GREEN ME.,6S0
DK.GREEN M.M.,6S3
BLUE ME.,8P1
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.
PAINT REQ.
53117CRETAINER, RADIATOR GRILLE, NO.1
main53117-0K010iKUN16,TGN16..XTR..TH;TGN16..5F..(ARL,GCC,GEN);KUN16,35..(DCB,SCB,THDCB)..(ARL,GEN,TH);GGN15,25,KUN10,15,2#,36,TGN10,11,15,26,36..ARL,GCC,GEN,IDN,MA,PHL,TH200408-200809
main53117-0K020iKUN26..DCB..5F..SA;KUN15,35,LAN15..(DLX,STD)..(PKN,SA);GGN25,KUN25,36,LAN25,35,TGN15,16,26,36..(DCB,SCB)..(5F,5FC)..SA200504-201202
53121CPLATE, RADIATOR GRILLE FINISH, RH
53122CPLATE, RADIATOR GRILLE FINISH, LH
53155DSEAL, RADIATOR GRILLE, NO.1
7551EMBLEM & NAME PLATE
521610K040CUSHION, REAR BUMPER GUARD, NO.1
main52161-0K040
90164T0008
main90164-T0008
9018304066
main90183-04066
9 parts on this diagram · 2 diagrams in section
