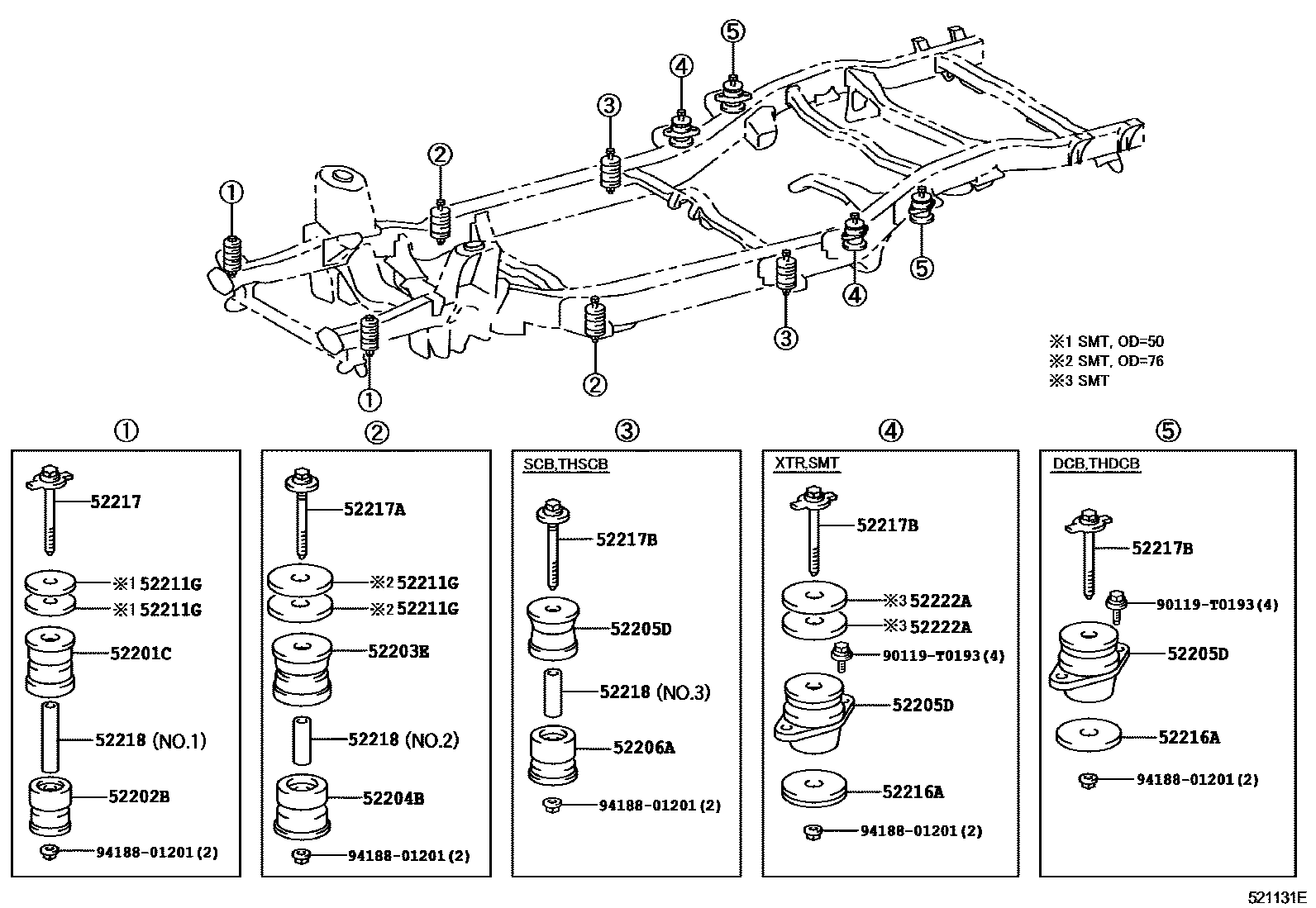

CAB MOUNTING & BODY MOUNTING

52201CCUSHIION SUB-ASSY, CAB MOUNTING, NO.1 UPPER

main52201-0K010×2iKUN26..THDCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN25..(DCB,XTR)..SR;KUN16,36,TGN16..XTR..TH;KUN36..RHD..(DCB,SCB)..5F;KUN25,35..DLX..(GCC,GEN,SA);TGN16..5F..(ARL,GCC,GEN,SA);KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN16,TGN10..(DCB,SCB)..(DLX,SR);KUN26..(DCB,SCB,XTR)..(ARL,PHL,TH);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,25,KUN10,LAN15,25,35,TGN11,15,26,36..ARL,GCC,GEN,PHL,PKN,SA,TH200408-201202

main52201-0K020×2iTGN36..DLX;TGN26..ANCOM;TGN26..DCB..DLX..LA;GGN25,KUN2#,3#..ANCOM,LA200501-200812

52202BCUSHIION SUB-ASSY, CAB MOUNTING, NO.1 LOWER

main52202-0K010×2iTGN15..IV3;KUN15..SR..SA200808-201108

main52202-0K020×2iTGN26..LA;TGN26..ANCOM..CBU;GGN25,KUN2#,3#,TGN36..ANCOM,LA200810

52203ECUSHION SUB-ASSY, CAB MOUNTING, NO.2

main52203-0K010×2iTGN15..IV3;KUN15..SR..SA200808-201108

main52203-0K020×2iTGN36..DLX;TGN26..ANCOM;TGN26..DCB..DLX..LA;GGN25,KUN2#,3#..ANCOM,LA200501-200812

52204BCUSHION SUB-ASSY, CAB MOUNTING, NO.2 LOWER

main52204-0K010×2iKUN26..THDCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN25..(DCB,XTR)..SR;KUN16,36,TGN16..XTR..TH;KUN36..RHD..(DCB,SCB)..5F;KUN25,35..DLX..(GCC,GEN,SA);TGN16..5F..(ARL,GCC,GEN,SA);KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN16,TGN10..(DCB,SCB)..(DLX,SR);KUN26..(DCB,SCB,XTR)..(ARL,PHL,TH);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,25,KUN10,LAN15,25,35,TGN11,15,26,36..ARL,GCC,GEN,PHL,PKN,SA,TH200408-201202

main52204-0K020×2iTGN36..DLX;TGN26..ANCOM;TGN26..DCB..DLX..LA;GGN25,KUN2#,3#..ANCOM,LA200501-200812

52205DCUSHION SUB-ASSY, CAB MOUNTING, NO.3 UPPER

main52205-0K010×2iTGN15..IV3200808-201108

main52205-0K020×2iTGN26..SCB..LA;TGN26..SCB..ANCOM..CBU;KUN25,35,TGN36..SCB..(ANCOM,LA)200810

main52205-0K030×2iGGN15,KUN15,16,2#,3#,TGN16..SMT,XTR200808-201108

main52205-0K040×2iKUN25..DCB..SR;KUN25,35,TGN16..(DCB,THDCB)..5F..(ARL,GCC,GEN,SA);GGN15,25,KUN15,16,26,36,LAN15,25,35,TGN15,26,36..(DCB,THDCB)..(ARL,GCC,GEN,PHL,SA,TH)200408-200810

main52205-0K050×2iTGN26..SR..ANCOM;TGN26,36..DCB..DLX..(ANCOM,LA);GGN25,KUN2#,3#..DCB..(ANCOM,LA)200501-200812

52206ACUSHION SUB-ASSY, CAB MOUNTING, NO.3 LOWER

main52206-0K010×2iGGN25..IV3;TGN16..SCB..GEN200808-201107

main52206-0K020×2iTGN26..SCB..LA;TGN26..SCB..ANCOM..CBU;KUN25,35,TGN36..SCB..(ANCOM,LA)200810

52211GSPACER, CAB FRONT MOUNTING

main522A1-0K010iKUN15,16,2#,3#,TGN16..SMT..5F200809

OD=50,T=2.0

main522A2-0K010iKUN15,16,2#,3#,TGN16..SMT..5F200809

OD=50,T=4.0

main522A3-0K010iTGN16..4FC..TH200809-201007

OD=76,T=2.0

main522A4-0K010iKUN15,16,2#,3#,TGN16..SMT..5F200809

OD=76,T=4.0

52216ASTOPPER, CAB MOUNTING CUSHION

main52216-0K010×2iGGN25,KUN15,2#,3#,LAN15,25,35,TGN16,26,36..DCB..(LA,SA)200408-200810

main52216-0K030×2iKUN15..XTR..DLX;KUN15..XTR..HDCR;GGN15,25,KUN16,2#,36,TGN16,26..XTR200408-200808

52217BOLT, BODY MOUNTING

main52217-0K010×2iKUN26..IDN;GGN25..SCB,XTR;TGN16..(DCB,SCB)..GEN;GGN15,KUN16..DCB..5F..SR200808-201107

52217ABOLT, BODY MOUNTING

main52217-0K020×2iTGN36..SCB;KUN26..THDCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN25..(DCB,XTR)..SR;KUN16,36,TGN16..XTR..TH;TGN26,36..DCB..5F..DLX..LA;TGN26..ANCOM,GCC,GEN,SA,TH;TGN36..DCB..(ANCOM,PHL,SA);KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN16,TGN10..(DCB,SCB)..(DLX,SR);KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,25,KUN10,LAN15,25,35,TGN11,15,16..(5F,5FC)..(ANCOM,ARL,GCC,GEN,PKN,SA)200408-201202

52217BBOLT, BODY MOUNTING

main52217-0K020×2iTGN15,36..CBU;GGN25..5FC..SA;TGN26..ANCOM..CBU;TGN36..ANCOM..IV3;GGN25..DCB..(ANCOM,ARL,LA);TGN26..LHD..(GCC,GEN,LA,SA);GGN15,KUN16..DCB..(4FC,5FC)..SR;TGN16..(DCB,SCB)..(ARL,GCC,SA,TH);KUN15..(DCB,SCB)..(GCC,GEN,PHL,SA,TH);GGN15,KUN16,TGN10..(DCB,SCB)..(DLX,STD);GGN35,KUN10,2#,3#,LAN15,25,35,TGN11..(DCB,SCB,THDCB,THSCB)..(DLX,SR)..(ANCOM,ARL,GCC,GEN,LA,MA,PHL,PKN,SA,TH)200808

main52217-0K030×2iGGN15,25,KUN15,16,2#,36,TGN16,26..XTR200408-200801

main52217-0K031×2iGGN15,25,KUN15,16,2#,36,TGN16,26..XTR200801-200808

52218HOLDER, BODY MOUNT BOLT SPACER, NO.1

main52218-0K010×2iKUN26..IDN;GGN25..SCB,XTR;TGN16..(DCB,SCB)..GEN;GGN15,KUN16..DCB..5F..SR200808-201107

NO.1

main52219-0K010×2iGGN25..5FC..SA;GGN15..DCB..DLX;TGN26..ANCOM..CBU;TGN36..ANCOM..IV3;TGN16..ARL,GCC,SA,TH;KUN15,TGN16..XTR..DLX;GGN25..DCB..(ANCOM,ARL,LA);TGN26..LHD..(GCC,GEN,LA,SA);GGN15,KUN16,TGN10..SCB,SMT,XTR;GGN15,KUN16..DCB..(4FC,5FC)..SR;KUN15..(DCB,SCB,SMT)..(GCC,GEN,PHL,SA,TH);KUN16,TGN15,36..(DCB,SCB)..(ANCOM,ARL,GCC,GEN,LA,SA)..CBU;GGN35,KUN10,2#,3#,LAN15,25,35,TGN11..(DLX,SR)..(ANCOM,ARL,GCC,GEN,LA,MA,PHL,PKN,SA,TH); TGN36..ANCOM..IV3;TGN15,36..SCB..CBU;TGN26..SCB..(GCC,LA);TGN26..SCB..ANCOM..CBU;TGN16..SCB..(ARL,GCC,SA,TH);GGN15,KUN1#,2#,3#,LAN15,25,TGN10,11..(SCB,THSCB)..(ANCOM,ARL,GCC,GEN,IDN,LA,MA,PHL,SA,TH)200808

NO.2; NO.3

52222ASPACER, CAB REAR MOUNTING, UPPER

main522A3-0K010iKUN15,16,2#,3#,TGN16..SMT..5F200809

OD=76,T=2.0

main522A4-0K010iKUN15,16,2#,3#,TGN16..SMT..5F200809

OD=76,T=4.0

90119T0193

main90119-T0193

9418801201

main94188-01201

15 parts on this diagram · 1 diagram in section
