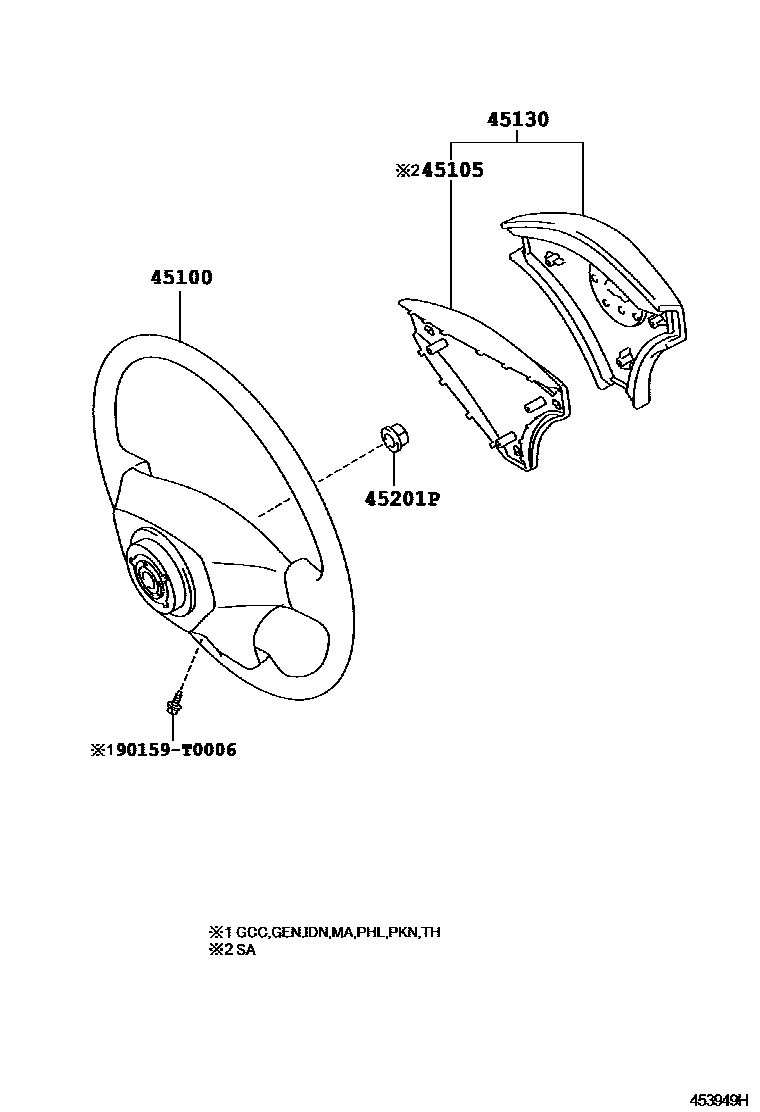

STEERING WHEEL
45100WHEEL ASSY, STEERING
main45100-02090-B1iKUN15,16..(SCB,XTR)..DLX..TH;KUN15,2#,35,TGN10,15,16,26..DLX..(GEN,IDN,MA,PHL)200408-200808
3-SPOKE,URETHANE,DK.GRAY,TRIM1#
3-SPOKE,URETHANE,SANDAL WOOD,TRIM0#
3-SPOKE,URETHANE,ASH BROWN,TRIM4#; 3-SPOKE,URETHANE,SRS AIR BAG-WITH(DRIVER & PASSENGER),ASH BROWN,TRIM4#
4-SPOKE,URETHANE,DK.GRAY,TRIM1#
main45100-0K020-E0iKUN25..SR..MA;KUN16..DCB..TH;KUN26..5F..PHL;KUN26,TGN16,26,36..4FC..(PHL,TH)200408-200809
4-SPOKE,URETHANE,SANDAL WOOD,TRIM0#
main45100-0K020-E1supersedes 45100-0K050-E1iKUN25..SR..MA;TGN16..4FC..TH;KUN15,16..DCB..SR..DCR200808-201109
4-SPOKE,URETHANE,ASH BROWN,TRIM4#
4-SPOKE,URETHANE,DK.GRAY,TRIM1#; 4-SPOKE,URETHANE,WIRELESS DOOR LOCK-WITH,DK.GRAY,TRIM1#
4-SPOKE,LEATHER,DK.GRAY,TRIM1#; 4-SPOKE,LEATHER,VSC-WITH&SEAT COVER MATERIAL-LEATHER&SRS AIR BAG-WITH(DRIVER & PASSENGER),DK.GRAY,TRIM1#; 4-SPOKE,LEATHER,VSC-WITH&SRS AIR BAG-WITH(DRIVER & PASSENGER),DK.GRAY,TRIM1#
4-SPOKE,LEATHER,SANDAL WOOD,TRIM0#
4-SPOKE,LEATHER
4-SPOKE,LEATHER,DK.GRAY,TRIM1#
4-SPOKE,LEATHER,SANDAL WOOD,TRIM0#
3-SPOKE,URETHANE,SANDAL WOOD,TRIM0#
3-SPOKE,URETHANE,DK.GRAY,TRIM1#
4-SPOKE,URETHANE,DK.GRAY,TRIM1#
4-SPOKE,URETHANE,DK.GRAY,TRIM1#
4-SPOKE,LEATHER,DK.GRAY,TRIM1#
4-SPOKE,URETHANE,DK.GRAY,TRIM1#
4-SPOKE,URETHANE,SANDAL WOOD,TRIM0#
4-SPOKE,URETHANE,ASH BROWN,TRIM4#
4-SPOKE,LEATHER,DK.GRAY,TRIM1#
4-SPOKE,LEATHER,DK.GRAY,TRIM1#
4-SPOKE,URETHANE,DK.GRAY,TRIM1#
4-SPOKE,URETHANE,DK.GRAY,TRIM1#
3-SPOKE,URETHANE,DK.GRAY,TRIM1#
main45100-0K221-B0iTGN26..DLX..ANCOM;TGN26..DCB..DLX..LA;KUN2#,3#,TGN36..5F..DLX..(ANCOM,LA)200508-200812
3-SPOKE,URETHANE,DK.GRAY,TRIM1#
4-SPOKE,LEATHER,DK.GRAY,TRIM1#,WITH(CRUISE CONTROL)
4-SPOKE,URETHANE,DK.GRAY,TRIM1#
4-SPOKE,URETHANE,ASH BROWN,TRIM4#
4-SPOKE,URETHANE,DK.GRAY,TRIM1#
4-SPOKE,LEATHER,VSC-WITH&SEAT COVER MATERIAL-LEATHER&SRS AIR BAG-WITH(DRIVER & PASSENGER),ASH BROWN,TRIM4#; 4-SPOKE,LEATHER,VSC-WITH&SRS AIR BAG-WITH(DRIVER & PASSENGER),ASH BROWN,TRIM4#
4-SPOKE,URETHANE,WIRELESS DOOR LOCK-WITH,DK.GRAY,TRIM1#
45105PLATE SUB-ASSY, HORN BUTTON CONTACT, NO.1
45130BUTTON ASSY, HORN
main45130-02100-B1iKUN26..5F..TH;KUN15,25..SCB..(MA,PHL);KUN15,16,26,TGN26..DLX..(GEN,TH);KUN25,3#,TGN10,15,16..5F..(GEN,IDN,TH)200808-201109
DK.GRAY,TRIM1#
SANDAL WOOD,TRIM0#
ASH BROWN,TRIM4#
main45130-02180-B0iTGN26..DLX..ANCOM;TGN26..DCB..DLX..LA;KUN2#,3#,TGN36..5F..DLX..(ANCOM,LA)200501-200812
DK.GRAY,TRIM1#
DK.GRAY,TRIM1#
SANDAL WOOD,TRIM0#
ASH BROWN,TRIM4#
main45130-0K010-B0supersedes 45130-02100-B1iKUN25..SR..MA;KUN16..DCB..TH;KUN16,26..ARL,PHL;KUN26..5F..SR..GEN;TGN26..SR..(GEN,TH);KUN26..4FC..(GEN,TH);GGN15,25,TGN16,36..ARL,PHL,TH; KUN26..5F..TH;KUN15,16..XTR..SR..DCR;KUN15,25,TGN15,16,26..(DCB,SCB,XTR)..GEN200408-200808
DK.GRAY,TRIM1#; SRS AIR BAG-WITH(DRIVER ONLY),DK.GRAY,TRIM1#
main45130-0K010-E0iKUN16..DCB..TH;KUN26..4FC..TH;KUN2#..SR..(ARL,MA,PHL);GGN15,25,TGN16,26,36..SR..(ARL,PHL,TH)200408-200809
SANDAL WOOD,TRIM0#
ASH BROWN,TRIM4#
DK.GRAY,TRIM1#
SANDAL WOOD,TRIM0#
main45130-0K060-B0iKUN26..THDCB..SR;GGN25,35..5FC..(LA,SA);KUN26,3#,TGN26,36..DCB..SR..(LA,SA)200808-201110
DK.GRAY,TRIM1#
ASH BROWN,TRIM4#
main45130-0K070-B0supersedes 45130-0K040-B0iKUN15,25,35,LAN15,25,35,TGN15,16,26..DLX..SA; KUN26,36,TGN36..SCB..SA; KUN26,36..DCB..5F..SA200810-201108
DK.GRAY,TRIM1#; EXPORT FROM SOUTH AFRICA,DK.GRAY,TRIM1#; SRS AIR BAG-WITH(DRIVER & PASSENGER),DK.GRAY,TRIM1#
DK.GRAY,TRIM1#
45201PNUT, STEERING WHEEL SET
main90179-12071iGGN25..5FC..SA;GGN15..DCB..DLX;TGN26..ANCOM..CBU;TGN36..ANCOM..IV3;TGN16..ARL,GCC,SA,TH;KUN15,TGN16..XTR..DLX;GGN25..DCB..(ANCOM,ARL,LA);TGN26..LHD..(GCC,GEN,LA,SA);GGN15,KUN16,TGN10..SCB,SMT,XTR;GGN15,KUN16..DCB..(4FC,5FC)..SR;KUN15..(DCB,SCB,SMT)..(GCC,GEN,PHL,SA,TH);KUN16,TGN15,36..(DCB,SCB)..(ANCOM,ARL,GCC,GEN,LA,SA)..CBU;GGN35,KUN10,2#,3#,LAN15,25,35,TGN11..(DLX,SR)..(ANCOM,ARL,GCC,GEN,LA,MA,PHL,PKN,SA,TH)200808
90159T0006
main90159-T0006
5 parts on this diagram · 5 diagrams in section
