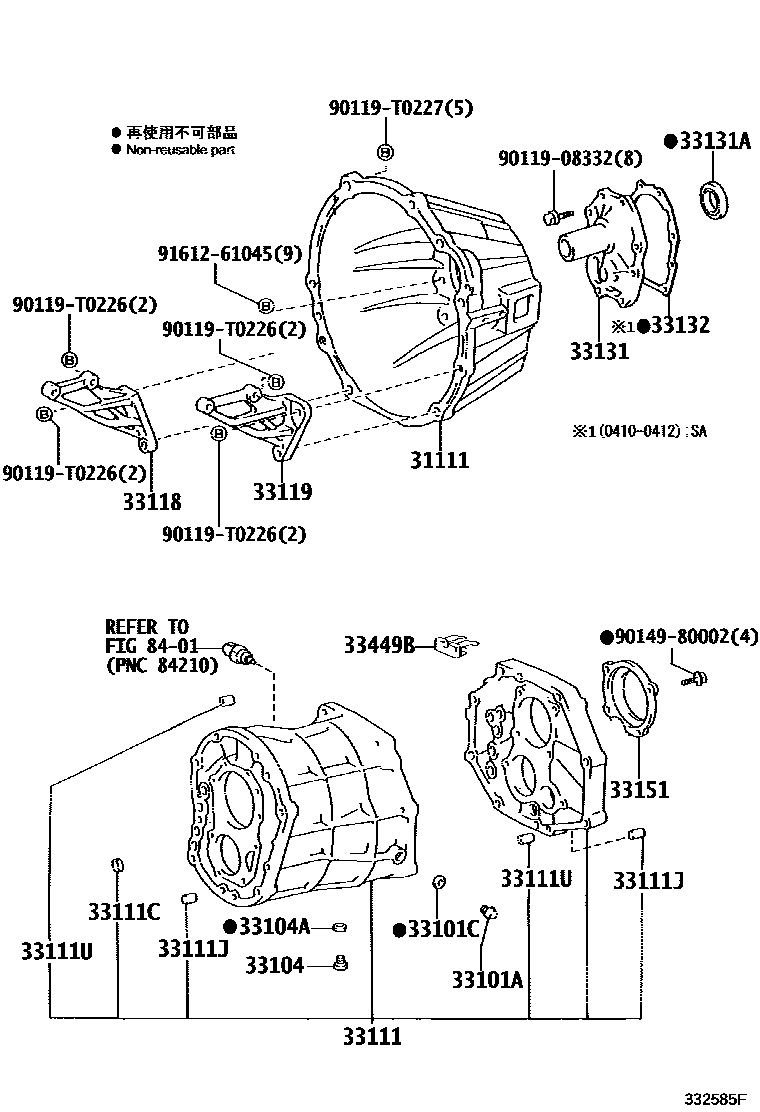

CLUTCH HOUSING & TRANSMISSION CASE (MTM)

0001 1G50 0002 1G50 0003 1R151 0004 1R151,R151F 0005 1R150 0006 1R150,R150F 0007 1G55 0008 1G55 0009 1R150 0010 1R150,R150F 0011 1G58 0012 1G58 0013 1G58 0014 1G58

31111HOUSING, CLUTCH

main31111-0K010iKUN36;KUN15,35..(DCB,SCB,XTR)..HDCR;KUN16,2#..(DCB,SCB)..5F..(ANCOM,LA,MA,SA,TH)200408-201204

TYPE C:REFER 33-01

main31111-0K010iKUN25..SCB..MA;KUN25..5F..SR..MA;KUN36..5F..(LA,SA);KUN26..DCB..5F..(LA,SA);KUN25,35..DLX..(ANCOM,LA,SA)200808-200812

main31111-0K020iTGN16,36..5F..(ANCOM,LA,SA)200504-201204

main31111-0K020iTGN26..5F..(GCC,GEN)200810-201204

TYPE C:REFER 33-01

main31111-0K030iTGN10,15..GCC,GEN,IDN200502-201107

main31111-0K050iGGN15,25..5F..ARL200808-201107

TYPE D:REFER 33-01

main31111-0K050iGGN25..5F..SA200502-200808

TYPE C:REFER 33-01

main31111-0K050iGGN25..5F..SA200808-200810

main31111-0K060iKUN15..DCB..HDCR;KUN16,2#,36..5F..TH200505-201108

TYPE B:REFER 33-01

main31111-0K070iTGN11,16,26..5F..(ARL,GCC,GEN,TH)200808-201107

TIRE & DISC WHEEL-215/65R16C 6J ALMINUM,TYPE B:REFER 33-01

main31111-0K070iTGN16..SR..GCC200505-201107

TYPE B:REFER 33-01

main31111-0K080iGGN15,25..5F..ARL200505-201107

TYPE B:REFER 33-01

main31111-0K090iKUN16,26,36..5F;KUN15,25,35..5F..HDCR200808-201204

TYPE D:REFER 33-01

main31111-0K100iTGN11,16..5F;TGN36..5F..CBU;TGN26..ANCOM..CBU;TGN36..ANCOM..IV3;TGN26..LHD..5F..(GCC,GEN,LA,SA)200808-201204

TYPE D:REFER 33-01

main31111-0W070iKUN15..PHL..CBU;KUN10,15..(DCB,SCB,XTR)..DCR..(GCC,GEN,PKN,TH)200408-201202

main31111-25050iKUN15..DLX..SA200504-200810

main31111-25050iKUN15..SR..SA;KUN10,15..DCR..(GCC,GEN,PHL,TH)201103-201108

TYPE A:REFER 33-01

main31111-26032iTGN10,15..GCC,IDN201105-201108

TYPE A:REFER 33-01

main31111-26032iTGN15..SA200504-200810

main31111-26073iTGN16,26..ARL,GEN200502-200505

TYPE A:REFER 33-01

main31111-35101iKUN15..XTR..HDCR200408-201107

TYPE A:REFER 33-01

main31111-60280iLAN15,25,35200507-200911

main31111-60281iLAN15..PKN200905-201108

33101APLUG(FOR MANUAL TRANSMISSION FILLER)

main90341-18006iKUN15..XTR..HDCR200408-201108

TYPE A:REFER 33-01

main90341-18006iKUN15..XTR..HDCR200408-201204

TYPE C:REFER 33-01

main90341-18006iKUN16,2#..XTR..TH200505-201108

TYPE B:REFER 33-01

main90341-18006iKUN15..DCB..HDCR;KUN16,2#,36..5F..TH200608-200808

TYPE B:REFER 33-01,TYPE A:REFER 33-01

main90341-18006iTGN15;TGN36..SCB;TGN36..DCB..SA;TGN26,36..DCB..5F..DLX..LA;KUN10,LAN15,25,35,TGN10..CBU;KUN15..(DCB,SCB,XTR)..DCR..(GCC,GEN,PKN,TH);KUN15,TGN16,26..(DCB,SCB)..(DLX,200408-201202

main90341-18006iGGN25..5F..ARL;TGN36..5F..CBU;KUN16,26,36..5F;TGN26..ANCOM..CBU;TGN36..ANCOM..IV3;TGN26..LHD..5F..(GCC,GEN,LA,SA);GGN15,KUN15,25,35,TGN11,16..5F..(HDCR,HTWC)200808-201204

TYPE D:REFER 33-01

33101CGASKET(FOR MANUAL TRANSMISSION FILLER PLUG)

main90430-18008iKUN15..SR..SA;KUN10,LAN15,25,35,TGN10..GCC,IDN,SA;KUN15,TGN15..(DCR,HTWC)..(GCC,GEN,PHL,TH)200505-201108

TYPE B:REFER 33-01

main90430-18008iGGN15,25..5F..ARL200408-201204

TYPE C:REFER 33-01

main90430-18008iGGN15,25..5F..ARL200408-201108

TYPE A:REFER 33-01

main90430-18008iKUN15..DCB..HDCR;KUN16,2#,36..5F..TH200608-200808

TYPE B:REFER 33-01,TYPE A:REFER 33-01

main90430-18008iTGN15;TGN36..SCB;TGN36..DCB..SA;TGN26,36..DCB..5F..DLX..LA;KUN10,LAN15,25,35,TGN10..CBU;KUN15..(DCB,SCB,XTR)..DCR..(GCC,GEN,PKN,TH);KUN15,TGN16,26..(DCB,SCB)..(DLX,200408-201202

main90430-18008iGGN25..5F..ARL;TGN36..5F..CBU;KUN16,26,36..5F;TGN26..ANCOM..CBU;TGN36..ANCOM..IV3;TGN26..LHD..5F..(GCC,GEN,LA,SA);GGN15,KUN15,25,35,TGN11,16..5F..(HDCR,HTWC)200808-201204

TYPE D:REFER 33-01

33104PLUG SUB-ASSY, DRAIN(MTM)

main90341-18006iGGN15,25..5F..ARL200408-201204

TYPE C:REFER 33-01

main90341-18006iKUN16,2#..XTR..TH;KUN16,2#,TGN16,26..5F..(ARL,GEN,PHL)200408-201107

TYPE A:REFER 33-01

main90341-18006iKUN16,2#..XTR..TH200505-201108

TYPE B:REFER 33-01

main90341-18006iKUN15..DCB..HDCR;KUN16,2#,36..5F..TH200608-200808

TYPE B:REFER 33-01,TYPE A:REFER 33-01

main90341-18006iTGN36..SCB;TGN36..DCB..SA;TGN16,26..ANCOM,SA;TGN26,36..DCB..DLX..LA200504-200812

main90341-18006iGGN25..5F..ARL;TGN36..5F..CBU;KUN16,26,36..5F;TGN26..ANCOM..CBU;TGN36..ANCOM..IV3;TGN26..LHD..5F..(GCC,GEN,LA,SA);GGN15,KUN15,25,35,TGN11,16..5F..(HDCR,HTWC)200808-201204

TYPE D:REFER 33-01

main90341-18006iKUN16,26,36..5F..TH;KUN15,25,35..HDCR..TH200808-201107

TIRE & DISC WHEEL-215/65R16C 6J ALMINUM,TYPE B:REFER 33-01

main90341-18057iTGN15;KUN10,LAN15,25,35,TGN10..CBU;KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN15..(DCB,SCB,XTR)..DCR..(GCC,GEN,PKN,TH)200408-201202

main90341-18057iTGN15..SA200810-201108

TYPE A:REFER 33-01

33104AGASKET, DRAIN PLUG(MTM)

main90430-18008iGGN25..5F..ARL;TGN36..5F..CBU;KUN16,26,36..5F;TGN26..ANCOM..CBU;TGN36..ANCOM..IV3;TGN26..LHD..5F..(GCC,GEN,LA,SA);GGN15,KUN15,25,35,TGN11,16..5F..(HDCR,HTWC)200408-201204

TYPE C:REFER 33-01

main90430-18008iTGN26..ANCOM..CBU;TGN36..ANCOM..IV3;TGN26..LHD..5F..(LA,SA);KUN35,TGN16..LHD..DLX..(PHL,SA);KUN15,25,35..5F..HDCR..(ANCOM,LA,MA,SA,TH);KUN16,26,36,TGN36..(DCB,SCB,S200808-201204

TYPE D:REFER 33-01

main90430-18008iGGN15,25..5F..ARL200408-201108

TYPE A:REFER 33-01

main90430-18008iKUN16,2#..XTR..TH200505-201108

TYPE B:REFER 33-01

main90430-18008iKUN15..DCB..HDCR;KUN16,2#,36..5F..TH200608-200808

TYPE B:REFER 33-01,TYPE A:REFER 33-01

main90430-18008iTGN15;TGN36..SCB;TGN36..DCB..SA;TGN26,36..DCB..5F..DLX..LA;KUN10,LAN15,25,35,TGN10..CBU;KUN15..(DCB,SCB,XTR)..DCR..(GCC,GEN,PKN,TH);KUN15,TGN16,26..(DCB,SCB)..(DLX,200408-201202

33111CASE, MANUAL TRANSMISSION

main33101-0K010iKUN35..SR..PHL;KUN26..THDCB..5F;KUN26..5F..(ARL,PHL);KUN16,25,35..ARL,GCC,GEN200408-201204

TYPE C:REFER 33-01

main33101-0K010iTGN36..SCB;TGN36..DCB..SA;TGN16,26..ANCOM,SA;TGN26,36..DCB..DLX..LA200504-200812

main33101-0K020iKUN15..SR..SA;KUN10,15,TGN10,15..(DCR,HTWC)..(GCC,GEN,IDN,PHL,TH)200408-201202

main33101-0K030iGGN25..5F..ARL;TGN36..5F..CBU;KUN16,26,36..5F;TGN26..ANCOM..CBU;TGN36..ANCOM..IV3;TGN26..LHD..5F..(GCC,GEN,LA,SA);GGN15,KUN15,25,35,TGN11,16..5F..(HDCR,HTWC)200808-201204

TYPE D:REFER 33-01

main33101-0K040iKUN15..DCB..HDCR;KUN16,2#,36..5F..TH200505-201108

TYPE B:REFER 33-01

main33101-35051iTGN15..SA200810-201108

TYPE A:REFER 33-01

main33101-35051iKUN15,LAN15,25,35,TGN15..SA200504-200810

main33101-60040iKUN16,26,36..5F..TH;KUN15,25,35..HDCR..TH200408-201107

TYPE A:REFER 33-01

33111CPLUG(FOR TRANSMISSION CASE)

main90331-14004iGGN15,25..5F..ARL200408-200606

OD=14,TYPE C:REFER 33-01

main90331-14004iGGN15,25..5F..ARL200408-201108

OD=14,TYPE A:REFER 33-01

main90331-14004iGGN15,25,KUN16,2#,TGN16,26..5F..(ARL,GCC,GEN,PHL)200505-200508

OD=14,TYPE B:REFER 33-01

main90331-14004iTGN16,26,36..5F..(ANCOM,LA,SA)200408-201202

OD=14

main96411-41800iKUN16,2#..XTR..TH;KUN16,2#,TGN16,26..5F..(ARL,GEN,PHL)200408-200808

OD=18,TYPE C:REFER 33-01

main96411-41800iGGN15,25..5F..ARL200408-201107

OD=18,TYPE A:REFER 33-01

main96411-41800iKUN16,2#..XTR..TH200505-201108

OD=18,TYPE B:REFER 33-01

main96411-41800iKUN15..DCB..HDCR;KUN16,2#,36..5F..TH200608-200808

OD=18,TYPE B:REFER 33-01,TYPE A:REFER 33-01

main96411-41800iTGN36..SCB;TGN36..DCB..SA;TGN16,26..ANCOM,SA;TGN26,36..DCB..DLX..LA200504-200812

OD=18

main96411-41800iKUN16,26,36..5F..TH;KUN15,25,35..HDCR..TH200808-201107

OD=18,TYPE D:REFER 33-01,TYPE B:REFER 33-01

main96411-41800iKUN36..LA200808-201204

OD=18,TYPE D:REFER 33-01

33111JPIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)

main90250-12002iGGN15,25..5F..ARL200408-201108

L=16,OD=12,TYPE A:REFER 33-01

main90250-12002iKUN15..XTR..HDCR200408-201204

L=16,OD=12,TYPE C:REFER 33-01

main90250-12002iKUN16,2#..XTR..TH200505-200902

L=16,OD=12,TYPE B:REFER 33-01

main90250-12002iKUN15..DCB..HDCR;KUN16,2#,36..5F..TH200608-200808

L=16,OD=12,TYPE B:REFER 33-01,TYPE A:REFER 33-01

main90250-12002iTGN36..SCB;TGN36..DCB..SA;TGN16,26..ANCOM,SA;TGN26,36..DCB..DLX..LA200408-201202

L=16,OD=12

main90250-12002iKUN16,26,36..5F..(ARL,GEN,IDN,PHL,TH);GGN15,25,KUN15,25,35,TGN11,16,26..5F..(HDCR,HTWC)..(ARL,GCC,GEN,PHL,TH)200808-200902

L=16,OD=12,TIRE & DISC WHEEL-215/65R16C 6J ALMINUM,TYPE B:REFER 33-01

main90250-12002iGGN25..5F..ARL;TGN36..5F..CBU;KUN16,26,36..5F;TGN26..ANCOM..CBU;TGN36..ANCOM..IV3;TGN26..LHD..5F..(GCC,GEN,LA,SA);GGN15,KUN15,25,35,TGN11,16..5F..(HDCR,HTWC)200808-201204

L=16,OD=12,TYPE D:REFER 33-01

main90250-T0020iKUN26,36..XTR..SA;KUN16,26,36..5F..(ARL,GEN,IDN,PHL,TH);GGN15,25,KUN15,25,35,TGN11,16,26..5F..(HDCR,HTWC)..(ARL,GCC,GEN,PHL,TH)200902-201108

L=16,OD=12,TYPE B:REFER 33-01

33111UPIN, RING(FOR MANUAL TRANSMISSION CASE)

main90253-15001iGGN25..5F..ARL;TGN36..5F..CBU;KUN16,26,36..5F;TGN26..ANCOM..CBU;TGN36..ANCOM..IV3;TGN26..LHD..5F..(GCC,GEN,LA,SA);GGN15,KUN15,25,35,TGN11,16..5F..(HDCR,HTWC)200408-201204

L=14,OD=15,TYPE C:REFER 33-01

main90253-15001iTGN26..ANCOM..CBU;TGN36..ANCOM..IV3;TGN26..LHD..5F..(LA,SA);KUN35,TGN16..LHD..DLX..(PHL,SA);KUN15,25,35..5F..HDCR..(ANCOM,LA,MA,SA,TH);KUN16,26,36,TGN36..(DCB,SCB,S200808-201204

L=14,OD=15,TYPE D:REFER 33-01

main90253-15001iKUN36;KUN16,2#..(DCB,SCB)..5F..(ANCOM,LA,MA,SA,TH);GGN25,KUN15,35..5F..(HDCR,HTWC)..(ANCOM,LA,SA,TH)200408-201108

L=14,OD=15,TYPE A:REFER 33-01

main90253-15001iKUN16,2#..XTR..TH200505-201108

L=14,OD=15,TYPE B:REFER 33-01

main90253-15001iKUN15..DCB..HDCR;KUN16,2#,36..5F..TH200608-200808

L=14,OD=15,TYPE B:REFER 33-01,TYPE A:REFER 33-01

main90253-15001iTGN36..SCB;TGN36..DCB..SA;TGN16,26..ANCOM,SA;TGN26,36..DCB..DLX..LA200408-201202

L=14,OD=15

main90253-15001iKUN16,26,36..5F..TH;KUN15,25,35..HDCR..TH200808-201107

L=14,OD=15,TIRE & DISC WHEEL-215/65R16C 6J ALMINUM,TYPE B:REFER 33-01

33118PLATE, STIFFENER, RH(MTM)

main33118-04020iKUN26..IDN;KUN16..DCB..5F..TH200408-201202

main33118-0K010iLAN15,25,35200507-201108

33119PLATE, STIFFENER, LH(MTM)

main33119-0K010iLAN15,25,35200507-201108

main33119-0K020iKUN15..XTR..TH;KUN16..DCB..ARL;KUN16..SCB,SMT,XTR;KUN15..(DCB,SCB,SMT)..(GCC,GEN,PHL,SA,TH);KUN10,2#,3#..5F..(ANCOM,ARL,GCC,GEN,LA,MA,PHL,PKN,SA,TH)200408-201202

33131RETAINER, BEARING, FRONT(MTM)

main33018-0K010iKUN16,2#..XTR..TH200408-201204

T/P C:SEE 33-01,NO.1

main33018-0K010iTGN16,26,36..5F..(ANCOM,LA,SA)200504-200812

NO.1

main33018-0K020iGGN25..5F..SA200502-200808

T/P C:SEE 33-01,NO.1

main33018-0K020iGGN25..5F..SA200808-200810

main33018-0K040iKUN26,36..XTR..SA;KUN16,26,36..5F..(ARL,GEN,IDN,PHL,TH);KUN15,25,35,TGN11,16,26..5F..(HDCR,HTWC)..(ARL,GCC,GEN,PHL,TH)200505-201108

TYPE B:REFER 33-01

main33018-0K050iGGN15,25..5F..ARL200505-201107

TYPE B:REFER 33-01

main33018-0K070iTGN36..5F..CBU;KUN16,26,36..5F;TGN26..ANCOM..CBU;TGN36..ANCOM..IV3;TGN26..LHD..5F..(GCC,GEN,LA,SA);KUN15,25,35,TGN11,16..5F..(HDCR,HTWC)200808-201204

TYPE D:REFER 33-01

main33018-0K080iGGN15,25..5F..ARL200808-201107

TYPE D:REFER 33-01

main33131-0K010iTGN16,26,36..5F..(ANCOM,LA,SA)200504-200812

NO.2

main33131-0K010iTGN26..ANCOM..CBU;TGN36..ANCOM..IV3;TGN26..LHD..5F..(LA,SA);KUN35,TGN16..LHD..DLX..(PHL,SA);KUN15,25,35..5F..HDCR..(ANCOM,LA,MA,SA,TH);KUN16,26,36,TGN36..(DCB,SCB,S200408-201204

T/P C:SEE 33-01,NO.2

main33131-0K020iGGN25..5F..SA200502-200808

T/P C:SEE 33-01,NO.2

main33131-0K030iTGN10..CBU;KUN10,15,LAN15,TGN15..GCC,GEN,PKN200408-201202

main33131-0W020iKUN15..DCR200410-200412

main33131-26020iKUN15..DLX..SA200810-201108

TYPE A:REFER 33-01

main33131-26020iKUN15,LAN15,25,35,TGN15..SA200504-200810

main33131-35031iKUN16,2#..XTR..TH;KUN16,2#,TGN16,26..5F..(ARL,GEN,PHL)200408-201107

TYPE A:REFER 33-01

33131ASEAL, OIL(FOR TRANSMISSION FRONT BEARING RETAINER)

main90311-30014iKUN15..DLX..SA200810-201108

TYPE A:REFER 33-01

main90311-30014iKUN15,LAN15,25,35,TGN15..SA200504-200810

main90311-32012iKUN16,2#..XTR..TH;KUN16,2#,TGN16,26..5F..(ARL,GEN,PHL)200408-200706

TYPE A:REFER 33-01

main90311-32022iKUN16,26,36..5F..TH;KUN15,25,35..HDCR..TH200706-201107

TYPE A:REFER 33-01

main90311-T0017iTGN11,16,26..5F..(ARL,GCC,GEN)200408-201204

TYPE C:REFER 33-01

main90311-T0017iTGN26..ANCOM..CBU;TGN36..ANCOM..IV3;TGN26..LHD..5F..(LA,SA);KUN35,TGN16..LHD..DLX..(PHL,SA);KUN15,25,35..5F..HDCR..(ANCOM,LA,MA,SA,TH);KUN16,26,36,TGN36..(DCB,SCB,S200808-201204

TYPE D:REFER 33-01

main90311-T0017iTGN36..SCB;TGN36..DCB..SA;TGN16,26..ANCOM,SA;TGN26,36..DCB..DLX..LA200504-200812

main90311-T0021iKUN15..SR..SA;KUN10,15,TGN10,15..(DCR,HTWC)..(GCC,GEN,IDN,PHL,TH)200408-201202

main90311-T0027iKUN15..DCB..HDCR;KUN16,2#,36..5F..TH200505-201108

TYPE B:REFER 33-01

33132GASKET, FRONT BEARING RETAINER(MTM)

main33132-28010iTGN15..SA200810-201108

TYPE A:REFER 33-01

main33132-28010iKUN15..DCR200410-200810

33151RETAINER, OUTPUT SHAFT REAR BEARING(MTM)

main33151-0K010iGGN15,25..5F..ARL200408-201204

TYPE C:REFER 33-01

main33151-0K010iKUN25..SCB..MA;KUN36..5F..(LA,SA);KUN26..DCB..5F..(LA,SA);KUN25,35..DLX..(ANCOM,LA,SA);GGN25,KUN25..5F..SR..(MA,SA)200504-200812

main33151-0K020iKUN15..PHL..CBU;KUN15..(DCB,SCB,XTR)..DCR..(GCC,GEN,PKN,TH);KUN10,LAN15,TGN10,15..(GCC,GEN,IDN,PKN)..CBU200408-201202

main33151-0K030iKUN15..XTR..HDCR;GGN15,25,KUN16,2#,35,TGN11,16,26..5F..(ARL,GCC,GEN,PHL)200505-201108

TYPE B:REFER 33-01

main33151-0K040iGGN25..5F..ARL;TGN36..5F..CBU;KUN16,26,36..5F;TGN26..ANCOM..CBU;TGN36..ANCOM..IV3;TGN26..LHD..5F..(GCC,GEN,LA,SA);GGN15,KUN15,25,35,TGN11,16..5F..(HDCR,HTWC)200808-201204

TYPE D:REFER 33-01

main33151-35020iKUN15..XTR..HDCR200408-201107

TYPE A:REFER 33-01

main33151-35020iKUN16..ARL200502-200505

TYPE B:REFER 33-01

main33151-35020iKUN16..ARL200502-200505

TIRE & DISC WHEEL-205/70R15C 6JJ,TYPE A:REFER 33-01

main33151-35020iKUN16..ARL200502-200505

TIRE & DISC WHEEL-205/70R15C 6JJ ALMINUM,TYPE A:REFER 33-01

main33151-35030iKUN15..DLX..SA200810-201108

TYPE A:REFER 33-01

main33151-35030iKUN15,LAN15,25,35,TGN15..SA200504-200810

33449BMAGNET, TRANSMISSION

main33449-26010iTGN15;KUN10,LAN15,25,35,TGN10..CBU;KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN15..(DCB,SCB,XTR)..DCR..(GCC,GEN,PKN,TH)200408-201202

main33449-35030iKUN15..XTR..HDCR;GGN15,25,KUN16,2#,35,TGN11,16,26..5F..(ARL,GCC,GEN,PHL)200408-201204

TYPE C:REFER 33-01

main33449-35030iKUN15..XTR..HDCR;GGN15,25,KUN16,2#,35,TGN11,16,26..5F..(ARL,GCC,GEN,PHL)200505-201108

TYPE B:REFER 33-01

main33449-35030iKUN15..DCB..HDCR;KUN16,2#,36..5F..TH200608-200808

TYPE B:REFER 33-01,TYPE A:REFER 33-01

main33449-35030iTGN36..SCB;TGN36..DCB..SA;TGN16,26..ANCOM,SA;TGN26,36..DCB..DLX..LA200504-200812

main33449-35030iKUN16,26,36..5F..TH;KUN15,25,35..HDCR..TH200408-201107

TYPE A:REFER 33-01

main33449-35030iKUN16,26,36..5F..TH;KUN15,25,35..HDCR..TH200808-201107

TIRE & DISC WHEEL-215/65R16C 6J ALMINUM,TYPE B:REFER 33-01

main33449-35030iGGN25..5F..ARL;TGN36..5F..CBU;KUN16,26,36..5F;TGN26..ANCOM..CBU;TGN36..ANCOM..IV3;TGN26..LHD..5F..(GCC,GEN,LA,SA);GGN15,KUN15,25,35,TGN11,16..5F..(HDCR,HTWC)200808-201204

TYPE D:REFER 33-01

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9011908332

main90119-08332

90119T0226

main90119-T0226

90119T0227

main90119-T0227

9014980002

main90149-80002

9161261045

main91612-61045

22 parts on this diagram · 14 diagrams in section
