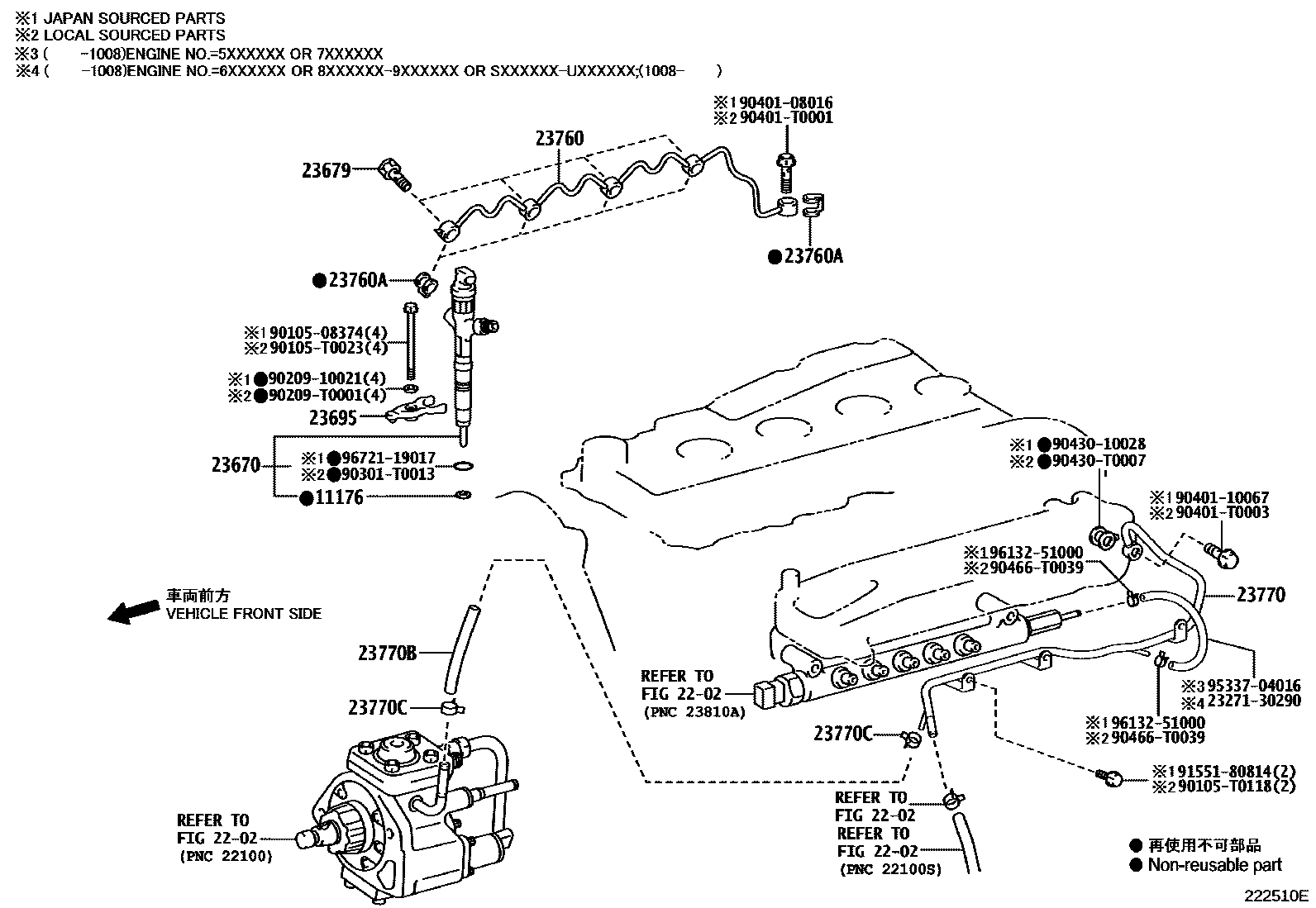

INJECTION NOZZLE

0001 1 0006 1 0008 1 0009 1CHILE SPEC 0012 1

11176SEAT, INJECTION NOZZLE

main11176-05010×4i5LE..LAN15,25,35..SA200810-201108

(L)

main11176-0L010×4i1KDFTV..KUN16,26..ARL200408-200608

*130

main11176-0L011×4i1KDFTV..KUN26..IDN,LA,PHL,TH;1KDFTV,2KDFTV..KUN15,26,36..XTR..SA;2KDFTV..KUN25..(DCB,SCB,SMT)..(ANCOM,GCC,GEN,LA,MA,PKN,TH);1KDFTV,2KDFTV..KUN1#,3#..(DCB,SCB,SMT,XTR)..(ANCOM,GCC,GEN,LA,PHL,TH)200808-201204

*130

main11176-30010×4i1KDFTV..KUN16,26..ARL200608-200711

main11176-30011×4i2KDFTV..KUN15..XTR..TH;2KDFTV..KUN35..SR..(PHL,SA);2KDFTV..KUN25..GCC,GEN,MA,PKN,SA;2KDFTV..KUN35..DLX..(GEN,PHL,SA,TH);1KDFTV,2KDFTV..KUN1#,26,36..(DCB,SCB,SMT,THDCB)..(GCC,GEN,IDN,PHL,SA,TH)200808-201204

*163 OR *184

main11176-64010×4i5LE..LAN15,25,35..SA200810-201108

(J)

2202INJECTION PUMP ASSEMBLY

→ Go to FIG 22-02

23670INJECTOR ASSY

main23670-09060×4i2KDFTV..KUN25,35..ANCOM,LA200507-200605

*163 OR *184

main23670-09061×4i2KDFTV..KUN25..SCB..MA;2KDFTV..KUN25..(DCB,XTR)..SR;2KDFTV..KUN15..(DCB,SCB,XTR)..(GCC,GEN,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA)200801-200812

*130

main23670-09070×4i1KDFTV..KUN16,26,36..GEN,LA,PHL,SA,TH200408-200711

*130

main23670-09071×4i1KDFTV..KUN16,26,36..IDN,LA,PHL,TH200808-200904

*130

main23670-09330×4supersedes 23670-09350i1KDFTV..KUN26,36..(DCB,SCB)..SA201001-201010

*163 OR *184

main23670-09350×4i1KDFTV..KUN16..TH;1KDFTV..KUN26..THDCB..5F;1KDFTV..KUN26..4FC..(PHL,TH);1KDFTV..KUN26,36..(DCB,SCB,SMT)..5F..(IDN,PHL,SA,TH)201008-201110

*130

main23670-09360×4i2KDFTV..KUN25..TH200905-200908

MARK 23670-0L070

main23670-09380×4i2KDFTV..KUN15..XTR..TH;2KDFTV..KUN35..SR..(PHL,SA);2KDFTV..KUN35..DLX..(GEN,PHL,SA,TH);2KDFTV..KUN10,25..GCC,GEN,MA,PKN,SA;2KDFTV..KUN15..(DCB,SCB,SMT)..(GCC,GEN,PHL,SA,TH); 2KDFTV..KUN35..SR..(PHL,SA);2KDFTV..KUN10,15..GCC,GEN,PHL,SA,TH;2KDFTV..KUN25,35..DLX..(GCC,GEN,PHL,PKN,SA,TH)201008-201204

*163 OR *184; MARK 23670-0L110,*130

main23670-39185×4i1KDFTV..KUN16,26..ARL200608-200711

*163 OR *184

main23670-39186×4i1KDFTV..KUN16,26..ARL200711-200803

*163 OR *184

main23670-39236×4i2KDFTV..KUN10,15,25,35..GCC,GEN,MA,PHL,SA,TH200902-200907

*163 OR *184

main23670-39276×4i2KDFTV..KUN25,35..LA; 2KDFTV..KUN25..LA;2KDFTV..KUN35..DCB..LA;2KDFTV..KUN15,25..RHD..SA;2KDFTV..KUN35..SCB..(LA,SA)200806-200810

EXPORT FROM ARGENTINA; HIGH ALTITUDE COUNTRY SPEC

main23670-39316×4i1KDFTV..KUN16,26..ARL200803-200808

*163 OR *184

main23670-39365×4i1KDFTV..KUN26,36..SA201010-201108

MARK 23670-30400

main23670-39375×4i1KDFTV..KUN16,26,36..GEN,IDN,PHL,SA,TH200902-201001

*163 OR *184

main23670-39355×4i2KDFTV..KUN25..THDCB,THSCB200910-201107

CHILE SPEC

23679SCREW, INJECTOR FOLLOW

main23679-0L010×4i1KDFTV,2KDFTV..KUN15,2#,3#..SA200408-200710

*130

main23679-30020×4i1KDFTV..KUN16,26..ARL200908-201001

*163 OR *184

main23679-30021×4i2KDFTV..KUN15..PKN201010-201201

*163 OR *184

23695CLAMP, NOZZLE HOLDER, NO.1

main23695-0L010×4i1KDFTV..KUN16,26,36..GEN,IDN,PHL,TH200903-201008

*163 OR *184

main23695-30010×4i1KDFTV..KUN16,26..ARL200608-200808

main23695-30011×4i1KDFTV..KUN16,26..ARL200809-200905

23760PIPE ASSY, NOZZLE LEAKAGE

main23760-05010i5LE..LAN15,25,35..SA200810-201108

(L)

main23760-0L010i2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH)200408-201202

*130

main23760-30020i1KDFTV..KUN16,26..ARL; 2KDFTV..KUN25..TH200808-200908

*163 OR *184

main23760-54030i5LE..LAN15,25,35200507-201009

(J)

23760AGASKET

main90430-T0008×5i1KDFTV,2KDFTV..KUN15,2#,3#..SA200408-200710

*130

main90904-30013×5i2KDFTV..KUN15..XTR..TH;2KDFTV..KUN35..SR..(PHL,SA);2KDFTV..KUN25..GCC,GEN,MA,PKN,SA;2KDFTV..KUN35..DLX..(GEN,PHL,SA,TH);1KDFTV,2KDFTV..KUN1#,26,36..(DCB,SCB,SMT,THDCB)..(GCC,GEN,IDN,PHL,SA,TH)200808-201204

*163 OR *184

23770PIPE ASSY, NOZZLE LEAKAGE, NO.2

main23770-0L020i1KDFTV..KUN16,26..ARL200408-200608

*130

main23770-0L030i2KDFTV..KUN25,35..SR..TH200908-201107

main23770-0L040i2KDFTV..KUN35..DLX;1KDFTV..KUN26..THDCB..5F;2KDFTV..KUN35..SR..(PHL,SA);1KDFTV..KUN26..4FC..(LA,PHL,TH);1KDFTV,2KDFTV..KUN1#..GCC,GEN,PHL,SA,TH;1KDFTV..KUN26,36..5F..(IDN,LA,PHL,SA,TH);2KDFTV..KUN25..ANCOM,GCC,GEN,LA,MA,PKN,SA201008-201204

*130,(L)

main23770-30060i2KDFTV..KUN25..GCC,GEN;2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15,25..LHD..SA;2KDFTV..KUN25..(DCB,XTR)..SR;2KDFTV..KUN35..(DCB,THDCB)..(GEN,SA);1KDFTV,2KDFTV..KUN1#,26,36..(DCB,SCB,THDCB,XTR)..(GCC,GEN,PHL,TH)200507-200810

*163 OR *184

main23770-30070i1KDFTV..KUN16,26..ARL200608-200808

main23770-30120i2KDFTV..KUN25,35..ANCOM;1KDFTV,2KDFTV..KUN15,26,36..XTR..SA201010-201204

*163 OR *184

23770BHOSE, FUEL

main23273-30180i1KDFTV..KUN16,26..ARL200608-200808

L=200

main95333-04020i5LE..LAN15,25,35200507-201009

L=200(*H,L=120),ID=4

main95333-06020i1KDFTV,2KDFTV..KUN2#,3#..ANCOM,LA200507-200605

*163 OR *184

main95337-06020i2KDFTV..KUN15..XTR..TH;2KDFTV..KUN35..SR..(PHL,SA);2KDFTV..KUN25..GCC,GEN,MA,PKN,SA;2KDFTV..KUN35..DLX..(GEN,PHL,SA,TH);1KDFTV,2KDFTV..KUN1#,26,36..(DCB,SCB,SMT,THDCB)..(GCC,GEN,IDN,PHL,SA,TH); 2KDFTV..KUN35..SR..PHL;1KDFTV..KUN26..IDN,LA,PHL,TH;1KDFTV,2KDFTV..KUN15,26,36..XTR..SA;2KDFTV..KUN35..DLX..(ANCOM,LA,PHL,TH);1KDFTV,2KDFTV..KUN1#,36..GCC,GEN,LA,PHL,TH;2KDFTV..KUN25..(DCB,SCB)..(ANCOM,GCC,GEN,LA,MA,PKN)200808-201204

L=200,*130; L=200,*163 OR *184

23770CCLAMP OR CLIP(FOR FUEL HOSE SET)

main90466-T0043×2i1KDFTV,2KDFTV..KUN2#..(THDCB,THSCB)..5F;1KDFTV,2KDFTV..KUN15,2#..(DCB,SCB)..5F..SA;1KDFTV,2KDFTV..KUN3#..(DCB,SCB,THDCB)..5F..(GEN,SA)201008-201204

*130

main96132-51000×2i5LE..LAN15,25,35200507-201009

main96135-51100×2i1KDFTV,2KDFTV..KUN15,2#,3#..SA200507-200608

*163 OR *184

2327130290VALVE, THERMOSTATIC VACUUM SWITCHING, NO.1

main23271-30290

9010508374

main90105-08374

90105T0023

main90105-T0023

90105T0118

main90105-T0118

9020910021

main90209-10021

90209T0001

main90209-T0001

90301T0013

main90301-T0013

9040108016

main90401-08016

9040110067

main90401-10067

90401T0001

main90401-T0001

90401T0003

main90401-T0003

9043010028

main90430-10028

90430T0007

main90430-T0007

90466T0039

main90466-T0039

9155180814

main91551-80814

9533704016

main95337-04016

9613251000

main96132-51000

9672119017

main96721-19017

28 parts on this diagram · 5 diagrams in section
