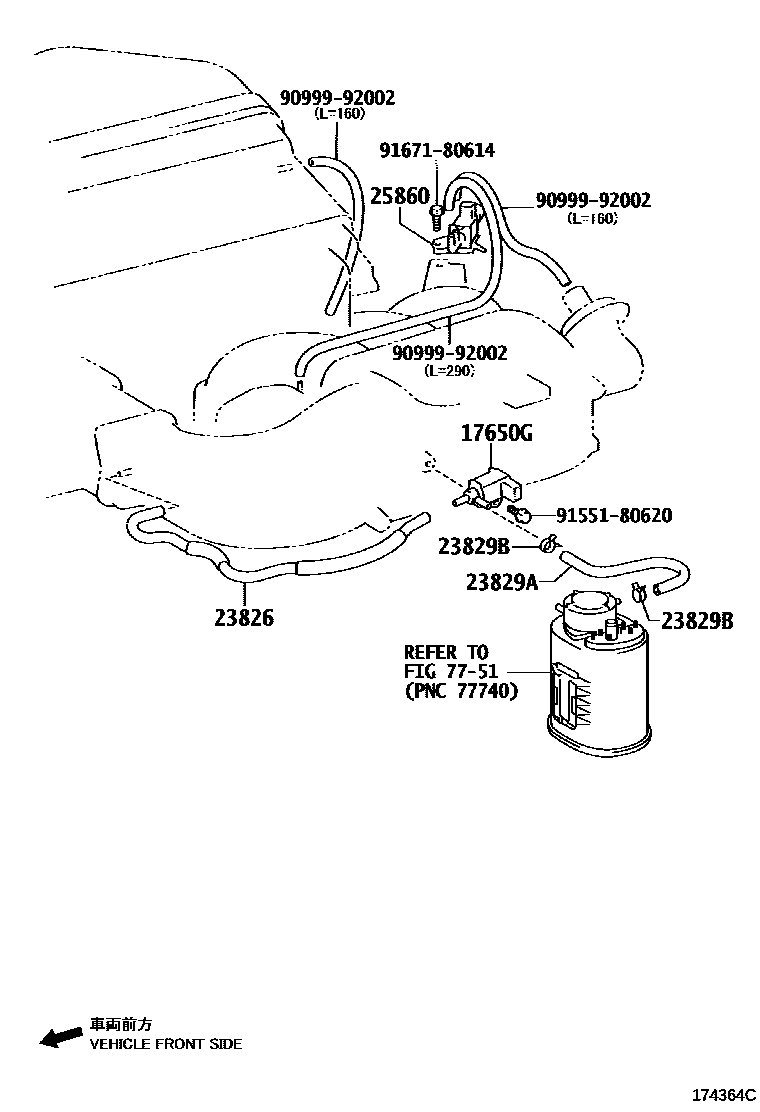

VACUUM PIPING

0001 1 0002 1 0004 1 0005 1 0010 1 0013 1 0014 1W/O(EGR) 0017 1CHILE SPEC 0018 1CHILE SPEC 0020 1 0021 1 0022 1LEADED GASOLINE

17650GVALVE, DUTY VACUUM SWITCHING

main90910-12262i1GRFE..GGN15,35;1GRFE..GGN25..5FC..SA;1GRFE..GGN25..ANCOM,ARL,LA200808-201204

main90910-12275i1TRFE..TGN15..IV3200808-201108

23826HOSE, FUEL VAPOR FEED, NO.1

main23826-31010i1GRFE..GGN15,35;1GRFE..GGN25..5FC..SA;1GRFE..GGN25..ANCOM,ARL,LA200808-201204

23829AHOSE, FUEL VAPOR FEED

main23829-0C010i2TRFE..TGN36..SCB;2TRFE..TGN26..THDCB;2TRFE..TGN16..XTR..TH;1TRFE,2TRFE..TGN10,11,15;2TRFE..TGN26..ANCOM,GCC,SA,TH;2TRFE..TGN26,36..DCB..DLX..LA;2TRFE..TGN16..5F..(ARL,GCC,SA);2TRFE..TGN36..DCB..(ANCOM,PHL,SA)200501-200812

main23829-0C020i2TRFE..TGN26,36201203-201204

*303

main23829-0C050i2TRFE..TGN26,36201203-201204

*301

main23829-0P020i1GRFE..GGN15,25200502-200812

23829BCLIP(FOR FUEL VAPOR FEED HOSE)

main90466-T0040×2i1GRFE..GGN15..5F..SR;1GRFE..GGN25..SCB,XTR200808-201107

25860VALVE ASSY, VACUUM SWITCHING, NO.1

main25860-31010i1GRFE..GGN15,25200502-200812

7751FUEL TANK & TUBE

→ Go to FIG 77-51

9099992002

main90999-92002

9155180620

main91551-80620

9167180614

main91671-80614

9 parts on this diagram · 12 diagrams in section
