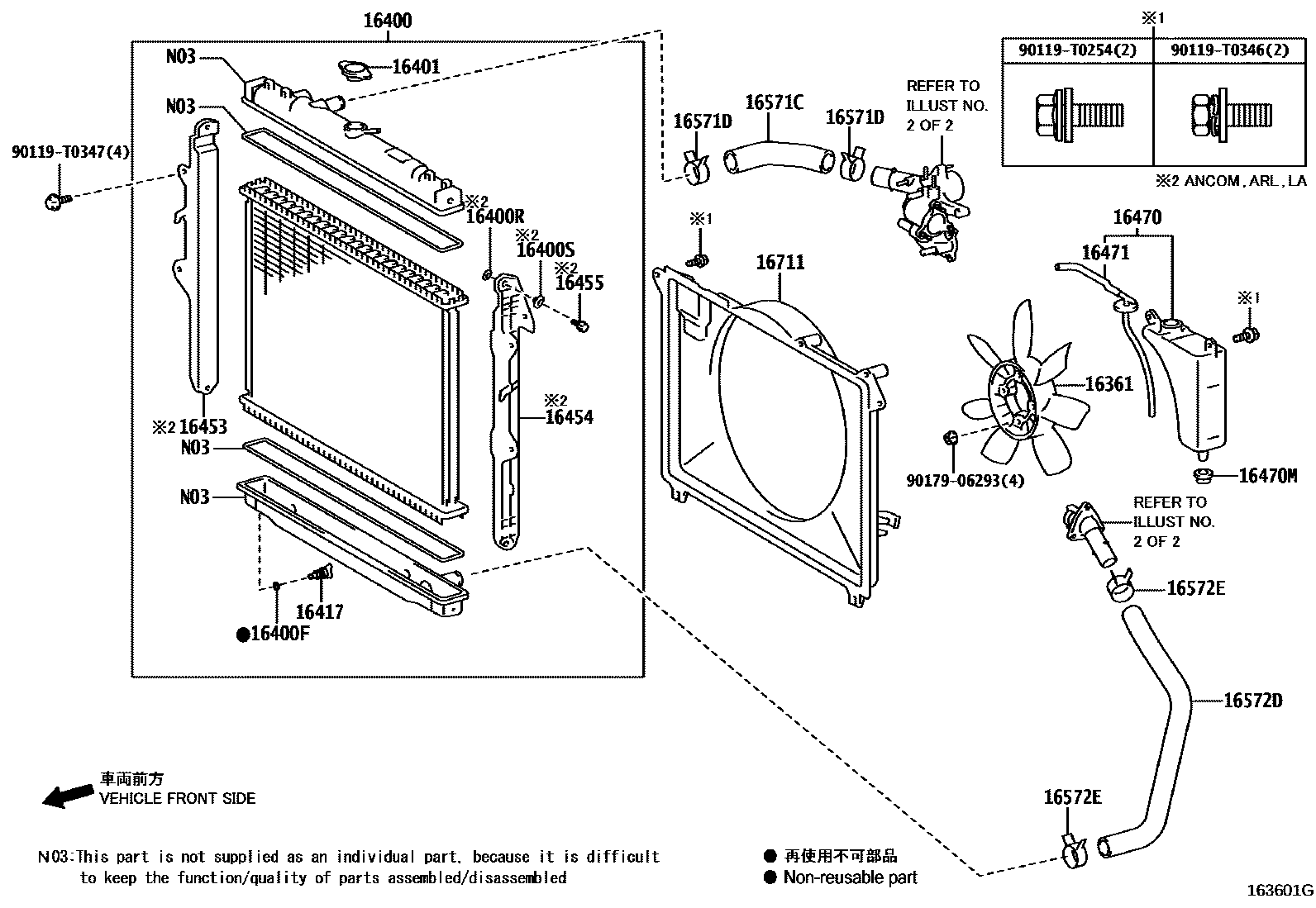

RADIATOR & WATER OUTLET

0001 1 0002 1 0003 1 0007 1 0010 1 0013 1 0014 1 0017 1CHILE SPEC 0018 1CHILE SPEC 0020 1 0021 1 0022 1 0023 1

16361FAN

main16361-0C010i2TRFE..TGN36..SCB;2TRFE..TGN16..XTR..TH;1TRFE,2TRFE..TGN1#..5F;2TRFE..TGN26,36..DCB..DLX..LA;2TRFE..TGN26..ANCOM,GCC,GEN,SA,TH;2TRFE..TGN36..DCB..(ANCOM,PHL,SA)200501-200812

main16361-0C011i1TRFE..TGN15..CBU;2TRFE..TGN16..XTR;2TRFE..TGN16..ARL,GCC,SA,TH;1TRFE,2TRFE..TGN10,11,26,36201010-201201

main16361-0L020i2KDFTV..KUN15..SR..SA200808-201108

main16361-31060i1GRFE..GGN25..SA200502-200810

main16361-54131i5LE..LAN15,25,35200507-201009

main16361-67020i2KDFTV..KUN25,35201112

TYPE B:REFER ILLUST.

16400RADIATOR ASSY

main16400-05160i5LE..LAN15,25,35..SA200507-200810

main16400-05170i5LE..LAN15..PKN200710-201009

main16400-0C180i1TRFE,2TRFE..TGN1#,26..5F..(ARL,GCC,GEN,IDN,TH)200808-201107

main16400-0C190i2TRFE..TGN16,26,36..4FC200808

main16400-0C220i1TRFE,2TRFE..TGN15,16,26,36..SA200504-200810

main16400-0L120i1KDFTV..KUN16..DCB..ARL;1KDFTV..KUN16..SCB,SMT,XTR;1KDFTV,2KDFTV..KUN15,26,36..XTR..SA;1KDFTV,2KDFTV..KUN15,2#,3#..5F..(ARL,GEN,PHL,TH)200808-201108

main16400-0L130i1KDFTV..KUN16,26..4FC..(ARL,GEN,PHL,TH)200808-201107

main16400-0L160i1KDFTV,2KDFTV..KUN15,2#,3#..(DCB,SCB)..5F..SA200810-201108

main16400-0L170i1KDFTV..KUN26,36..4FC..SA200810-201108

main16400-0L180i1KDFTV,2KDFTV..KUN2#,3#..5F..(ANCOM,LA)200501-200812

main16400-0L190i1KDFTV..KUN26..4FC..LA200810

main16400-0L230i2KDFTV..KUN15..PKN201010-201202

main16400-0L250i2KDFTV..KUN10,15,25..GCC200808-201107

main16400-0L260i2KDFTV..KUN25..5F..MA200809-201109

main16400-0L270i2KDFTV..KUN25..4FC200809-201109

main16400-0P030i1GRFE..GGN15,25..5F..ARL200502-200808

main16400-0P040i1GRFE..GGN25..5FC..IV3200808-201107

main16400-0P050i1GRFE..GGN25..5F..SA200504-200810

main16400-0P060i1GRFE..GGN25..5FC..SA200504-200810

main16410-0C160i2TRFE..TGN26..5F..LA;2TRFE..TGN36..LHD..5F;2TRFE..TGN26..ANCOM..CBU200810

16400FPACKING(FOR RADIATOR DRAIN COCK)

main16492-0D430i1GRFE..GGN25..5F..SA; 1KDFTV,2KDFTV..KUN15,2#,3#..SA; 1TRFE,2TRFE..TGN15,16,26,36..SA200504-200810

main16492-21050i1GRFE..GGN15,25..ANCOM,ARL200502-200812

16400RBUSHING(FOR RADIATOR)

main16444-0L060×2i2KDFTV..KUN25..5F..MA200703-200809

main16444-75180×2i1GRFE..GGN25..5FC..IV3; 1KDFTV..KUN26..IDN;1KDFTV..KUN16..DCB..5F..TH; 2TRFE..TGN16..(DCB,SCB)..GEN200906-201107

16400SCOLLAR(FOR RADIATOR)

main16445-0C180×2i1GRFE..GGN15..5FC;1GRFE..GGN25..5FC..(ANCOM,ARL,LA)..CBU; 1KDFTV..KUN16..4FC;1KDFTV..KUN26..THDCB;2KDFTV..KUN35..SR..PHL;2KDFTV..KUN15..SMT..HDCR;1KDFTV..KUN26..ARL,PHL,TH;1KDFTV..KUN16..SCB,SMT,XTR;1KDFTV,2KDFTV..KUN10,25,36..GCC,GEN,TH;1KDFTV,2KDFTV..KUN16,35..(DCB,THDCB)..(ARL,GEN);2KDFTV..KUN15..(DCB,SCB,XTR)..(DLX,SR)..(GCC,GEN,PHL,TH); 2TRFE..TGN16..XTR;2TRFE..TGN26,36..4FC;2TRFE..TGN16..ARL,GCC,TH;1TRFE,2TRFE..TGN10,11,15,26..5F..(GCC,GEN,IDN)200906

16401CAP SUB-ASSY, RADIATOR

main16401-0H060i2TRFE..TGN36..SCB;2TRFE..TGN16..XTR..TH;1TRFE,2TRFE..TGN1#..5F;2TRFE..TGN26,36..DCB..DLX..LA;2TRFE..TGN26..ANCOM,GCC,GEN,SA,TH;2TRFE..TGN36..DCB..(ANCOM,PHL,SA)200501-200812

16417COCK

main16417-0C180i1GRFE..GGN15,25..ANCOM,ARL,LA; 2TRFE..TGN26,36..4FC;2TRFE..TGN26..5F..(GCC,GEN);1TRFE,2TRFE..TGN1#..ARL,GCC,GEN,IDN,TH200808-201204

main16417-0D430i1GRFE..GGN25..5F..SA; 1KDFTV,2KDFTV..KUN15,2#,3#..SA; 1TRFE,2TRFE..TGN15,16,26,36..SA200504-200810

main16417-21280i2TRFE..TGN26..ANCOM;2TRFE..TGN36..5F..DLX;2TRFE..TGN26..DCB..DLX..LA200504-200812

16453PLATE, RADIATOR SIDE

main16453-0C180i2TRFE..TGN16..5F..(ARL,GCC,GEN);2TRFE..TGN16,36..(DCB,XTR)..(ANCOM,PHL,TH);1TRFE,2TRFE..TGN10,11,15,26..GCC,GEN,IDN,TH200501-200812

main16453-0L120i1GRFE..GGN15..SCB,XTR;1GRFE..GGN15..DCB..DLX;1GRFE..GGN15..DCB..5FC..SR;1GRFE..GGN25..DCB..(ANCOM,ARL,LA); 1KDFTV..KUN16..4FC;1KDFTV..KUN16..DCB..ARL;1KDFTV..KUN26,36..XTR..SA;1KDFTV..KUN16..SCB,SMT,XTR;2KDFTV..KUN25..GCC,GEN,PKN,TH;1KDFTV,2KDFTV..KUN10,15,26,3#..ARL,GCC,GEN,PHL,TH200808

main16453-0L260i2KDFTV..KUN25..MA200809-201109

16454PLATE, RADIATOR SIDE

main16454-0C180i2TRFE..TGN16..5F..(ARL,GCC,GEN);2TRFE..TGN16,36..(DCB,XTR)..(ANCOM,PHL,TH);1TRFE,2TRFE..TGN10,11,15,26..GCC,GEN,IDN,TH200501-200812

main16454-0L120i1GRFE..GGN15..5F..SR;1GRFE..GGN25..SCB,XTR; 1KDFTV..KUN26..IDN;1KDFTV..KUN16..DCB..5F..TH200808-201107

main16454-0L260i2KDFTV..KUN25..MA200503-200809

16455BOLT, RADIATOR SIDE SUPPORT PLATE

main91651-B0820×4i1GRFE..GGN15,25..ARL200502-200808

16470TANK ASSY, RADIATOR RESERVE

main16470-05070i5LE..LAN15,25,35200507-201009

main16470-0C040i1GRFE..GGN15,25..ARL200502-200808

main16470-0C060i1GRFE..GGN25..SA; 1TRFE,2TRFE..TGN15,16,26,36..SA200710-200810

main16470-0C070i1GRFE..GGN25..ANCOM200507-200812

main16470-0L010i1KDFTV..KUN26..THDCB;2KDFTV..KUN25..SCB..MA;1KDFTV..KUN16..DCB,SCB;1KDFTV..KUN16,36..XTR..TH;1KDFTV..KUN26..DCB..5F..SA;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN36..RHD..(DCB,SCB)..5F;2KDFTV..KUN25,35..DLX..(GCC,GEN,SA);2KDFTV..KUN15..(DCB,SCB)..(PHL,SA)..CBU;1KDFTV..KUN26..(DCB,SCB,XTR)..(ARL,PHL,TH);2KDFTV..KUN10,15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH)200408-201107

main16470-0L011i2KDFTV..KUN15..PKN; 2KDFTV..KUN25..RHD201108-201202

main16470-0L030i1KDFTV,2KDFTV..KUN2#,3#..ANCOM,LA200501-200812

main16470-0L031i1KDFTV,2KDFTV..KUN2#,3#..LHD201108-201203

16470MGROMMET

main90480-T0003i1GRFE..GGN15..SCB,XTR;1GRFE..GGN25..5FC..SA;1GRFE..GGN15..DCB..DLX;1GRFE..GGN15,35..DCB..5FC..SR;1GRFE..GGN25..DCB..(ANCOM,ARL,LA); 2TRFE..TGN16..XTR;2TRFE..TGN26..ANCOM..CBU;2TRFE..TGN36..ANCOM..IV3;1TRFE,2TRFE..TGN15,36..CBU;2TRFE..TGN26..LHD..(GCC,GEN,LA,SA);1TRFE,2TRFE..TGN10,11,16..ARL,GCC,IDN,SA,TH200808

main90480-T0004i1KDFTV..KUN26..THDCB;2KDFTV..KUN25..SCB..MA;1KDFTV..KUN16..DCB,SCB;1KDFTV..KUN16,36..XTR..TH;1KDFTV..KUN26..DCB..5F..SA;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN36..(DCB,SCB)..5F;2KDFTV..KUN15..(DCB,SCB)..(PHL,SA)..CBU;2KDFTV..KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);1KDFTV..KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);2KDFTV..KUN10,15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH)200408-201202

16471CAP SUB-ASSY, RESERVE TANK

main16401-30010i1KDFTV,2KDFTV..KUN1#,2#,3#200408-200803

main16401-30011i5LE..LAN15,25,35200804-201009

main16405-0C020i2TRFE..TGN16..5F;2TRFE..TGN16..XTR..TH;1TRFE,2TRFE..TGN10,11,15,26,36..GCC,GEN,IDN,PHL,SA,TH200501-200810

main16405-0C050i1GRFE..GGN25..LHD200812

16571HOSE, RADIATOR, INLET

main16571-05070i5LE..LAN15,25,35..SA200710-200810

main16571-05080i5LE..LAN15..PKN200710-201009

main16571-0L030i1KDFTV,2KDFTV..KUN1#,2#,3#..ARL,GCC,GEN,IDN,MA,PHL,SA,TH200808-201109

main16571-0L050i1KDFTV,2KDFTV..KUN2#,3#..ANCOM,LA200501-200812

main16571-0L080i2KDFTV..KUN15..PKN; 2KDFTV..KUN25..PKN201010-201202

16571CHOSE, RADIATOR, NO.1

main16571-0C080i2TRFE..TGN16..5F;2TRFE..TGN16..XTR..TH;1TRFE,2TRFE..TGN10,11,15,26,36..GCC,GEN,IDN,PHL,SA,TH200501-200810

main16571-0C100i2TRFE..TGN26..LA;2TRFE..TGN36..LHD;2TRFE..TGN26..ANCOM..CBU200810

main16571-0P030i1GRFE..GGN15..SCB,XTR;1GRFE..GGN25..5FC..SA;1GRFE..GGN15..DCB..DLX;1GRFE..GGN15,35..DCB..5FC..SR;1GRFE..GGN25..DCB..(ANCOM,ARL,LA)200808

16571DCLIP, RADIATOR HOSE, NO.1

main90466-T0011×2i2TRFE..TGN36..SCB;2TRFE..TGN16..XTR..TH;1TRFE,2TRFE..TGN1#..5F;2TRFE..TGN26,36..DCB..DLX..LA;2TRFE..TGN26..ANCOM,GCC,GEN,SA,TH;2TRFE..TGN36..DCB..(ANCOM,PHL,SA)200501-200812

16572HOSE, RADIATOR, OUTLET

main16572-05060i5LE..LAN15,25,35..SA200810-201108

main16572-05070i5LE..LAN15..PKN200710-201009

main16572-0L030i1KDFTV..KUN16..XTR..TH;2KDFTV..KUN25..SCB..MA;2KDFTV..KUN25..GCC,GEN,SA;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV,2KDFTV..KUN16,35..(DCB,SCB,THDCB)..(ARL,GEN,SA,TH);1KDFTV,2KDFTV..KUN10,15,26,36..(DCB,SCB,THDCB,XTR)..(ARL,GCC,GEN,PHL,SA,TH)200408-200810

main16572-0L050i1KDFTV,2KDFTV..KUN2#,3#..ANCOM,LA200501-200812

main16572-0L080i2KDFTV..KUN15..PKN; 2KDFTV..KUN25..PKN201010-201202

16572DHOSE, RADIATOR, NO.2

main16572-0C070i2TRFE..TGN16..XTR;2TRFE..TGN16..ARL,GCC,SA,TH;2TRFE..TGN26..LHD..(GCC,GEN,SA);1TRFE,2TRFE..TGN10,11,15,36..GCC,GEN,IDN,SA200808-201108

main16572-0C090i2TRFE..TGN26..LA;2TRFE..TGN36..LHD;2TRFE..TGN26..ANCOM..CBU200810

main16572-0P030i1GRFE..GGN15..5F..SR;1GRFE..GGN25..SCB,XTR200808-201107

16572ECLIP, RADIATOR HOSE, NO.2

main90466-T0011×2i1GRFE..GGN15,35;1GRFE..GGN25..5FC..SA;1GRFE..GGN25..ANCOM,ARL,LA; 2TRFE..TGN36..CBU;1TRFE,2TRFE..TGN1#;2TRFE..TGN26..ANCOM..CBU;2TRFE..TGN36..ANCOM..IV3;2TRFE..TGN26..LHD..(GCC,GEN,LA,SA)200808-201204

16711SHROUD, FAN

main16711-05060i5LE..LAN15,25,35..SA200507-200810

main16711-05070i5LE..LAN15..PKN200710-201009

main16711-0C090i1TRFE,2TRFE..TGN1#,26,36..ARL,GCC,GEN,IDN,PHL,TH200501-200808

main16711-0C110i1TRFE,2TRFE..TGN15,16,26,36..SA200504-200810

main16711-0C120i2TRFE..TGN26..LA;2TRFE..TGN36..LHD;2TRFE..TGN26..ANCOM..CBU200810

main16711-0L040i2KDFTV..KUN25..MA200503-200809

main16711-0L050i1KDFTV,2KDFTV..KUN1#,2#,3#..ARL,GCC,GEN,PHL,TH200408-200808

main16711-0L070i1KDFTV,2KDFTV..KUN15,2#,3#..SA200504-200810

main16711-0L080i1KDFTV,2KDFTV..KUN2#,3#..ANCOM,LA200501-200812

main16711-0L120i2KDFTV..KUN25..PKN201010

main16711-0P030i1GRFE..GGN15..SCB,XTR;1GRFE..GGN15..DCB..DLX;1GRFE..GGN15..DCB..5FC..SR;1GRFE..GGN25..DCB..(ANCOM,ARL,LA)200808

main16711-0P040i1GRFE..GGN25,35..SA200810-201108

90119T0254

main90119-T0254

90119T0346

main90119-T0346

90119T0347

main90119-T0347

9017906293

main90179-06293

24 parts on this diagram · 13 diagrams in section
