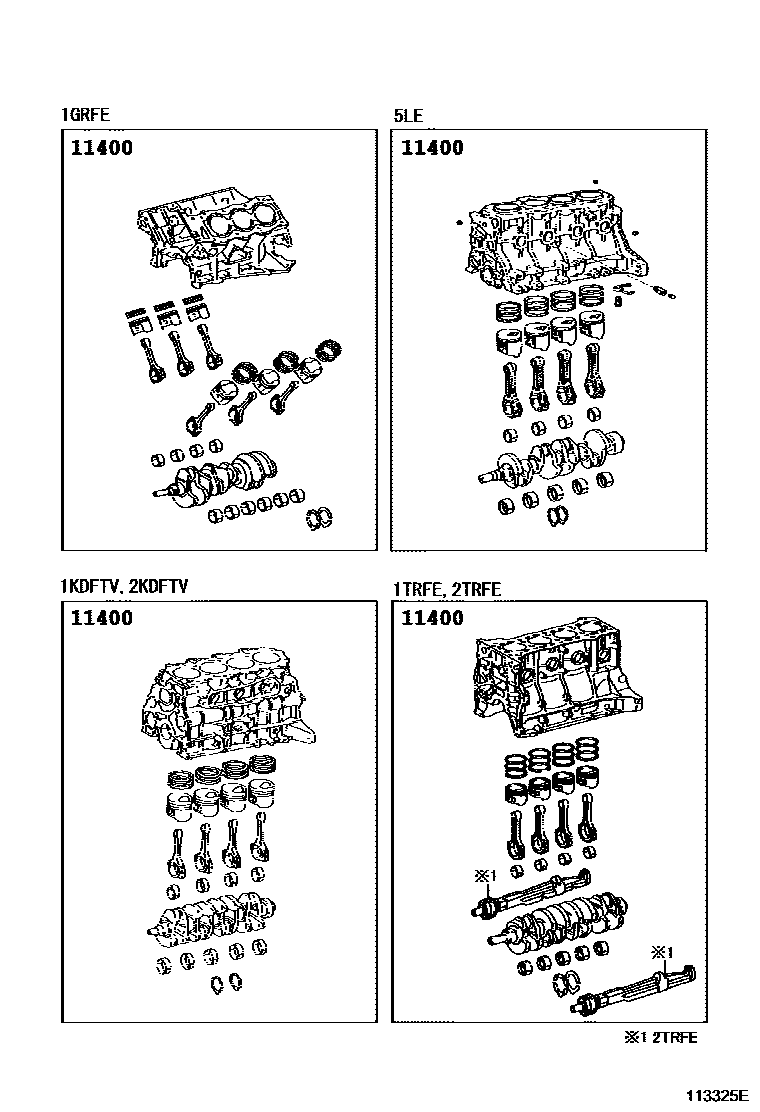

SHORT BLOCK ASSEMBLY

11400BLOCK ASSY, SHORT

main11400-0C010i2TRFE..TGN26..THDCB;2TRFE..TGN36..ANCOM..IV3;2TRFE..TGN36..4FC..ANCOM;2TRFE..TGN26..DCB..DLX..LA;2TRFE..TGN36..5F..DLX..CBU;2TRFE..TGN11,16..ARL,GCC,TH;2TRFE..TGN26..(ANCOM,GCC)..CBU200808-201204

main11400-0C020i1TRFE..TGN15..SA200810-201108

*125 OR *187

main11400-0C030i1TRFE..TGN10,15..GCC,GEN,SA200506-200712

*187

main11400-0C040i1TRFE..TGN10..IDN200701-200712

*187

main11400-0C050i2TRFE..TGN16,26..GEN200502-200506

main11400-0C060i2TRFE..TGN16,26,36..ARL,PHL,TH200501-200506

main11400-0C070i2TRFE..TGN26..SCB..LA;2TRFE..TGN36..4FC..LA;2TRFE..TGN26,36..SR..LA201006-201107

main11400-0C110i1TRFE..TGN10..IDN200608-200701

*125

main11400-0C120i1TRFE..TGN10,15..GCC,GEN,SA200712-200810

*125

main11400-0C170i1TRFE..TGN10..IDN200712-200806

*187

main11400-0C180i1TRFE..TGN10..IDN200701-200806

*125

main11400-0L040i1KDFTV..KUN26..THDCB..5F;1KDFTV..KUN26,36..(DCB,SCB)..5F..SA201008-201108

*130

main11400-0L050i2KDFTV..KUN25..SR..MA;2KDFTV..KUN25..SCB..MA;2KDFTV..KUN25,35..ANCOM;2KDFTV..KUN15..DCR..(PHL,TH)200408-200811

main11400-0L090i2KDFTV..KUN15..HDCR200808-201008

main11400-0L160i2KDFTV..KUN25,35..SR..TH200908-201107

main11400-30230i1KDFTV..KUN26,36..SA200504-200810

main11400-30240i2KDFTV..KUN35..SCB..SA;2KDFTV..KUN15,25..RHD..SA200504-200810

main11400-30250supersedes 11400-30240i2KDFTV..KUN15..GEN;2KDFTV..KUN25..(DCB,SCB)..(GCC,GEN)201008

main11400-30310i1KDFTV..KUN16,26..ARL200808-201107

main11400-30360i1KDFTV..KUN26..DCB..GEN201008-201107

main11400-31040i1GRFE..GGN25,35..5FC..(ANCOM,SA)200808-200903

main11400-31290i1GRFE..GGN25,35..ANCOM,LA,SA200903-201204

main11400-31300i1GRFE..GGN15,25..ARL201012-201107

main11400-31310i1GRFE..GGN15,25..ARL200906-201012

main11400-54190i5LE..LAN15,25,35..SA200907

main11400-75500i1TRFE..TGN15..SA200609-200709

*130

main11400-75501i1TRFE..TGN15..SA200709-200712

*130

main11400-75510i2TRFE..TGN16,26,36..SA200609-200709

*130

main11400-75511i2TRFE..TGN16,26,36..SA200709-200712

*130

main11400-75540i1TRFE..TGN15..SA200810-201005

*130

main11400-75550i2TRFE..TGN16,26,36..SA200810-201005

*130

main11400-75560i2TRFE..TGN26..SCB..LA;2TRFE..TGN26,36..SR..LA;2TRFE..TGN36..4FC..DLX..LA; 2TRFE..TGN36..5F..DLX..LA;2TRFE..TGN26..DCB..DLX..LA200810-201006

BRAZIL SPEC

main11400-30320i2KDFTV..KUN25..THDCB,THSCB200910-201107

CHILE SPEC

main11400-75520i2TRFE..TGN16,26..LHD..SA200609-200709

LEADED GASOLINE,*130

main11400-75521i2TRFE..TGN16,26..LHD..SA200709-200712

LEADED GASOLINE,*130

1 parts on this diagram · 1 diagram in section
