STANDARD TOOL

09110JACK ASSY

main09111-0K010iKUN16,TGN16..XTR..TH;TGN16..5F..(ARL,GCC,GEN);KUN16,TGN10..(DCB,SCB)..(DLX,SR);GGN15,KUN10,15,LAN15,TGN11,15..(DCB,SCB,XTR)..(ARL,GCC,GEN,PHL,PKN,TH)200408-200910

main09111-0K011iKUN15..SR..SA;GGN15,KUN1#,TGN1#..ARL,GCC,GEN,IDN,PHL,TH200908-201105

main09111-0K020iGGN25,KUN2#,36,TGN26,36..(DCB,SCB,XTR)..(ARL,GCC,GEN,MA,PHL,TH)200408-200809

main09111-0K021iKUN26,36..XTR..SA;GGN25,KUN2#,3#,TGN26..(DCB,SCB,SMT,XTR)..(ARL,GCC,GEN,IDN,MA,PHL,PKN,TH)200908-201105

main09111-0K040iTGN26..LA;KUN25..ANCOM,LA;TGN36..LHD..CBU;TGN26..DCB..ANCOM;TGN36..ANCOM..IV3;GGN25,KUN26,3#..ANCOM,GEN,LA;KUN25,TGN26..LHD..(SCB,THDCB,THSCB)..(ANCOM,GEN)..CBU200808-200909

main09111-0K041iKUN25,TGN26..ANCOM,LA;KUN25,TGN26..THDCB,THSCB;GGN25,KUN26,3#,TGN36..LHD..(ANCOM,GEN,LA)200910-201106

main09111-0K050iKUN15,LAN15,TGN15,16..SA200810-200909

main09111-0K051iKUN15,LAN15,TGN15,16..DLX..SA200910-201106

main09111-0K060iGGN25,35,KUN2#,3#,LAN25,35,TGN26,36..SA200810-200909

main09111-0K061iGGN25,35,KUN2#,3#,LAN25,35,TGN26,36..(DCB,SCB)..SA200910-201106

main09111-0K070iGGN15,KUN1#,LAN15,TGN1#..ARL,GCC,GEN,IDN,PHL,SA,TH201106-201108

main09111-0K071iKUN15201109-201202

main09111-0K080iGGN25,35,KUN2#,3#,LAN25,35,TGN26,36201106-201108

main09111-0K081iGGN25,KUN2#,3#,TGN26,36201109

09114EXTENSION SUB-ASSY, JACK HANDLE

main09114-0K010×2iGGN25..DCB..ARL;TGN16..ARL,GCC,TH;KUN26..ARL,GEN,PHL,TH;GGN15,KUN16..DCB..DLX;GGN15,KUN16..SCB,SMT,XTR;KUN26,36,TGN16..XTR..(GEN,SA);GGN15,KUN16..DCB..(4FC,5FC)..SR;KUN10,15,25,3#,TGN10,11,15,26..GCC,GEN,IDN,MA,PHL,TH200808-201109

main09114-0K030×2iTGN36..SCB..LA200810-201009

main09114-0K060×2iKUN15,LAN15..PKN200710-201202

main09114-0K070×2iGGN25,KUN25,35,TGN26,36..ANCOM200812-201204

main09114-0K100×2iGGN25,35,KUN15,2#,3#,LAN15,25,35,TGN15,16,26,36..(DCB,SCB)..SA200903-201108

09115ROD SUB-ASSY, JACK HANDLE

main09115-0K060iKUN15,LAN15..PKN200710-201202

main09115-0K080iKUN25..SCB..MA;KUN25..(DCB,XTR)..SR;KUN16,TGN16..XTR..TH;KUN25,TGN16..5F..(ARL,GCC,GEN,SA);KUN16,35..(DCB,SCB,THDCB)..(ARL,GEN,SA,TH);GGN15,25,KUN10,15,26,36,LAN15,25,35,TGN10,11,15,26,36..(DCB,SCB,THDCB,XTR)..(ARL,GCC,GEN,IDN,PHL,SA,TH)200408-200810

main09115-0K090iTGN36..SCB..LA200810-201009

main09115-0K100iGGN25,KUN25,35,TGN26,36..ANCOM200812

09120BAG, TOOL

main09120-02080iGGN25,35,KUN15,2#,3#,LAN15,25,35,TGN15,16,26,36..(DCB,SCB)..SA201008-201108

main09120-0K010iKUN15..SR..SA200808-201108

main09120-0K030iKUN2#,3#,TGN26,36..LA200501-200810

main09120-0K040iGGN25,KUN15,2#,3#,LAN15,25,35,TGN15,16,26,36..SA200504-200810

main09120-0K070iKUN25..PKN201010

main09120-0K080iGGN25,KUN25,35,TGN26,36..ANCOM200507-200812

09130PLIERS

main90080-99020iKUN2#,3#,TGN26,36..LA200501-200810

main90089-99010iKUN35..SR..SA200808-201009

main99913-11500iGGN25,KUN25,35,TGN26,36..ANCOM200507-200812

09135DRIVER, SCREW

main90080-99019iTGN36..SCB..LA201010

main90089-99009iKUN26..THDCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN25..(DCB,XTR)..SR;KUN16,36,TGN16..XTR..TH;KUN36..RHD..(DCB,SCB)..5F;KUN25,35..DLX..(GCC,GEN,SA);TGN16..5F..(ARL,GCC,GEN,SA);KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN16,TGN10..(DCB,SCB)..(DLX,SR);KUN26..(DCB,SCB,XTR)..(ARL,PHL,TH);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,25,KUN10,LAN15,25,35,TGN11,15,26,36..ARL,GCC,GEN,PHL,PKN,SA,TH200408-201202

main99915-10700iGGN25,KUN25,35,TGN26,36..ANCOM200812

09141SPANNER

main09141-0K030iKUN26..IDN;GGN25..SCB,XTR;TGN16..(DCB,SCB)..GEN;GGN15,KUN16..DCB..5F..SR201001-201107

8 X 10

main09141-0K040iKUN26..IDN;GGN25..SCB,XTR;TGN16..(DCB,SCB)..GEN;GGN15,KUN16..DCB..5F..SR201001-201107

12 X 14

main90080-99021iKUN2#,3#,TGN26,36..LA200501-200810

12 X 14

main90080-99022iKUN2#,3#,TGN26,36..LA200501-200810

8 X 10

main90089-99006iGGN25..5FC..SA;TGN26..DCB..SA;GGN35,KUN15,2#,3#,LAN15,25,35,TGN15,16,36..(DCB,SCB)..(DLX,SR)..(PKN,SA)200808

8 X 10

main90089-99007iGGN15,25,KUN1#,2#,3#,TGN1#,26..ARL,GCC,GEN,IDN,MA,PHL,TH200808-200912

12 X 14

main99914-10810iGGN25,KUN25,35,TGN26,36..ANCOM200812

8 X 10

main99914-11214iGGN25,KUN25,35,TGN26,36..ANCOM200812

12 X 14

09150WRENCH, HUB NUT BOX

main09150-0B050iGGN25,35,KUN15,2#,3#,LAN15,25,35,TGN15,16,26,36..(DCB,SCB)..SA200810-201108

main09150-0K010iKUN15,26,36..XTR..SA;GGN15,25,KUN1#,2#,3#,TGN1#,26..ARL,GCC,GEN,IDN,MA,PHL,TH200808-201109

main09150-0K030iGGN25,KUN2#,3#,TGN26,36..LA200810-201110

main09150-0K060iKUN35..DCB..ANCOM;GGN25,KUN25,TGN26,36..ANCOM200507-200812

main09150-0K070iKUN25..PKN201010-201202

09155WRENCH, SPARK PLUG

main09155-0C010iTGN26,36..LA200504-200810

main09155-74010iTGN16..5F;TGN16..XTR..TH;TGN26..DCB..SA;GGN15,25,TGN10,11,15,26,36..ANCOM,ARL,GCC,GEN,IDN,PHL,TH200501-200812

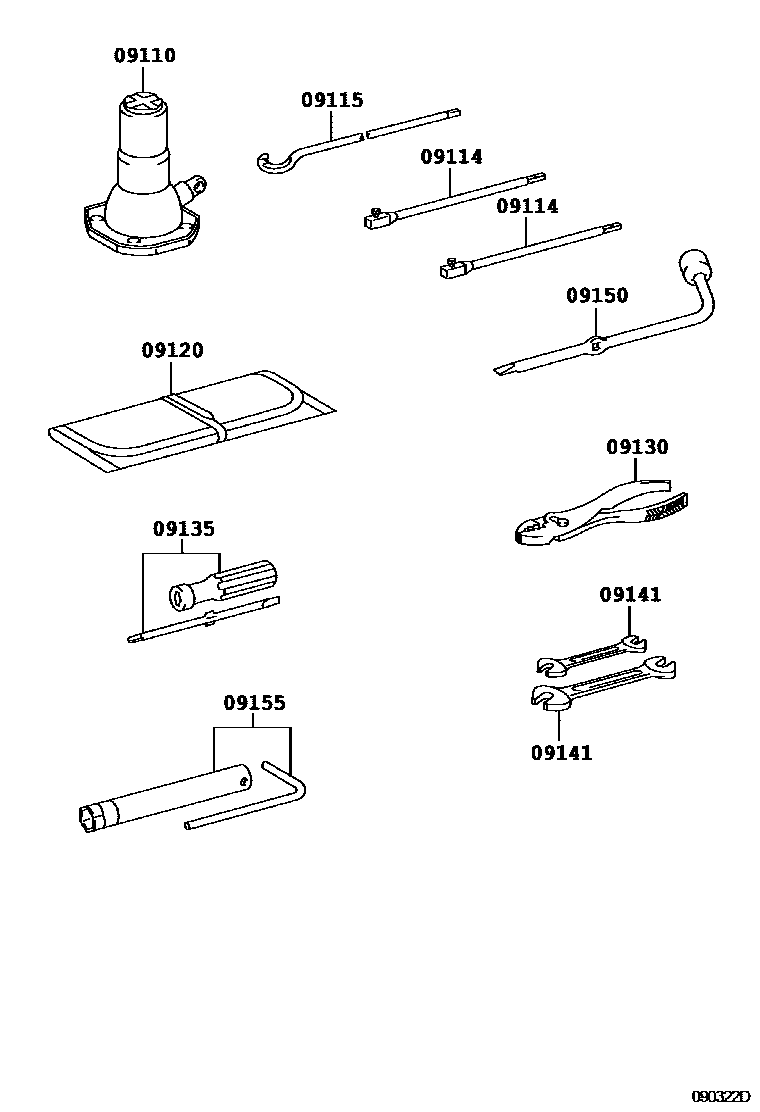

9 parts on this diagram · 1 diagram in section
