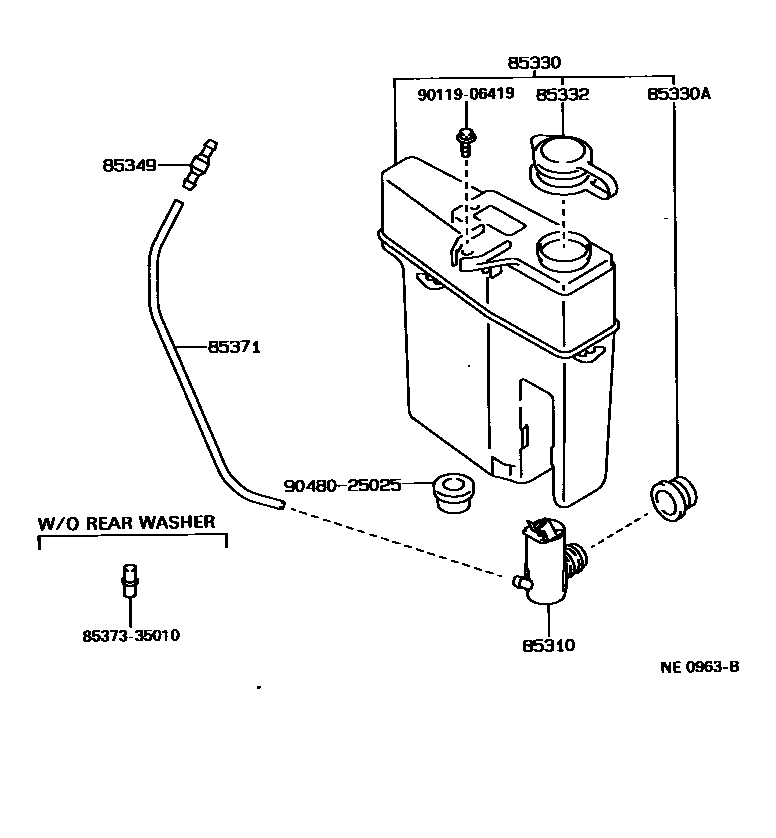

WINDSHIELD WASHER

0001 1 0002 1W(REAR WINDOW WIPER) 0003 1NOZZLE & HOSE 0004 1NOZZLE & HOSE

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85310-22080iLN8#,90,RN125,8#,90,YN8#,92198808-199208

main85330-35040iRN85..CBU;RN85..RHD..IV3;RN85..EFI..IV3;LN8#,9#,RN80,90,YN8#,92199705-200106

main85330-35060iRN125199208-199308

W(REAR WIPER)

85330JAR ASSY, WINDSHIELD WASHER

main85315-35110iRN125199108-199308

W(REAR WIPER)

main85331-89136iLN8#,9#,RN125,8#,90,YN8#,9#198808-199705

main85331-89142iRN125198907-199108

W(REAR WIPER)

85330ABUSH, WINDSHIELD WASHER JAR

main90099-32089iRN85..CBU;RN85..RHD..IV3;RN85..EFI..IV3;LN8#,9#,RN80,90,YN8#,92199705-200106

85332CAP, WINDSHIELD WASHER JAR

main85332-12650iRN125199108-199308

W(HEADLAMP CLEANER)

main85332-89133iLN8#,9#,RN125,8#,90,YN8#,9#198808-199705

main85332-89134iRN125198907-199108

W(HEADLAMP CLEANER)

85349JOINT, WINDSHIELD WASHER HOSE, NO.1

main85349-89122iLN8#,9#,RN125,8#,90,YN8#,9#198808-199705

85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main90099-33656iRN125198907-199308

L=1800(*H,L=540)

main90446-06013iLN8#,9#,RN125,8#,90,YN8#,9#198808-199705

L=1000(*H,L=370)

main90446-07001iRN125198907-199108

L=1800(*H,L=600)

8537335010HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main85373-35010

9011906419

main90119-06419

9048025025

main90480-25025

9 parts on this diagram · 4 diagrams in section
