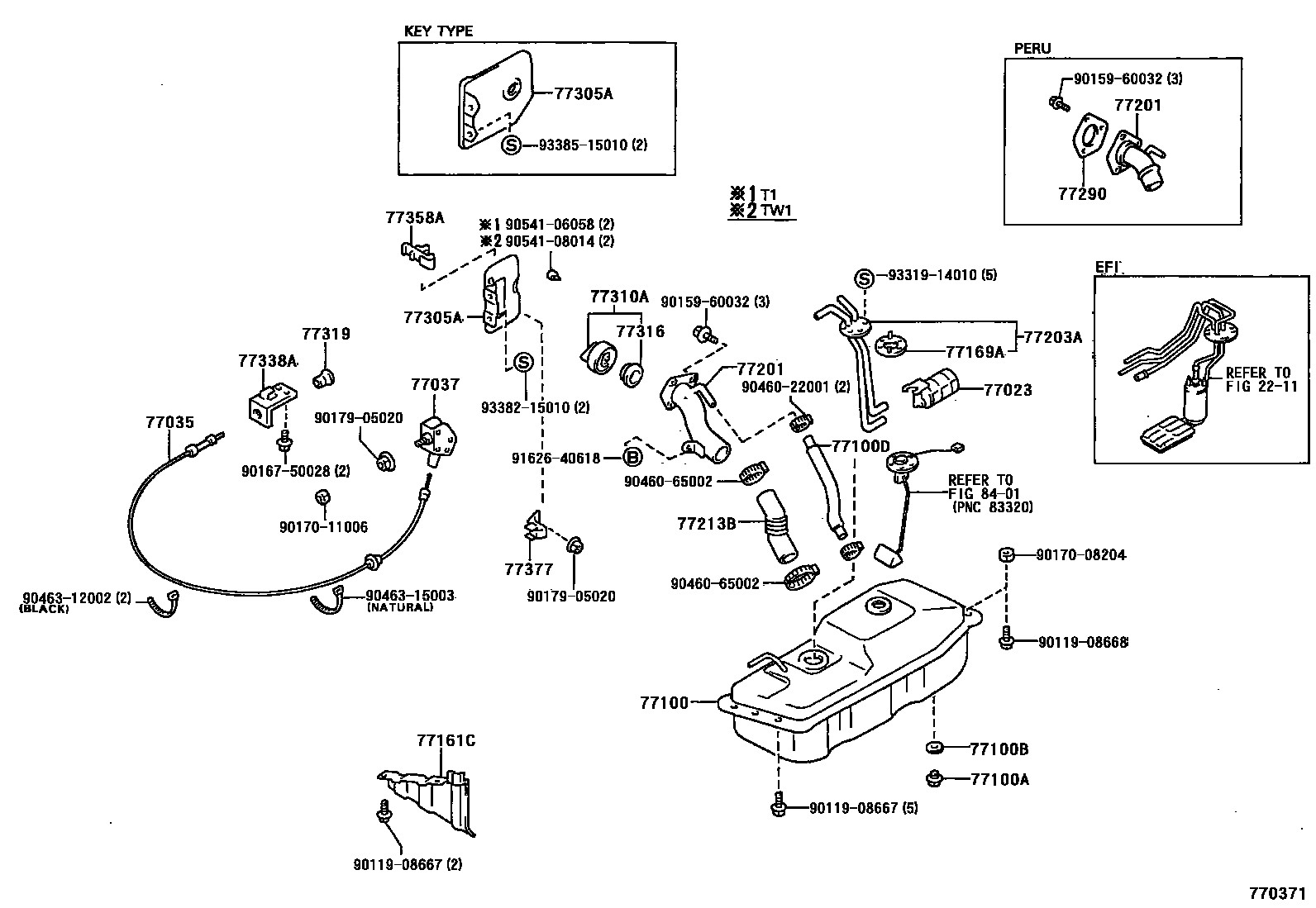

FUEL TANK & TUBE

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1 0010 1 0011 1 0012 1 0013 1 0014 1 0015 1

2211

77023FILTER SUB-ASSY, FUEL SUCTION TUBE

main77023-12050iRN125,8#,90,YN8#,9#..CBR198808-199909

main77023-22040iLN8#,9#198808-200106

77035CABLE SUB-ASSY, FUEL LID LOCK CONTROL

main77035-35010iLN81,RN80,YN80,81..LHD199112-199708

main77035-35020iYN85..LHD..T1..CBU;LN86,RN85,YN86..T1..V;LN85,RN85..LHD..T1..(DSL,EFI)..GEN..CBU199112-199909

main77035-35030iLN80..GEN199112-199708

main77035-35040iLN85,YN85..RHD..T1..GEN..CBU199112-199909

main77035-35050iRN90,YN92..LHD..CBU199112-199708

main77035-35060iRN90..ARL199112-199806

main77035-35070iLN85..RHD..TH199408-199806

main77035-89108iRN85..T1..V;LN85,86,YN85,86,87..LHD..T1..(GEN,V)..CBU198808-199112

main77035-89109iLN81,RN80,YN80,81..LHD198808-199112

main77035-89110iLN90,YN92..LHD..CBU198808-199112

main77035-89111iRN90,YN92..RHD198808-199112

main77035-89112iLN85,YN85,87..RHD..T1..GEN..CBU198808-199112

main77035-89113iLN80..GEN198808-199112

main77035-89116iRN125198907-199308

77037LOCK SUB-ASSY, FUEL FILLER OPENING LID

main77037-89102iRN85..T1..V;YN85..T1..GEN..CBU;LN85,86,RN85..T1..(DSL,EFI)..(GEN,V)..CBU;LN80,81,90,RN80,90,YN80,81,86,87,92..T1..(ARL,GEN,V)..CBU198808-199909

main77037-89103iRN125198907-199308

77100TANK ASSY, FUEL

main77001-35964iLN80,81,RN80,YN80,81198808-199108

main77001-35977iLN85,86,90,RN85,90,YN85,86,87,92..T1198808-199108

sub77001-35989

main77001-35978iLN85,86,RN85,YN85,86,87..TW1198808-199108

sub77001-35990

main77001-35983iRN125198907-199308

sub77001-35900

main77001-35986iLN80,81,RN80,YN80,81199108-199806

main77001-35987iRN85..T1..(ARL,V);RN85..RHD..GEN..IV3;RN85..T1..CBR..GEN..CBU;LN85,86,9#,RN90,YN85,86,92..T1199108-200106

sub77001-3D937

main77001-35988iLN85,86,RN85,YN85,86..TW1..(CBR,DSL)199108-200106

sub77001-3D938

main77001-35990iLN86..DLX..ARL199412-199708

sub77001-3D940

main77001-35990iLN85..RHD..TW1..CBU199412-199909

NEW ZEALAND SPEC

sub77001-3D940

main77001-3D901iRN85..T1..EFI199401-199909

sub77001-3D934

main77001-3D902iRN85..TW1..EFI199401-199909

77100APLUG(FOR FUEL TANK)

main90105-12018iLN8#,9#,RN125,8#,90,YN8#,9#198808-200106

77100BGASKET(FOR FUEL TANK)

main90430-12245iLN8#,9#,RN125,8#,90,YN8#,9#198808-200106

77100DHOSE, FUEL, NO.1(FOR FUEL TANK)

main77408-35020iLN8#,9#,RN8#,90,YN8#,9#..T1198808-200106

L=340

main77408-35040iRN125199108-199308

L=507

main90445-21883iLN85,86,RN85,YN85,86,87..TW1198808-200106

L=320

77161CPROTECTOR, FUEL TANK, LOWER

main77161-35050iLN8#,90,RN8#,90,YN8#,92..T1198808-199108

sub77161-35051

main77161-35051iRN85..EFI..IV3;RN85..T1..(ARL,V);RN85..T1..GEN..CBU;RN85..RHD..GEN..IV3;LN8#,9#,RN80,90,YN8#,92..T1199108-200106

main77161-35090iLN85,86,RN85,YN85,86,87..TW1198808-200106

main77161-35110iRN125198907-199308

77169AGASKET, FUEL SUCTION TUBE SET

main77169-14010iRZN200200106

main77169-14020iLN200198808-200106

77201PIPE SUB-ASSY, FUEL TANK INLET

main77201-35340iLN200..TW1198808-200106

main77201-35350iRZN200..TW1198808-199909

main77201-35360iYN87..LHD..T1198808-199108

PERU SPEC

main77201-35380iYN85..GEN..IV3;RN85..RHD..GEN..IV3;LN85,86,RN85..T1..(DSL,EFI)..IV3198808-199909

main77201-35390iRN85,90,YN85..T1..ARL198808-199708

main77201-35430iRN125198907-199108

main77201-35440iRN125199108-199308

main77201-35450iLN86..T1..CBU;LN80,81,85,9#,RN8#,90,YN8#,9#..T1..(CBR,DSL)..(GEN,TH,V)..CBU199108-200106

main77201-35460iRN85..T1..EFI..CBU;RN85,90,YN85..T1..ARL..CBU199108-199909

77203ATUBE SUB-ASSY, FUEL SUCTION

main77203-35220iLN80,81198808-199806

main77203-35240iLN200..TW1200106

main77203-35261iLN200..STD200106

main77203-35330iRN80,YN80,81198808-199708

main77203-35380iRN85..CBR..CBU;RN85..RHD..IV3;RN90,YN85,86,92198808-199909

main77203-35390iLN85,86,9#198808-200106

main77203-35420iRN125198907-199308

main77203-35670iRZN200..TW1200106

main77203-35790iRZN200..T1200106

77213BHOSE, FUEL TANK TO FILLER PIPE

main77213-35200iRN85..EFI..IV3;RN85..T1..(ARL,V);RN85..T1..GEN..CBU;RN85..RHD..GEN..IV3;LN8#,9#,RN80,90,YN8#,92..T1198808-200106

main77213-35210iLN85,86,RN85,YN85,86,87..TW1198808-200106

main77213-35220iYN87..LHD..T1198808-199108

PERU SPEC

main77213-35230iRN125199108-199308

main77213-35240iRN125198907-199108

77290SHIELD ASSY, FUEL TANK FILLER PIPE

main77290-89102iRN125198907-199308

main77291-35030iYN87..LHD..T1198808-199108

PERU SPEC

77305ALID SUB-ASSY, FUEL FILLER OPENING

main77305-89107iLN85,86,RN85,YN85,86,87..TW1198808-200412

main77305-89108iLN200,RZN200..T1198808-200412

main77305-89109iLN9#,YN90199408-199806

main77305-89109iLN90,RN90,YN92..(ARL,GEN,V)..CBU198808-199708

W(FUEL LID OPENER)

main77305-89110iLN85..T1..STD..CBU;LN80,81,86,RN8#,YN8#..T1..CBU198808-200106

main77305-89111iYN85..RHD..T1..GEN;LN85..RHD..T1..5F..GEN..CBU198808-199909

W(FUEL LID OPENER)

main77305-89111iYN85..LHD..T1..CBU;LN85..LHD..T1..5F..CBU;LN85..T1..(4F,4FC)..CBU;LN80,81,86,RN8#,YN80,81,86,87..T1..(GEN,V)..CBU199103-199108

W(FUEL LID OPENER) OR KENYA SPEC

main77305-89111iLN85..SR5199408-199806

main77350-89103iRN125198907-199308

sub77350-35020

77310ACAP ASSY, FUEL TANK

main77310-12100iRN125,8#,90,YN8#,92..(4D,T1)..CBU198808-199108

main77310-12150iLN200..STD199803-200106

main77310-35061iLN8#,90..T1..CBU198808-199108

main77310-35070iRN125,8#,90,YN8#,9#..(4D,T1)..(GEN,TH,V)..CBU199108-199803

sub77310-48010

main77310-35080iRN85,90,YN85..T1..ARL..CBU199108-199708

sub77310-12140

main77310-35080iYN87..LHD..T1198808-199108

PERU SPEC

sub77310-12140

main77310-35110iLN8#,9#..T1..CBU199108-199803

sub77310-12150

main77310-48010iRZN200..T1199803-199909

77316GASKET, FUEL TANK CAP

main77316-12050iLN8#,90,RN125,8#,90,YN8#,92..(4D,T1)..CBU198808-199108

main77316-16010iYN87..LHD..T1198808-199108

PERU SPEC

main77316-16010iLN8#,9#,RN125,8#,90,YN8#,9#..(4D,T1)..CBU199108-200106

77319KNOB, FUEL TANK CAP

main77319-89102-02iRN8#..T1..SR5199008-199108

RED,TRIM3#

sub77319-89102

main77319-89102-03iLN85,RN85,YN85..T1..(GEN,V)..CBU;LN80,81,86,90,RN80,90,YN80,81,86,87,92..T1..(ARL,GEN,V)..CBU198808-199108

GRAY,TRIM1#

sub77319-89102

main77319-89102-04iLN85,RN85,YN85..T1..(GEN,V)..CBU;LN80,81,86,90,RN80,90,YN80,81,86,87,92..T1..(ARL,GEN,V)..CBU198808-199108

BLUE,TRIM8#

sub77319-89102

main77319-89102-06iLN85,RN85,YN85..T1..(GEN,V)..CBU;LN80,81,86,90,RN80,90,YN80,81,86,87,92..T1..(ARL,GEN,V)..CBU198808-199108

BROWN,TRIM4#

sub77319-89102

main77319-89102-D3iRN8#,YN86..T1..(DLX,SR5)199108-199112

RED,TRIM3#

sub77319-89102

main77319-89102-R9iLN86,RN85..T1..V;YN85..T1..GEN..CBU;LN80,81,85,RN80,90,YN80,81,86,92..T1..(ARL,GEN,V)..CBU199108-199112

BLUE,TRIM8#

sub77319-89102

main77319-89102-S4iLN86,RN85..T1..V;YN85..T1..GEN..CBU;LN80,81,85,RN80,90,YN80,81,86,92..T1..(ARL,GEN,V)..CBU199108-199112

GRAY,TRIM1#

sub77319-89102

main77319-89103-03iRN125198907-199108

GRAY,TRIM1#

sub77319-89103

main77319-89103-04iRN125198907-199108

BLUE,TRIM8#

sub77319-89103

main77319-89103-06iRN125198907-199108

BROWN,TRIM4#

sub77319-89103

main77319-89103-D3iRN8#,90,YN86..T1..(DLX,SR5)..V199112-199708

RED,TRIM3#

sub77319-89103

main77319-89103-R9iRN85..T1..EFI;LN86,RN85..T1..V;YN85..T1..GEN..CBU;LN80,81,85,RN125,80,90,YN80,81,86,92..(4D,T1)..(ARL,GEN,V)..CBU199108-199708

BLUE,TRIM8#

sub77319-89103

main77319-89103-S4iYN85..T1..GEN..CBU;LN86,RN85,YN86..T1..V;LN85,9#,YN90..RHD..T1..CBU;LN80,81,RN80,90,YN80,81,92..ARL,GEN,V;LN85,RN85..LHD..T1..(DSL,EFI)..GEN..CBU199108-199909

GRAY,TRIM1#

sub77319-89103

77338ABRACKET, FUEL TANK CAP LOCK CONTROL ROD

main77338-35030iLN85,9#..SR5199408-199806

W(FUEL LID OPENER)

main77338-89105iRN85..T1..V;LN86,YN80,85,87..T1..(GEN,V)..CBU;LN85,RN85..T1..(DSL,EFI)..(GEN,TH)..CBU;LN80,81,90,RN125,80,90,YN81,86,92..(4D,T1)..CBU198808-199909

77358ASTOPPER, FUEL FILLER OPENING LID

main77358-24010iLN8#,90,RN8#,90,YN8#,92..T1..CBU198808-198902

main77358-89101iLN85..T1..STD..CBU;LN80,81,86,RN8#,90,YN8#,92..T1..CBU198902-200106

main77360-24010iLN85,YN85..T1..GEN..CBU;LN80,90,RN80,90,YN80,81,86,87,92..T1..CBU198808-198902

W(FUEL LID OPENER)

main77360-89102iYN85..RHD..T1..GEN;LN85..RHD..T1..5F..GEN..CBU199103-199108

W(FUEL LID OPENER) OR KENYA SPEC

main77360-89102iYN85..LHD..T1..CBU;LN85..T1..(4F,4FC)..CBU;LN85,RN85..LHD..T1..5F..CBU;LN80,81,86,90,RN80,90,YN80,81,86,87,92..T1..(ARL,GEN,V)..CBU198902-199909

W(FUEL LID OPENER)

main77360-89102iLN85,9#,YN90..SR5199408-199806

77377RETAINER, FUEL FILLER OPENING LID LOCK

main77377-20030iLN85,YN85..T1..GEN..CBU;LN90,RN80,90,YN80,81,86,87,92..T1..CBU198808-199909

8401

9011908667

main90119-08667

9011908668

main90119-08668

9015960032

main90159-60032

9016750028

main90167-50028

9017008204

main90170-08204

9017011006

main90170-11006

9017905020

main90179-05020

9046022001

main90460-22001

9046065002

main90460-65002

9046312002

main90463-12002

9046315003

main90463-15003

9054106058

main90541-06058

9054108014

main90541-08014

9162640618

main91626-40618

9331914010

main93319-14010

9338215010

main93382-15010

9338515010

main93385-15010

39 parts on this diagram · 15 diagrams in section
