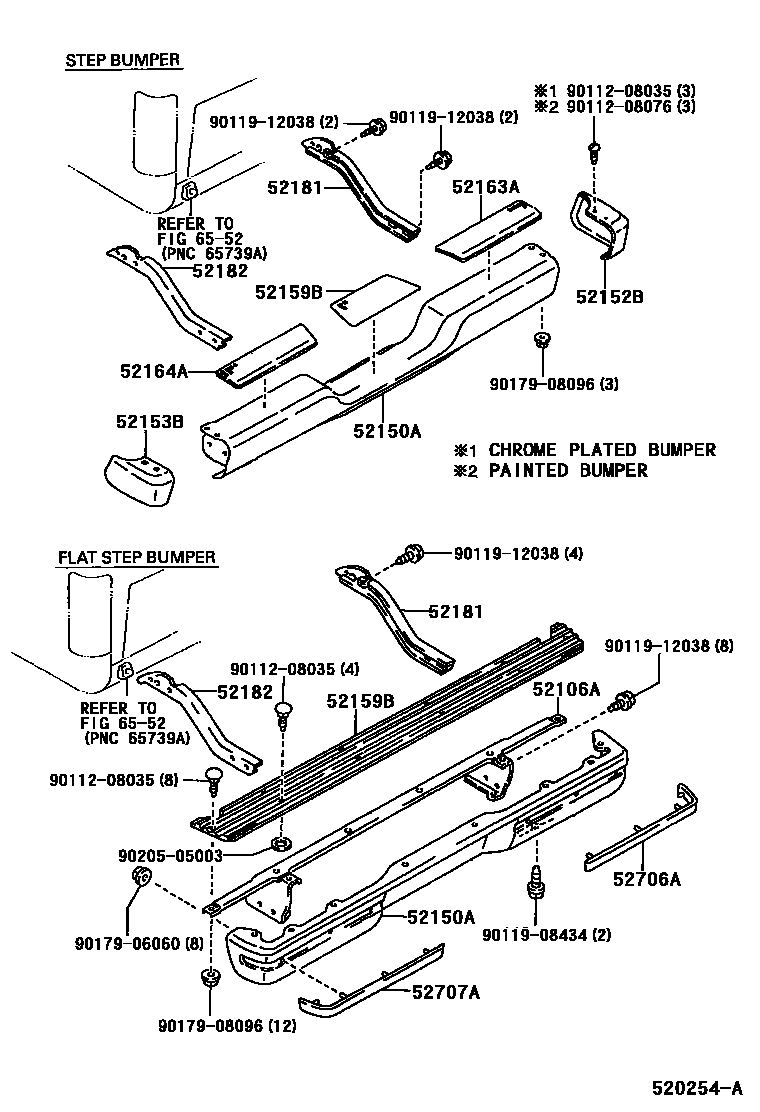

REAR BUMPER & BUMPER STAY

0001 1 0002 1 0003 1

52106AREINFORCEMENT SUB-ASSY, REAR BUMPER

main52106-89104iRN85..SR5..GEN199508-199708

CHINA SPEC

52150ABUMPER ASSY, REAR

main52105-89111iRN85..SR5..GEN199508-199708

CHINA SPEC

main52105-89116iRN125198907-199108

main52105-89117iRN125198907-199108

CHROME PLATED PACKAGE

sub52105-35150

main52150-35010iRN85..LHD..IV3;LN85,RN90..RHD..SR5;RN85..STD..CBR..GEN..CBU199308-199608

main52150-89108iLN85..RHD..GEN..IV3199008-199108

MALTA SPEC

main52150-89113iLN90,YN92..GEN..CBU;LN8#,RN8#,YN8#..STD..(GEN,V)..CBU198808-199008

W(PAINTED BUMPER)

52152BEXTENSION, REAR BUMPER, RH

main52106-89105iRN125198907-199108

main52106-89106iRN125199108-199308

main52152-35010iLN85..LHD..IV3;RN85..SR5..GEN;LN80,86,YN80,85,86,92..GEN;LN85,RN85..(DSL,EFI)..GEN..CBU199108-200106

W(PAINTED BUMPER)

main52152-89104iLN85..RHD..GEN..IV3199008-199108

W(CROME PLATED BUMPER)

main52152-89112iLN85..LHD..IV3;LN85,YN87..GEN..CBU;LN80,90,YN80,85,92..GEN199008-199108

W(PAINTED BUMPER)

52153BEXTENSION, REAR BUMPER, LH

main52107-89103iRN125198907-199108

main52107-89104iRN125199108-199308

main52153-35010iRN85..LHD..IV3;LN85,RN90..RHD..SR5;RN85..STD..CBR..GEN..CBU;LN81,85,86,YN81,86..LHD..STD..(TH,V)199608-199909

main52153-89104iLN85..LHD..IV3;RN85..SR5..GEN;RN85..EFI..CBU;LN85,YN87..GEN..CBU;RN85..RHD..GEN..CBU;LN80,86,90,YN80,85,86,92..GEN199008-200106

W(CHROME PLATED BUMPER)

main52153-89112iLN8#,90,YN80,85,87,92..GEN..CBU198808-199008

W(PAINTED BUMPER)

52159BPLATE, REAR BUMPER

main52159-35030iLN200,RZN200200106

main52159-89102iLN85..TW1..IV3199108-199708

W(CHROME PLATED BUMPER)

main52159-89104iLN81,86,RN8#,90,YN81,86..V198808-199708

main52159-89106iRN125198907-199308

52163APLATE, REAR BUMPER, RH

main52163-35030iLN200,RZN200200106

main52163-89101iRN90,YN92..ARL,GEN;LN86,RN85..LHD..T1;LN86,RN85..TW1..(DLX,STD);LN80,81,85,YN8#..STD..(GEN,V)199208-199308

52164APLATE, REAR BUMPER, LH

main52164-35030iLN200,RZN200200106

main52164-89101iLN8#,90,YN80,81,85,92..GEN,V;RN90,YN86,87..(SR5,STD)..CBU199008-199103

52181ARM, REAR BUMPER, RH

main52181-89117iRN85..LHD..IV3;LN85,86,RN85,YN85,86,87..(GEN,V)..CBU198808-199308

main52181-89118iLN80,81,90,RN80,90,YN80,81,92..(ARL,GEN,V)..CBU198808-199708

52182ARM, REAR BUMPER, LH

main52182-89114iRN85..LHD..IV3;LN85,86,RN85,YN85,86,87..(GEN,V)..CBU198808-199308

main52182-89115iLN80,81,90,RN80,90,YN80,81,92..(ARL,GEN,V)..CBU198808-199708

52706AMOULDING SUB-ASSY, REAR BUMPER SIDE, RH

main52706-89101iLN81,86,RN8#,90,YN81,86..V198808-199708

52707AMOULDING SUB-ASSY, REAR BUMPER SIDE, LH

main52707-89101iRN85..SR5..GEN199508-199708

CHINA SPEC

6552

9011208035

main90112-08035

9011208076

main90112-08076

9011908434

main90119-08434

9011912038

main90119-12038

9017906060

main90179-06060

9017908096

main90179-08096

9020505003

main90205-05003

19 parts on this diagram · 3 diagrams in section
