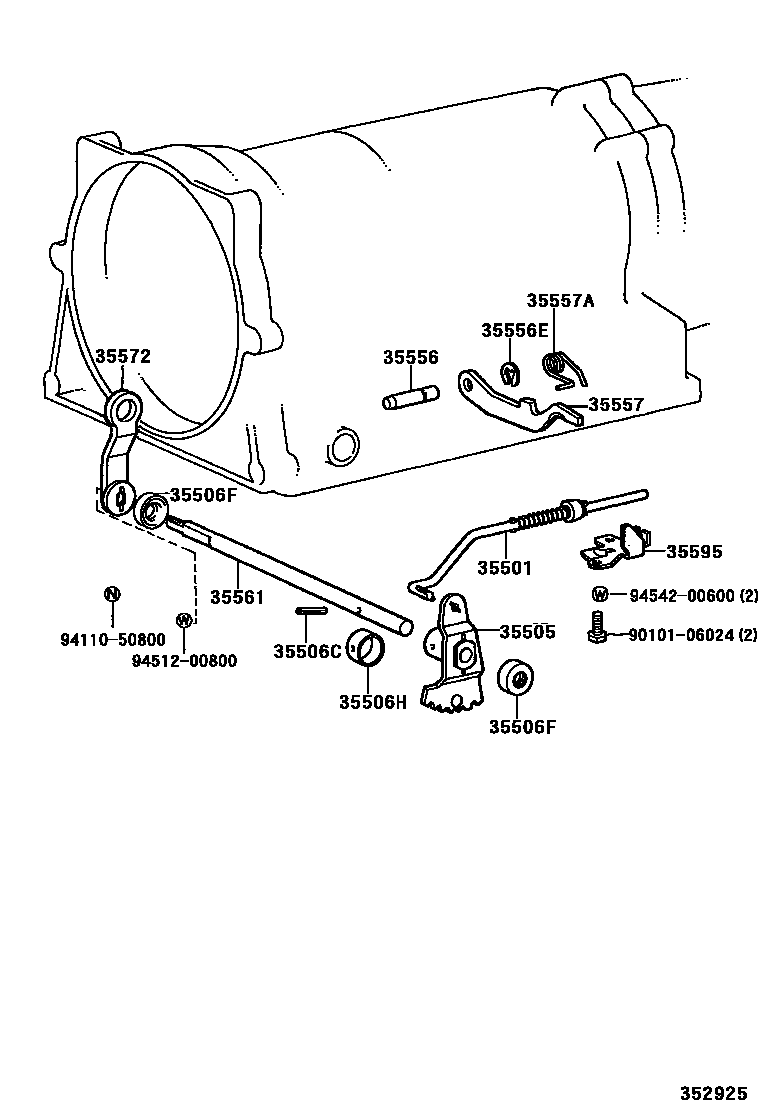

THROTTLE LINK & VALVE LEVER (ATM)

0001 1 0002 1 0003 1

35501ROD SUB-ASSY, PARKING LOCK

main35501-22020iLN85,86,RN85,90..4FC198808-199708

main35501-26020iLN90..4FC199611-199806

35505LEVER SUB-ASSY, MANUAL VALVE

main35505-22040iLN85,86,90,RN85,90..4FC198808-199806

35506CPIN, SLOTTED SPRING (FOR MANUAL VALVE LEVER SHAFT)

main90254-04011iLN85,86,90,RN85,90..4FC198808-199806

35506FSEAL, OIL (FOR MANUAL VALVE LEVER SHAFT)

main90311-11001×2iLN85,RN85,90..4FC198808-199012

main90311-11003×2iLN85,86,90,RN85,90..4FC199012-199806

35506HSPACER (FOR MANUAL VALVE LEVER SHAFT)

main90560-20003iLN85,86,90,RN85,90..4FC198808-199806

35556SHAFT, PARKING LOCK PAWL

main35556-26010iLN85,86,90,RN85,90..4FC198808-199806

35556ERING, E (FOR PARKING LOCK PAWL SHAFT)

main90523-08021iLN85,86,90,RN85,90..4FC198808-199806

35557PAWL, PARKING LOCK

main35557-26010iLN85,86,RN85,90..4FC198808-199511

main35557-26020iLN86,RN85,90..4FC199511-199708

main35557-26031iLN90..4FC199611-199806

35557ASPRING, TORSION (FOR PARKING LOCK PAWL)

main90508-21001iLN90..4FC199611-199806

main90508-25001iLN85,86,RN85,90..4FC198808-199708

35561SHAFT, MANUAL VALVE LEVER

main35561-40010iLN85,86,90,RN85,90..4FC198808-199806

35572LEVER, TRANSMISSION CONTROL SHAFT, RH

main35572-22040iLN85,RN85,90..4FC198808-199708

main35572-35020iLN86,90..4FC199108-199806

35595BRACKET, PARKING LOCK PAWL

main35595-26010iLN90..4FC199611-199806

main35595-40010iLN85,86,RN85,90..4FC198808-199708

9010106024

main90101-06024

9411050800

main94110-50800

9451200800

main94512-00800

9454200600

main94542-00600

16 parts on this diagram · 3 diagrams in section
