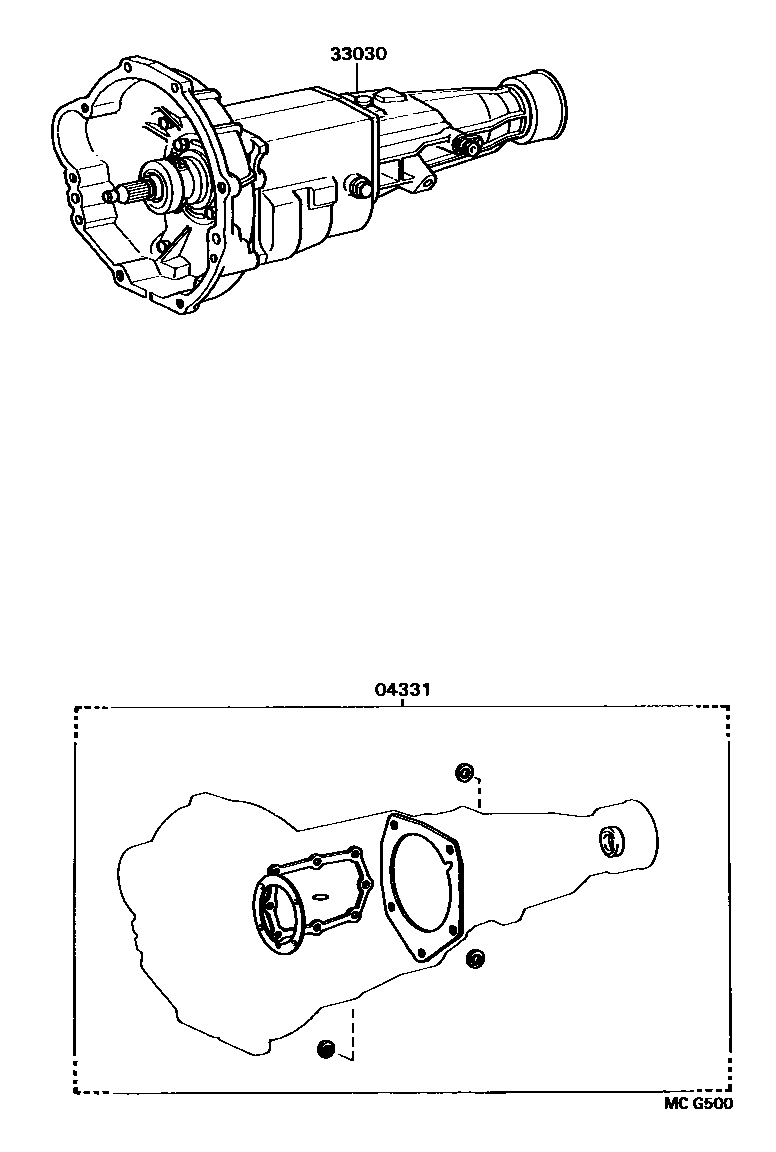

TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (MTM)

0001 1 0002 1G# 0006 1W#

04331GASKET KIT, MANUAL TRANSMISSION OVERHAUL

main04331-22040iRN8#..V199108-199110

main04331-35091iYN80,85..4F198808-199408

main04331-35170iRN85,90,YN85..5F..(ARL,GEN);LN8#,90,RN125,YN81,86,92..MTM199108-199305

main04331-35210iRZN200200106-200412

33030TRANSMISSION UNIT ASSY, MANUAL

main33030-35670iLN80,85,90..5F198808-199908

main33030-35680iYN80,85..4F198808-199108

main33030-35710iYN81,86,87,92..5F198808-199708

main33030-35720iYN86,87..5F..(GEN,V)198808-199008

W(185R14C TIRE)

main33030-35740iRN125,8#,90..5F198808-199108

main33030-35770iYN85..5F..GEN198808-199708

main33030-35780iYN85..5F198808-198907

W(185R14C TIRE)

main33030-35890iLN85..4F198808-199908

main33030-3D010iYN81,86..STD198808-199008

main33030-3D020iYN80,85..4F199408-199908

main33030-3D030iRN8#..STD..V198808-199008

main33030-3D090iYN85..ARL199208-199708

main33030-3D220iLN81,86,91..5F199008-200106

main33030-3D251iYN80,85..4F..GEN199208-199408

main33030-3D261iYN80,85..4F..GEN; YN85..ARL199108-199208

W(6.50-14 TIRE) OR W(185R14C TIRE)

main33030-3D300iRN8#..V199108-199110

main33030-3D320iRN8#..V199110-199208

main33030-3D321iRN8#,90..V199208-199408

main33030-3D322iRN8#,90..V199408-199708

main33030-3D450iRN85..EFI199401-199709

main33030-3D451iRN85..EFI..CBU199709-199908

AXLE CODE=G072

main33030-3D520iYN80,85..4F199408-199908

W(185R14C TIRE)

main33030-3D660iRN85..LHD..IV3199507-199709

main33030-3D880iRN85..EFI199709-199908

AXLE CODE=G252

main33030-3G100iRZN200200106-200412

W56

main33030-3G150iLN200200106-200108

G52

main33030-3G151iLN200200108-200412

G52

2 parts on this diagram · 3 diagrams in section
